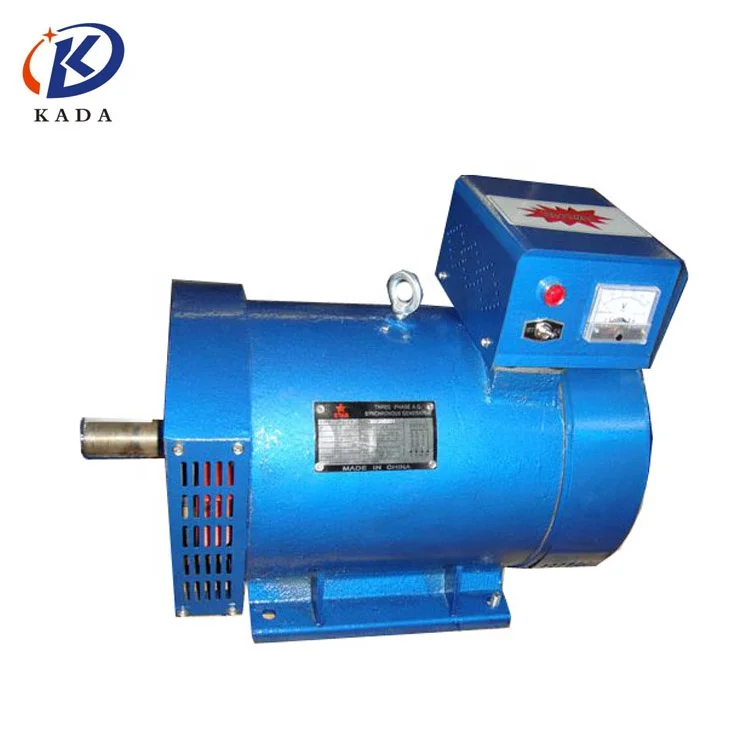

  • Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm
Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm

Kada good quality 100% copper 100% output ST10kw alternator generator 10kw generator 220v 230v 50hz 1500rpm

Share on (1714409448):


Price:

Quantity:


Product Overview

Description


Specification

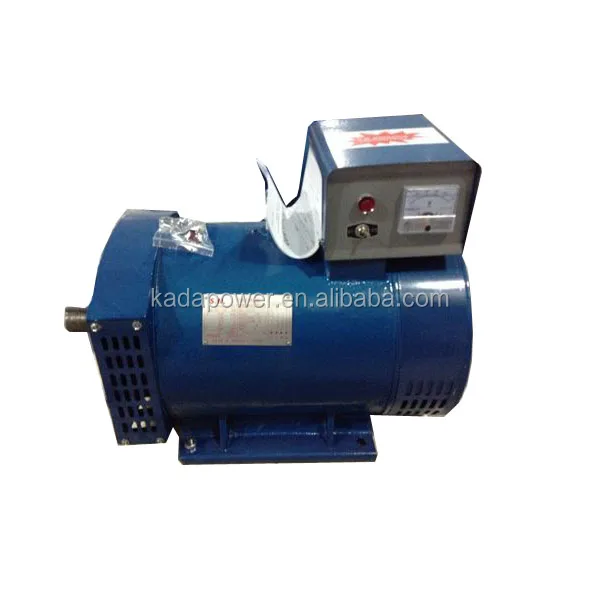

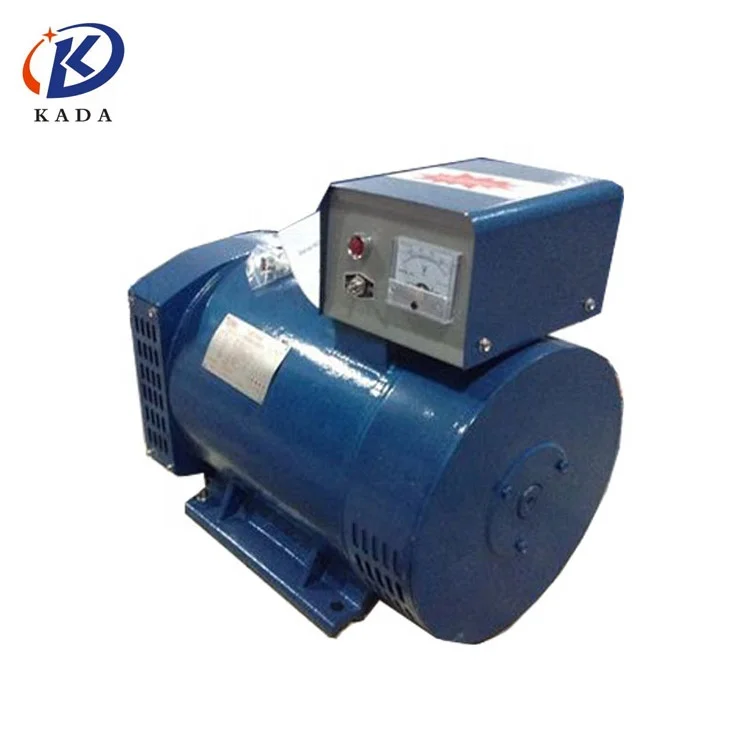

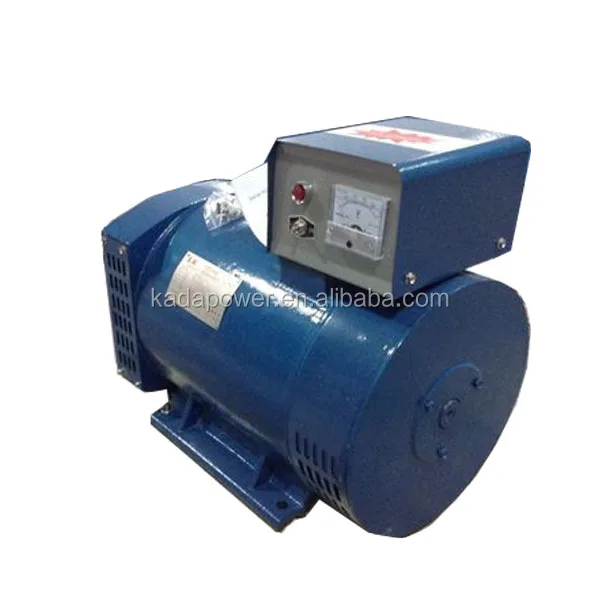

Model: ST-10KW/10KVA
1-PH, 50HZ@1500RPM, 230V
(Also can be made as per customer's requirements)
Power: 10kw/10kva Power factor: 1 Pole: 4
Voltage/Frequency: 50Hz/1500RPM
Weight: 98kg Packing: 68*42*58cm
Exciter type: Brush, Harmonic excitation system
Voltage adjust range: ≥3%
Voltage regulation NL-FL: ≤±0.3%
Insulation Grade: B Protection Grade : IP21


Description

The generator are to be used in town, the countryside, work sites, mountain and pasture lands as a electric power source for lighting purpose, it can also be used as a reserved power source for emergent case. The generators are of drip-proof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance.


ST/STC Brush Alternator Main Features


1. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel engines from worldwide, many S.A.E. flanges and S.A.E. drive discs can be easily interchangeable.
2. IP23 Protection, H insulation, Suitable for harsh environments.
3. All AVR's have numerous features for voltage adjustment, stability adjustment, low frequency protection and exterior
voltage adjustment. Standard AVR: EA460 Option AVR: EA440, EA230, EA08 or EA448
4. Standard 2/3 winding pitch, easy to be operated with other generators in parallel; Several types of winding are available to optimize performance. (Max. voltages available range up to 690V).
5. CSC generators are provided with three phase as standard, easy to alter the voltage by reconnecting for 12-leads on terminal plate, also the units can be run as single phase(except for CSC354).

\t
STC serise Three Phase A.C. 100% Copper Brush Synchronous Alternator
\t
Model
\t
Rated Output (KW)
\t
Rated capacity (KVA)
\t
Rated Current (A)
\t
Rated Voltage
(V)
\t
Polo Number
\t
Rated Speed (R/Min)
\t
STC-3
\t
3
\t
3.8
\t
5.4
\t








380
\t








4
\t








1500
\t
STC-5
\t
5
\t
6.3
\t
9
\t
STC-7.5
\t
7.5
\t
9.4
\t
13.5
\t
STC-10
\t
10
\t
12.5
\t
18.1
\t
STC-12
\t
12
\t
15
\t
21.7
\t
STC-15
\t
15
\t
18.8
\t
27.1
\t
STC-20
\t
20
\t
25
\t
36.1
\t
STC-24
\t
24
\t
30
\t
43.3
\t
STC-30
\t
30
\t
37.5
\t
54.1
\t
STC-40
\t
40
\t
50
\t
72.2
\t
STC-50
\t
50
\t
62.5
\t
90.2
\t
ST serise Single Phase A.C. 100% Copper Brush Synchronous Alternator
\t
Model
\t
Rated Output (KW)
\t
Rated capacity (KVA)
\t
Rated Current (A)
\t
Rated Voltage
(V)
\t
Polo Number
\t
Rated Speed (R/Min)
\t
ST-1
\t
1
\t
1
\t
4.2
\t






220
\t






4
\t






1500
\t
ST-2
\t
2
\t
2
\t
8.7
\t
ST-3
\t
3
\t
3
\t
13
\t
ST-5
\t
5
\t
5
\t
21.8
\t
ST-7.5
\t
7.5
\t
7.5
\t
32.6
\t
ST-10
\t
10
\t
10
\t
43.7
\t
ST-12
\t
12
\t
12
\t
52.2
\t
ST-15
\t
15
\t
15
\t
65.2
\t
ST-20
\t
20
\t
20
\t
87
\t
ST-24
\t
24
\t
24
\t
107
Certification
Packing

The normal package is plywood case.

Loading into 20ft container.

Load full container and shipping.

Because of heavy weight, the generator should only shipped by sea.

The custom clearance document, include original Bill of Lading, packing list and commercial invoice, will be sent by express DHL.

\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy or irrevocable L/C.

Q: What is your lead time?
A: About 25 days after receiving deposit or original L/C.

Q: What certificate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country.
