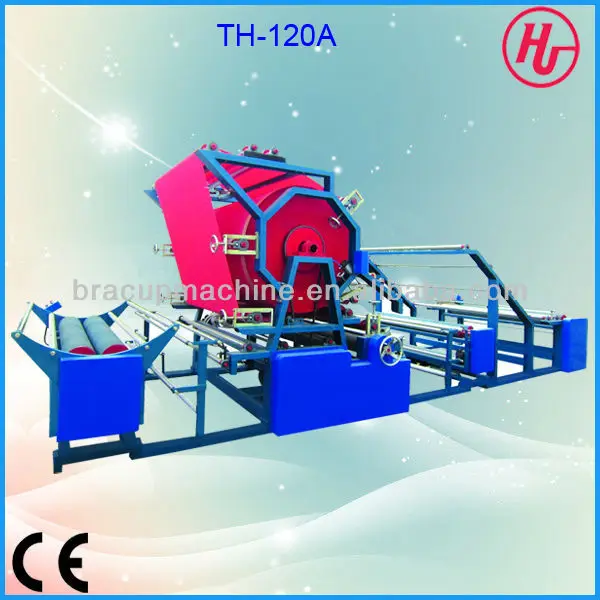

TH 120A PU Foam with Spandex Fabric Bonding Machine

Product Overview

Description







Function:

TH-120A Vertical Laminating Machine



Fabric laminating machine,

Laminating Machine for fabric with foam, fabric with fabric, or foam with foam, or fabric with foam with fabric, pu leather, eva sheet, insole board, pu leather and etc.



mainly used for the precise lamination production of high quality and highly elastic underwear fabrics with foam, plain fabric, knitted fabrics and etc.



Features:

1. Equipped with infrared automatic rectification system, material delivery automatically, decrease waste and avoid wrinkling.



2. It is a result after being improved in transmission system based on the original merits of other advanced models such as TH-120B / E / C.



3. Besides all functions of original models, it is efficient and of energy saving. It is worked by double cutters which has double efficiency.



4. unique and reasonable way to glue-coating makes the glue put evenly;



5. save much glue dosage. It can be processed by water and oil-based glue.



6. characteristics such as: soft, good texture, water-proof, ventilate and dry-cleanable.



Technical Parameters:

Power supply/Power	380V/35KW
Motion power	3HP+2HP(frequency control of motor speed
Specification of its heating roller	Ø1200×1830mm(it can be customized)
Working width	1700 mm
Working speed	0-45yards/min
Dimension of the machine	7800×2600×2400mm
Weight	3000KG







We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.
