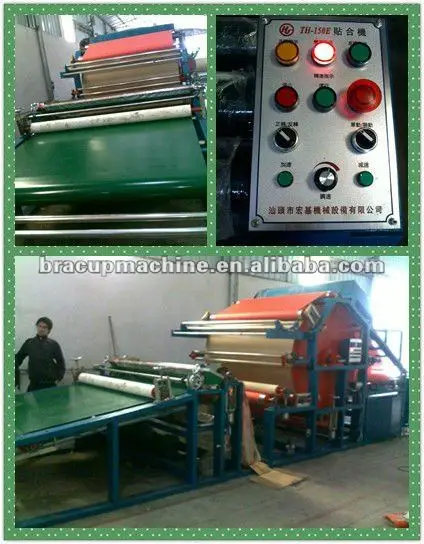

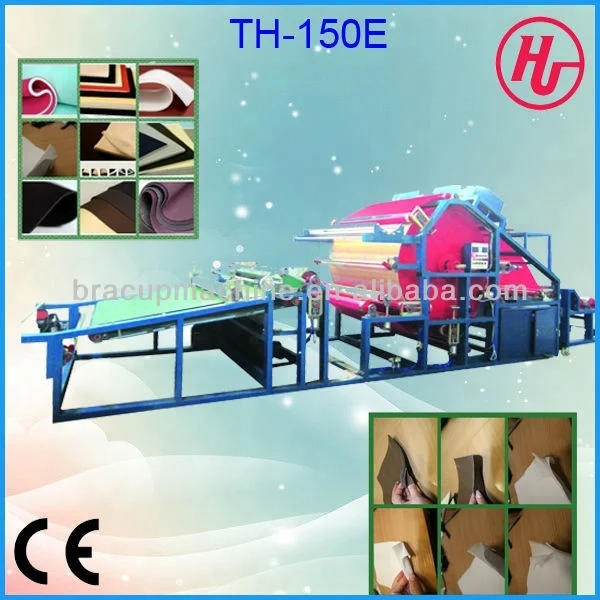

TH 150E Foam with Fabric Laminating Machine

Product Overview

Description







TH-150E Laminating Machine

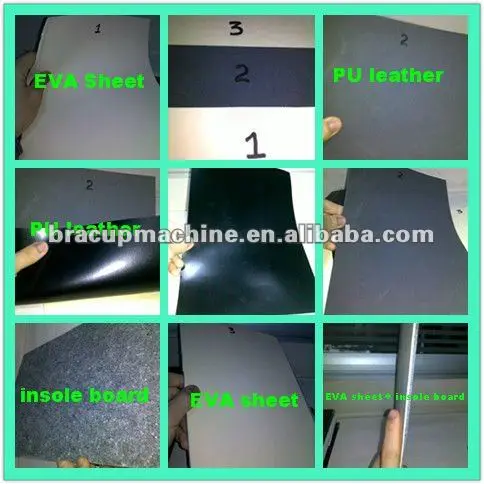

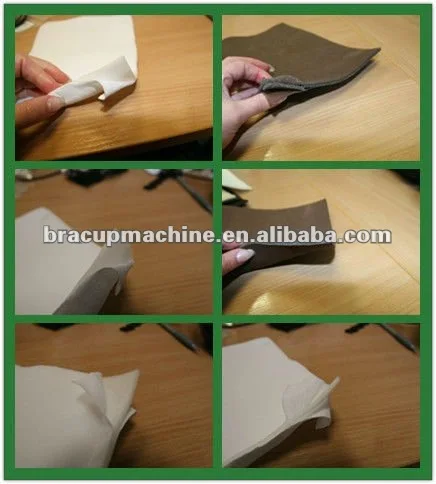

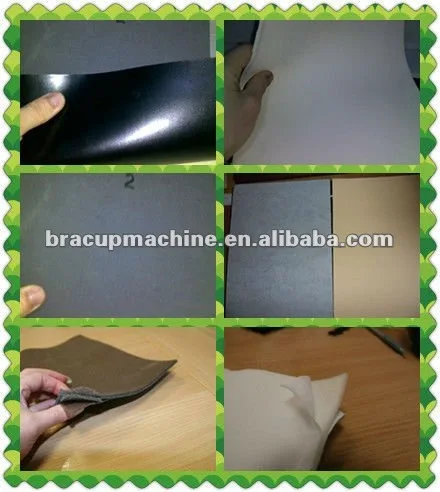

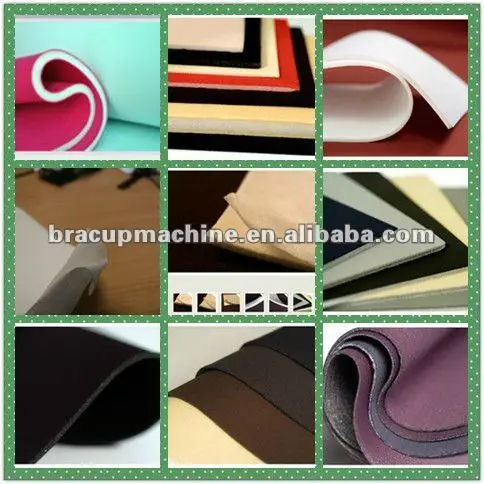

mainly used for the precise lamination production of high quality and highly elastic underwear fabrics with foam, plain fabric, knitted fabrics and etc.



Merits:
1. It is widely applied in different industries. Water-based glue and oil-based glue can be fit.



2. It is only required 4 persons to operate this machine if you laminate rolled-up foam materials, saving labor cost.



3. Compared with TH-120B, net belt is longer, and laminating time is longer. when the foam and fabric enter into big roller, it will pass through 1st safety roller to make lamination automatically.



4. With automatic oven drying to control temperature and time, it improves the drying for laminated materials.



5. With cooling functions, it keeps the light color foam or fabric materials not to be non-discoloring after cooling and rolled up.



6. Electrostatic dispose: Foam with fabric laminating by high temp will be easily produced static electricity, but after this anti-electrostatic device, it won't occur flame so as to avoid electric shock.



Features:

1. Unique gluing and sizing way, making the materials glued and coated more evenly and saving glue consumption. Water-based glue as well as oil-based glue is available.



2. Whether the whole bundle or flaky materials can be carried by conveyor belt to be coated glue and sizing. The raw materials can be pressed strongly by high-strength net belt so as to be laminated firmly much more.



3. Adopting second drying and air-cooling, not only reducing the procedures and saving cost, also it make the products laminated out more breathable and comfortable with soft-hand feeling.



4. Saving much cost and labor than traditional laminating machines.



Technical Parameters:

Power supply/Power	380V/66KW
Motion power	10HP+2HP(frequency control of motor speed)
Specification of its heating roller	Ø1500×1830mm(it can be customized)
Working width	1700 mm
Working speed	0-45yards/min
Dimension of the machine	8000×2400×2300mm
Weight	3200KG







We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.



1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
