Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and ⅡA, ⅡB, ⅡC explosive gas atmosphere.
Features:
1.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.
4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
5.Beautiful appearance, several types of installation methods available.
The light source of Nibbe high power LED lamp adopts integrated multi-chip encapsulation and very efficient heat-dissipation technology; it saves the energy of over 70% than traditional light; the life expectancy is more than 50,000 hours. With cooperation of several scientific research institutes, NIBBE LED lights have made breakthrough on core technology with the integration of light source, design of light distribution structure of heat dissipation, circuit drive, and intelligence control of streetlights. For energy saving, illuminance, light evenness, safety, waterproofness, dust-proofness, and explosioproofness, all parameters of them reach relevant industry standards.
Housing is die cast in aluminum alloy with high voltage static plastic-sprayed surface Lampshade of tempered glass and stainless exposed fastener Guard net surface is dipped after galvanized Fastened with eyelet bolt, it can be turned on quickly, installed and maintained conveniently Lampshade may be mounted at request of users
Specifications
Name
explosion proof led flood lights
Lighting source
Bridgelux COB LED
Parameter
Value
Power Consumption
10W/15W/20W/25W/30W
Input Voltage
95-265V/ 24V DC
Frequency
47-63 Hz
Beam Angle
140°
Explosion-proof Grade
Ex d II C T6
Corrosion-proof Grade
WF2
IP Grade
IP67
Power Factor
>0.90
Total Harmonic Current
<20%
Lamp Efficiency(%)
≥90%
Junction Temperature(TJ))
<55°C
Color Rendering Index(CRI)
Ra>70
Light Effect
>80lm/W
Storage Temperature
-40°C-60°C
Lifespan
>50000Hs
Material
Aluminum Alloy
Cable Entry
Φ8~Φ14mm
Threaded Fitting
G3/4"
Installation Height
2~4m
Net Weight
3Kg
1 Luminous body of very high intensity, large viewing angle, good quality and stability 2 Base made of aluminum. Major reduction in power costs. No RF interference and no buzzing noise. 3 Adoption of high quality aluminum alloy, aluminum substrate as heat dispersion material guarantee the stability and high efficiency of LED, and effectively reduce its brightness degradation in the process of application 4 Energy-saving and environmental conservation, long lifespan 5 Solid-state, high shock resistant, strong packaging, convenient to transportation
Primary Competitive Advantages Green Product, Guarantee/Warranty International Approvals Military Specifications Price, Product Features, Product Performance, On time Prompt Delivery, Quality, Approvals, Reputation, Service, Small Orders Accepted,
Packaging & Shipping
PACKAGING
CARTON 290X290X320MM. GROSS WEIGHT:4.75kg CARTON FOR LONG DISTANCE TRANSPORT, CUSTOMIZED COLOR CARTON OR WOOD BOX
Our Services
Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.
1 Sample
One pc sample is acceptable
2 Customized
Our engineering experts not only provide tailor-made solutions according to client's requirements, but also create broad range of value-added accessories to existing vehicle market. With our effective services and reputable records, we have well-established relationships with customers worldwide. Our stringent quality control has enabled us to become an OEM/ODM projects supplier with solid track records.
3 After-sales
NIBBE guarantees the quality of LED explosion proof light for limit of three years
Company Information
Why Not NIBBE?
1 NIBBE is one of the largest and leading Explosion-proof Lighting factory in China.
2 Most NIBBE products use high quality imported COB LED and Power Supply.
3 NIBBE has the highest standard and its products can meet Ex d II C T6 Gb, Ex d I Mb.
4NIBBE has a wide product range and covers all main kinds of explosion proof lights and is ideal for one-stop sourcing.
5 NIBBE has over 10 global patents.
6 NIBBE factory has been certified with ISO 9001: 2008 system
7 NIBBE is the first Chinese factory with main international approvals, including ATEX, cLCus, CE, RoHS, etc.
8 NIBBE products have at least 3 years warranty.
9 NIBBE is the key supplier of big enterprises, such as SINOPEC, CNPC, CNOOC, and etc.
10 NIBBE has rich gloal experience and has exported to over 40 countries for 5 yrs.
11 NIBBE is one hour drive from Hong Kong and very easy to visit.
12 NIBBE will have its own industrial park to enlarge the production capability this month.
Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.
Why not buy from the original OEM/ODM factory with better price and quality reliability?

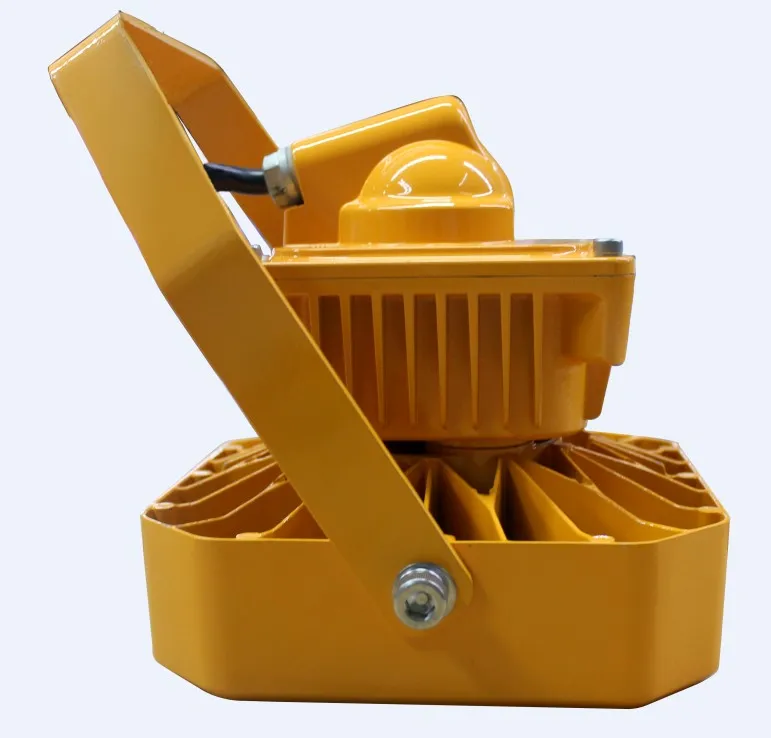

HAZARDOUS LOCATIONS FLOOD LIGHTI
FAQ
1. What certification do you have for your LED Explosion proof lights?
Answer: We have CE, RoHS, ATEX, cLCus, China Explosion proof approval for all of our LED explosion proof lights.
2. What experience do you have for LED explosion proof light application?
Answer: We are supplier of LED explosion proof lights for many famous companies, such as Sinopec, CNPC(China National Petroleum Corporation), CNOOC(China National Offshore Oil Corporation),etc.
You can see some cases from //www.nb-led.com/cases.html .
3. Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other suppliers ?
Answer: Nibbe's LED explosion proof lights are designed and patented independently by Shenzhen Nibbe Optoelectronic technology Co.,Ltd. We ensure quality by using Bridgelux LED chip, aluminum housing and tempered glass. We ensure safety by strict testing and inspection. Yes. All of led explosion proof lights are unique, high-quality and safe.
4. How long is your LED explosion proof lights guaranteed?
Answer: We provide 3 years warranty for our LED explosion proof lights.
5. Then your LED explosion proof lights would be very expensive?
Answer: They deserve high value. However, Nibbe will provide all customers with reasonable price based on your quantity.
6. What's your MOQ? Can I buy one sample?
Answer: Our MOQ for LED explosion proof lights is 10pcs. Clients who want to buy 1-9pcs are also welcome. The sample charge would be 5% higher than normal production order.
7. So what's your LEAD TIME for sample and normal order production?
