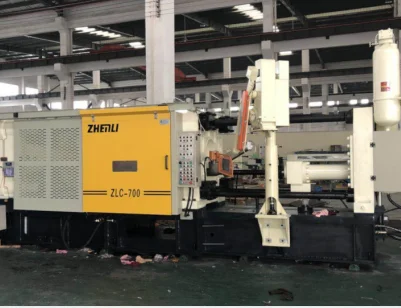

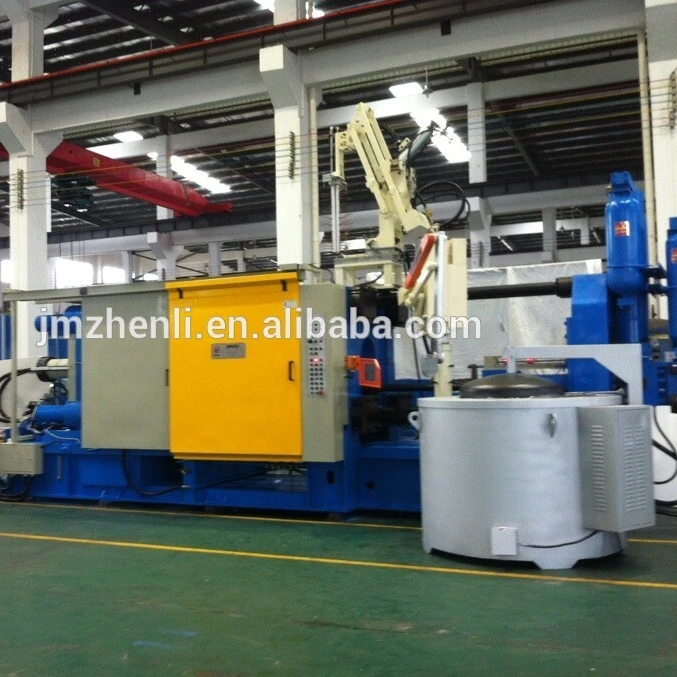

700T continuous aluminum die casting machine injection molding machine for aluminium
- Category: >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (1715825907):
Product Overview
Description
700T continuous aluminum die casting machine injection molding machine for aluminium
Why Choose Us
Adhering to the business philosophy of “Keeping Improvement and High Performance”and the faith of “Innovation and Integrity”, in pursuit of high quality,reliance and reputation, Zhenli always places more emphasis on the technology and management. Because of its advanced technology, high quality and effective management, Zhenli’s hot chamber as well
as cold chamber die casting machines have won the trust and love of our clients at home and abroad. Besides, our machines are widely applied in the sectors of toys, appliances, building materials and hardware, industrial parts, auto parts, electronics,etc.
In a word, our machines almost can satisfy all kinds of production of castings.Apart from professional equipment, a qualified R＆Dteam,the stable performance and reliable quality of machines, Zhenli will provide excellent pre-sale and after-sale services, which makes Zhenli become a best-selling brand in the domestic and external market. So far, in addition to 30 provinces or cities in China, Zhenli’s die casting machines have been sold to more than 50 countries in Europe, South America, Africa, Southeast Asia and the Middle East and so on.
as cold chamber die casting machines have won the trust and love of our clients at home and abroad. Besides, our machines are widely applied in the sectors of toys, appliances, building materials and hardware, industrial parts, auto parts, electronics,etc.
In a word, our machines almost can satisfy all kinds of production of castings.Apart from professional equipment, a qualified R＆Dteam,the stable performance and reliable quality of machines, Zhenli will provide excellent pre-sale and after-sale services, which makes Zhenli become a best-selling brand in the domestic and external market. So far, in addition to 30 provinces or cities in China, Zhenli’s die casting machines have been sold to more than 50 countries in Europe, South America, Africa, Southeast Asia and the Middle East and so on.
Description for Electric & Hydraulic components
1. Siemens 200 control system with LED monitor(Germany).

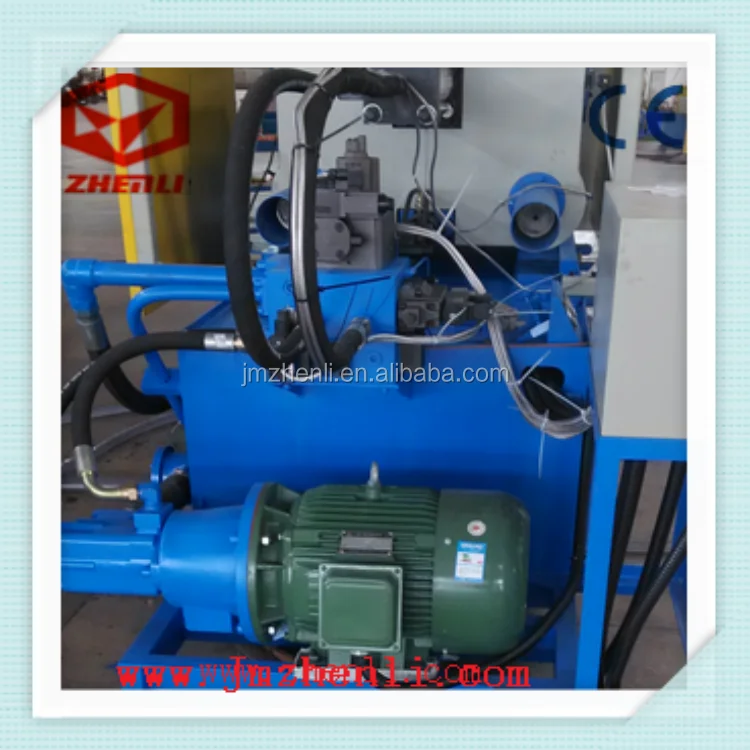

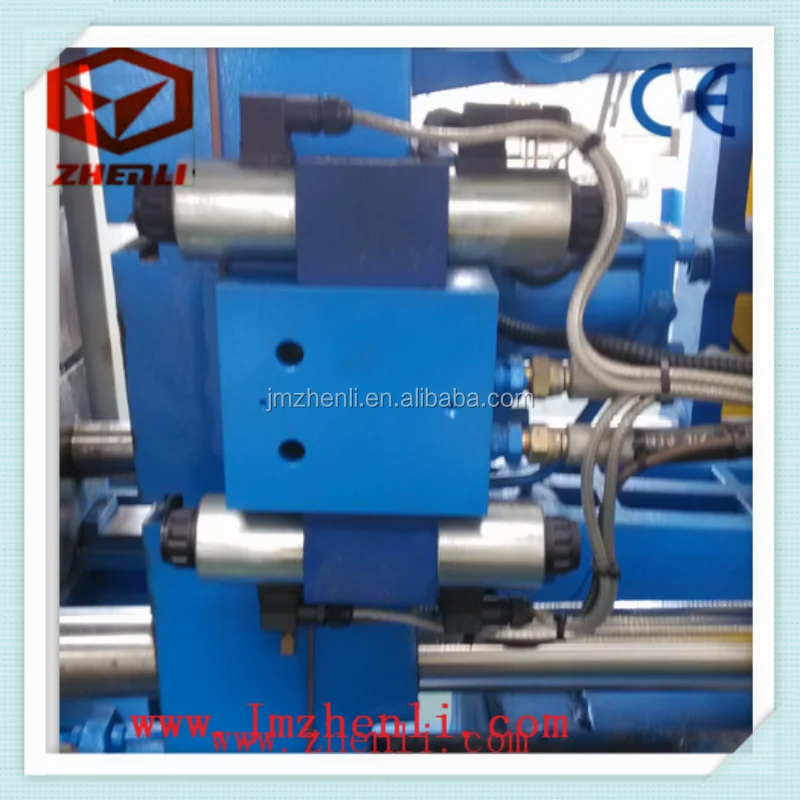

2. Imported components are used for hydraulic units including YuKen (Japan), Rexroth(Germany) and Vickers (USA) to ensure the stability of hydraulic system.
3. Hydraulic Pump is from Vickers (USA).
4. Sealing members are from Trelleborg(Sweden)and Fluorten (Italy).
5. Posts and columns are purchased from General Taiwan.
6. Electric parts are purchased from France Schneider.
2. Imported components are used for hydraulic units including YuKen (Japan), Rexroth(Germany) and Vickers (USA) to ensure the stability of hydraulic system.
3. Hydraulic Pump is from Vickers (USA).
4. Sealing members are from Trelleborg(Sweden)and Fluorten (Italy).
5. Posts and columns are purchased from General Taiwan.
6. Electric parts are purchased from France Schneider.
Standard Configuration
1. Double-toggle lock mould structure, high
strength spheroidal graphite iron casting plate.
2. Low pressure mold closing protection.
3. Mould adjustment device for gear train oil motor.
4. Concentrated automatic lubrication system.

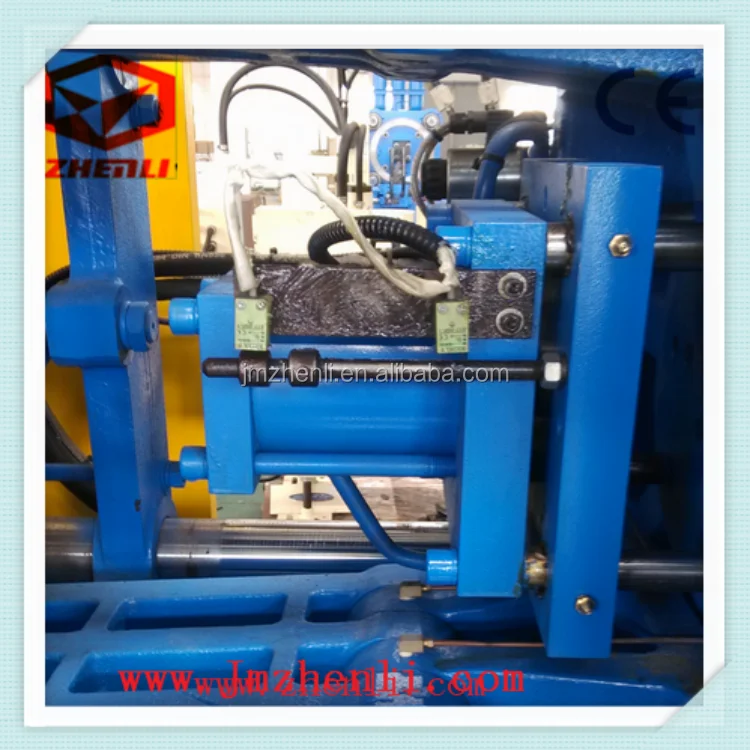

5. Fast hydraulic ejector device and core pulling device.
4th level injection control system.
6. Independent piston 2-speed and pressure charging energy accumulator.
7. Hydraulic elevator sprue platform.
8. E-ruler control on mould opening and closing
9. Power saving high and low pressure twin pump hydraulic system.
strength spheroidal graphite iron casting plate.
2. Low pressure mold closing protection.
3. Mould adjustment device for gear train oil motor.
4. Concentrated automatic lubrication system.
5. Fast hydraulic ejector device and core pulling device.
4th level injection control system.
6. Independent piston 2-speed and pressure charging energy accumulator.
7. Hydraulic elevator sprue platform.
8. E-ruler control on mould opening and closing
9. Power saving high and low pressure twin pump hydraulic system.
Products Description
ITEMS | UNIT | ZLC-700T |
Locking Force | kN | 7000 |
Die Open Stroke | mm | 650 |
Ejector Force | kN | 315 |
Ejector Stroke | mm | 155 |
Die Height（Min.-Max.） | mm | 350-850 |
Die Platen Size（HXV） | mm | 1256×1360 |
Space Between Tie Bars | mm | 800×800 |
Shot Position | mm | 0，-250 |
Shot Strock | mm | 650 |
Casting Force（intensify） | kN | 590 |
Plunger Diameter | mm | 80,90,100 |
Injection Weight | kg | 6.0,7.8,9.5 |
Casting Pressure | MPa | 117,92,75 |
Casting Area | cm² | 596,754,931 |
Casting Area Max | cm² | 1750 |
Chamber Flange Diameter | mm | 150 |
Chamber Flange Protrusion | mm | 15 |
Plunger Penetration | mm | 290 |
Main Pump Driving Motor | kW | 37/55 |
Working Pressure | MPa | 14 |
Oil Tank Capacity | L | 1200 |
Machine Dimensions (L×W×H) | mm | 7580×2060×3150 |
Referential Machuine Weight For Uplifting | T | 31 |
Company Profile
Certificate
Sales and Service
Transport & Payment
FAQ
Q: Is your company a trading corporation or manufacturer?
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
