Пассажирский лифт/подъемник на 6 человек

Product Overview

Description

1.Specifications



Persons	Rated Capacity (kg)	Rated Speed (m/s)	Door opening size (mm)	car size(mm)	Hoistway size (mm)	Machine room size(mm)	Top floor height(mm)	Pit depth(mm)	Max traveling height (m)
			D.WxD.H	C.WxC.DxC.H	H.WxH.D	MR.WxMR.DxMR.H
8	630	1	800x2100	1400x1100x2400	2000x1700	2000x3000x2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
10	800	1	800x2100	1400x1350x2400	2000x1950	2000x3400x2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
		2			2000x2150	2000x3400x2500	4900	1700	100
		2.5					5100	1900	120
13	1000	1	900x2100	1600x1400x2400	2200x2000	2200x3450x2200	4400	1400	40
		1.5					4500	1500	60
		1.75					4600	1500	70
		2			2200x2200	2200x3450x2500	4850	1700	100
		2.5					5100	1900	120
16	1250	1	1000x2100	1700x1500x2400	2300x2200	2300x3450x2200	4500	1400	40
		1.5					4600	1500	60
		1.75					4700	1500	70
		2			2500x2400	2300x3450x2500	4900	1700	100
		2.5					5100	1900	120
21	1600	1	1100x2100	1900x1800x2400	2500x2500	2500x3750x2200	4500	1400	40
		1.5					4600	1500	60
		1.75					4700	1500	70
		2			2600x2650	2500x3750x2500	4900	1700	100
		2.5					5100	1900	120





2.Constraction Layout Drawing



3.Advantages of Delfar Passenger elevator

3.1 Be sure of success,multiple protections-Control system.

3.2 Green environment-friendly energy-saving device--Effect energy-saving.

3.3 Beautiful and gorgeous--Industrial modeling design.



4.Optional:

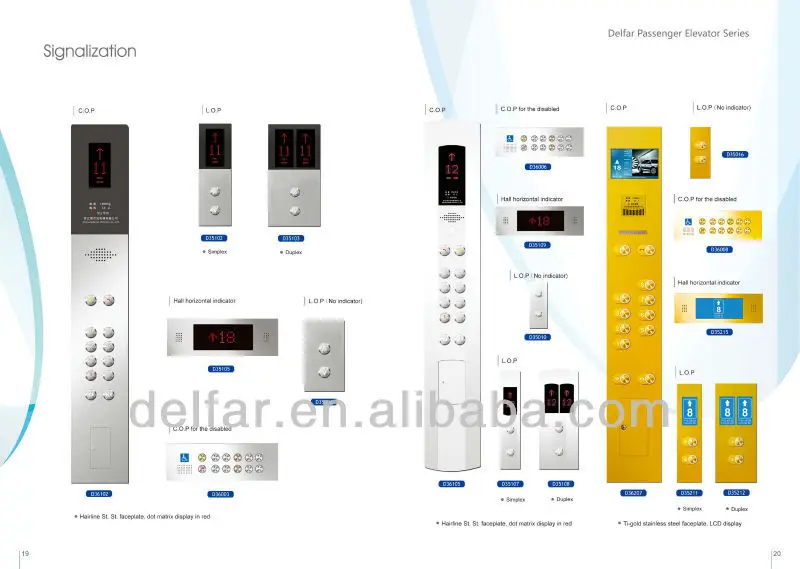

4.1 Signalization

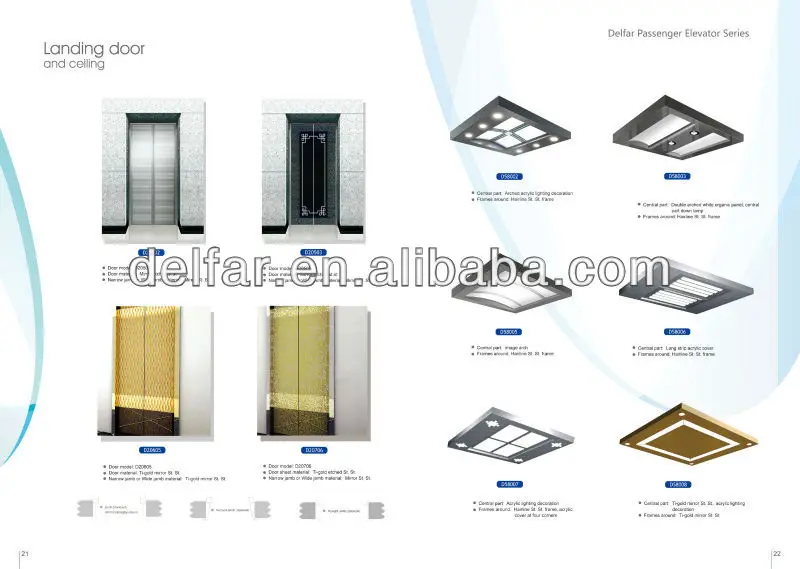

4.2 Landing door and ceiling

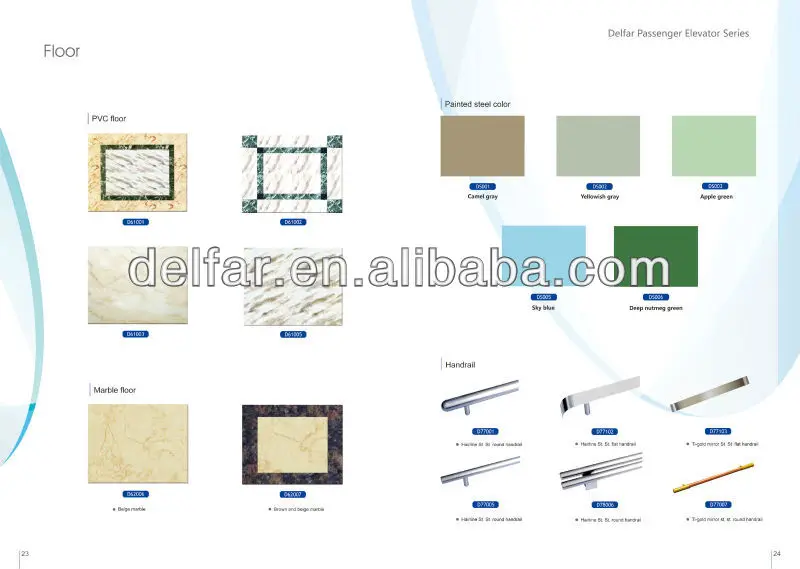

4.3 Floor

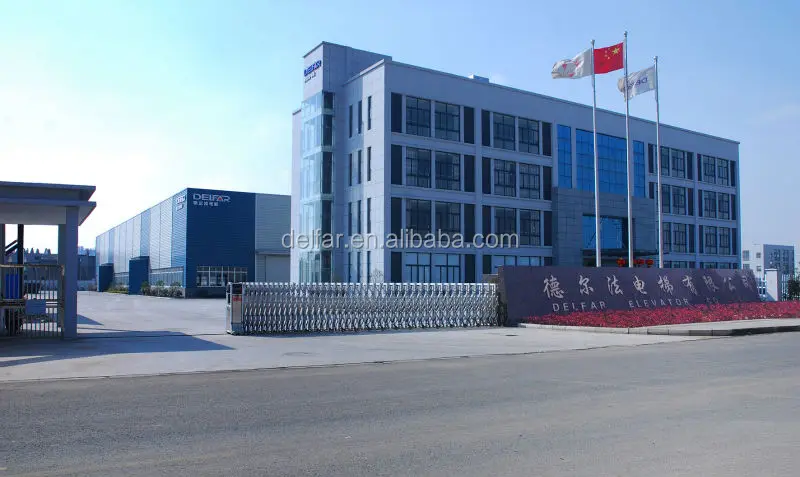

1.Company information



Zhejiang Delfar Elevator Co., Ltd. is a professional elevator company who designs and manufactures complete elevators, escalators and moving walks, as well as elevator parts. The company covers a land area of over 40,000 square meters with more than 17,000 square meters of factory houses and 3,000 square meters of office area. Currently, 135 employees work for DELFAR, which includes 52 engineering technicians.

2.Certificates









1.Delivery detail: 30 days after deposit
