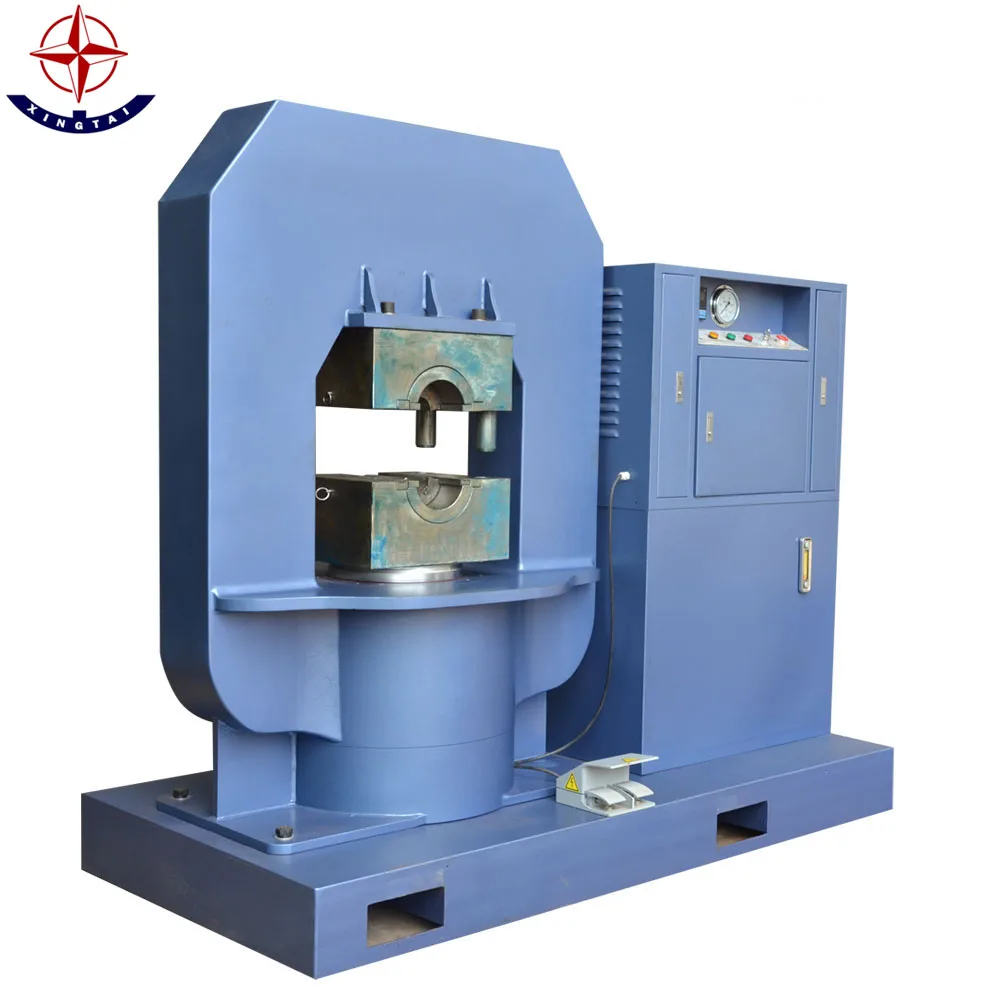

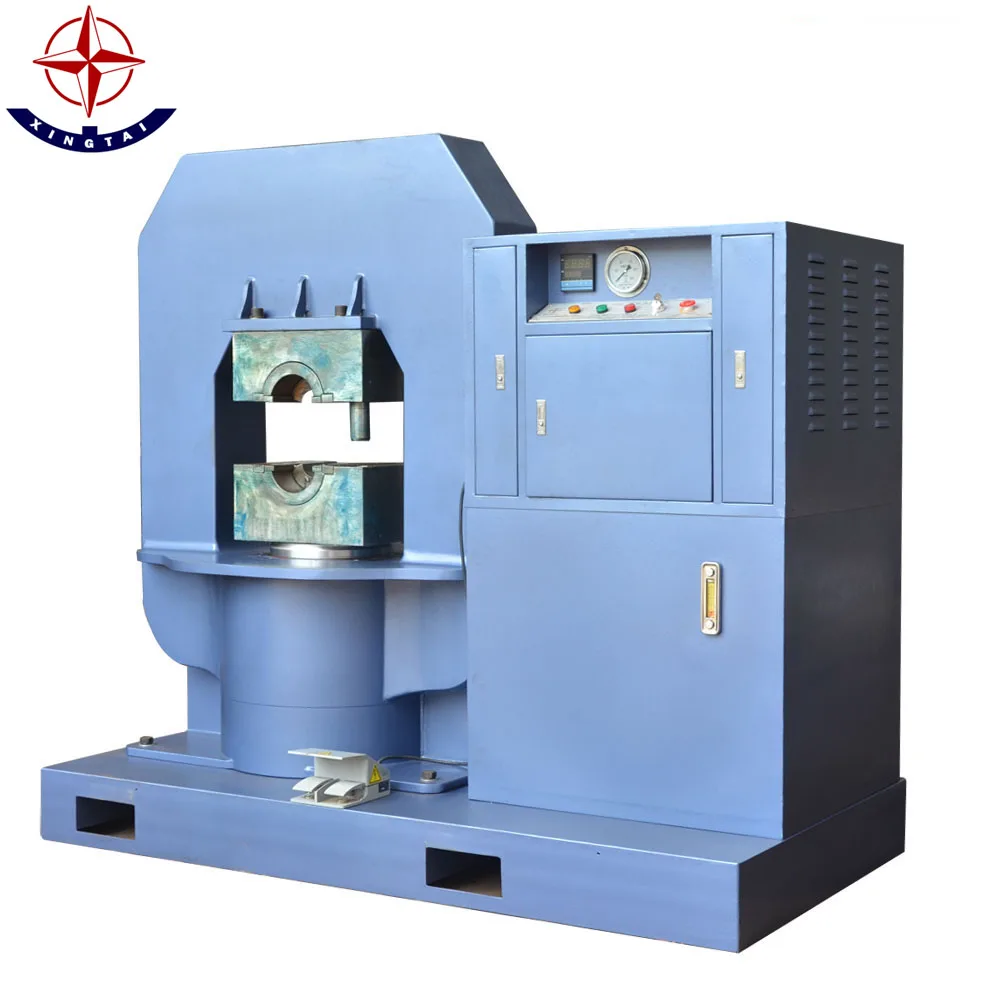

The wire rope hydraulic pressing machine to make wire rope slings:
The technical data:
Mode No.
GT-1000T
Max press power (KN)
10000
Max wire rope diameter in one pressing (mm)
Φ44
Max wire rope diameter in multi-pressing (mm)
Φ56
Power (KW)
11
Max working pressure (Mpa)
56Mpa
Max piston movement (mm)
200
The up speed of piston (mm/sec)
4.8
The down speed of piston (mm/sec)
10
Total length (mm)
2550
Total width (mm)
1100
Total height (mm)
2100
Net weight (kg)
5500
Product Description:

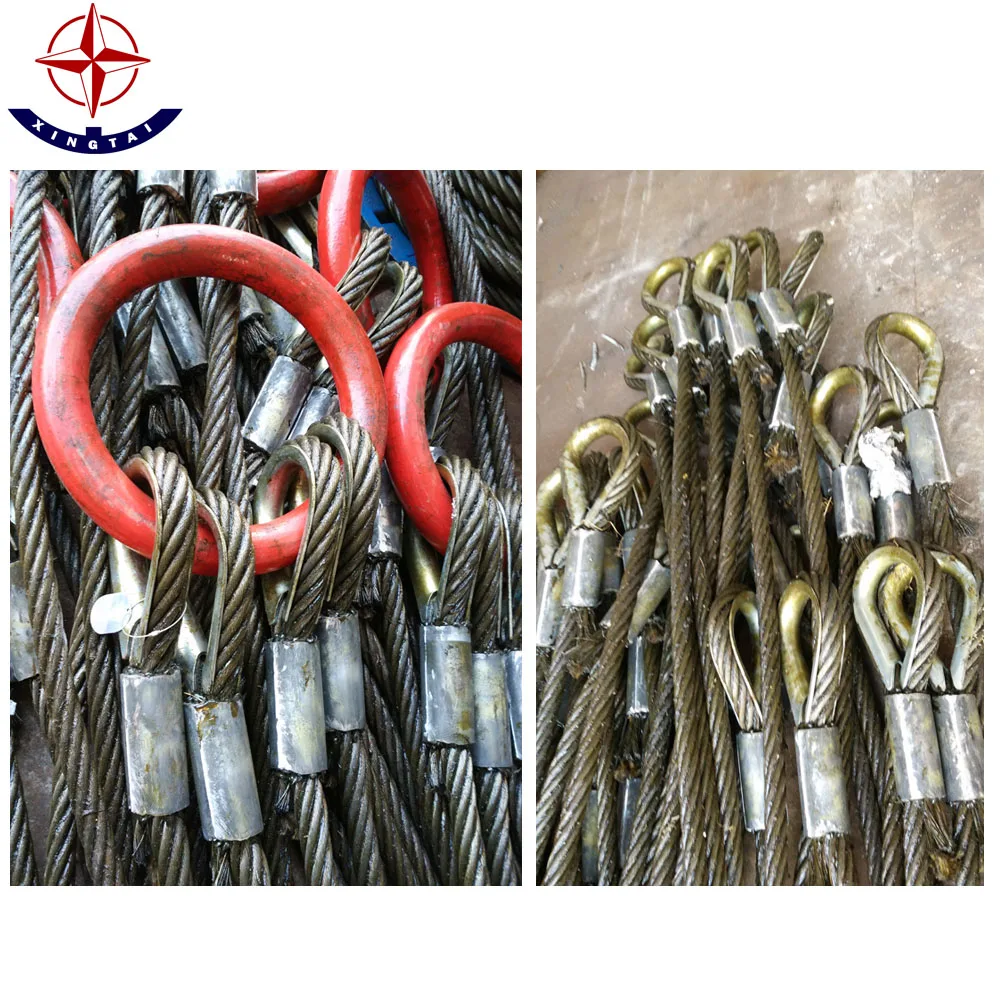

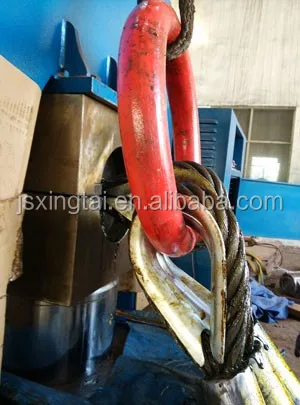

Xingtai wire rope slings press machines are used to make pressed wire rope sling. The body of swagers are manufactured from one single block construction that ensure strength, long service life and a minimum of maintenance. All swagers are thoroughly test run and are supplied with a full tank of oil.

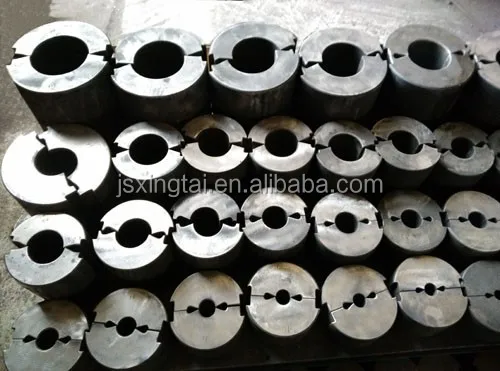

1. It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.
2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
3. Electric control parts of the low-voltage control, an increase of operating system security.
4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.
5. Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.
Company Information
Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd was founded in 1992, and located in Taizhou City, Jiangsu Province, China. Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope annealing and tapering machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic owns advanced producing equipment, tremendous technique capacity, authoritative test facility, prefect quality management system.
Xingtai hydraulic swage construction is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Xingtai hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency. Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
Xingtai hydraulic regards the concept of high quality, competitive price, eternal promise as service policy, We shall meet customers'need and offer customer best service. We will try our best to provide service to our old and new clients as before and build our nice future together.
FAQ
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services? A:24 hours around the clock & 12 months warranty Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: We will delivery machine with use manual.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
Q: How can we believe your quality or service?
A: We have many oversea customers, you can contact them to know more about us. Maybe we have customers in your country, you may call them or visit them to see our machine.
If you have any other question please do feel free to contact us.
