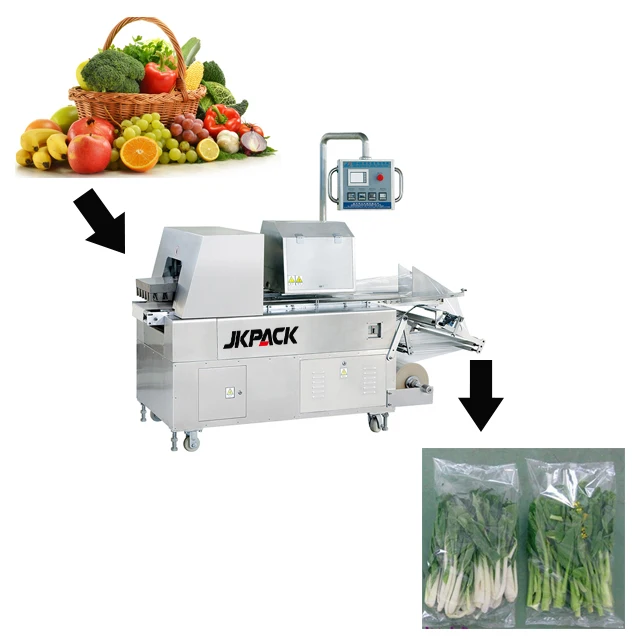

JY 620/850/DXD 620 Fresh Fruit And Potato Pillow Vegetable Wrapping Packing Machine

Product Overview

Description

Characteristic:

Fresh Pepper And Vegetable Pillow Packing Machinery is suit for packing the big size, the paper is from the bottom.

Computer operation screen is simple and intuitionistic, suit common operator to operate this machine.

Good security. There are safety device for preventing cut the product.

Horizontal sealing can setup single side sealing or both sides sealing unattached.

(No need manually set bag length. During operation the machine can automatically self-detect and set the bag length.)

We can supply corollary equipment as following:

1. date printer

2. Gas filling device



Features Of Fresh Pepper And Vegetable Pillow Packing Machinery:

1. Machine has two film shaft in order to exchange film easily.

2. There is a sensor in the horizontal sealing position to show error in cutting.

3. The horizontal sealing can be set single cutter or double cutter.

4. There is device to exhaust air in the bag during packing.

5. The cutter is designed for lubricant relieving, so no lubricant required for cutter maintenance.

6. Language: a. Chinese b. English or a. Chinese b. Japanese



 Main electric component:

         PLC: SIEMENSE (Germany, made in CHINA) OR OMRON

Touch Screen: SIEMENSE (Germany, made in CHINA) OR OMRON

         Photo sensor: SICK (Germany)

         Temperature controller: OMRON (Japan)

 MACHINE PACKING:



Fresh Pepper And Vegetable Pillow Packing Machinery Main parameter:

Model	JY-620	JY-850
Vegetable packaging machine		Three servo motors
Max Production Capacity	20Pcs/min	35 pcs/min
Length of finished bag	1000mm	Random
Max Packing Bag Width	280mm	380mm
Max. packaging bag height		170mm
Packaging film thickness	0.045-0.06mm	0.02-0.05mm
Max. Width of Film	620mm	850mm
Max. Dia. Of Film		¢350mm
Gross Weight	3KW	3kw
Overall Dimensions	2250mm*900mm*1900mm	2320*1150*1350mm
Gross Weight		400kg
Power Supply	220V/50HZ	220V 50HZ
