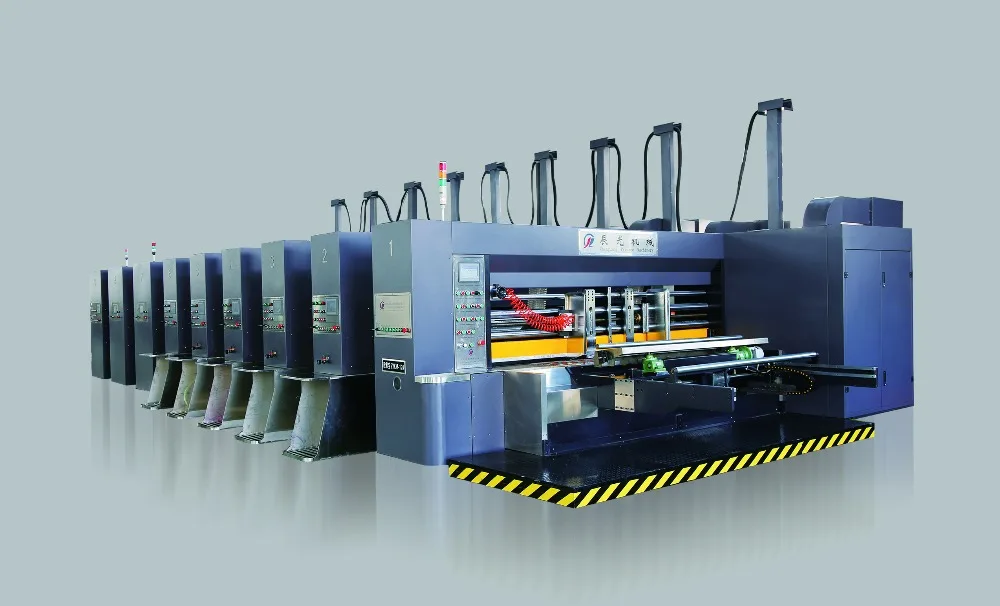

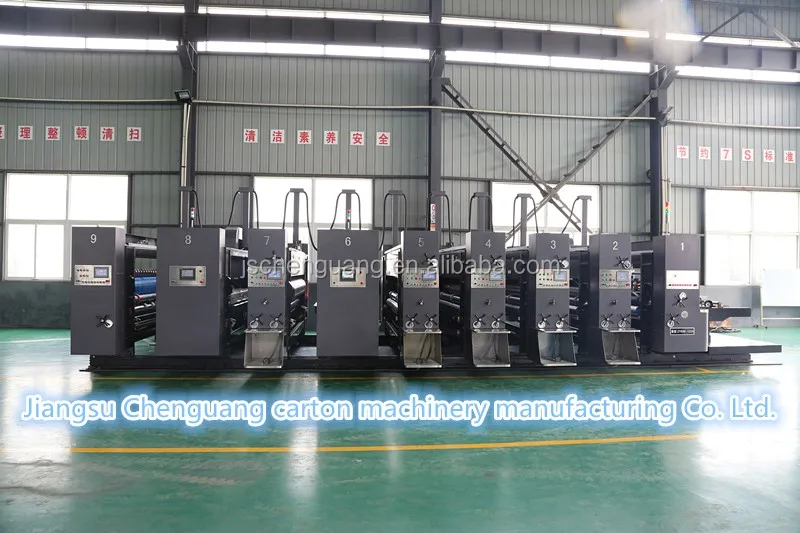

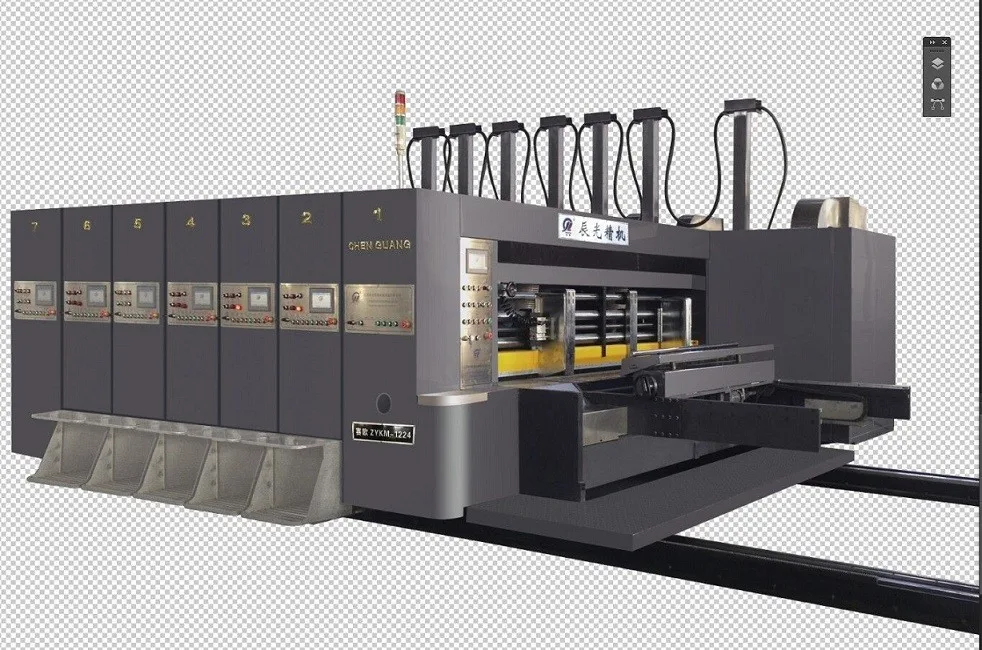

We adopt advanced design which structured by designer from Taiwan .It gather advanced experience from Europe and other districts .Our separate parts are made according to the International standard .
Standard parts and electric pneumatic components are both World-famous brand which reflect high quality and stability. The lifespan of our machines can be prolonged .In that case, the safety and convenience can be guaranteed
We can see:
1.The whole machine is designed and manufactured according to the high requirements with the reliable and safety function, enable the quick order changing and user's friendly operation.
2.Excellent materials and parts are adopted, all the rollers are made of the fine steel with chrome plating and surface grounded.
3.All the driving gears are imported products, with harden treatment and its Rockwell hardness is above 60 degrees.
4.Adopted joint ring-free technology, to reduce the abrasion and achieve the precise printing result.
5.With Automatic zero setting, and reset function
6.Gear box adopts gear oil pump andspray lubrication to ensure the teeth of the gear can be properly lubricated.
7.Each working unit is motorized for open and close action, with the warning alarm to ensure the safety.
8. The feeding roll, pressing roll, rubber roll and anilox roll are finished grinded and electroplated by thick wall seamless steel pipe.
9. The pressure adjustment system are used by auto-lock turbine box.

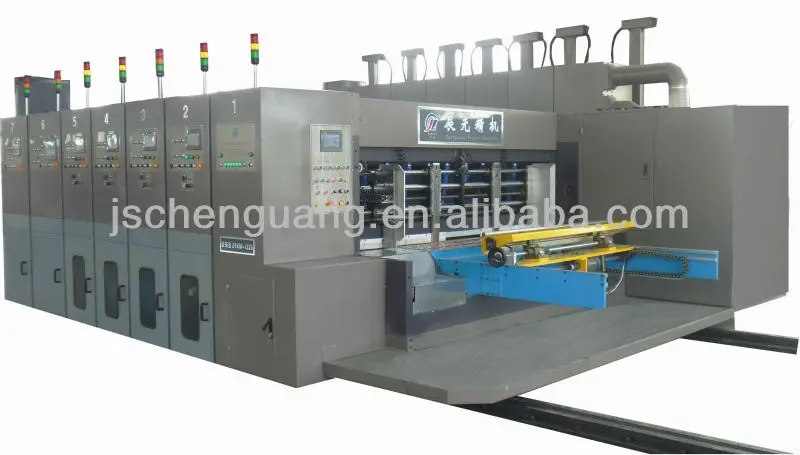

First. Feed unit
Front feeding system
1.FRONT-EDGE feeding unit ensures the stability , frequency and accuracy.
2.Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different sizes of paperboard
3.The side and front board are driven by wire rod connecting the electric adjustment or digital regulation, the left side is patting device.
4.The distance of the front board can be adjusted by the paper thickness, plus the auto-lock. Function.
5.The feeding system is flexible with continuous and skipping mode, which guarantees the large-scale paperboard to be produced.

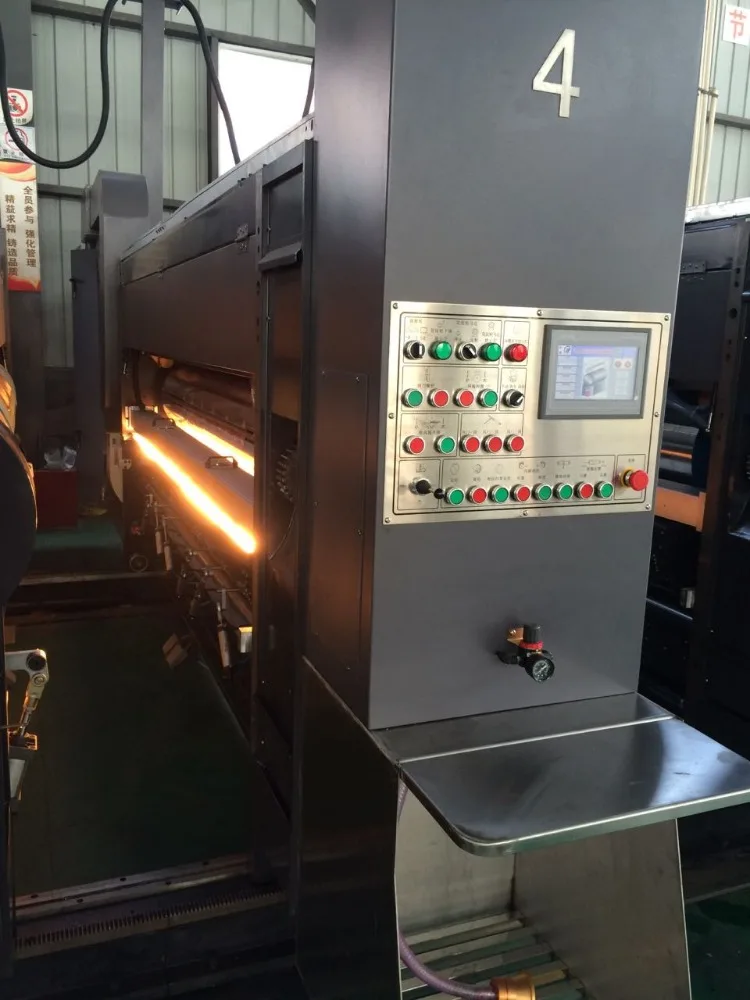

6. The Operation Panel is equipped withPLC touch screen which contains the controller of quantity and speed in the way of start, stop and changing the speed.
Working units motorized open and Close :
1.Working units are motorized for Open and Close action, with warning alarm system, when the machine is working, the Alarm bell shall continuously sound to ensure the user's safety.
2.Vapour Pressure Interlock device can be closely and conveniently locked.
3.The transmission axis is equipped in case of overload.
4.The overall lock system can ensures the smooth operation.
5. The main motor is assembled with protective device from the starting up when the units are not fully closed and locked and the lock system will be deadlocked against turning .
The sweeping system:
Dust removal system with several brushes and negative pressure suction machine can greatly clean the impurity from the paperboard, to achieve the high printing quality.
Working units are motorized for Open and Close action, with warning alarm system, when the machine is working, the Alarm bell shall continuously sound to ensure the user's safety.
2.Vapour Pressure Interlock device can be closely and conveniently locked.
3.The transmission axis is equipped in case of overload.
4.The overall lock system can ensures the smooth operation.
5. The main motor is assembled with protective device from the starting up when the units are not fully closed and locked and the lock system will be deadlocked against turning .
feeding rollers
1.The upper feeding roller use rubber roller which contains two faces.The inner part is soft and the outer part is hard. S o ,the feeding process is stable and the rubber can be fabricated sooner.Fast dismounting replacement and the dynamic balance adjustment is adopted.
3.The gap of worm-gear case can be adjusted according to the thickness of paperboard. It also be equipped with lock device. The scope of it is between 2 to 11MM.
Second. Printing Part
Printing scroll
1.Containing plate diameter phi 396mm
2. The printing cylinder is made of fine materials with harden treatment and chesrome plating, adjusted under the Static correction which runs smoothly with high speed.
3.The rollers are carved the reference line in the horizontal direction and the circumferential direction.
4. The ratchet can be fixed by plate rolling shaft device which ensures fast change of forme
5.The printing scroll can be adjusted or controlled by electrical positioning
6.The keyless and foot-operated on-off device make the plate loading and unloading convenient
7.Auto-zero function adopted
8.The printing scroll shaft can be electrically adjusted by 10mm
Three. Slot department
Creaser
1. Pre-creaser and creaser adopt thick tube ,ensures the rigidity. Withthe roll body chrome grinded, prolong the lifespan.
2.A replaceable structure is used with the roll body chrome grinded.
3.The pressure of creaser is adjusted by hand on which the dial records shown
Four Delivery:
Bed lift
1.Photoelectric control system uses a lifting bed attached by the balance insurance device
2.Driven by strong chain and the stack height can add to 1600 mm
Transmission hand
1.Pneumatic adjusting connection arm
2.Retractable and individually adjusted by the degree of tightness
3.Patting device is equipped
Five.Main outsourcing parts
1.The main motor:Siemens frequency conversion motor
2.Bearing:the Japanese NSK IKO and other international well-known brand
3.Electrical components:
4.(1)Independent type electronic control unit which is safe and reliable;
(2)Relay, lights, buttons, contactor, air switch use famous brands like OMRON or Schneider;
(3)Japan Mitsubishi frequency converter is the priority;
(4)Airtac pneumatic components
Highest mechanic speed (PCS)
220
Economical mechanic speed(PCS)
120-150
Maximum feeding size
1200×2550
Maximum printing size
1200×2400
Skip feeding size
1 600×2950
Minimum feeding size
330×600
Maximum slot depth
300mm
Printing Precision
±0.5mm
Appropriate thickness of cardboard
2~11mm
Die-cutting precision
±1.0mm
Company Information
Jiangsu Chenguang Carton Machinery Manufacturing Co.,Ltd covers an area of 3000 square meters, owns more than 60 professional and technical personnel. Our company is a large scale carton machinery R&D base, it gathers researching, development, production and sales. From 2011 to 2013, we have received 13 countries practical patents and 3 national invention patents, and become a member of China council for wrapping paper, Huai'an printing industry association, Ningbo packaging technilogy association. Our company is a national high-tech enterprise, innovative companies in the top 10, the company's products won the title of Huai'an famous brand products.
