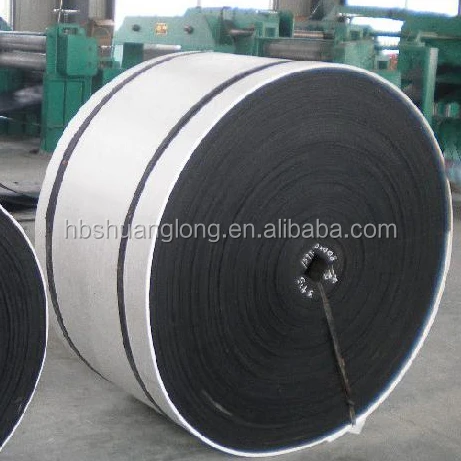

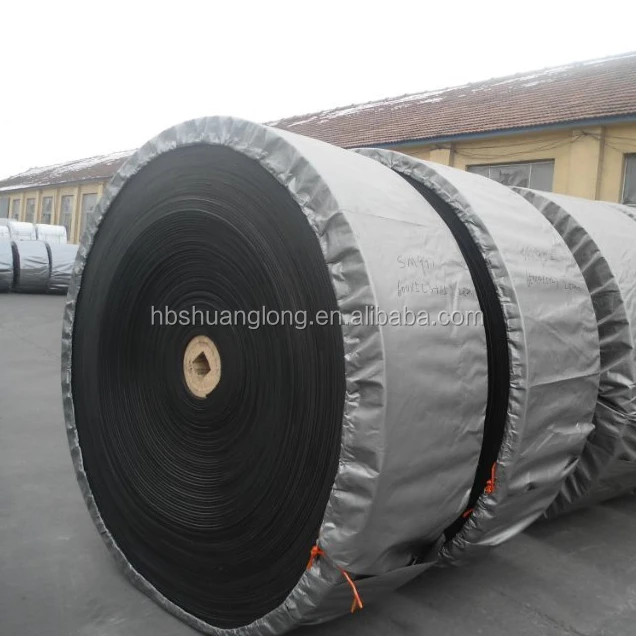

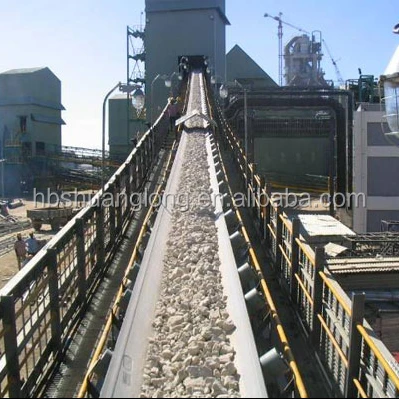

Polyester/nylon/cotton fabric reinforced rubber conveyor belt

Product Overview

Description

Polyester/nylon/cotton fabric reinforced conveyor belt



Rubber conveyor belts are used in a wide variety of material transport application such as manufacturing, food processing and heavy industry. Our company provide many kinds of rubber conveyor belts with superior quality and competitive price.You can choose the parameter of each term in the above table as you need.And if you have some special demand,please contact us,we may provide you with the best service.



Features



Polyester Nylon (PN or EP):



Synthetic woven fabric, with polyester fiver in the warp and nylon fiber in the weft



Medium, long distance and heavy load transportation of materials



Low elongation and good troughability





Nylon Nylon(NN):



Consists of synthetic woven fabric with nylon fiber



High impact and abrasion resistance with extended belt life



Highly flexible and good troughability



Manufactured to AS1332 or DIN Standards





Belt Construction:



Comprising of top and bottom cover rubber



Textile fabric carcass of one or more plies to provide the tensile strength



Rubber skim coats which play a significant role in determining the belt load support and troughability





Specification of Polyester/nylon/cotton fabric reinforced conveyor belt :



1.Tensile Strength:10-20Mpa
2.Width: 300mm-1600mm
3.Thickness: 6mm-30mm
4.Number of ply: 2-10

5.Fabric type of belt's carcass:nylon,polyester,cotton

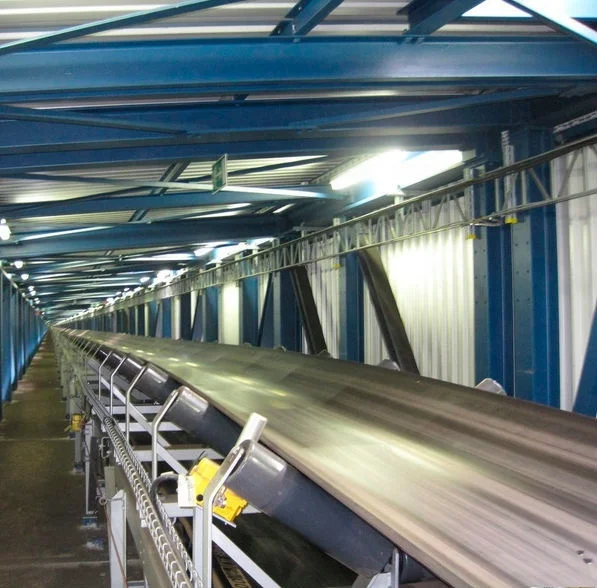

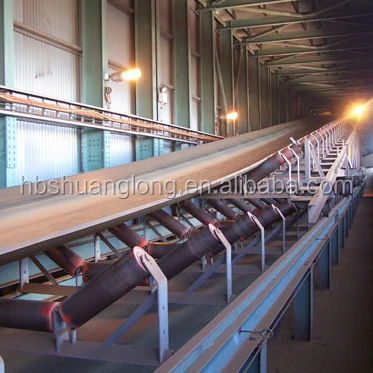

Applications of Polyester/nylon/cotton fabric reinforced conveyor belt:



• mining,coal mine

• chemical industry

• quarry & stone factory

• cement & concrete plants

• cogeneration power plant

• metallurgical & foundry industry

• port & wharf loading and unloading

• steel mill & metal processing industry

• building/architectural material industry



Parameter of Multi-layer Polyester/nylon/cotton fabric reinforced conveyor belt:



Belt type	Fabric type	Single  Fabric strength (N/mm)	Single fabric  thickness (mm)	Rubbercover thickness        (mm)		Ply	Belt  width (mm)	Belt length (m)/roll
				Top rubber	Bottom rubber
Cotton Canvas  (CC) conveyor belt	CC-56	56	1.10	3.0/4.5/6.0	1.5/3.0	3-12	300-1800	100-1000
Nylon (NN)  conveyor belt	NN100	100	0.70			2-10
	NN150	150	0.75
	NN200	200	0.90
	NN250	250	1.15
	NN300	300	1.25
	NN400	400	1.50
Polyester (EP)  conveyor belt	EP100	100	0.75			2-10
	EP150	150	0.85			2-6
	EP200	200	1.00
	EP250	250	1.20
	EP300	300	1.35
	EP350	350	1.50
	EP400	400	1.65



Polyester/nylon/cotton fabric reinforced conveyor belt's structure:

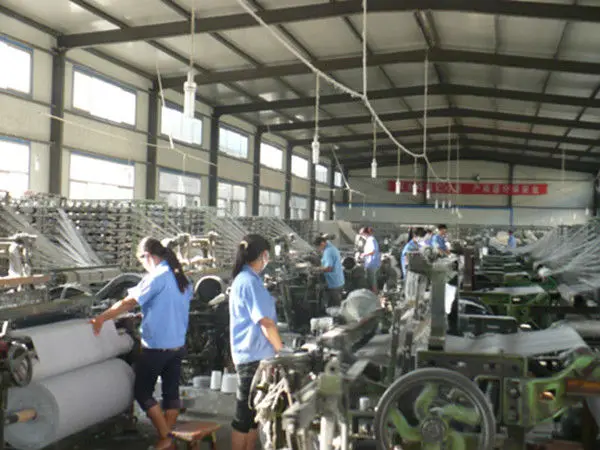

Our equipments & workshop:

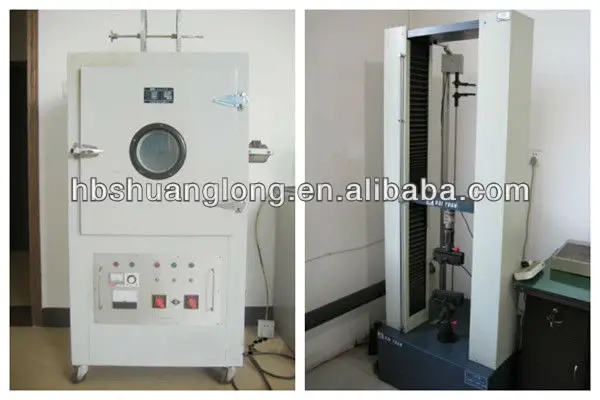

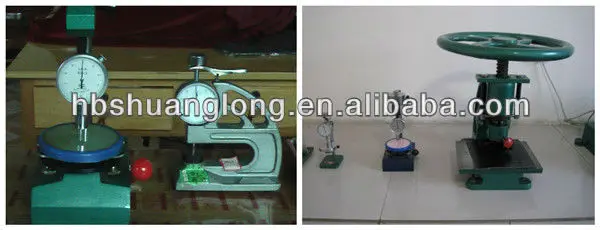

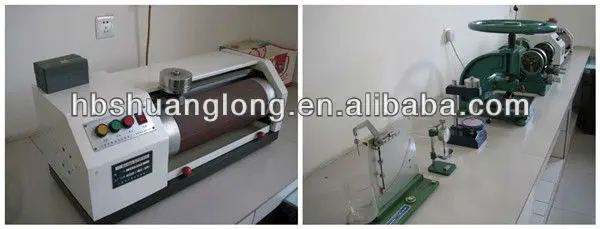

 our testing equipment to guarantee the quality:





 Certificates we have:





conveyor belt catalogue of our company:



general conveyor belt

solid woven flame retardant conveyor belt

heat/cold resistant conveyor belt

abrasion resistant conveyor belt

oil resistant conveyor belt

chemical resistant conveyor belt

polyester(EP) core conveyor belt

nylon(NN) core conveyor belt

steel cord conveyor belt

cotton canvas(CC) core conveyor belt

corrugated sidewall conveyor belt

endless conveyor belt

patterned conveyor belt





Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
