Sub Zero Low Temperature Glycol Chiller

Sub Zero Low Temperature Glycol Chiller Product Application

Main Features

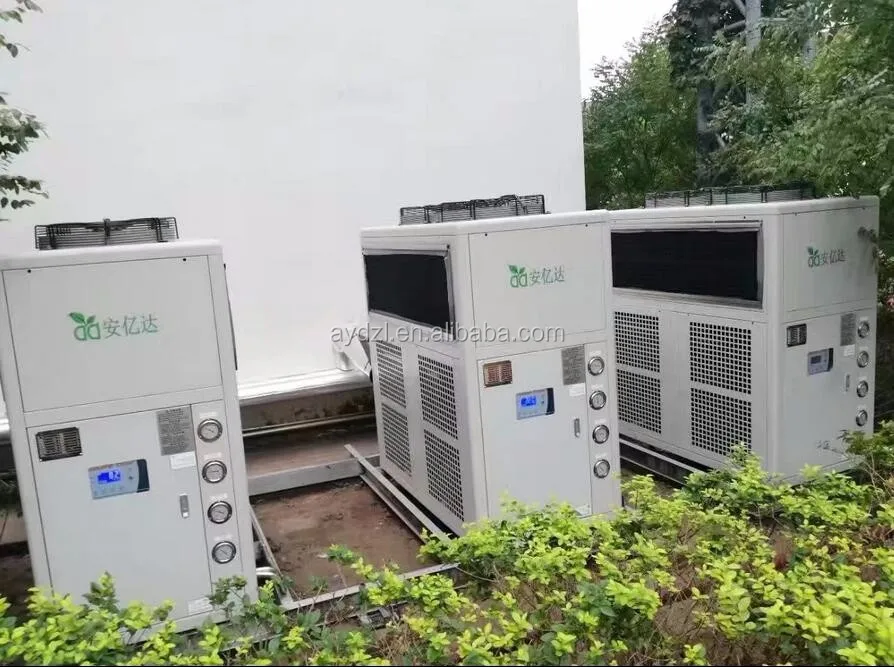

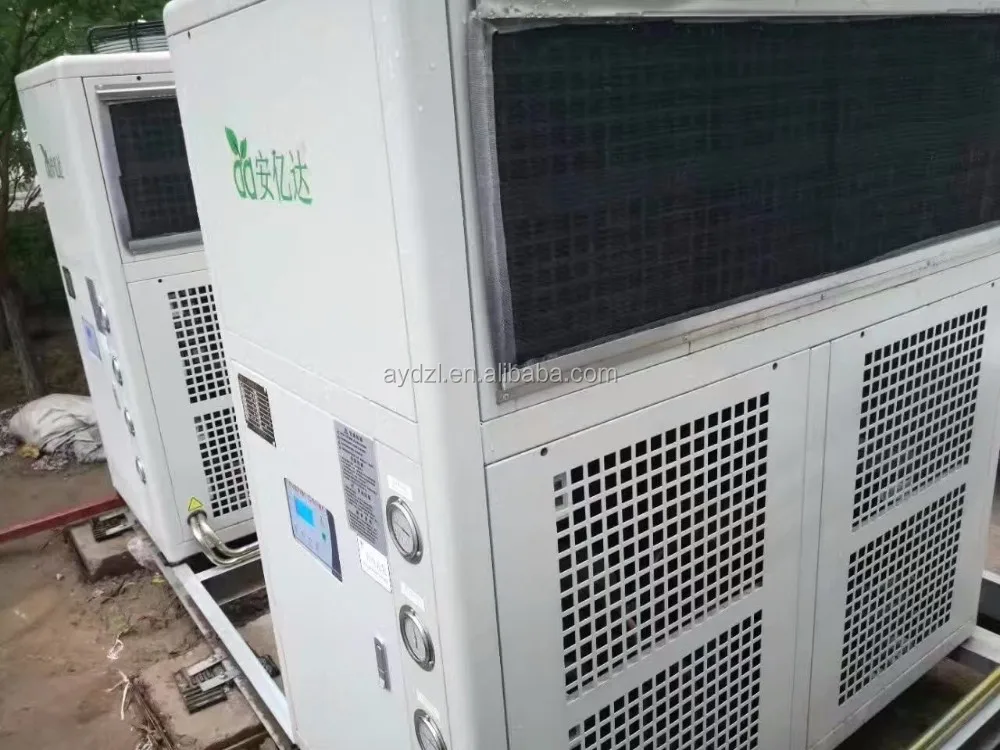

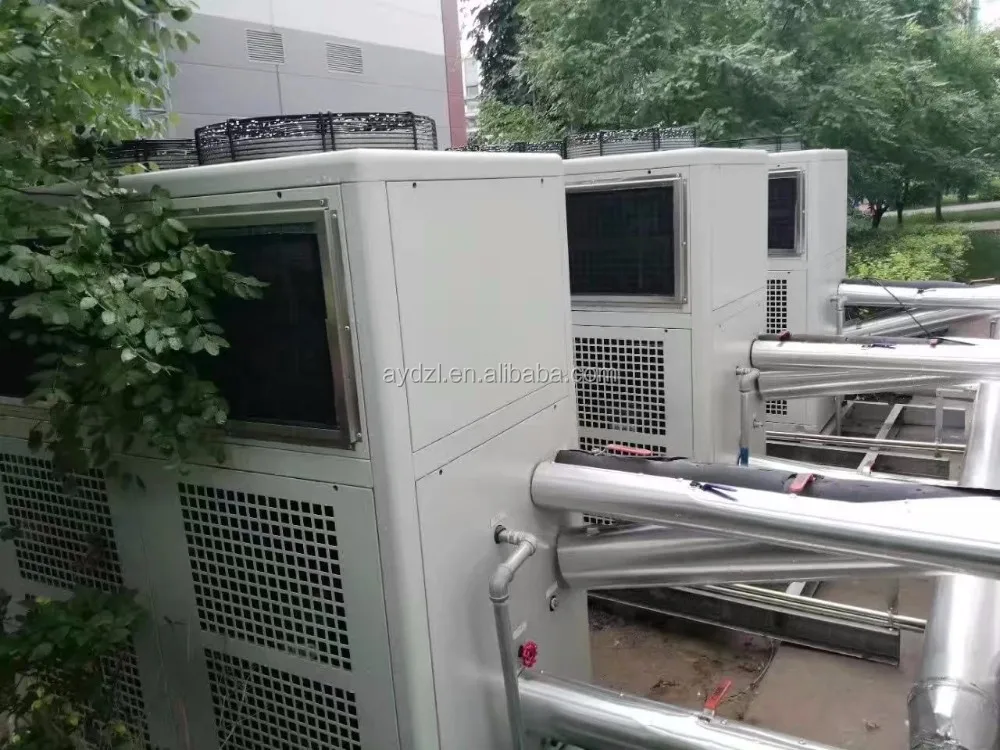

Anyda Industrial Water Chiller is designed of case type, totally-enclosed case shell, and beautiful appearance. It can be placed directly on the working site, keep constant running ever under changeable temperature outdoors and prevent dust from influencing heat elimination.

1.Main machine use compressor of famous brand imported from America and Japan, with safe protection, low noise, energy-saving and durable.

2.Electric control part use famous brand LG which can search failure automatically and display it on the screen at the same time to ensure the machine operate steadily.

3.Evaporator adopt high-efficiency U type screw tube, with pump inside, clean and maintenance easily and quickly.

4.Condenser is consistant by fin type aluminum foil and high-effciency screw tube, with rational design and in good heat exchange effect.

5.Only need to connect the pipe with source of water and electricity when installation.

6.Low running maintenance charge

Machine Parts

Name: Compressor
Brand: Sanyo/ Copeland
Name: Condenser,Evaporator

Brand: Anyda

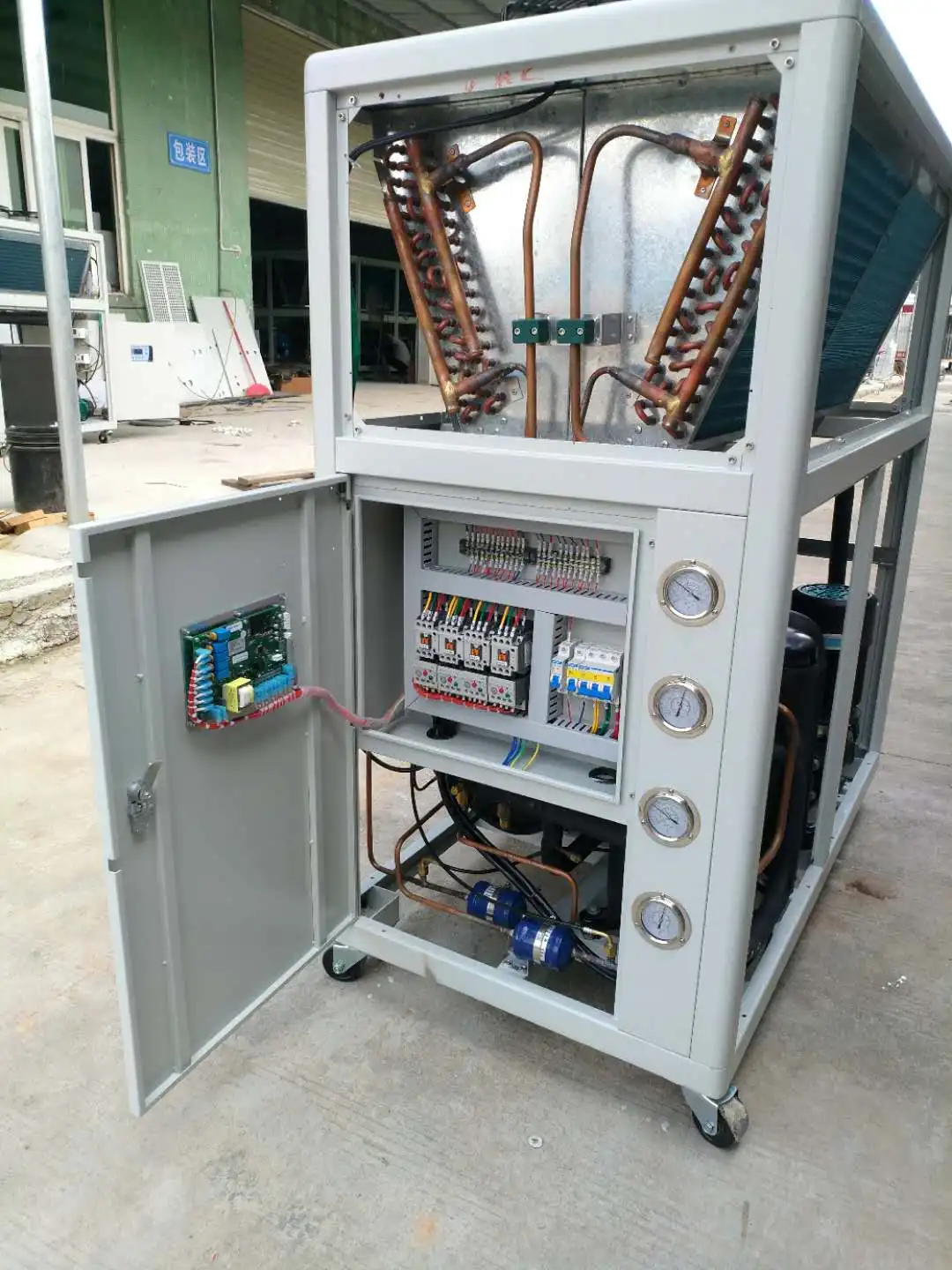

Name:Control Panel

Brand:Punp

Other Parts

Name: Electrical Parts
Brand: LG/Schneider

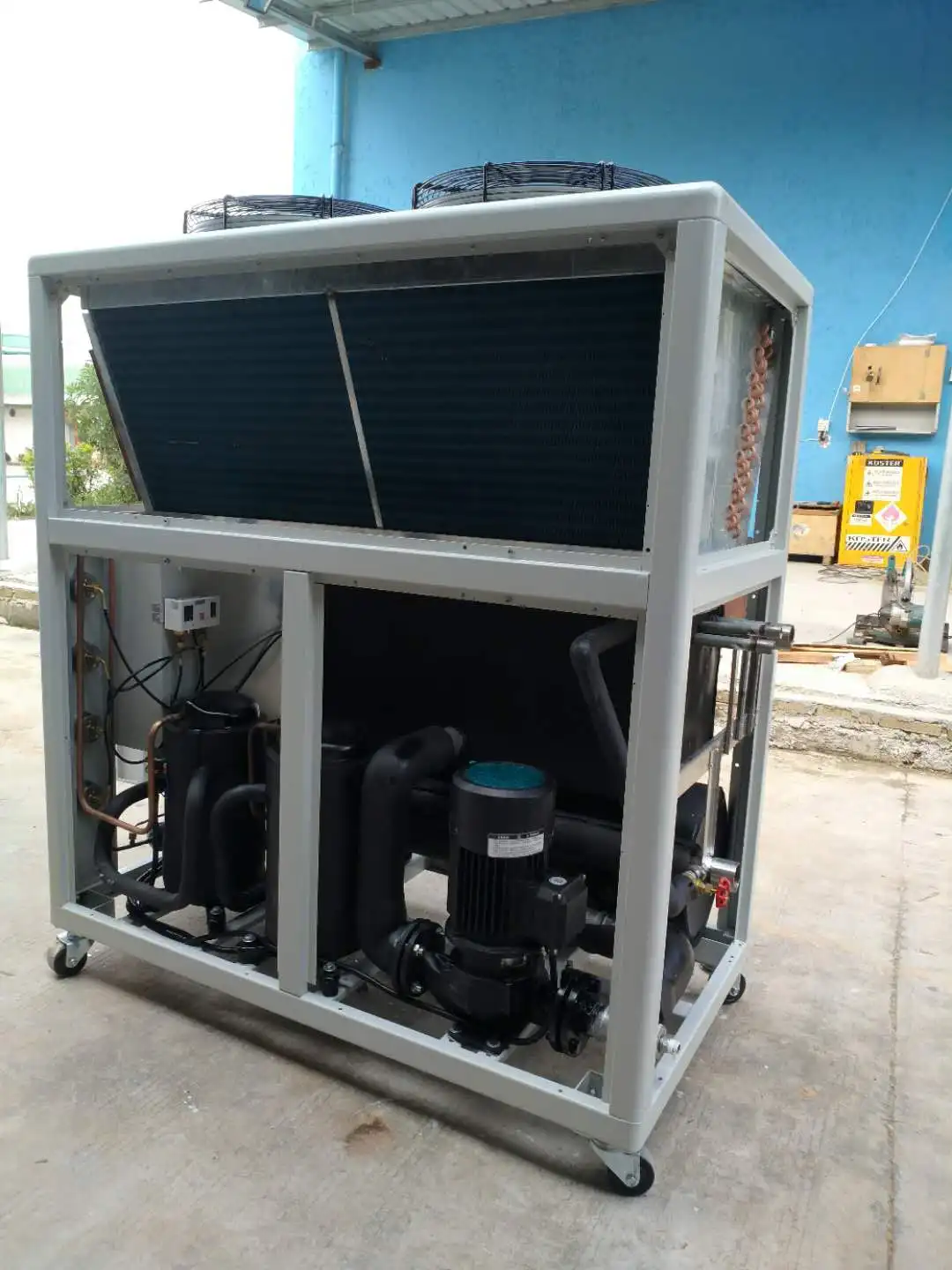

Name: Pump

Brand: Mini/CNP

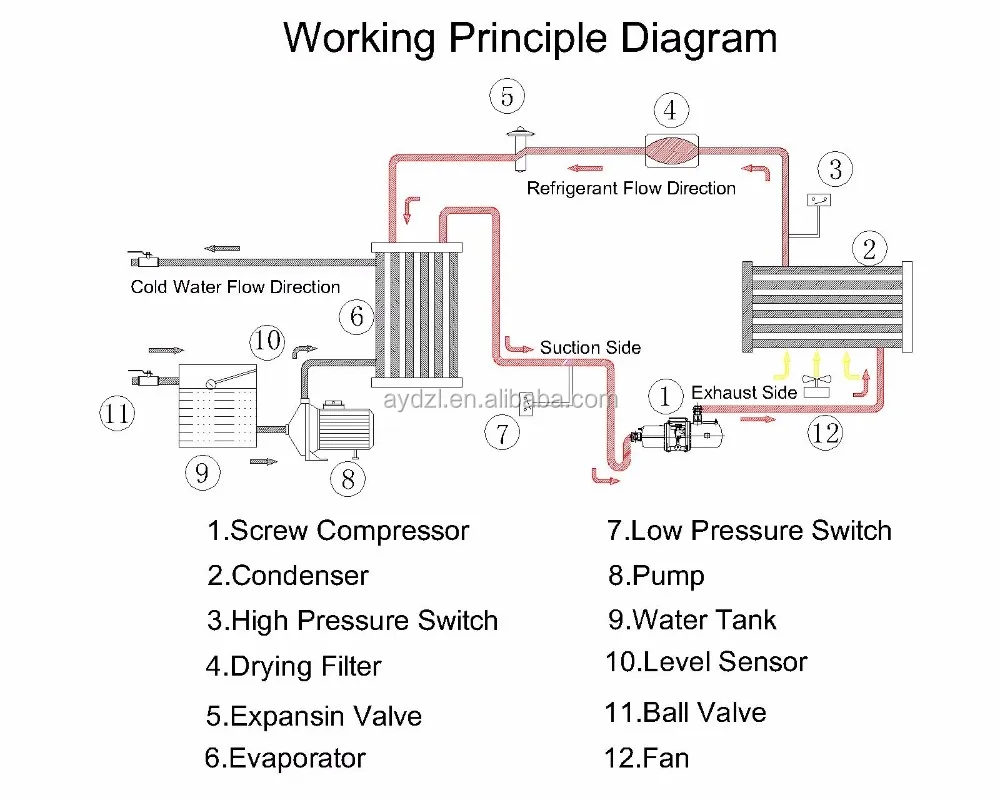

1.How does a chiller system work?

   Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.

2.How to calculate cooling capacity for chillers

   Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

   Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

3.Types of chiller system?

   Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.

4. What type of the chiller should I use ?

   It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.

5. How to select the model of the chiller ?

   It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature, Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.

6.Cooling capacity unit conversion?

1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;

1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;

1 USRT = 3.517 kW,1 kW = 0.28434 USRT;

1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;

1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;

7.The chiller can heat?

Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.

8. What is production period ?

   Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.

9.What is your company after-sales service ?

   Our warranty period is one year. If there is any problem in this year, we will send you the new parts (not including freight )for replacement. Meanwhile, welcome to consulting the technical knowledge.

10.Chiller maintenance?

Step 1: Keep Tubes Clean

Step 2: Ensure a Leak-free Unit

Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)

Step 4: Analyze Oil and Refrigerant
