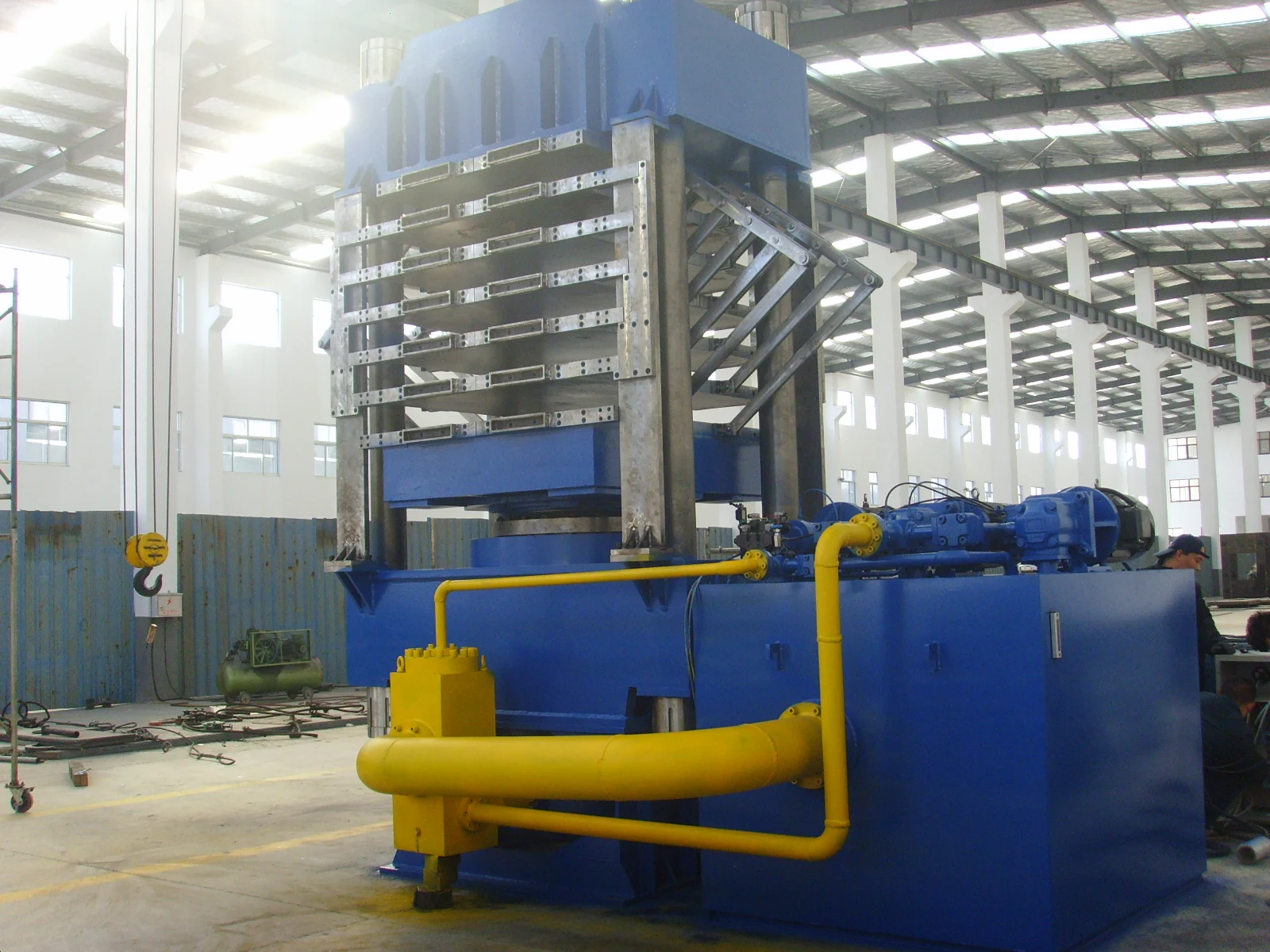

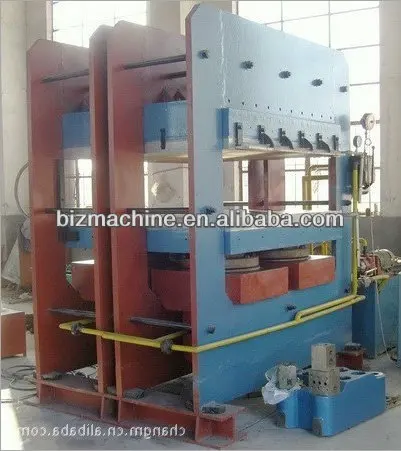

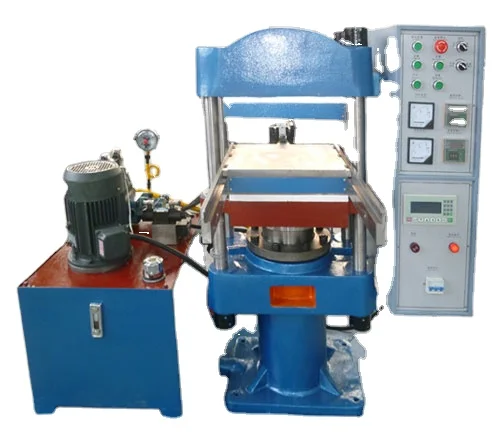

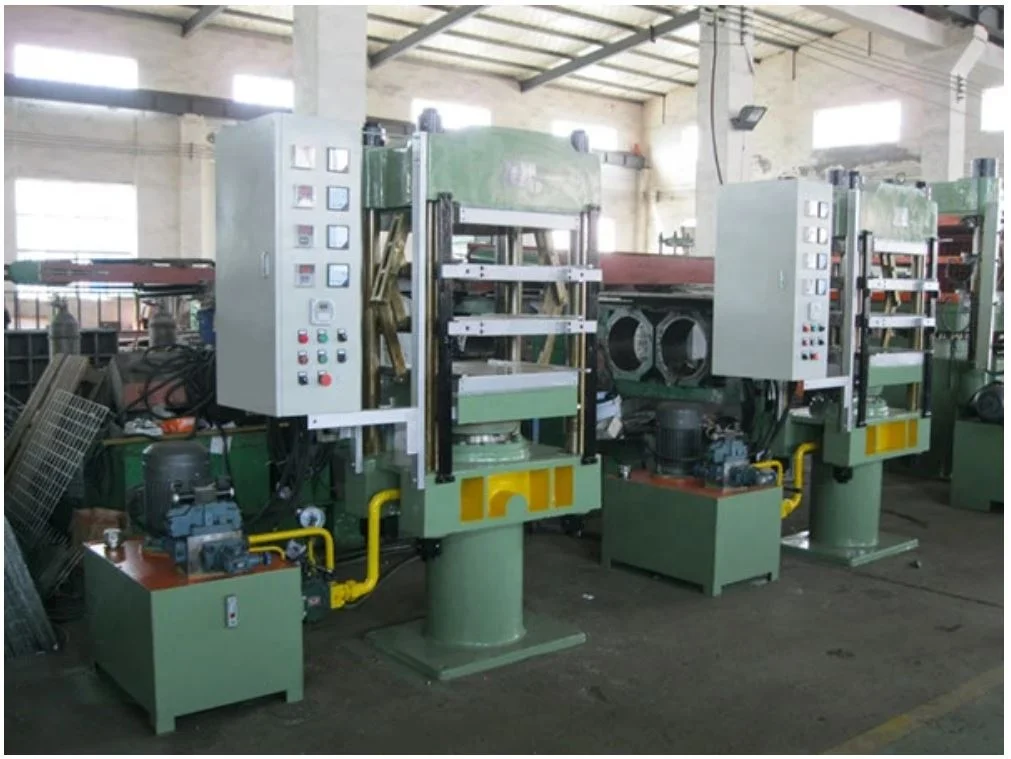

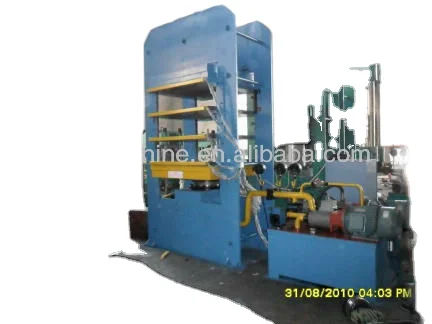

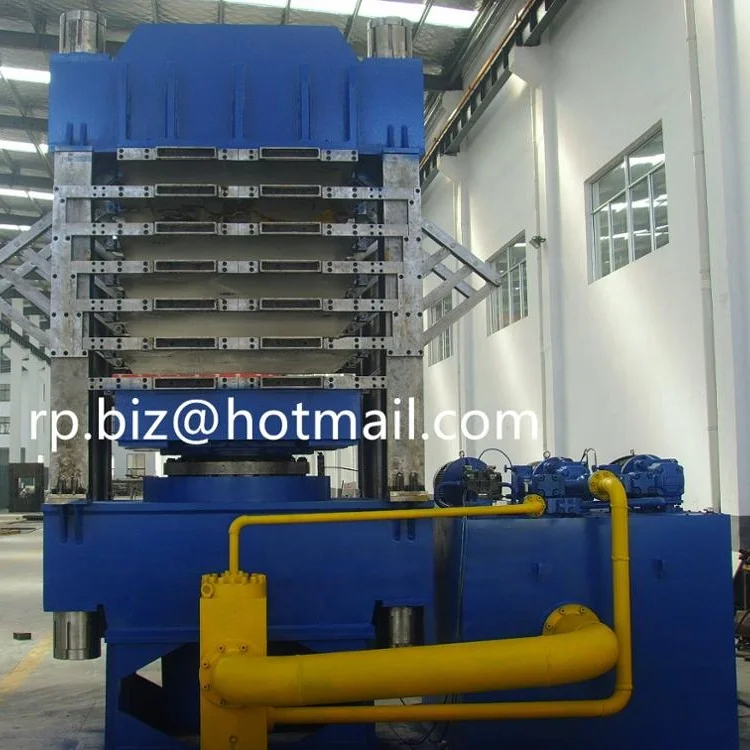

Frame type plate rubber vulcanizing press for rubber tile/mat with electric/steam heating
- Category: >>>
- Supplier: Qingdao Biz International Trade Co. Ltd.
Share on (1721639975):
Product Overview
Description
plate vulcanizing press machine
Type | XLB-DQ1200×1200×2 | XLB-DQ1300×2000×1 | XLB-Q1200×2500×1 | XLB-Q1500×2000×1 | XLB-Q2000×3000×1 | XLB-Q1400×5700×1 |
Total pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
Plate size(mm) | 1200×1200 | 1300×2000 | 1200×2500 | 1500×2500 | 2000×3000 | 1400×5700 |
Plate clearance(mm) | 200 | 400 | 400 | 400 | 400 | 400 |
Working layer number | 2 | 1 | 1 | 1 | 1 | 1 |
Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
Plate pressure(MPa) | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
Main motor power(KW) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
Overall dimension(L×W×H)(mm) | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 | 2900×3200×2860 | 2400×5800×3600 |
Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
