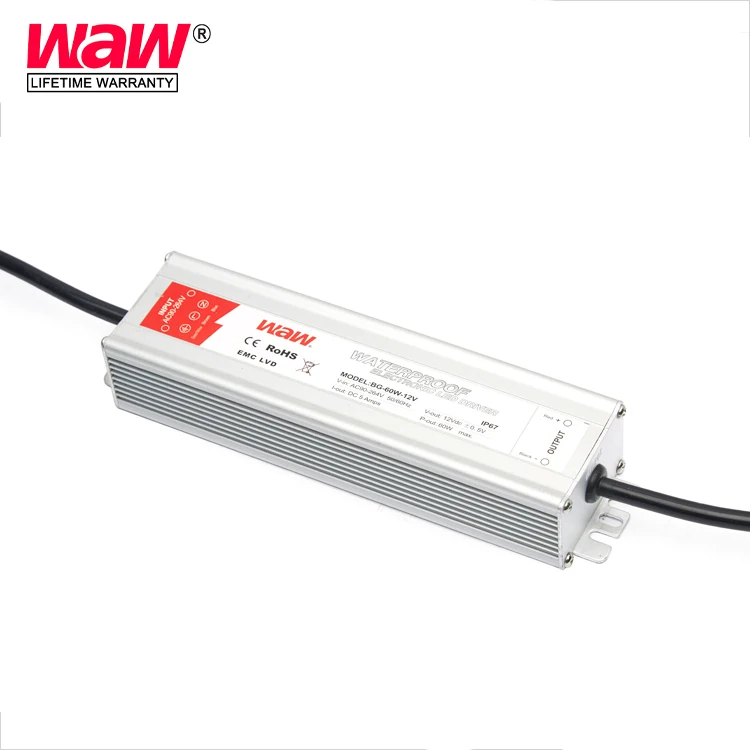

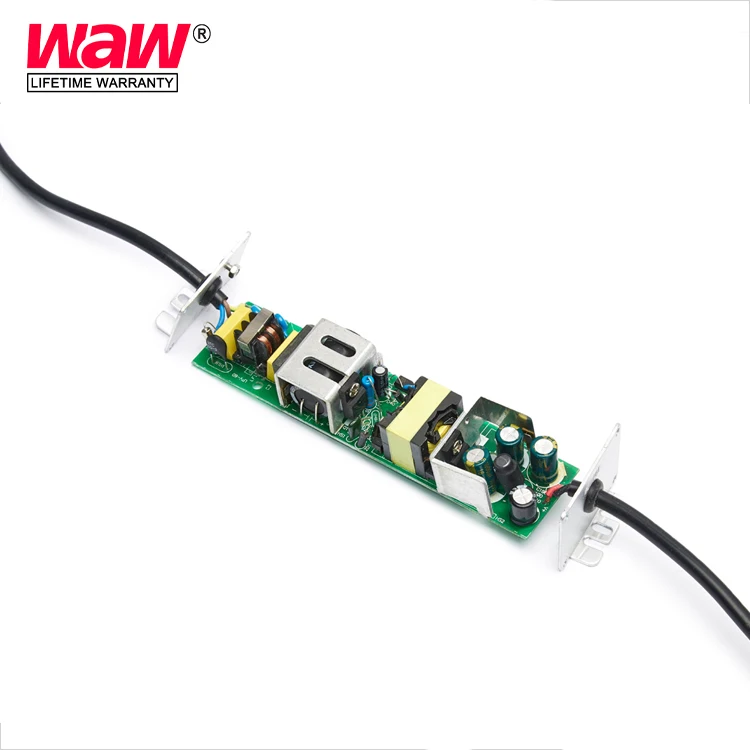

60w 24v 2.5a SMPS IP68 AC to DC LED transformer BG-60-24


Features





1.IP68


2.High Efficiency and good price


3.Built-in EMI filter


4.100% full load burn-in test


5.Low output ripple and noise
6.Protection:Over load/Over voltage/Short circuit


7.LIFETIME WARRANTY





Specifications






































































































































ModelBG-60-12BG-60-24
DC output voltage12V24V
Output voltage error ±10%±10%
Rated output current5A2.5A
Output current range0-5A0-2.5A
Wave and noise80mVp-p80mVp-p
Inlet stability±0.5%±0.5%
Load stability±1%±0.5%
DC output power60W60W
Efficiency81%83%
AC input voltage range90-264VAC 47~63Hz

AC impulse currentCold-start current 30A/230V
Leakage current<0.5mA/240VAC
Over load protection105%~150%  rated output power
Protection:Hiccup mode
Over voltage protection121%~142%
Protection:Shut down output voltage
short circuit protectionProtection:Hiccup mode
Temperature coefficient±0.03%(050)
Setup rise hold up time500ms,20ms 24ms/230VAC at full load
Vibration10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltageI/P-O/P:2.5KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC
Isolation resistanceI/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity-10~+50°C, 20~90%RH
Store temperature and humidity-20~+85°C, 10~95%RH
Overall dimension189×49×33mm
Weight0.85Kgs
Safety standardsDesgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMCEN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
