Напольный вентилятор Катушка Jinchen

Product Overview

Description

 Standing fan coil units



• 2p/3p/5p optional



• Ultra low noise design



• live test bed at factory



• vertical and horizontal mounting possible





Model Number	Unit Size mm	Standard	Air volume m3/h			Refrigerating capacity            W	Heating capacity W	Frequency W	Noise dB(A)	Water  flow Kg/h	Net Weight Kg	Pipe Diameter
			H	M	L
FP-14LG	480×230×1680	2P	1400	1100	880	7400	11000	30	≤50	1750	30	ZG3/4”
FP-16LG	520×285×1755	3P	1600	1370	1170	8500	12750	50	≤56	2200	37	ZG3/4”
FP-20LG	600×390×1895	5P	2000	1740	1420	10000	15000	100	≤56	2700	42	ZG3/4”



Applications

Restaurants;  Warehouse/Distribution Centers ;  Food Processing Plants; Supermarkets  ; Hospitals;   Retail Stores   Bakeries;  Fast Food Restaurants

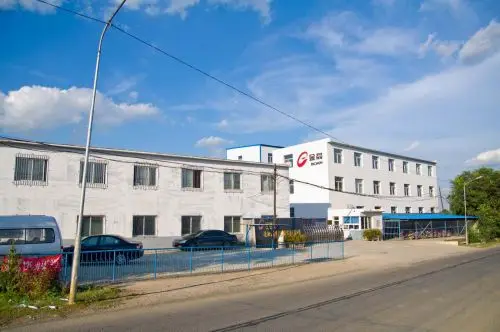

 Our factory











The exhibition





 Clients

They are our clients. You will see our products in their stores ,warehouse
