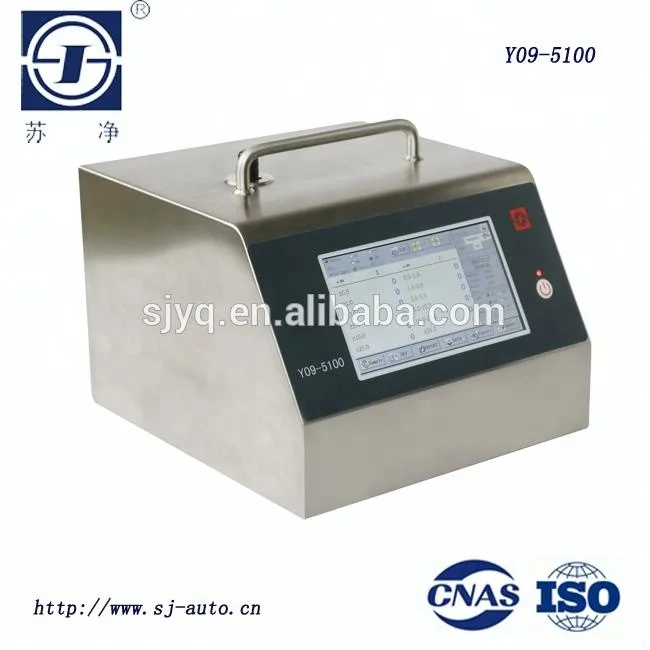

Y09 5100 Laser Airborne Particle Counter

Share on (1722921847):


Price:RUB 629,702.40

Quantity:


Product Overview

Description



Y09-550 /Y09-350

50LPM-Airborne Particle Counter



Y09-550 /Y09-350 airborne particle counter (hereinafter referred to as the instrument) is used to measure the size and quantity of dust particles per unit volume of air, and can directly verify ISO Class 5-8 (EU GMP Grade A-D) clean environments.

The instrument uses a laser diode light source, with touch screen (LCD) display, having such advantages like reasonable structure, high accuracy large flow rate, short sampling time, simple and convenient operation. The testing data can be directly stored in the U disk without computer acquisition, also it is micro computer controlled, can print sampling results by miniature built-in thermal printer. The instrument is widely used in electronic, optical, chemical, food, cosmetics, pharmaceuticals, biological products, aviation and aerospace etc.



l  Simultaneously display of up to six particle size

l  20000-record data storage memory

l  Meet the requirements of ISO14644-1:2015



550particle counter.jpg









Y09-550

Y09-350

Y09-5100

Outside Dim

268×192×292(mm3)

Display

LCD

Weight

6 Kg

Max.Consumption

80W

Power Source

AC 220V±10%; DC16.8V (Built-in Lithium Battery)

Size Channels

0.5,1351025μm

0.3,0.513510μm

0.51351025μm

Calculation

95%UCL calculation,showing particle concentration(particles/cubic meter, particles/cubic feet)

Flow Rate

50L/min( Imported Pump)

100L/min (Imported Pump)

Sample Time

6~999999s(Selectable)

Zero Count

≤10min

Location

1~99

Printer

Built-in Thermal Printer

Alarm

Class

Data Storage

20000 Samples/300Samples of UCL(With PC Software)

Data Output

USB Port

Light Source

Laser Diode(30000 hours mean time between failures)

Maximum Rated Particle Concentration

35000 particles/L

Operating Time

More than 5.5 hours

Environmental

Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
