A. The furnace is small, easy to operate and will melt most non-ferrous metals such as lead, aluminium, brass, copper, bronze, gold and silver.
B.It is ideal for the casting hobbyist, or for the professional in applications such as manufacturing of small castings. It can be used for jewellery or for alloy research projects, or for heat treatment applications.
C.The furnace controls are easy to use and allows precise setting of the desired temperature. The furnace controls utilise a thermocouple which is used to reach and maintain a certain desired temperature.
D.The furnace comes with a standard 1Kg crucible, crucible tongs, anti-glare glasses and protective gloves. The tongs wrap around the top of the crucible ring and allows a safe method of removing a hot crucible, ready for pouring into a mould.
E.The lid lowers down on top of the furnace and must be in position properly to reduce any heat loss.
F.Spare crucibles are available for 1, 2 and 3Kg applications. The weight is based on the weight of gold, other metals, such as aluminium will weigh less for the same capacity.
Technical Data
Product Name
Model
JC-K-220-2
JC-K-110-2
Volt
220-240V/AC
110-140V/AC
Power
1500W
1500W
Working Temperature
1150C
1150C
Max Temperature
1200C
1200C
Capacity
1-4kg(for gold)
1-2kg(for copper)
1-500g(for aluminum)
1-3kg(for lead)
1-4kg(for gold)
1-2kg(for copper)
1-500g(for aluminum)
1-3kg(for lead)
Heating Rate
25mins heat up to 1150C
25mins heat up to 1150C

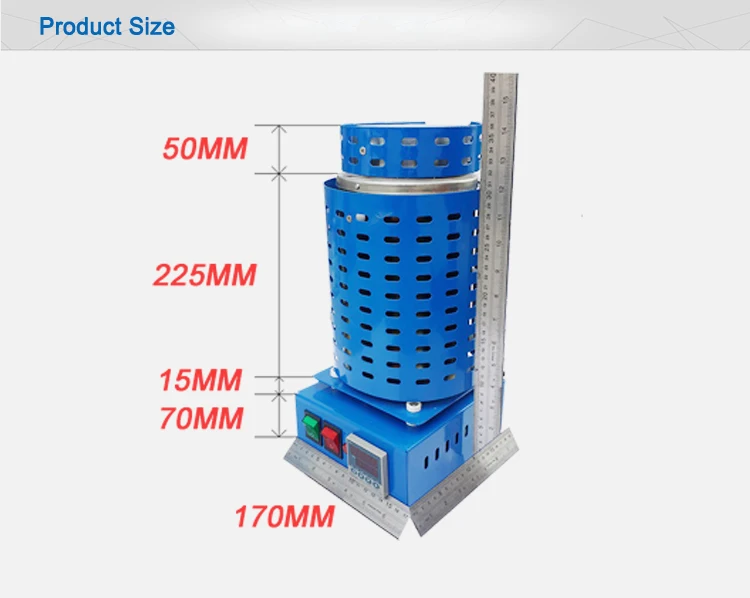

Outside Size
170*200*350mm
170*200*350mm
Chamber Size
∅63*175mm
∅63*175mm
Spare Parts

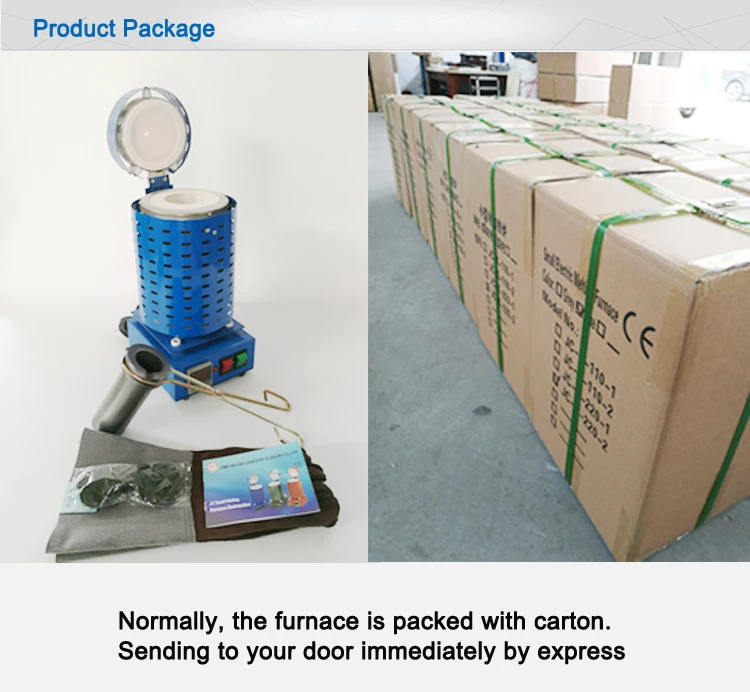

Each set include one furnace, one 1kg crucible, one crucible tong, one pair of glasses and glove, one instruction
