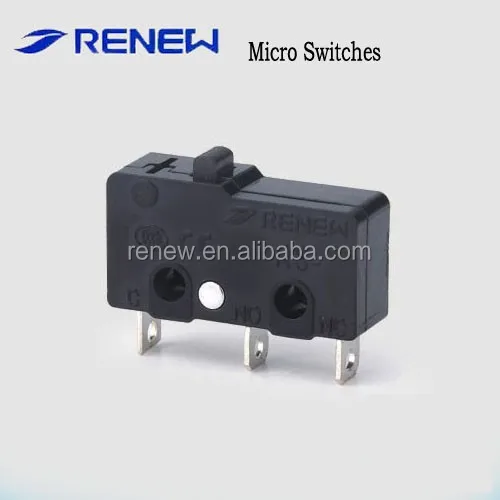

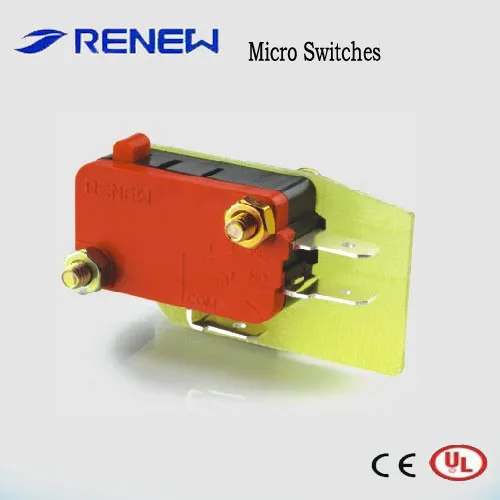

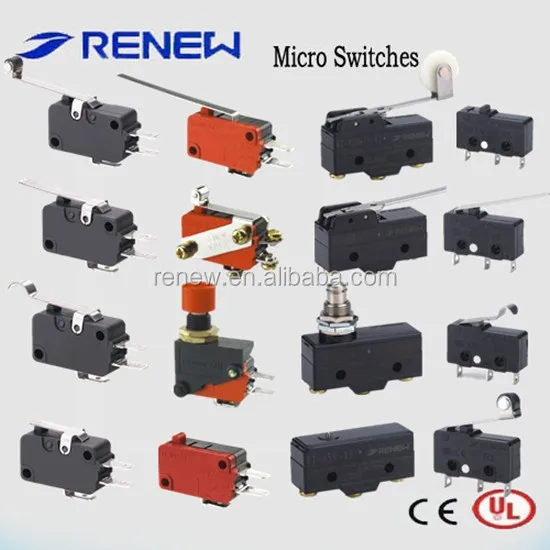

Microswitch RV type, microswitch/burgess micro switch/micro switch t85 5e4
Ratings: 16a, 250vac
Rated data and performance of micro switch RV type
Item Type | RV-21 RV-16 RV-11 RV-6 | |
Allowable operating speed | 0.1mm~1m/sec(pin plunge type) | |
Allowable operating frequency | Mechanical 600times/min Electrical 30times/min | |
Insulation resistance | Above 100 mΩ (use the DC500V insulation resistance test) | |
Contact resistance (initial value ) | Max 15mΩ | |
Dielectric strength | Between the non-connect terminal | AC 1000V 50/60HZ for 1min |
Between non voltage metal parts and each terminal | AC 2000V 50/60HZ for 1min | |
Between the grounding and the each terminal | ||
Vibration resistance | Malfunction | 10-55HZ double amplitude 1.5mm(contact gap is less than 1ms ) |
Shock resistance | OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2 | |
Expected Life | Mechanical life (order OT) | 50,000,000 operations min. (frequency is 60 operations/min) |
Electrical life(resistive load ) | 100,000 operations min. (frequency is 20 operations/min) | |
Ambient operation temperature & Ambient humidity | -25~+80(with no icing ), 85%RH max. (at +5~35) | |
Contact material | AgNi alloy ; AgCdO alloy (not in the ROHS order ) | |
Weight | About 6.2g(pin plunger type ) | |
Remark : Micro switch operation with the slow / high speed and shock , or used in the high temperature and more humidity , the life and the capability of micro switch may be down because of the load capacity , so please consultation us
Other informaiton of micro switch RV type
| Rating: | 21A/16A/11A/6A, AC250V |
| Contact form | SPDT/SPST-NC/SPST-NO |
| Terminals: | #187/#250 England made/ Screw fixed terminal/Solder terminal |
| Maximum Operating Force | 50gf-400gf |
Ratings
| Model | Rated voltage | No-inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| RV-21 | 250VAC | 21A | 3A | 12A | 4A | ||||
8VDC 30VDC 125VDC 250VDC | 21A 14A 0.6A 0.3A | 5A 5A 0.1A 0.05A | 12A 12A 0.6A 0.3A | 7A 5A 0.1A 0.05A | |||||
| RV-16 | 250VAC | 16A | 2A | 10A | 3A | ||||
8VDC 30VDC 125VDC 250VDC | 16A 10A 0.6A 0.3A | 4A 4A 0.1A 0.05A | 10A 10A 0.6A 0.3A | 6A 4A 0.1A 0.05A | |||||
| RV-11 | 250VAC | 11A | 1.5A | 6A | 2A | ||||
8VDC 30VDC 125VDC 250VDC | 11A 6A 0.6A 0.3A | 3A 3A 0.1A 0.05A | 6A 6A 0.6A 0.3A | 3A 3A 0.1A 0.05A | |||||
| RV-6 | 250VAC | 6A | 3A | 4A | -- | ||||
8VDC 30VDC 125VDC 250VDC | 6A 6A 0.4A 0.3A | 3A 3A 0.1A 0.05A | 4A 4A 0.4A 0.2A | -- | |||||
Structure:

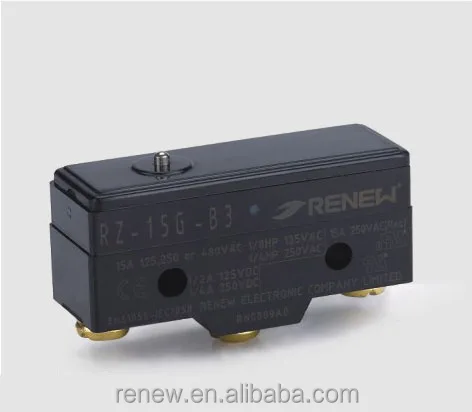

Micro switch RZ type
Ratings: 15a, 250vac
1. Characteristics
Item Type | RZ-15 series | ||||||
Operating speed | 0.1mm~1m/secs (pin plunge type) | ||||||
Operating frequency | Mechanical | 240 operations/min | |||||
Electrical | 20 operations/min | ||||||
Insulation resistance | Above 100 mΩ(use the DC500V insulation resistance test) | ||||||
Contact resistance (initial value ) | The max 15 mΩ | ||||||
Dielectric strength | Between Non-connect terminal : AC1000V 50/60HZ for 1 min | ||||||
Between non voltage metal parts and each terminal , ground and each terminal : AC2000V 50/60HZ for 1min | |||||||
Vibration resistance(pin plunger type) | Malfunction | 1.5mm double amplitude; 10-55HZ (contact gap is under 1ms ) | |||||
Shock resistance | Pin plunger type | max 300m/s2 (contact gap is under 1ms ) | |||||
Others | max 50m/s2 (contact gap is under 1ms ) | ||||||
Life | Mechanical | ||||||
5,000,000 operations above (on/off frequency is 60 operations/min)( order OT) | |||||||
Electrical (resistive load) | 500,000operations min. (on/off frequency is 20 operations/min ) | ||||||
Ambient operation temperature & Ambient humidity | -25~+80(with no icing ), 85%RH max. (at +5~35) | ||||||
Contact material | AgNi alloy ; AgCdO alloy (not in the ROHS order ) | ||||||
Weight | Approx. 22 to 58g |
| |||||
Remark : switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life and the capability may be decreased because of the load capacity , so please consultation us freely .

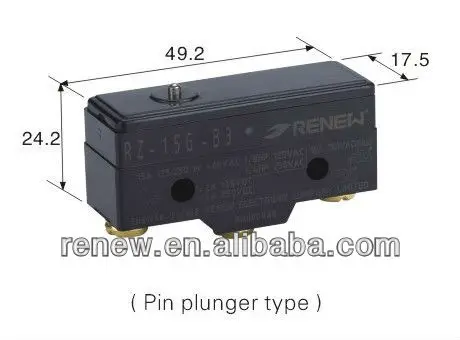

Demension size of micro switch RZ type
Other informaiton of micro switch RZ type
| Rating: | 15A, AC250V. 25A,AC400V |
| Contact form | SPDT, Reverse operation type |
| Terminals: | screw terminal with cup mouth washer, screw terminal with skidprooof within toothed washer screw terminal with spring washer |
| Maximum Operating Force | 4gf-540gf |

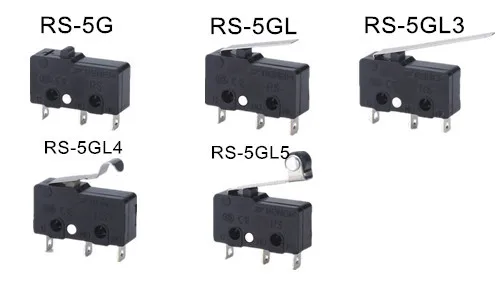

Micro switch RS type
Ratings: 3A, 250VAC; 5A, 125VAC
Rated data and performance
Item Type | 5A . 3A/125, 250VAC (resistive load) | |
Allowable operating speed | 0.1mm-1m/s (pin plunger type ) | |
Allowable operating frequency | Mechanical | 400 operations/min |
Electrical | 30 operations/min | |
Insulation resistance | Above the 100MΩ (at 500VDC ) | |
Contact resistance (initial value ) | OF 1.4N type under 30mΩ ; OF 0.49N type under 50 mΩ | |
Vibration resistance Malfunction | 10-55HZ; 1.5mm double amplitude (contact gap is less than 1ms) | |
Shock resistance | OF 1.4N type max 300m/s2; OF 0.49N type max 200m/s2 | |
Life | Mechanical life | 30,000,000 operations min. (60 operations/min) |
Electrical life | 10 A 50,000 operations min.; 5A /3A 200,000 operations min. (30 operations/min) | |
Ambient temperature/ Ambient humidity | -25~+85(with no icing) 85%RH max. (+5~35) | |
Dielectric strength | Between the non-continuous terminals : AC 1000V 50/60HZ for 1 min Between each terminal and ground , between non-current-carring metal and each terminal : AC1500V 50/60HZ for 1 min | |

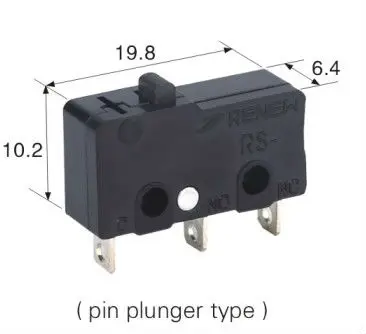

Demension size of RS micro switch
