Hospital handcart wheel / Trolley LCD Display Ultrasound Scanner AJ 6100F

Product Overview

Description

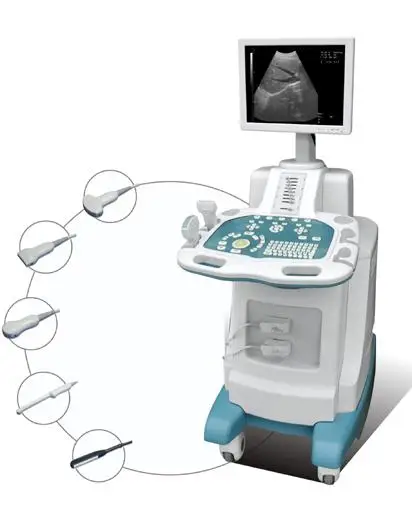

Trolley LCD Display Ultrasound Scanner AJ-6100F





This product is suitable for the diagnosis of the soft tissue of the human dynamic graphics, such as the liver, gallbladder, kidney, spleen, pancreas, uterus, bladder, fetal, and family planning to check pregnant, check ring, obstetrics and gynecology.







Features



Powerful measurement & calculation software packages



8-Segment TGC adjustment



15 inches LCD monitor



OB measurements: BPD, GS, CRL, FL, AC, HC, etc



Permanent function of image store: 32 images



Back-lit keyboard



2 probe connectors



Probe automatic identification







Specification



Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;



Display modes: B, B+B, B+M, M, 4B;



Scanning depth: 240mm;



Gray scales: 256;



Body marks: 33;



Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;



Image conversion: up/down, left/right, black/white;



Function of puncture guide;



Max dynamic range>=100db;



Detecting depth>=190mm, scanning depth>=240mm;



The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;



Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);



Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);



Gamma: 4 gray scale γ transform function;



Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;



Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.



Fixed characters and real-time clock and calendar display;



Software reset function;



Printer function: can connect laser printer and Video printer directly;



Comment: Date, Name, Sex, Age, Hospital, Annotation;



Zooming: *1.0, *1.2, *1.5, *2.0;



Port: USB 2.0, VGA, Video connector;



Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;



USB Function of image store: more than Sixteen thousand images;



Power supply: AC 110V-240V, 50HZ/60HZ;



Probe connector: 2;



USB/VGA/ ports;



Video connector;







Measurement



General menu: Distance, Area, Volume, Angle, Ellipse



Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight



Heart menu: Distance, Time, Slope, Rhythm







Standard Configuration



Main unit 1 set



15 inches LCD monitor



60R/3.5MHZ Multi-frequency Convex array probe 1pc



Power line 1pc



Ground line 1 pc



Fuse 4 pcs



User’s manual in English 1pc



Packing list 1pc



Warranty card 1pc







Options



L40/7.5MHZ Linear array probe



20R/5.0MHZ Micro-Convex array probe



13R/6.5MHZ Trans-vaginal array probe



7.5R/7.5MHZ Trans-rectal probe



Video printer; HP laser jet printer
