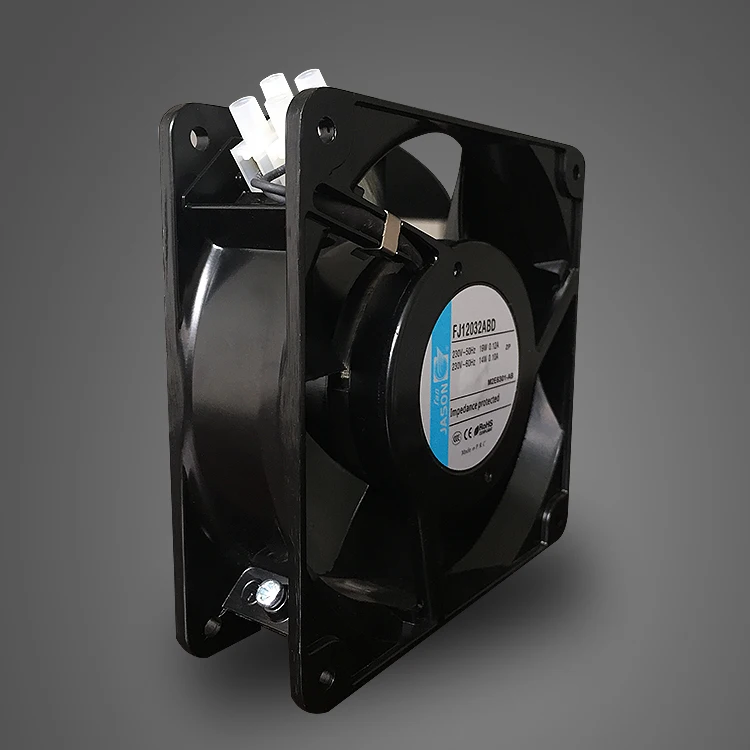

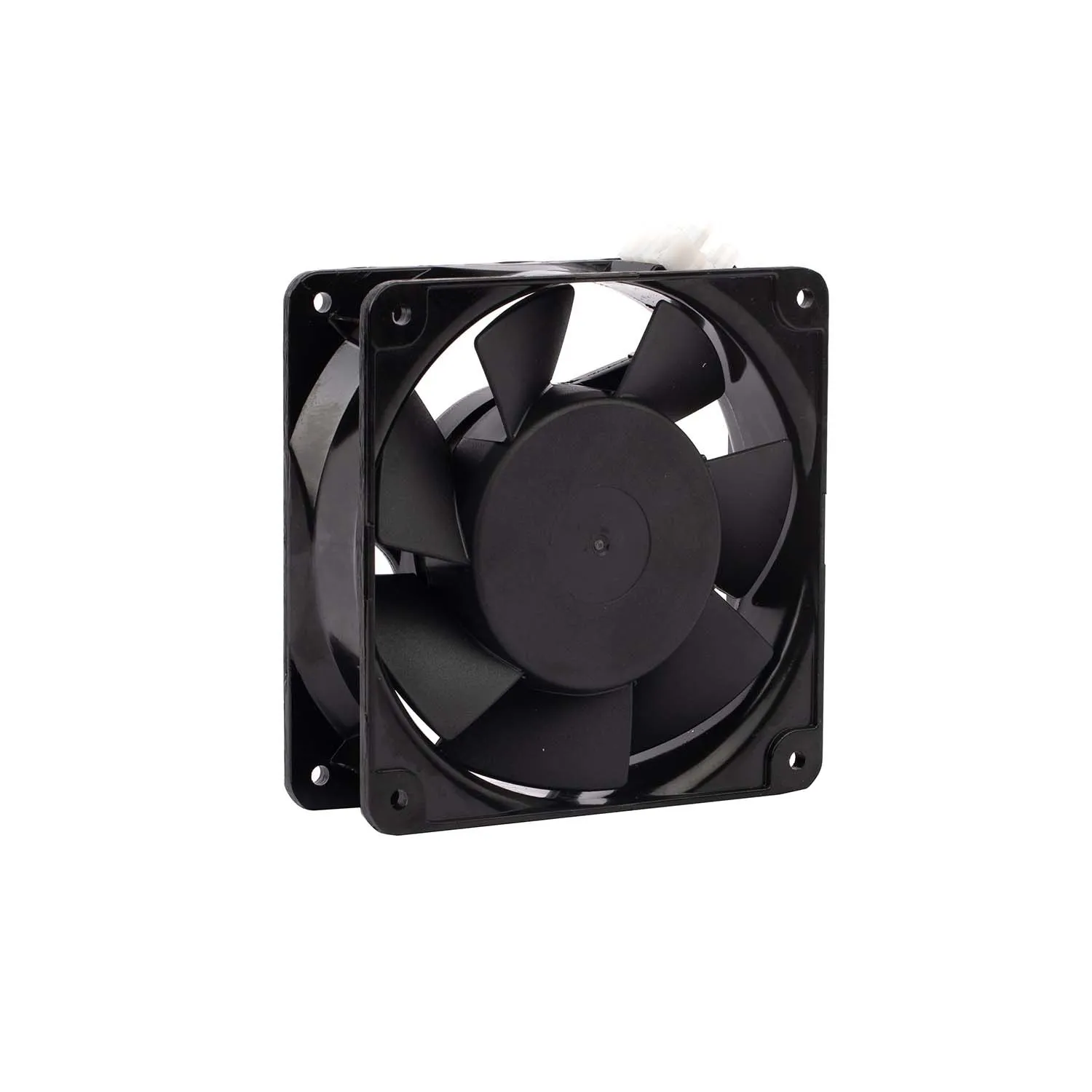

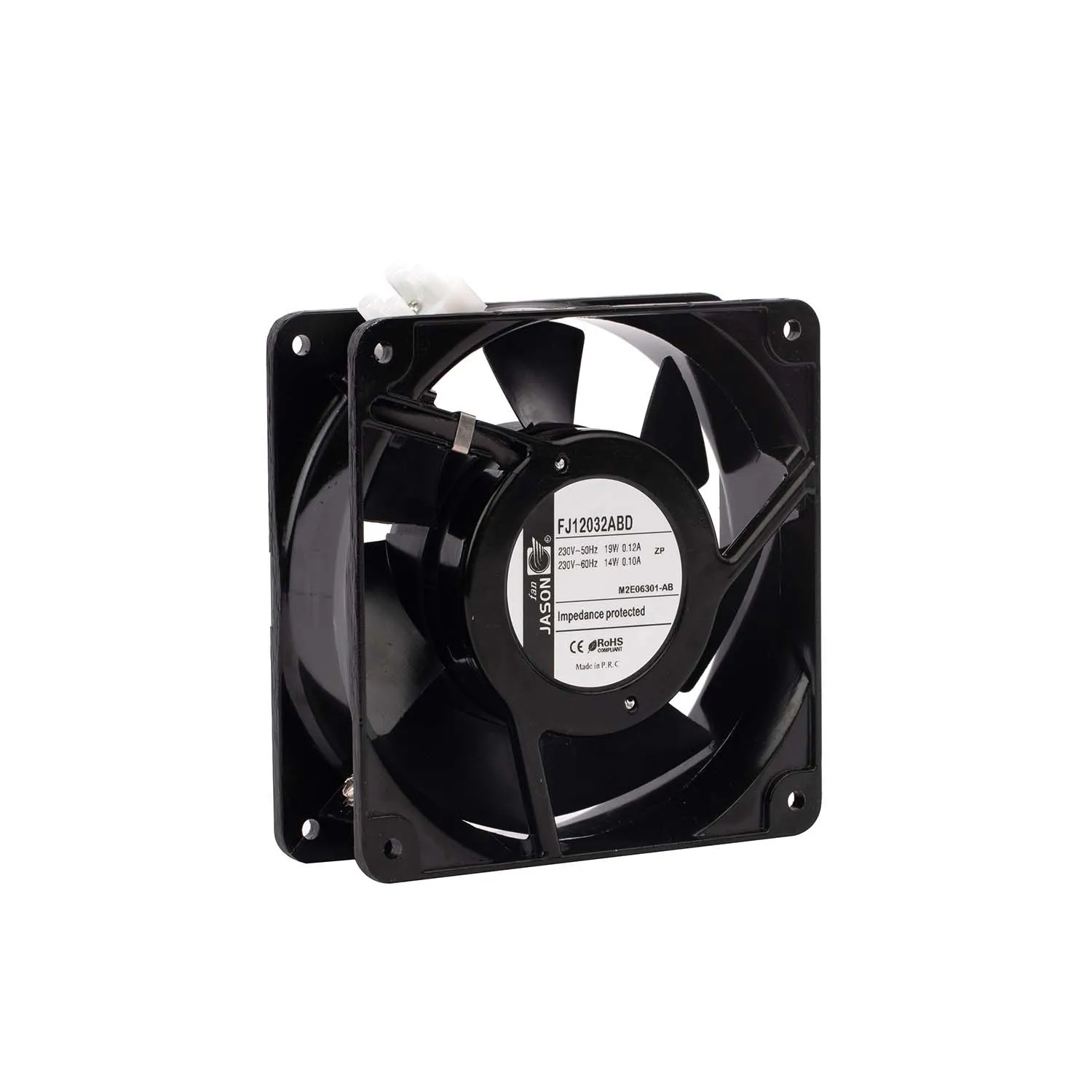

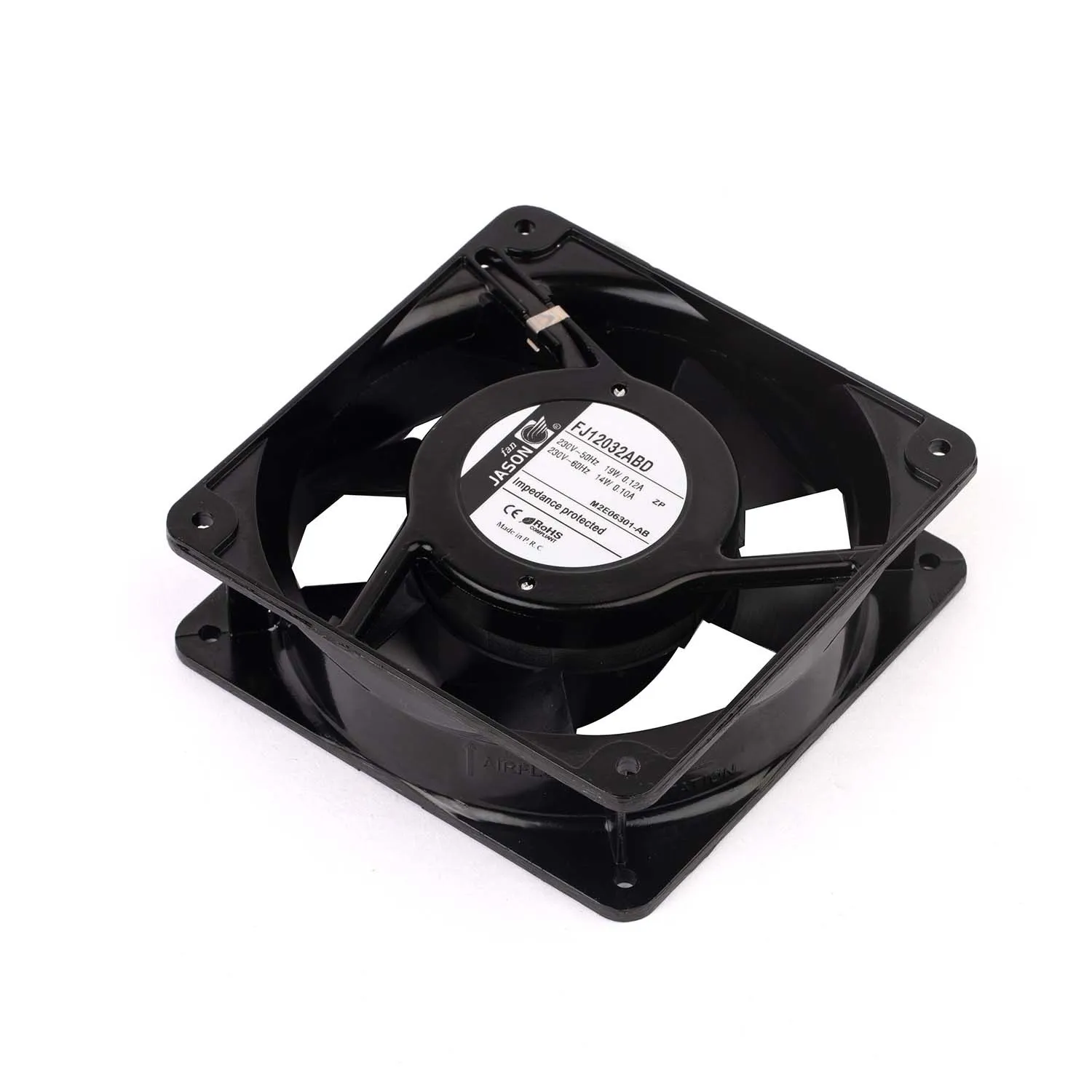

120*120* 38 mm 220V 230V ac square case fan 12038 axial fan ball bearing / sleeve bearing AC cooling fan FJ12032AB

Product Overview

Description

Specification:

• Motor Structure: Shaded Pole motor, with impedance protection


• Blades: Made by injection mould with black plastic PBT+30% glass fiber + VO class of anti-flaming liquid.


• Frame material: Die-casting Aluminum Alloy


• Bearing Type: Maintain-free NMB bearing/sleeve bearing


• Insulation Isolation Grade: B          Protection Grade: IP 34


• Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz


• Allowable Ambient Temperature: -20 to +65 Centigrade degree (ball bearings)         (Under unconcretionary)               -10 to +45 Centigrade degree (sleeve bearing)


• Noise Lever: 34-37dB at normal operation


• Life: 30,000hours


• Unit weight: 510g

Specifications
Category	Axial fan
Type	FJ12032AB
Rated Voltage	115-230V
Frequency	50/60Hz
Current	0.06A-0.25A
Input Power	14W-19W
Speed	2450-2700RPM
Max Air Flow	85-95CFM
StaticPressure	51Pa-63Pa
Noise	34-37dB
Weight	0.51KG















:
