Made in China Hot Sale Plastic Vacuum Cosmetic Bottle Extrusion Blow Molding Machine Forming Machines

Product Overview

Description

Plastic Vacuum Forming Machines

more details of the machine:

Max. Product volume	160 liters
Output capacities	18~25 pcs/h
Screw diameter	120mm
Screw L/D ratio	28 L/D
Screw drive power	75 KW
Screw heating capacity	30 KW
No.of heating zone	5 zones
Output of HDPE	240 KG/H
Oil pump drive power	45 KW
Clamping force	800 KN
Max.size of mold	1000X1500mm
Mold stroke	600-1500mm
Max.die diameter	520mm
Die heating power	12 KW
Die heating segments	5 zones
Blowing pressure	0.8mpa
Air volume	1.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	180 L/MIN

package and deliver details

Certifications

some pics about the fair we have been abroad

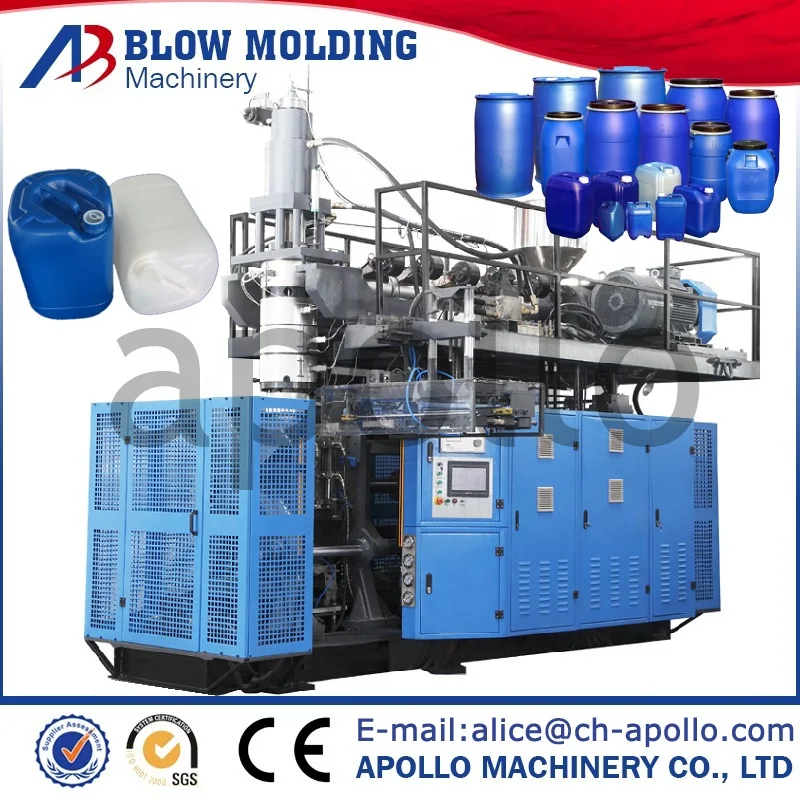

ABLD120 automatic blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 220L.

The features of this machine:

(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 160L.

(2)Single station single die head design,very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

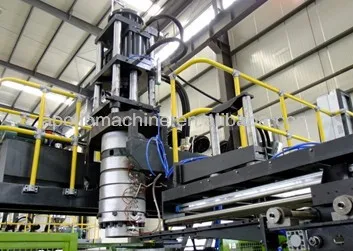

(5)Accumulation die head,MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.
