ZL 6220A, Digital, Thermostat, Temperature Controller, Cold Storage Temperature Controller, Lilytech
- Category: >>>
- Supplier: Suzhou Lily Tech. Co. Ltd.
Share on (1725940955):
Product Overview
Description
Product Description

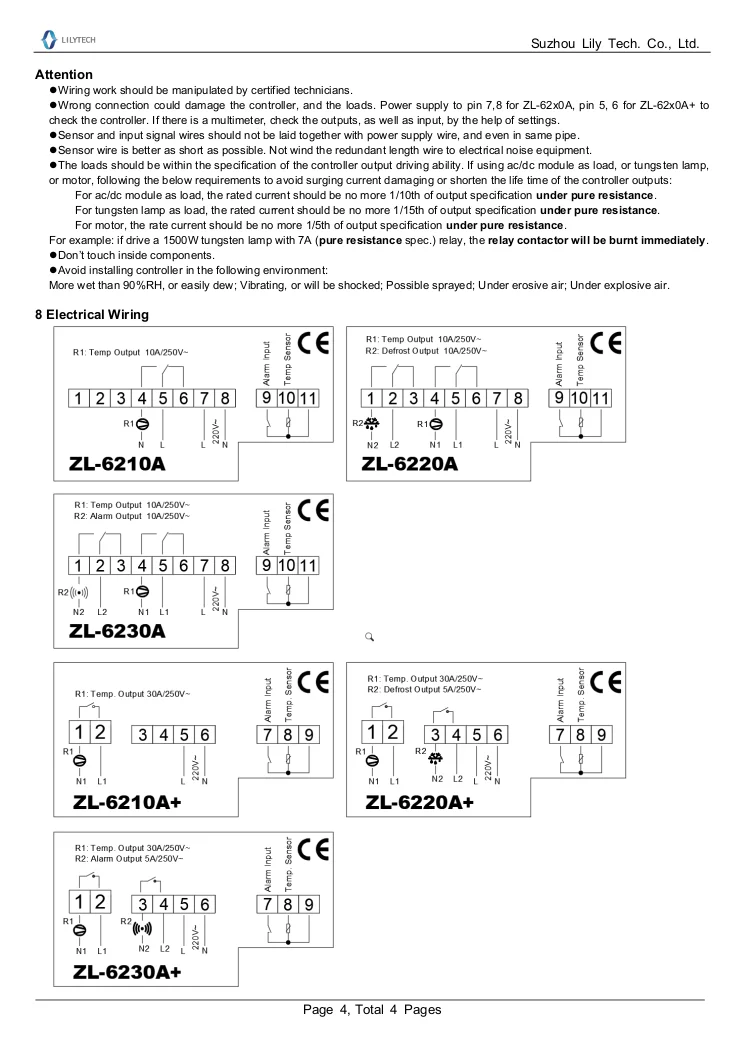

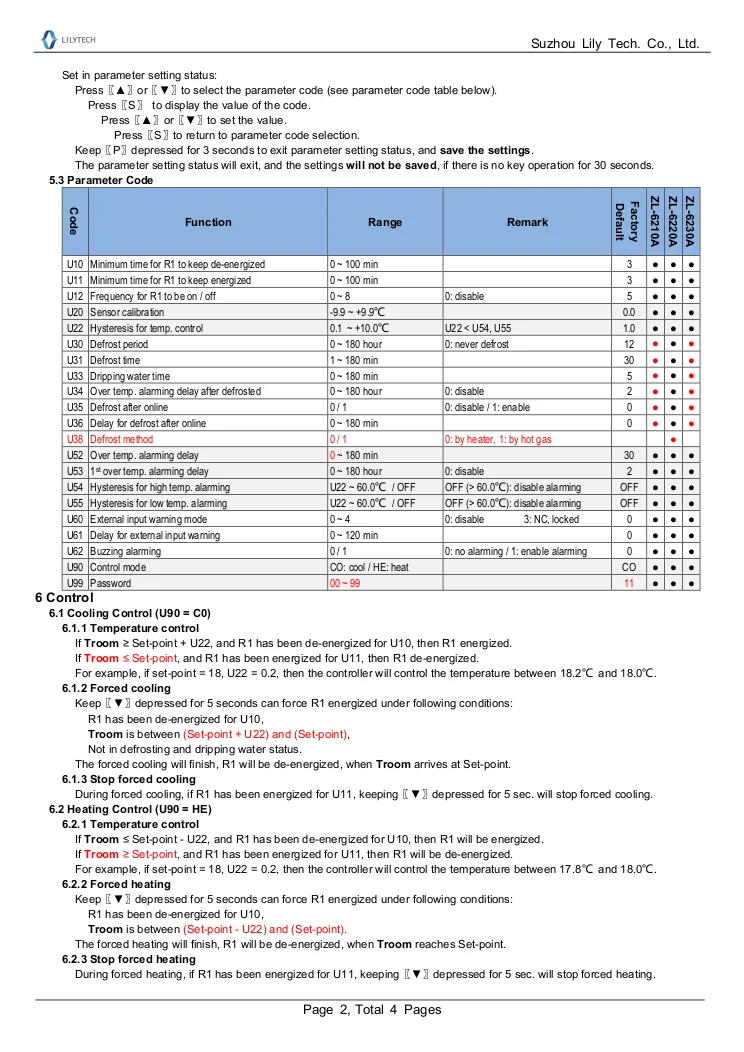

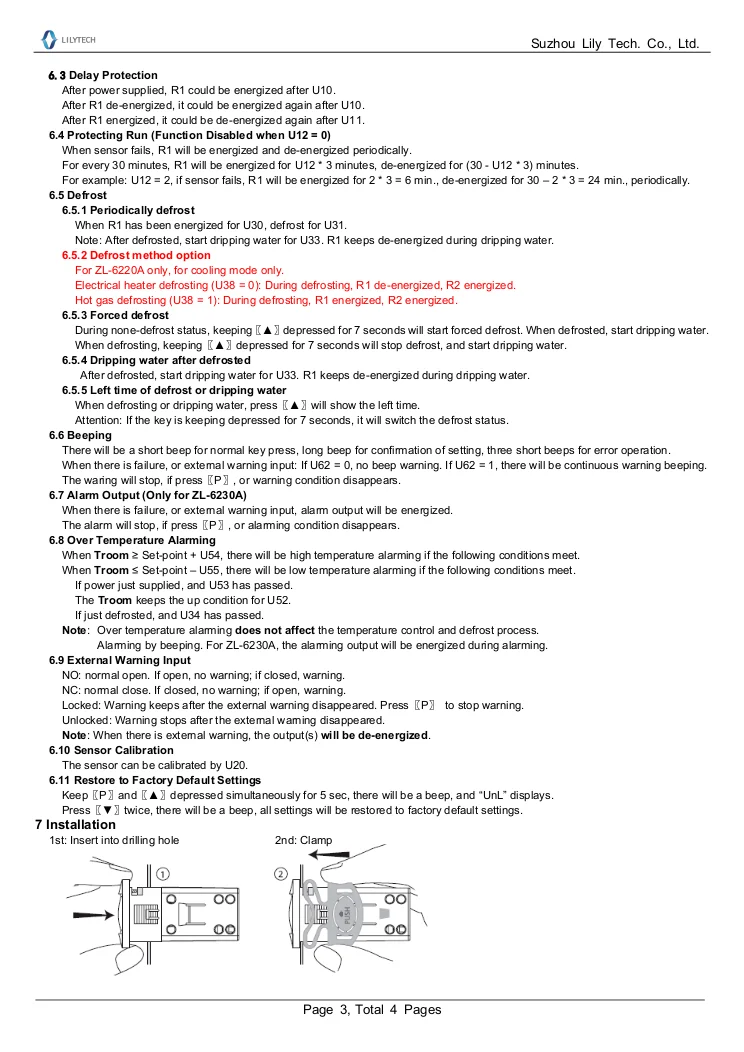

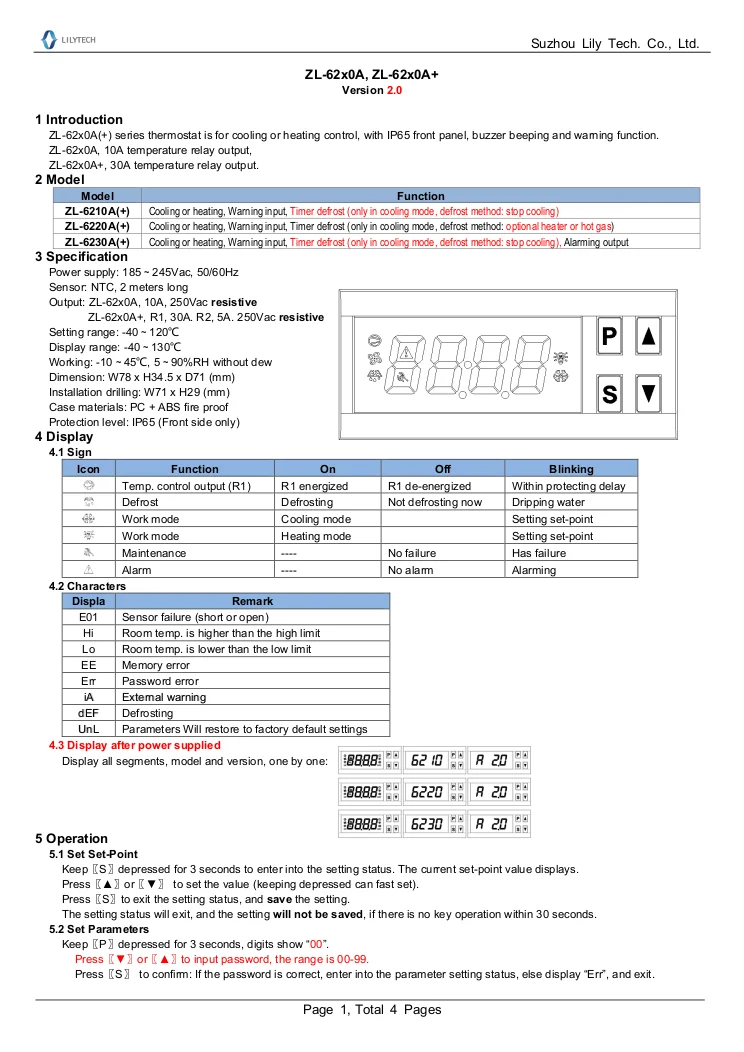

Manual (copy and paste to browser address to view and downlaod):
www.suzhoulily.com/pdf/ZL-62x0A(plus)_en_V2.0.pdf

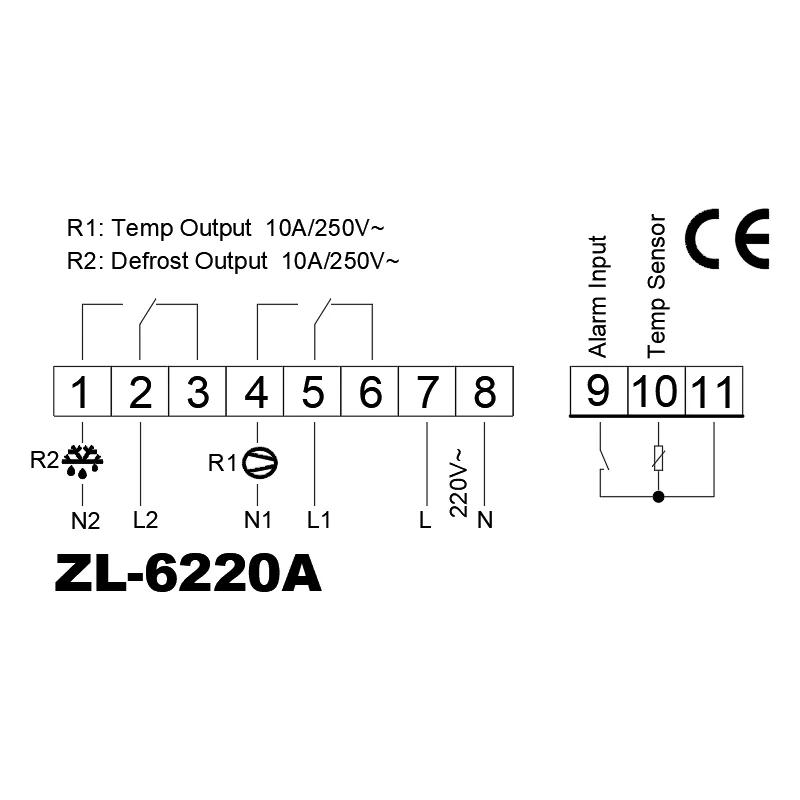

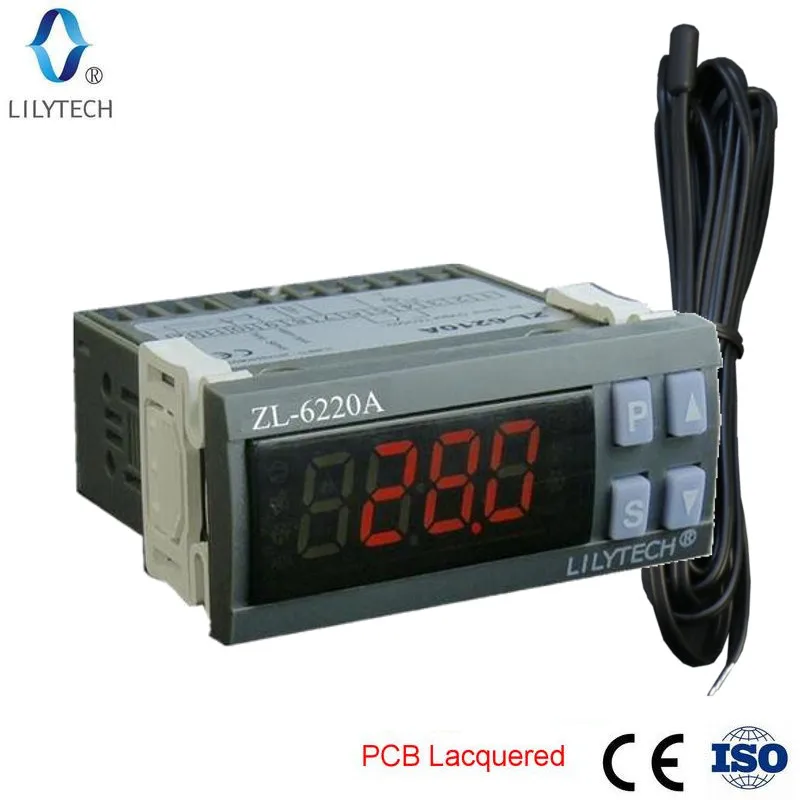

ZL-6220A
Temperature Controller
Introduction
ZL-62x0A series thermostat is for cooling or heating control, with IP65 front panel, buzzer beeping and warning function.

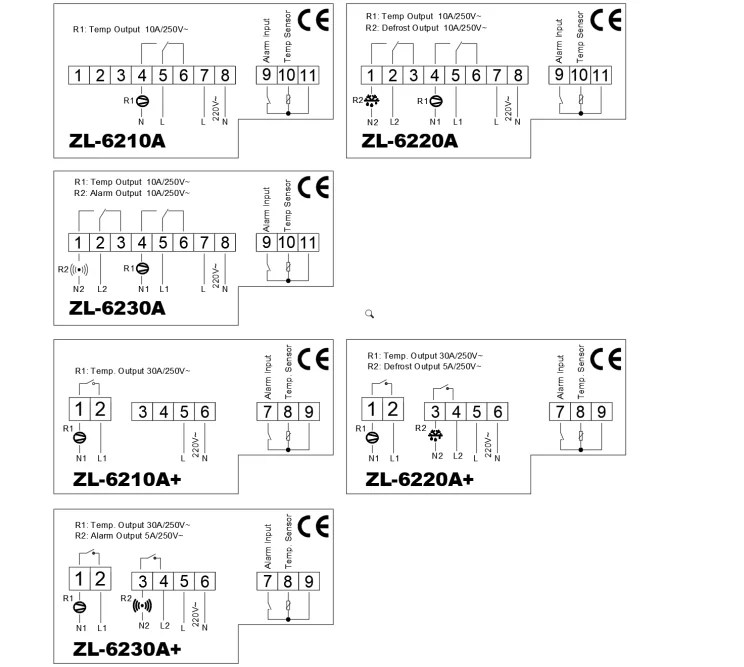

Model
Model | Function |
ZL-6210A | Cooling or heating, Warning input |
ZL-6220A | Cooling or heating, Warning input, Periodic defrosting (only in cooling mode) |
ZL-6230A | Cooling or heating, Warning input, Warning output |
Main Specification
Power supply: 185~245Vac, 50/60Hz

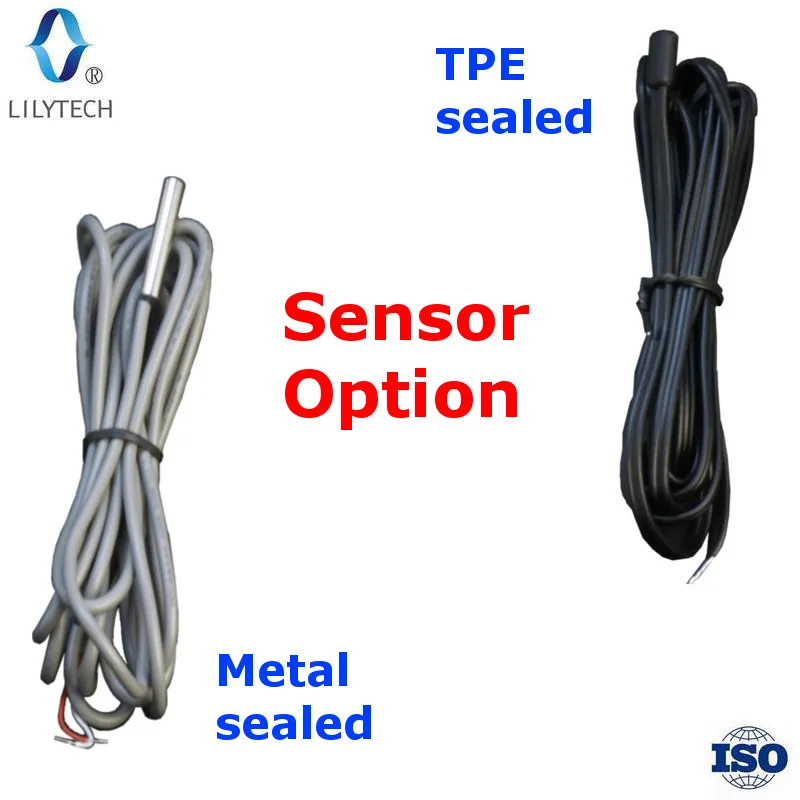

Sensor: NTC, 1.5 meters long
Output: 10A, 250Vac (pure resistance loads)
Setting range: -40~120℃
Display range: -40~130℃
Working: -10~45℃, 5~90%RH without dew
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Manual
CE
ISO
Packaging & Shipping
One piece packing: 11 * 9 * 7.5 cm, 0.286 kg
One carton packing: 33 * 37 * 47 cm, 19.3 kg, 64 pcs
