Product Overview

Description

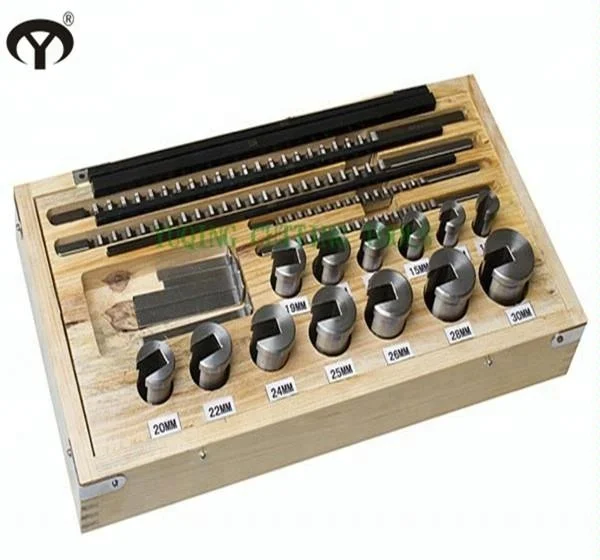

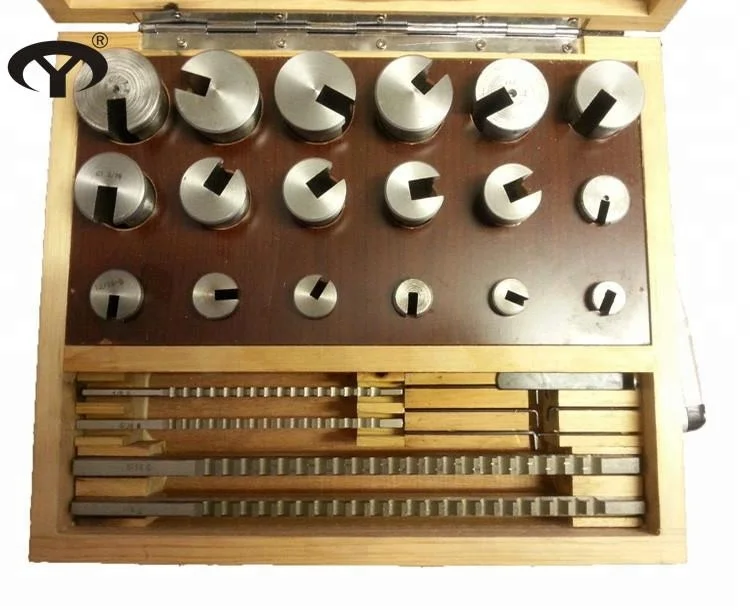

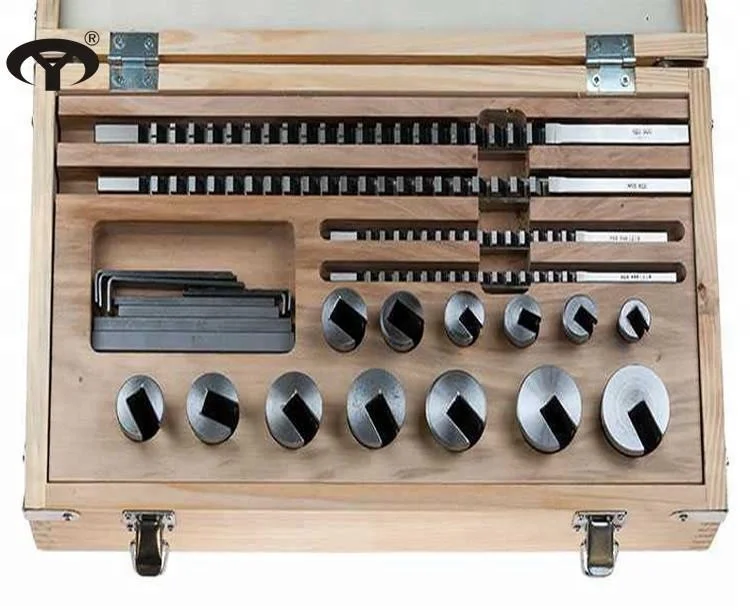

HSS metric keyway broach set with shim and bushing 395-0822

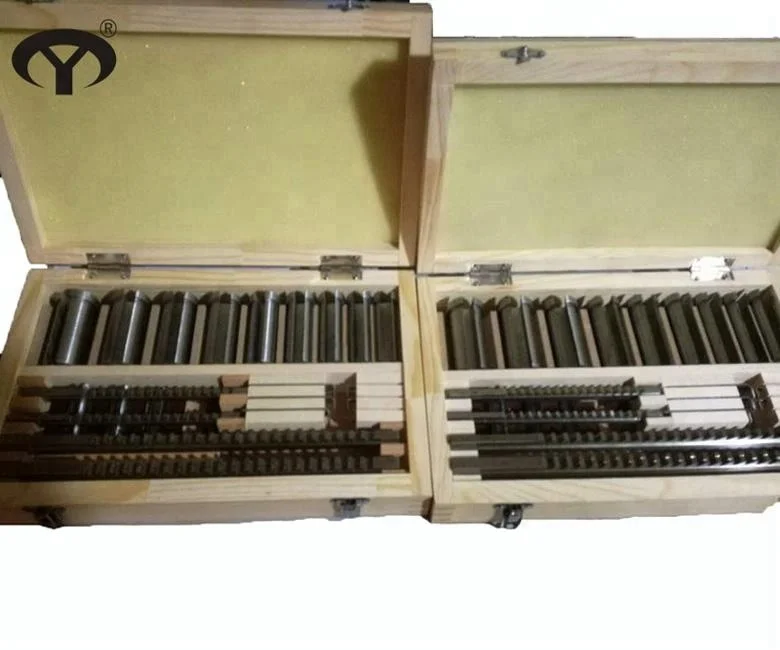

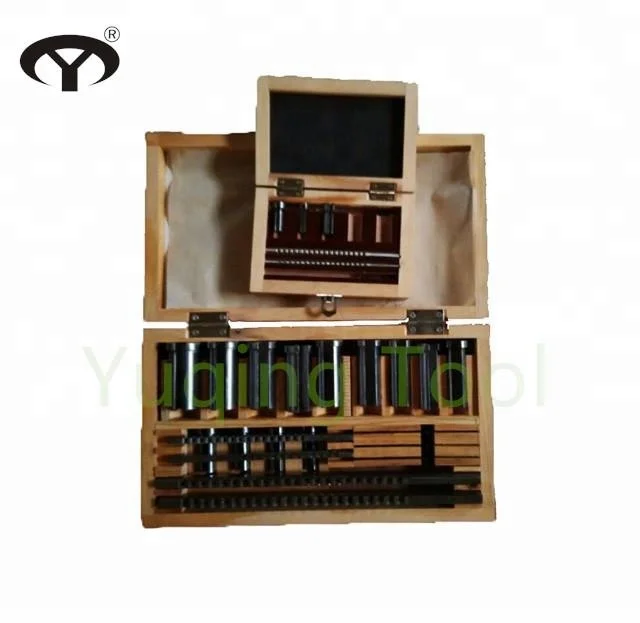

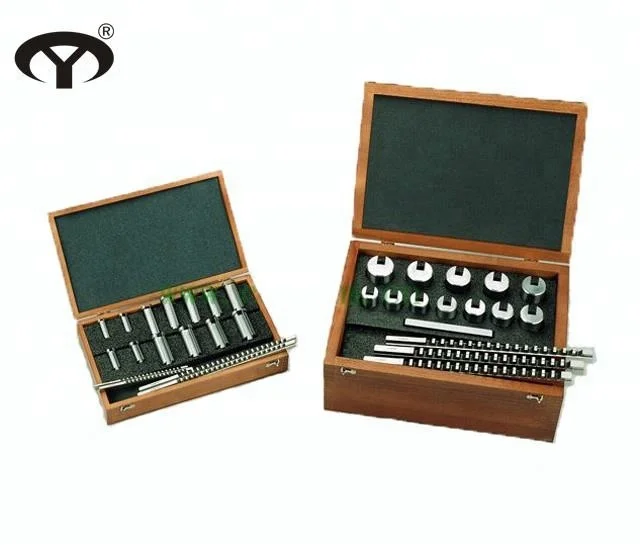

Keyway Broach Sets in extra strong wooden cases Chongqing Yuqing

Yuqing keyway broach sets are ideal für engineering works, mechanical workshops, repair and maintenance departments of industrial business, apprentice shops and many more.



Our Broach Sets feature the most common combinations of Metric Keyway Broaches (2mm-18mm) and Bushings (6mm - 65mm)



No. 60 Metric SetEDP No. 44497	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for small keyway and bores. 2 Broaches and 3 Bushings = 6 keyway combinations. Collared A Bushings
	2 , 3	A	6, 8, 10

No. 70 Metric SetEDP No. 44498	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Our most popular metric Broach Set. 4 Broaches and 13 Bushings = 26 keyway combinations. Collared B1 and C Bushings
	4 , 5	B1	12, 14, 15, 16
	6 , 8	C	18, 19, 20, 22, 24, 25, 26, 28, 30

No. 80 Metric SetEDP No. 44499	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for medium-sized keyways and bores. 3 Broaches and 12 Bushings = 36 keyway combinations. Plain D Bushings
	10 , 12 , 14	D	32, 34, 35, 36, 38, 40, 42, 44, 45,46, 48, 50

No. 90 Metric SetEDP No. 44500	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for large keyways and bores. 2 Broaches and 8 Bushings = 16 keyway combinations. Plain E Bushings
	16 , 18	E	52, 54, 55, 56, 58, 60, 62, 65



























Broach series: Round broach , parallel side spline broach , keyway broach , push type round broach, push type parallel side spline broach, triangle spline broach,involute spline broach, square broach, hexagonal broach, forme broach





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
