YYQ 16A Balancing Machine price for Turbocharger, Turbine,Compressor,Impeller,Rotor

Product Overview

Description

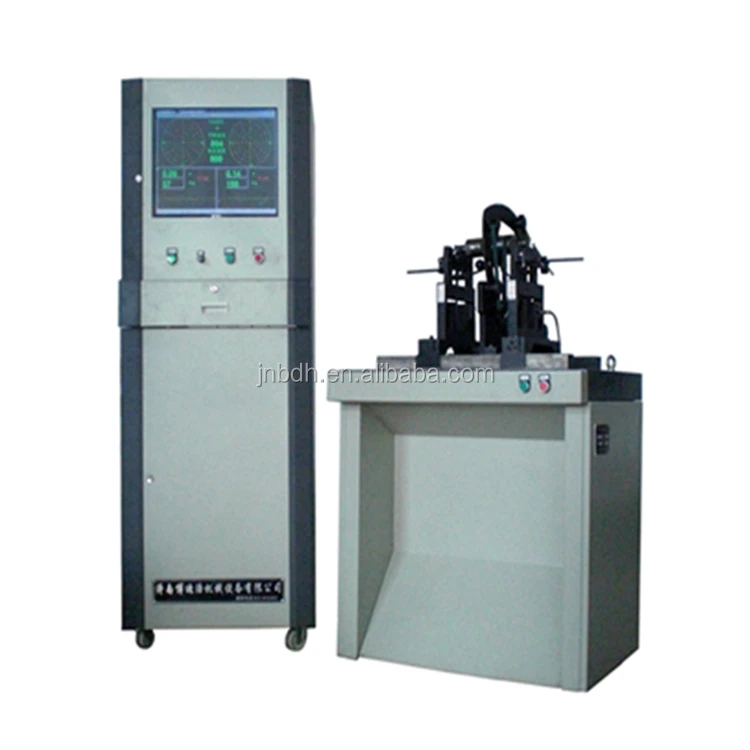

 YYQ-16A Balancing Machine price for Turbocharger, Turbine,Compressor,Impeller,Rotor

Technical data at a glance

YYQ-16A

Mass scope of workpiece kg	0.3-16
Biggest diameter workpiece mm	500
Two span of supports mm	60-600
With a diameter circle in drag mm	15-200
Trunnion supportmm	5-40
Balancing speed r/min	400-3500
Min achievable residual unbalance amount	≤0.5gmm/kg
Unbalance reduction ratio%	≥90%
Motor power	0.18KW
mode of speed regulation	Variable frequency speed regulation
Transmission model	Circle with

Optional function

1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition

Range of Application

This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.

Design

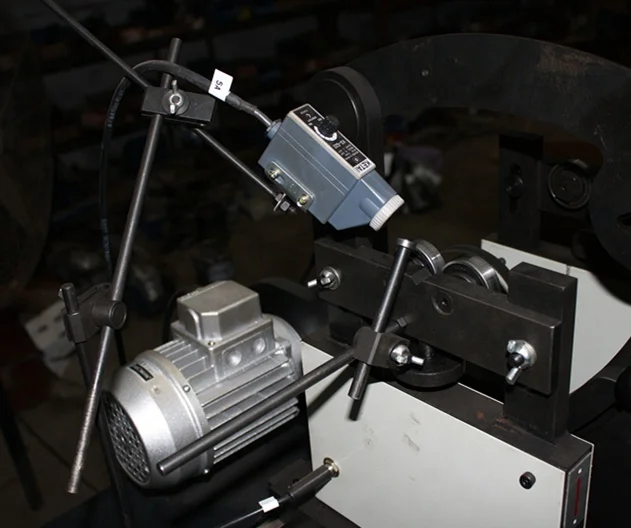

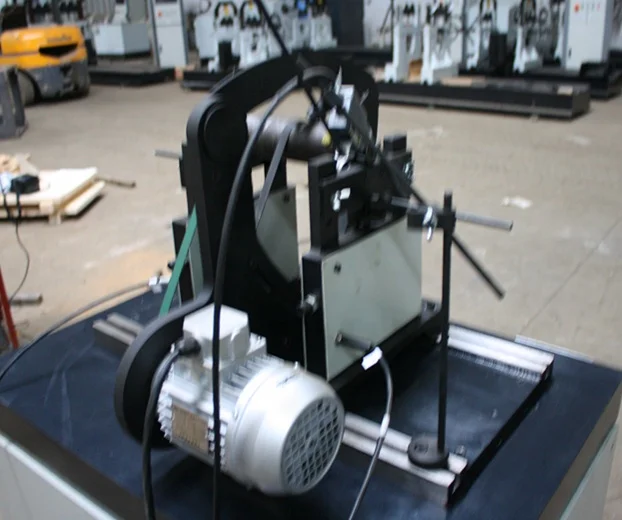

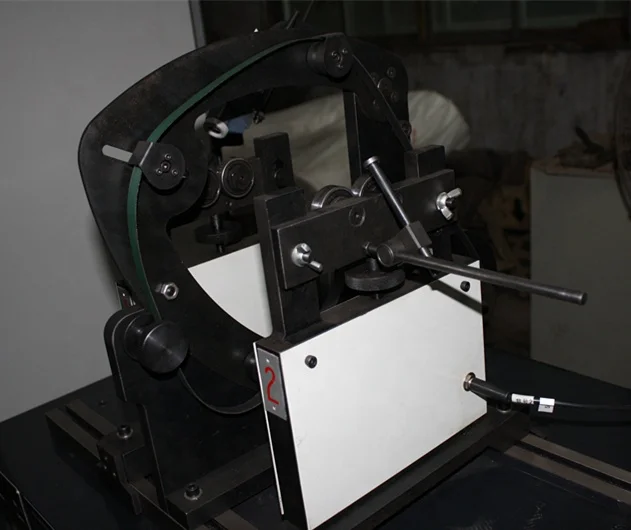

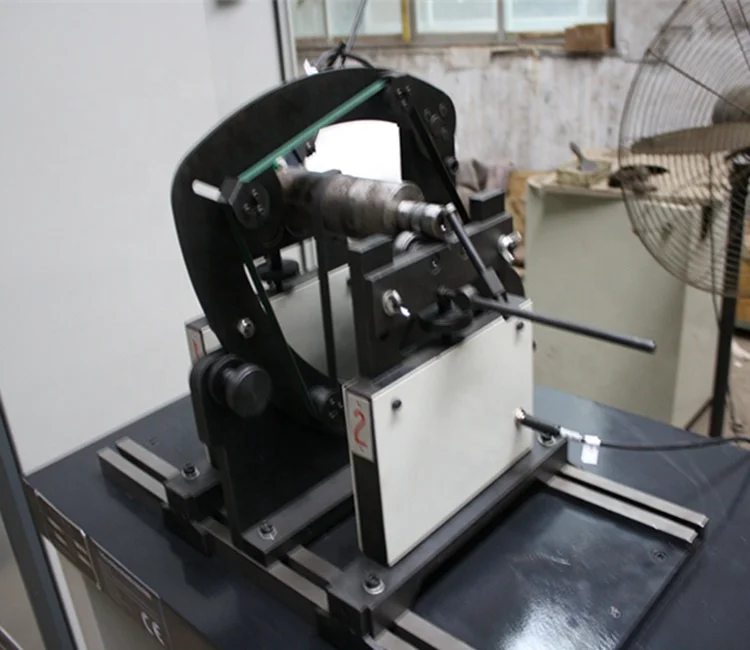

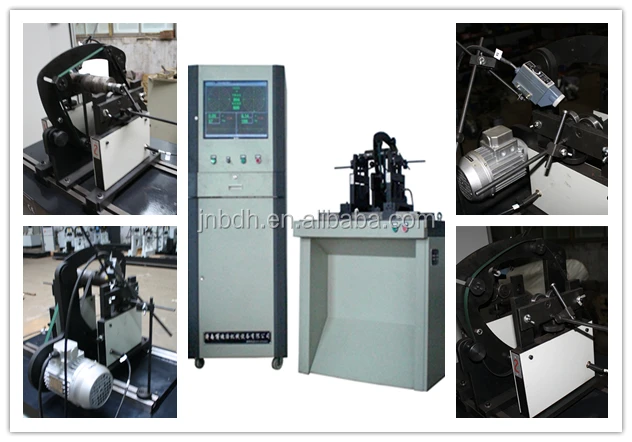

Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.

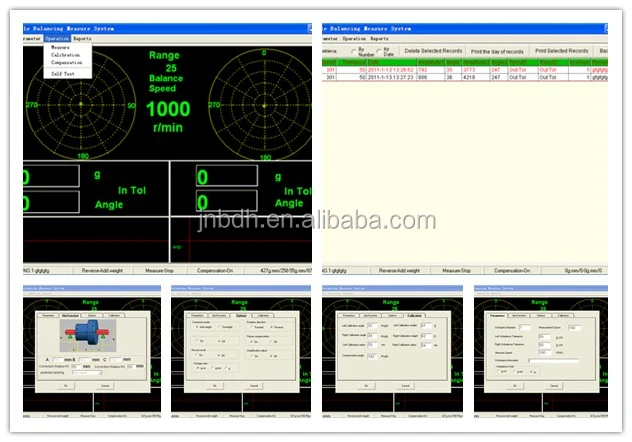

Software features:

1. Rotor file editing and storage function, which can store system calibration parameters of 256 workpieces.

2. Arbitrary workpiece calibration function Arbitrary angle fixture compensation function, qualified quantity prompt, measurement cycle adjustable function.

3. Size ABC input solution function, can also input, directly calibrate measurement.

4. The measurement result can be automatically stored infinitely, and the result can be called up at will.

5. The interface design is beautiful and unique, and it is a real industrial control computer.

About Us

Jinan Bodihao Mechanical Equipment Co., Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,



There are ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.



Company  passed ISO9001:2015 authentication of TUV,CE Certificate of Ente Certificazione Macchine



Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
