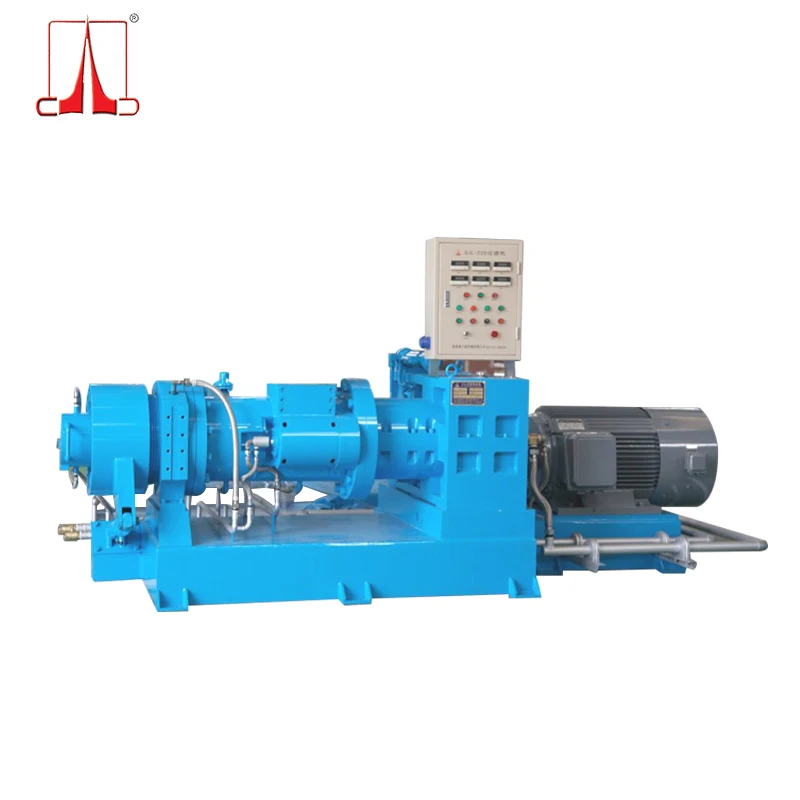

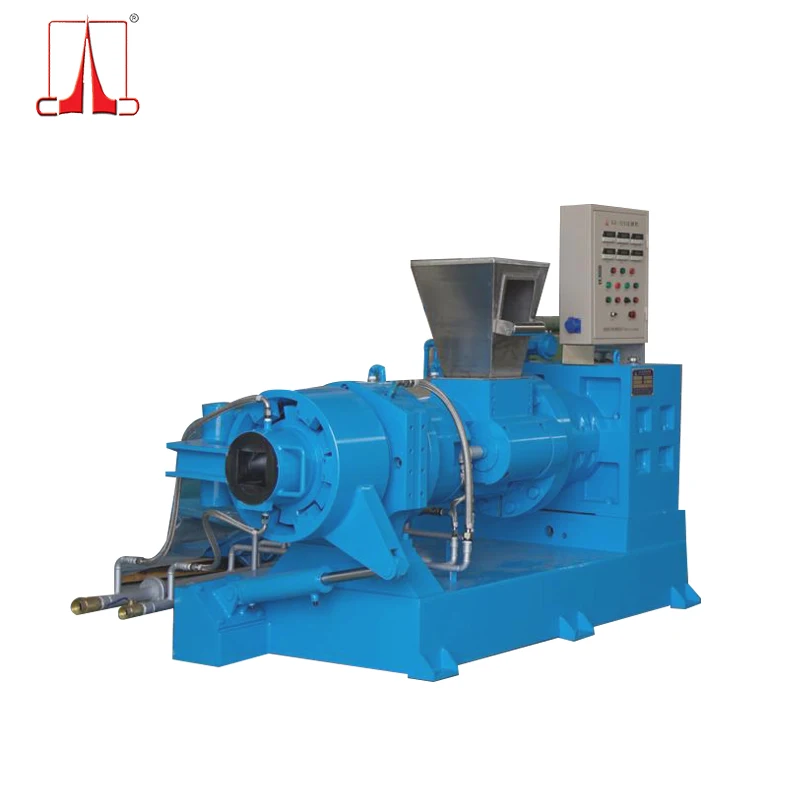

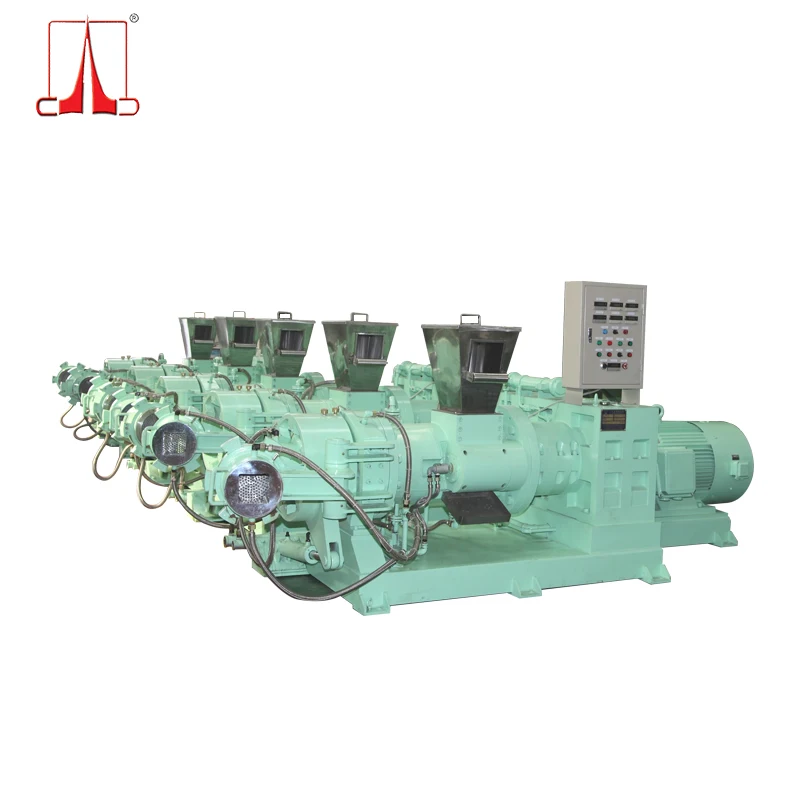

Rubber Strainer Extuder/ Rubber strainer extruding machine
- Category: >>>
- Supplier: Zhangjiagang Lanhang Machinery Co. Ltd.
Share on (1727966176):
Product Overview
Description
Rubber strainer extruder
Application :
Filtration colloidization’s rubber material enters the calendar, assures the calendar bowl’s security the impurity filtration. The screw rod uses the special steel, and after nitriding, prolonged wear-resisting. The double die head replace is rapid, the ease of operation saves time. Is equipped with when the power failure the die head opens the installment automatically, protects the ratio station security.
The filter rubber raw material enters the rolling mill to filter away impurities such as scrap iron,stone,etc.to ensure the safety of the roller, the threshing of the screw rod promotes the uniform plasticization of the rubber, and cool preservation by water can be adopted for stablizing the process.
Features:
♦ Screw made of sapecial steel is with nitrogentreatment,durable.
♦ Jacketed type barrel can cooled for cooling the rubbers effectively.
♦ Double head strainer to be quickly & easily exchanged.
♦ Smoothly running and high ouutput.
♦ Equipped with die-head auto opeaning system when electric power is cut of.
Main technical parameter
Model | XJL-160 | XJL-200 | XJL-220 | XJL-250 | XJL-300 |
Screw diamete(mm) | 160 | 200 | 220 | 250 | 300 |
(L/D)ratio | 14:1 | 14:1 | 16:1 or 14:1 | 18:1 | 12:1 |
Max.screw speed(r/min) | 60 | 55 | 44 | 33 | 26 |
Power of motor(kW) | 75kW DC | 90kW DC | 110kW DC | 160kW DC | 220kW DC |
Capacity9kg/h) | 360 | 800-1000 | 1800-2000 | 2100-2600 | 2300-2800 |
