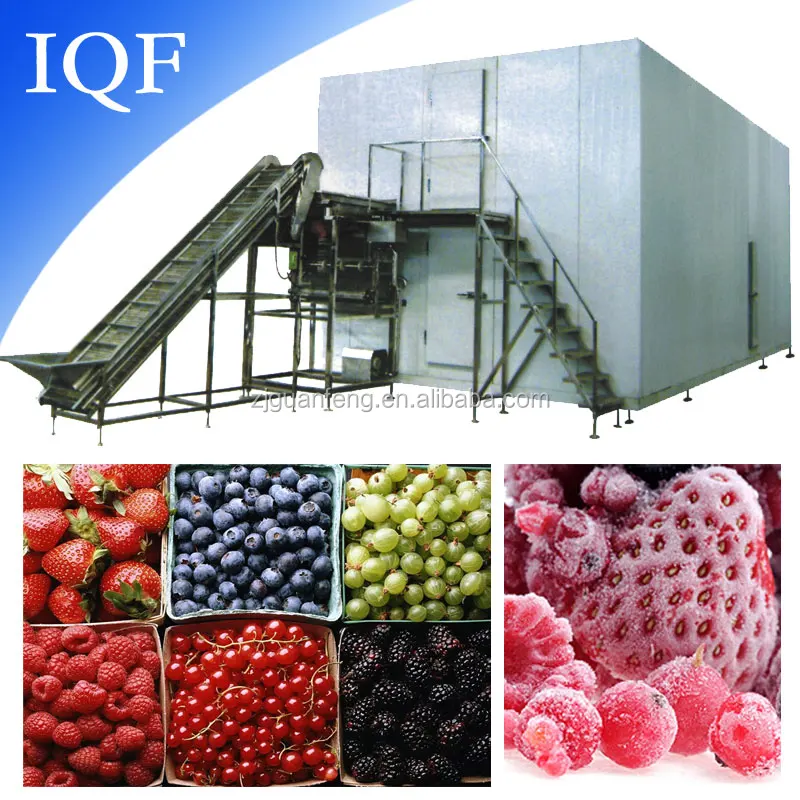

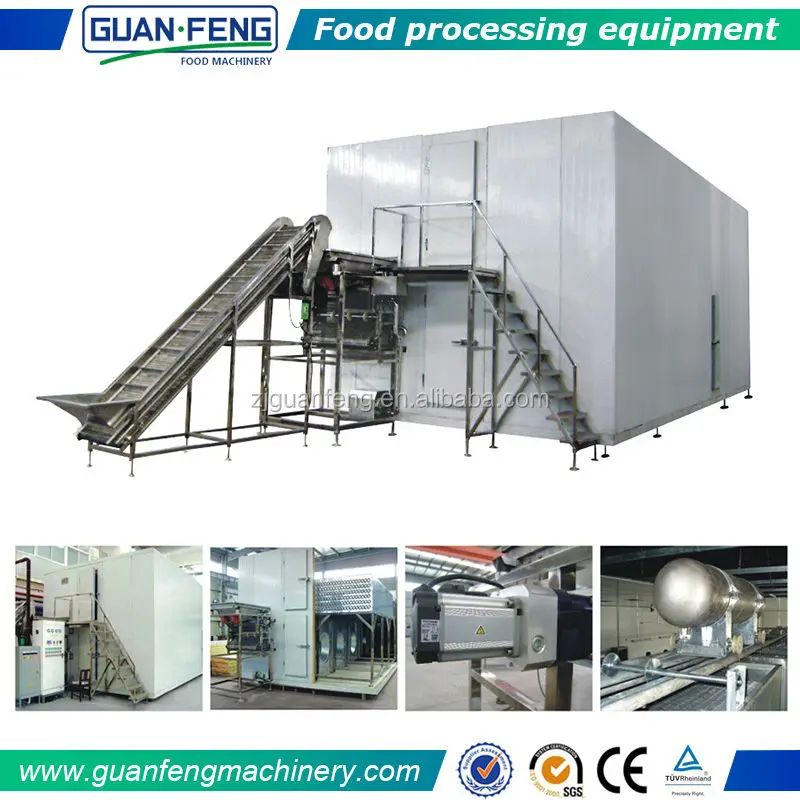

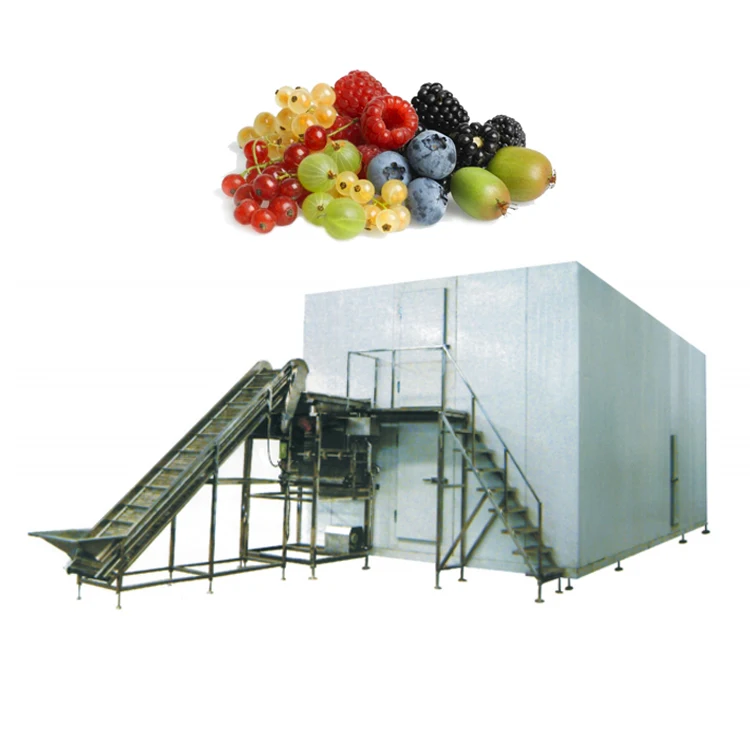

Commercial Industrial Freezer IQF Frozen Machine fruit Tunnel Freezer vegetable freezing Machine Price

model

GLZ-0.5

GLZ-1.0

GLZ-2.0

GLZ-3.0

Capacity(kg/h)

500

1000

2000

3000

Dimension(m)

7x3.8x4.05

8x4.5x4.05

11x4.5x4.05

14.5x4.5x4.05

Inlet temperature

+15℃

Outlet temperature

-18℃

Freezing temperature

≤-33℃

Freezing time

4-40min(variable frequency regulation)

refrigerant

R22/R404A/R717

Power(kw)

30.9

46.3

74.2

101.7

Product overview and applications:

GUANFENG GLZ model fluidized quick-freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect. Suitable for processing fruits and vegetables slices, dices and etc. Mainly freezing the fruits and vegetables.

Main Features :

1) Suitable for fluidized IQF frozen processing for green peas or fruits and vegetables slices, dices etc.

2) Frequency converters for belt conveying and also fan blowers which assure flexibility during the production even with the most difficult products.

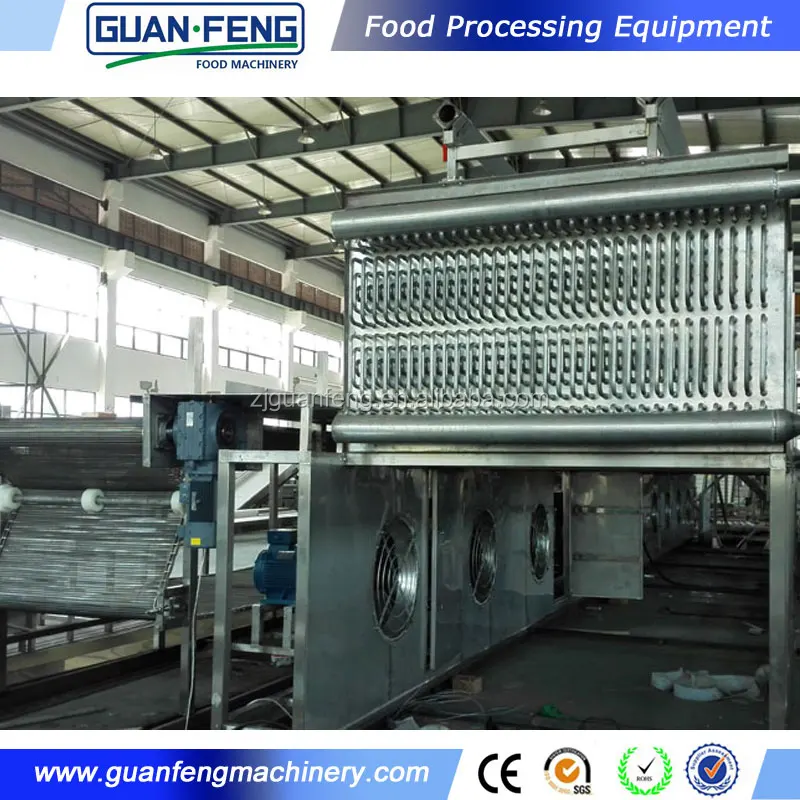

3) Extraordinary freezing efficiency is guaranteed by the extremely efficient evaporator, optimized design and quality finishing.

4) Easy access to all freezer parts, easy handling of maintenance and cleaning operations.

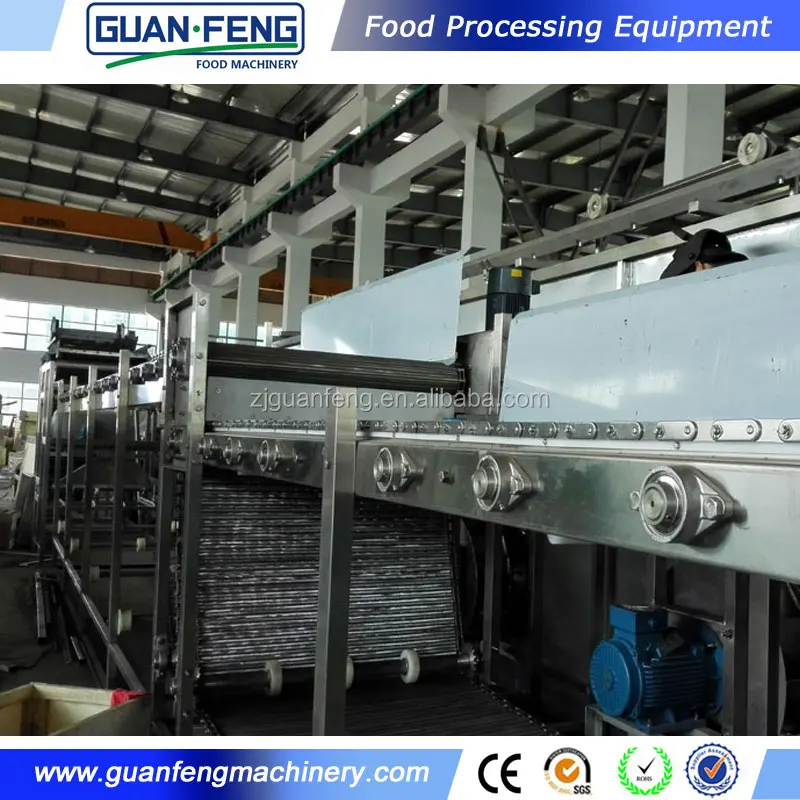

5) Stainless steel wire mesh belt, which is the most reliable solution by now, proven performance by users, and universal solution for easier replacement and maintenance all over the world.
