Corrugated Fin forming Machine for transformer corrugated tank making

Product Overview

Description

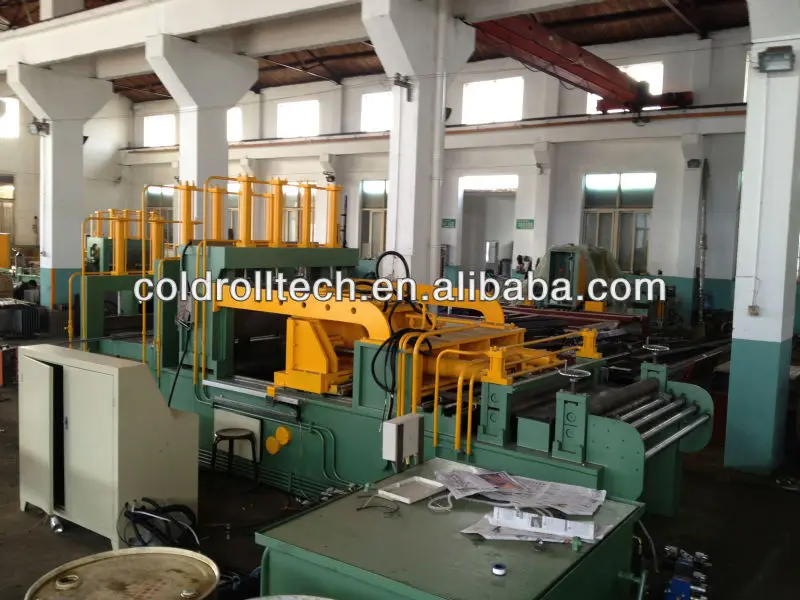

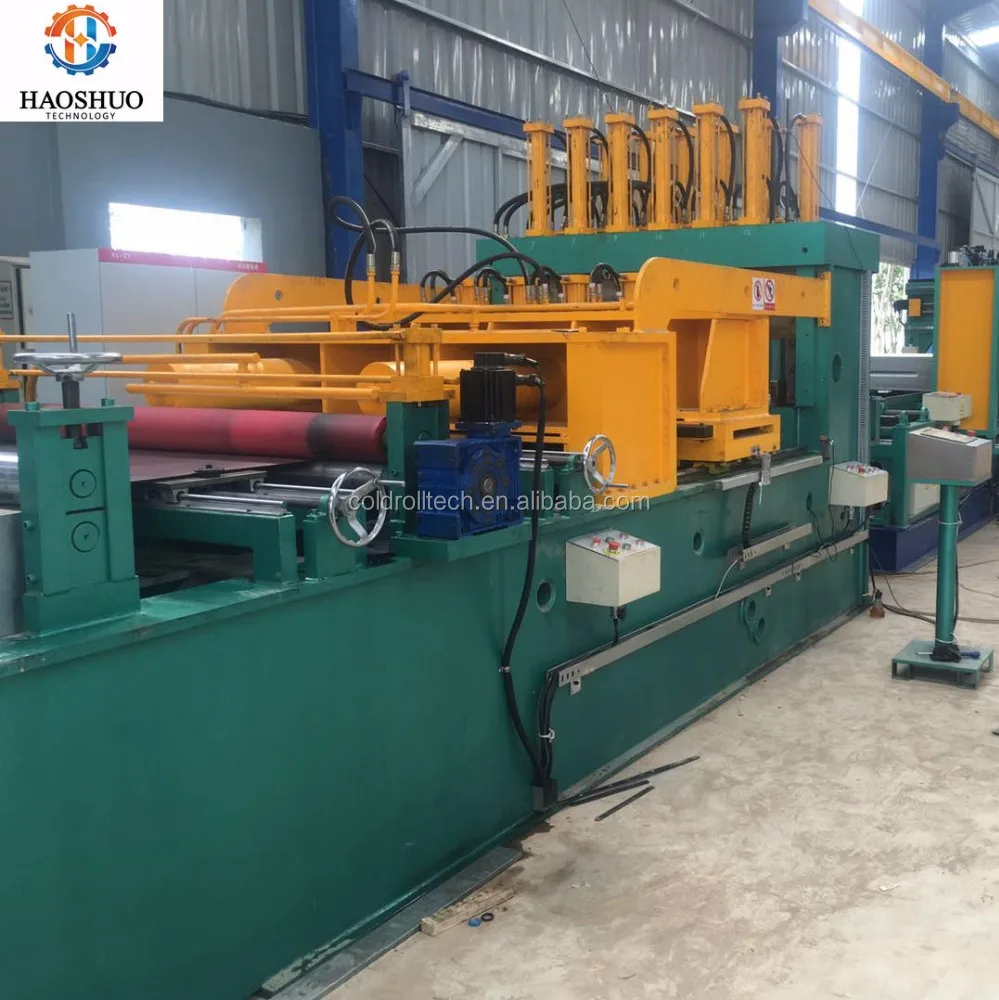

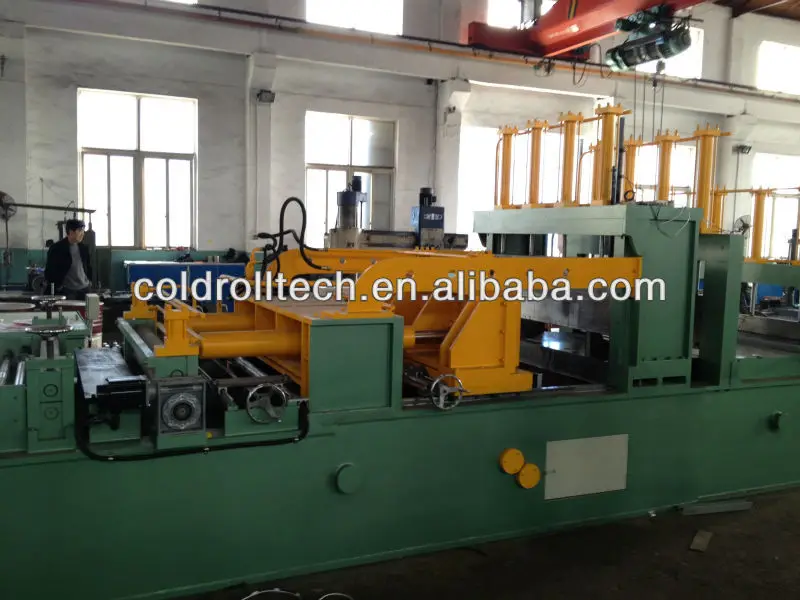

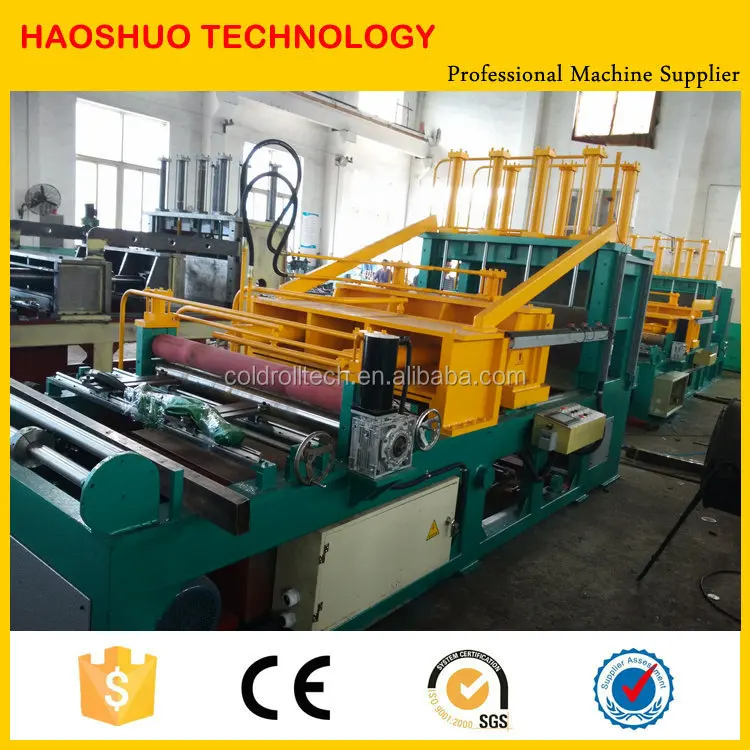

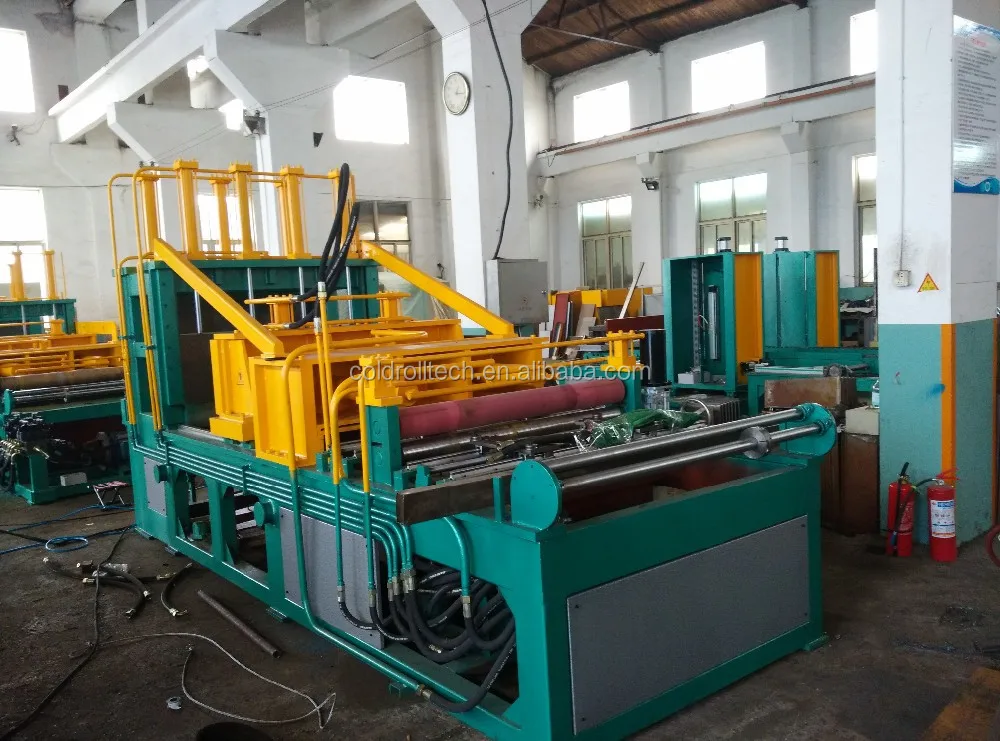

Corrugated Fin Forming Machine for making transformer tank



Used for making fin radiator for transformer corrugated tank.




Main technical paramter:











Working flow of the machine



uncoiling -- coil feeding -- plate folding -- cutting -- run-out



Fin pitch and fin height should be manually adjusted limit switches. Fin quantity can be preset in the PLC.





Main components of transformer corrugated fin machine:



1. Decoiler: mechanical expansion, passive, capacity 5T.



2. Hydraulic station: max. pressure 21MPa, max. flux 40L/min, pump motor 22kW; main hydraulic components are from Taiwan.



3. Main forming unit: hydraulic driven, automatic forming.



4. Shearing device: hydraulic driven to cut formed fins.



5. Run-out table: manual, 1.5m long.

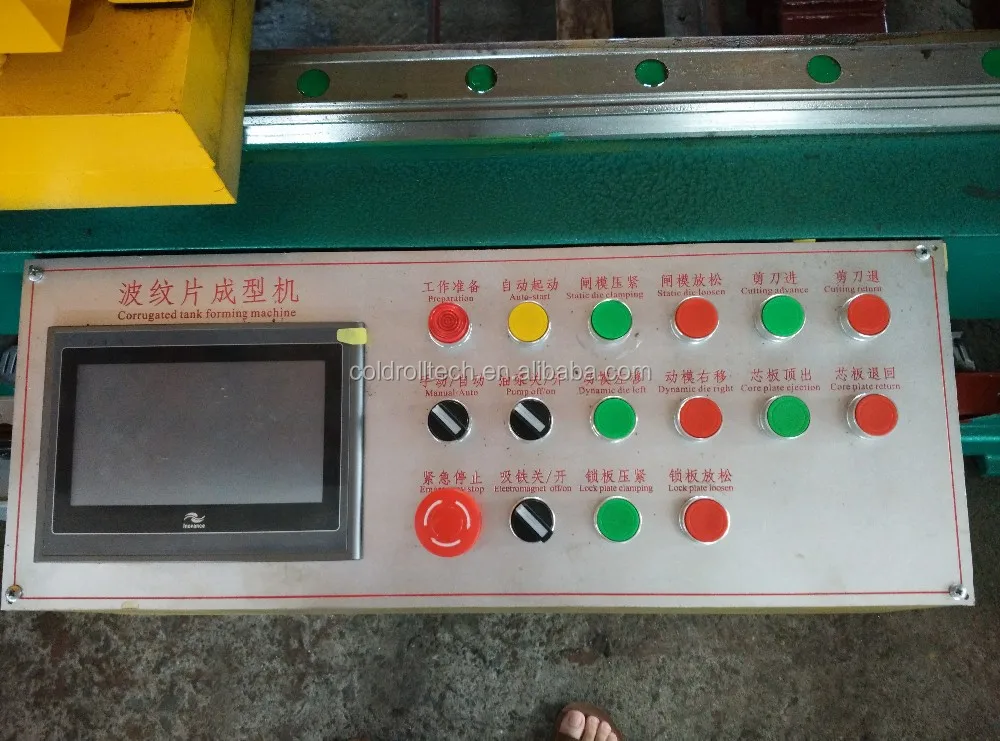

6. PLC control system: PLC is SIEMENS, touch screen, electric components are Schneider brand





Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.

Normally one machine needs one 20 feet container for shipping.

We can provide you not only good quality transformer corrugated tank machines but also good after-sale service.
