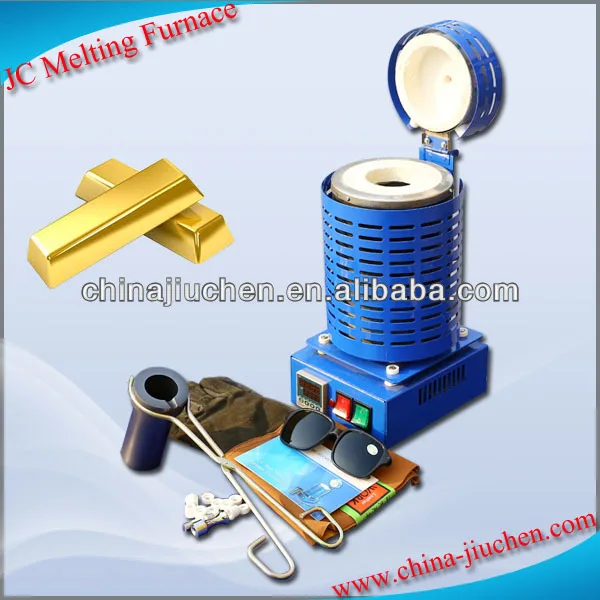

1kg 30 OZ Electric Melting Furnace, Gold, Silver, Brass

Product Overview

Description

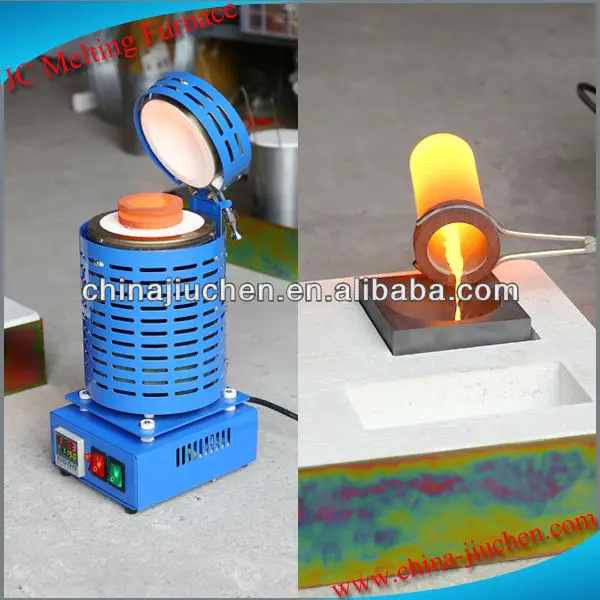

1kg - 30 OZ Electric Melting Furnace, Gold, Silver, Brass

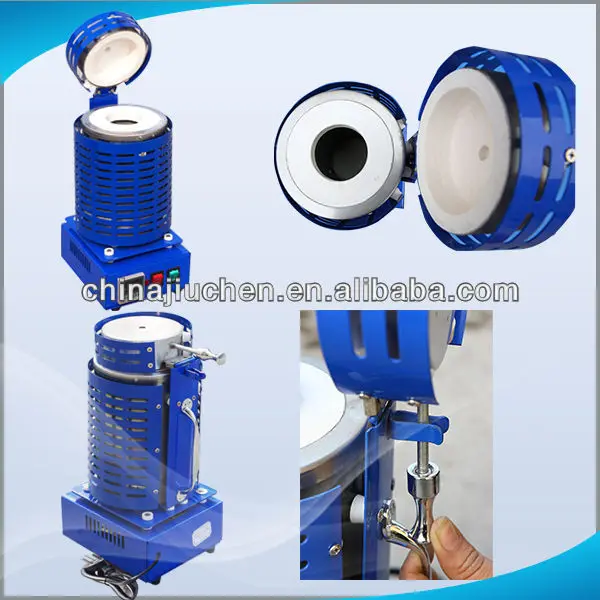

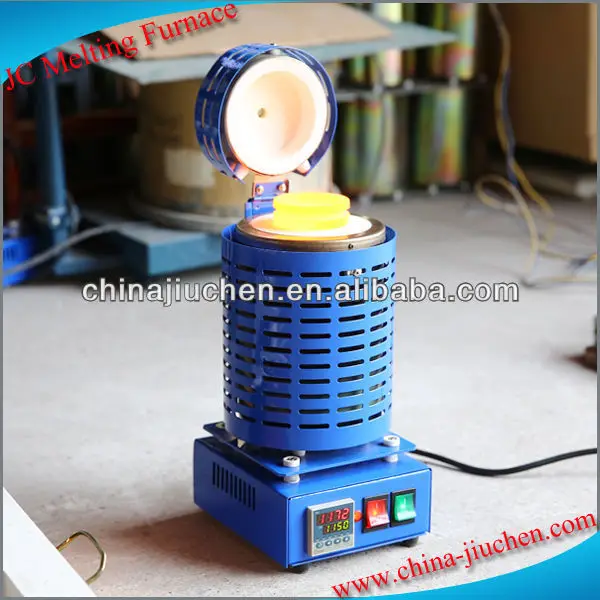

JC-K-110-2(110V 1.5kw) Series jiuchen furnace consists of a cylindrical furnace with durable construction and made of double walled stainless steel ,an insulated handle for easy pouring, and a temperature controller.



Furnace are made for casting, reclaiming, alloying, and refining gold, silver and other metals with similar or lesser melting temperatures or heating treatment for Labotorary and research.



 The furnace is an energy-efficient heating equipment with small size, high precision, easy operation, fast heating, and high efficiency.The unit is widely used in melting gold, silver, copper and other metals; Research projects of schools, laboratories; melting and heat treatment projects of non-flammable, non-explosive materials; melting and heat treatment of materials which need precise temperature controlled.It is a best choice for small heating , melting equipment.





Some of the Metals that can be melted with this Furnace;
Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc





Equipped with high-quality graphite crucibles models1kg 2kg 3kg all available for use one furnace This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety

Heating elements such as chamber , thermocouple are easy to replace, made of international standard quality material and fluxes resistant.



Delivery Includes

Model JC-K-110-2(110V 1.5KW) Gray,blue,red Color is optional
Graphite stirring rod
Graphite Crucible (1kg 30oz)
Safety Glasses
Replacement fuse set
Insulating heat glove
Instruction manual

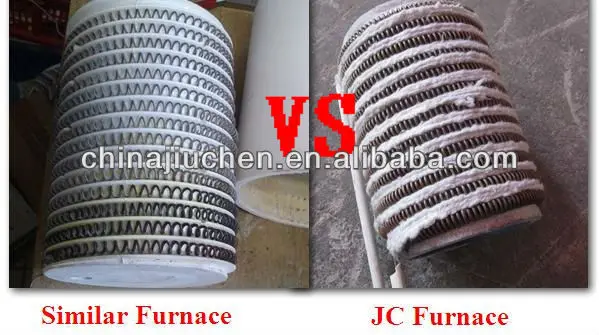

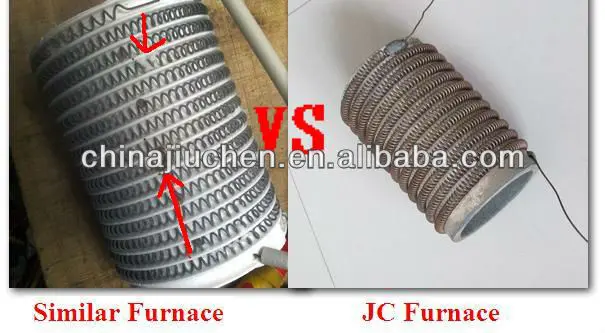

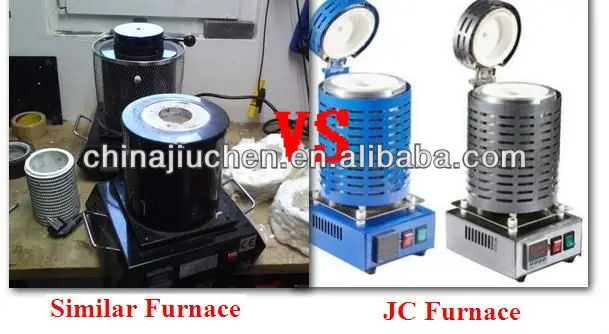

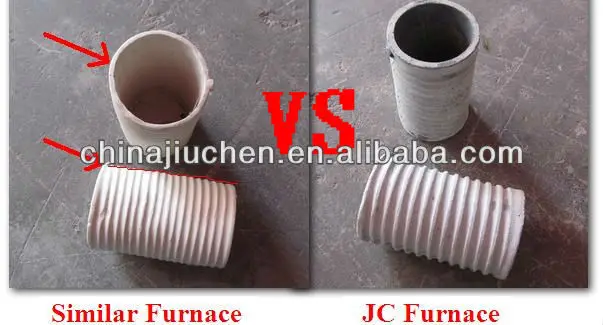

JIUCHEN Furnace is comparied with other similar furnace from other suppliers.



 Technical Data:

	K Series
NO.	JC-K-110/220-1	JC-K-110-2
Volt/Power	110/220V-1KW	110V-2KW
Current/Frecuency	4.5 AMP /50HZ	9 AMP /60HZ
Temp display mode	°C/°F
Measuring range	Working temp:1150C    Max temp: 1200C
Heating rate	30 mins	15mins
Capacity	1kg-3kg(coordinate with crucible)

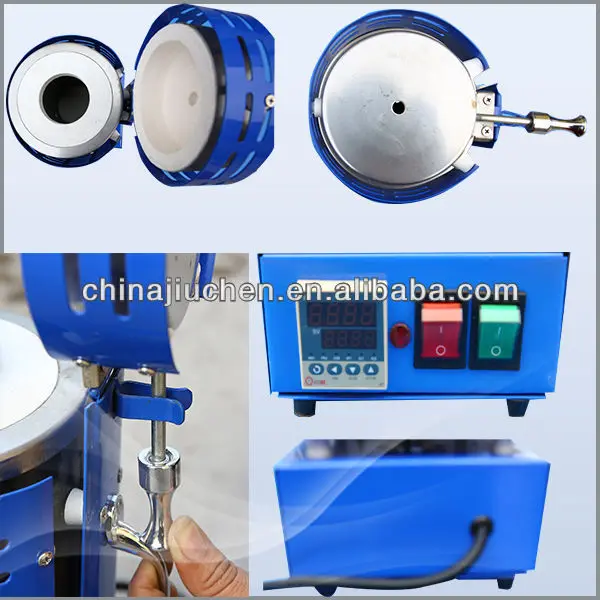

Temp control mode	Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time;Set data can be changed by arrow buttons
Fitting Parts	Power cord, 1kg capacity crucible, one crucible tong, ceramic members

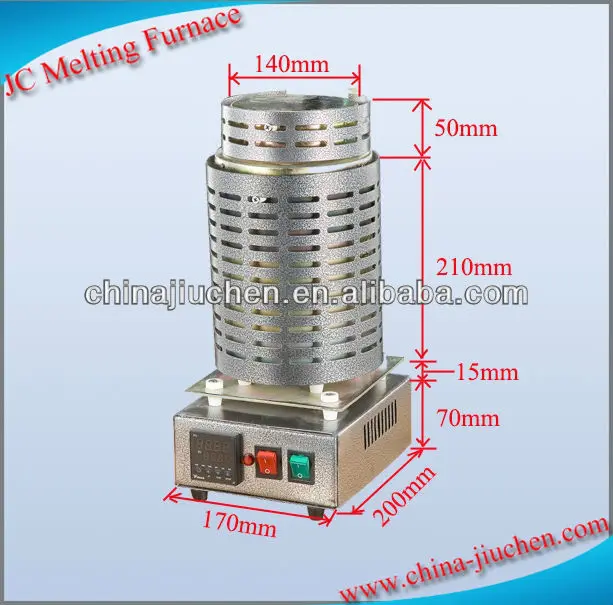

Size	Body:170*200*350mm,Melting chamber: Dia 70*145mm,Other size is customizable



Advantages of This Product:
1. Light weight and small volume;
2. High efficiency of refining;
3. Easy installation and operation;
4. Fast speed of raising temperature, the temperature is constant;
5.Safe and environment-friendly operation;
6.Complete Protection:Equipped with over-voltage,over-current,over-heat,water shortage device which control and protect automatically;

7.Insulated lid holds heat in and keeps oxygen out for a cleaner melt.



8. You can melt pure silver & gold or alloys such as sterling silver, 14k gold 18k gold up to pure.

9. It takes 4-5 Minutes to first warm up depending on the metal your melting and 11-15 minutes to fully melt your metal depending on the form of material. Shot or small parts melt faster than large bars or blocks.

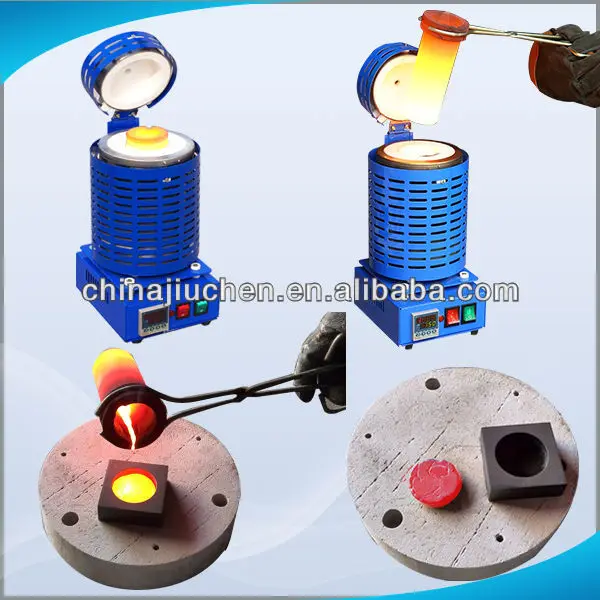

The Gold Refining process as follows:

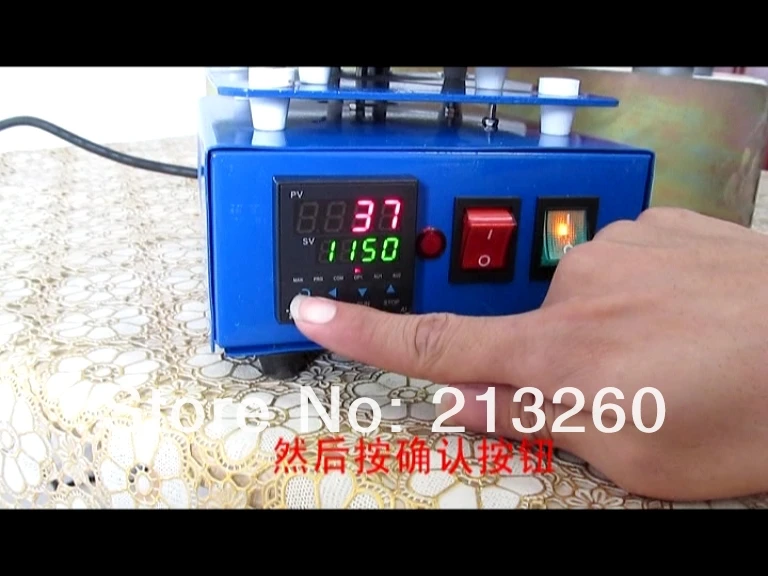

 Step 1  Step 1 Set up the required working temp.

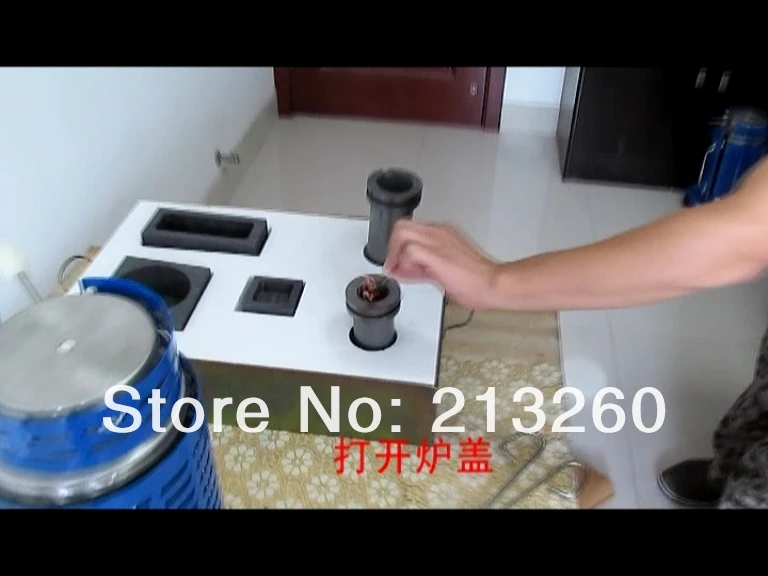

Step2  Put the melter into Graphite Crucible.

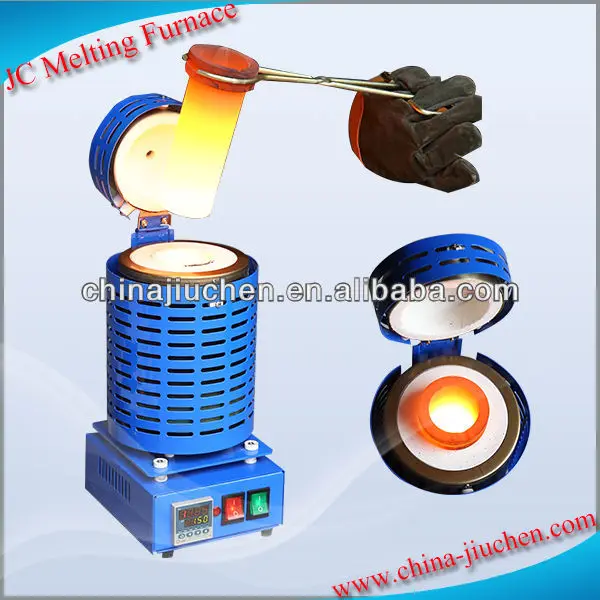

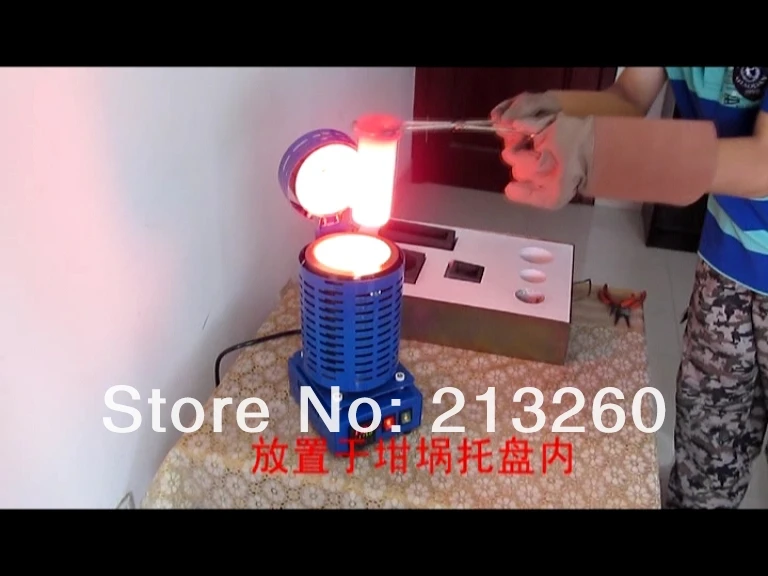

 Step3. Take out the Melting crucible from the furnace,then put it on tray.

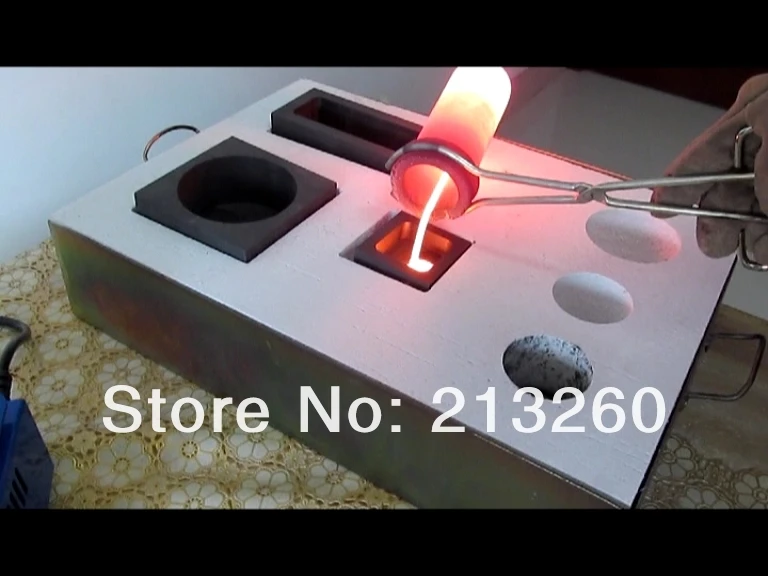

Step4.Pour slowly the gold liquid from the crucible.

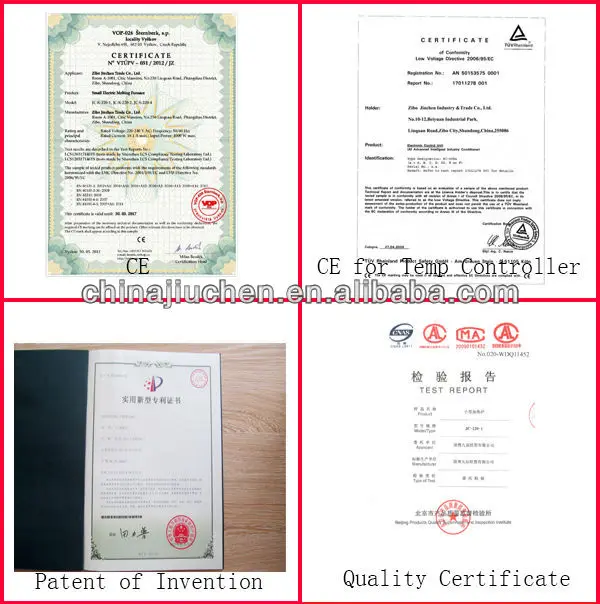

Gold Melter Certificate:
