TYM2000JT Large Size 2m Web Fed Roll to Roll Automatic Hot Foil Stamping Machine Equipment for Cosmetics
- Category: >>>
- Supplier: Zhejiang Guangya Machinery Co. Ltd.
Share on (1731633152):
Product Overview
Description
Large Size 2m Web-Fed Roll to Roll Automatic Hot Foil Print Machine Heat Press Machines
Product Description
Web-Fed Automatic Hot Stamping Foil Machine is designed as the new generation product; it is used for automatic stamping roll material that after the printing, laminating. It is suitable for the production of paper box, paper cup, Surround-Bidding label, card paper pressing convex, portable paper bag, paper cover,PVC, and various plastic material etc.
The main machine and frame adopt the advanced resin sand technical, which ensures machine be more stable. The main components are controlled by the Japan Mitsubishi PLC. The main motor is controlled by AC frequency conversion speed regulator; the main transmission system is equipped by air clutch brake equipment, which makes the machine running steadily.

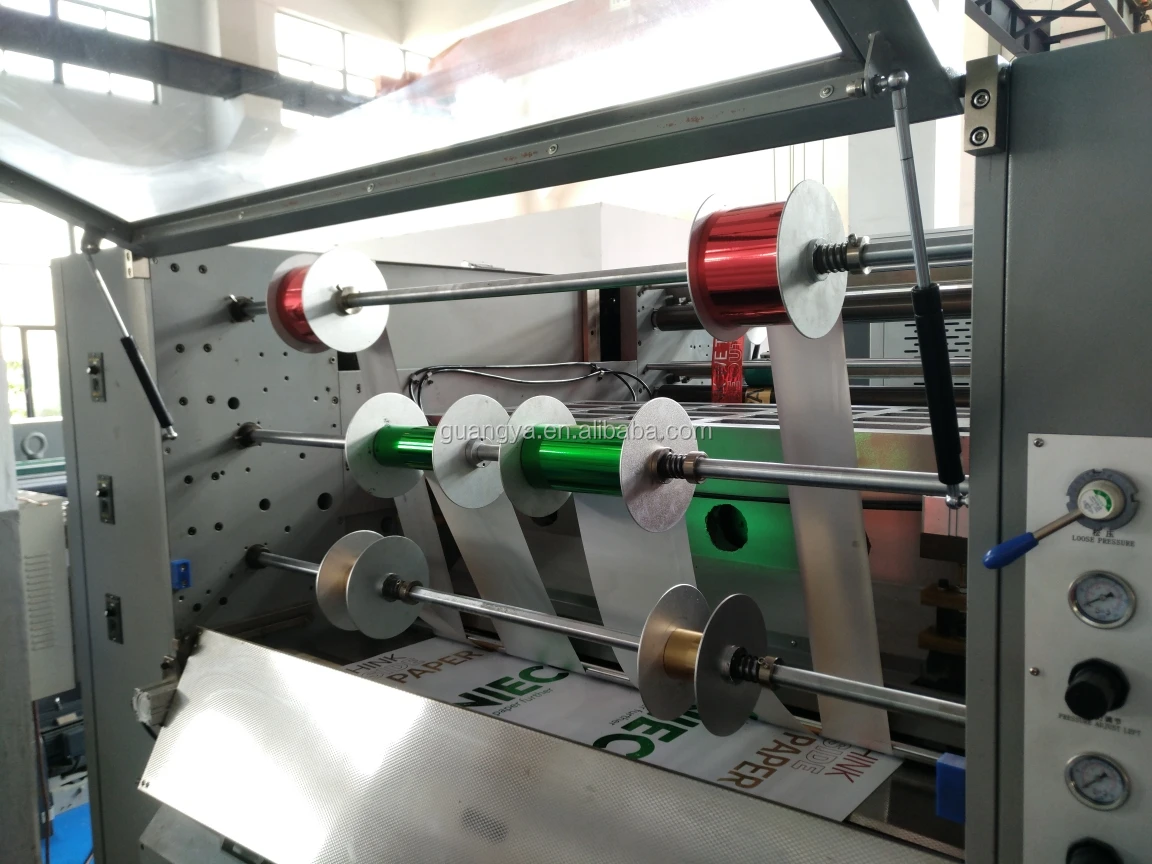

The machine equipment adopts high precision color photo-electrical automatic trace detection, servo motor automatic locating system. Material automatic loading, equipping --- feeder automatic correct equipment. It has advantages of easy length adjustment, high precision locating, stable feeding, even tension, compact structure, high automatic, easy operation, stable property and so on.
Technical Parameters
Model | TYM2000JT |
Max. roll paper diameter(mm) | 1200mm |
Max. feeding paper length(mm) | 1250mm |
Max. sheet size(mm) | 2000mm×1250mm |
Max. stamping speed | 5000times/h |
Max. working speed | 5500times/h |
Foil feeding shafts | 3groups longitudinal:3 |
Zones individually heated | 20 zones, each zone 3kw |
Main motor power | 22kw |
Heated plate power | 60kw |
Paper range | 70g-500gsm |
Max. working pressure | 250T |
Machine weight | 30T |
Overall machine dimensions(mm) | 15000*8000*2200 |

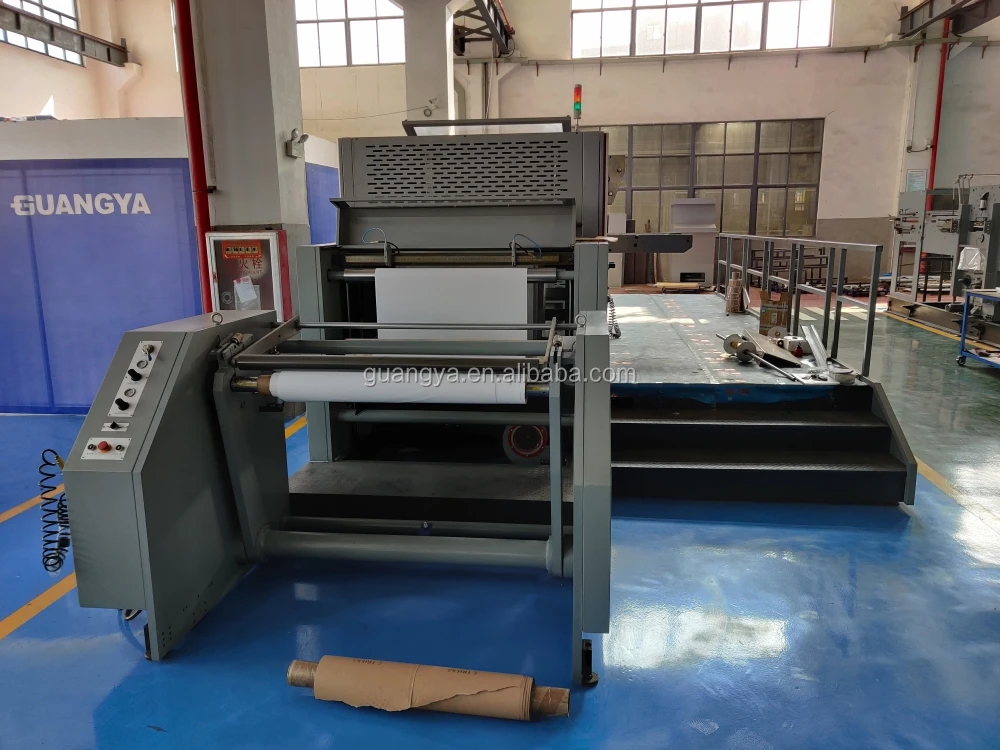

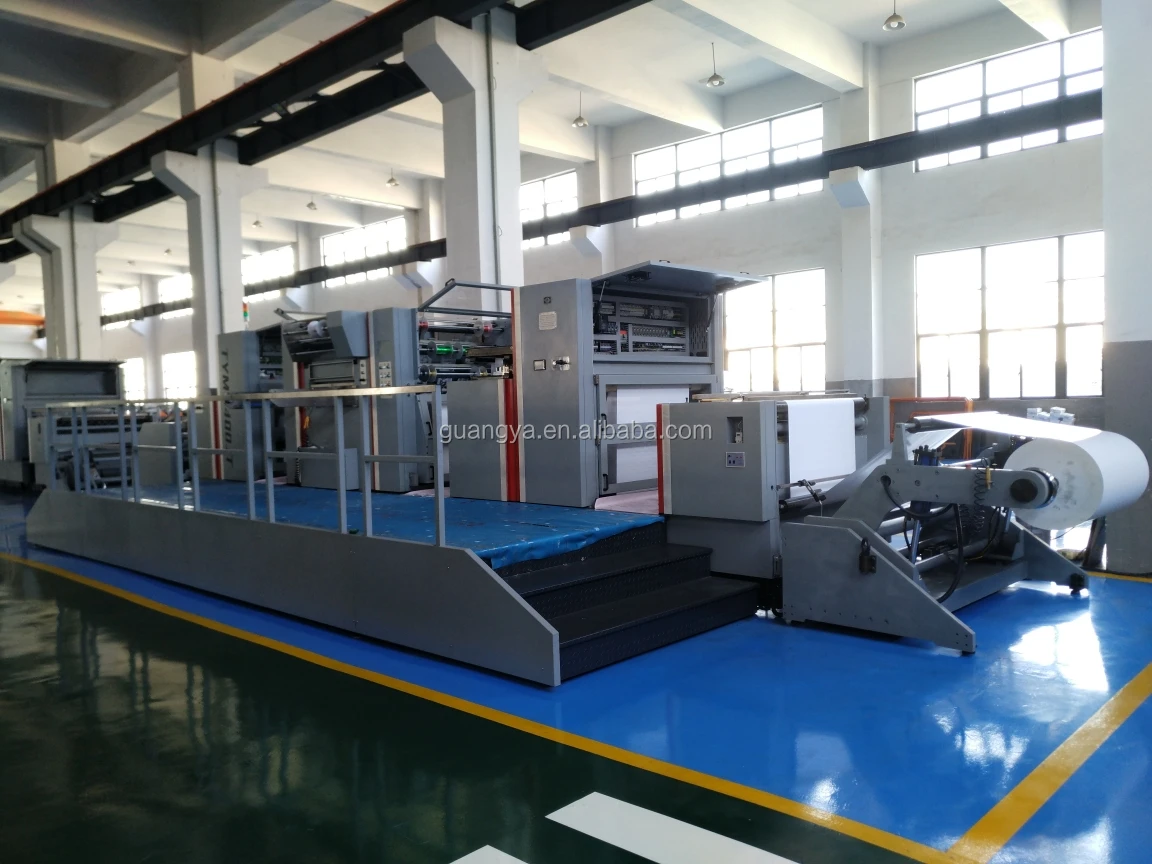

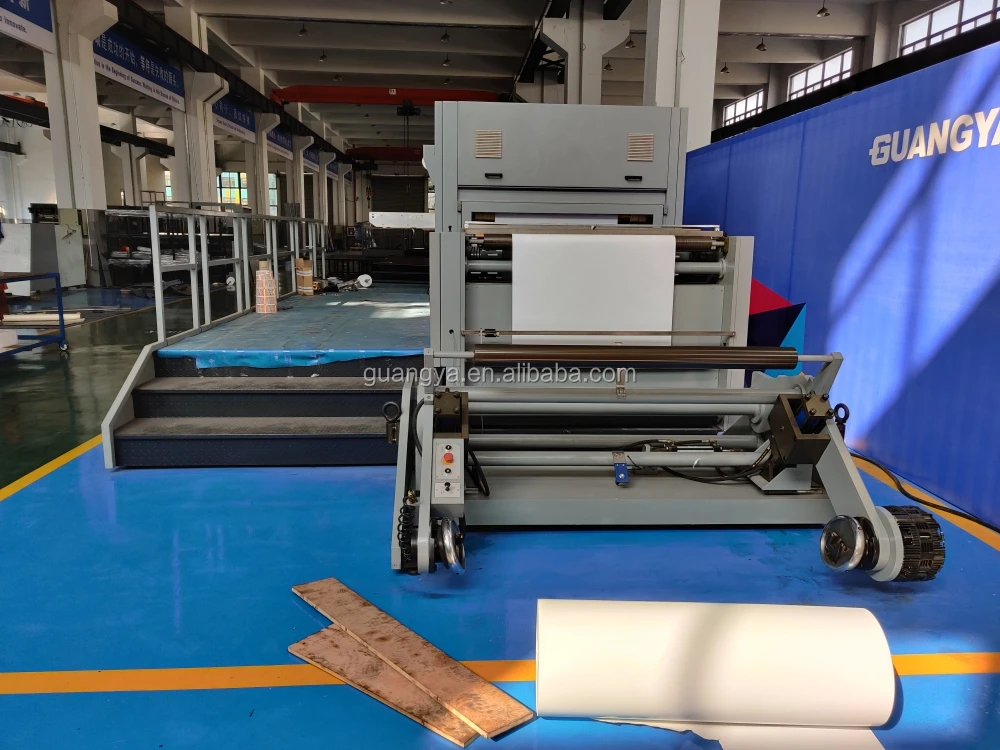

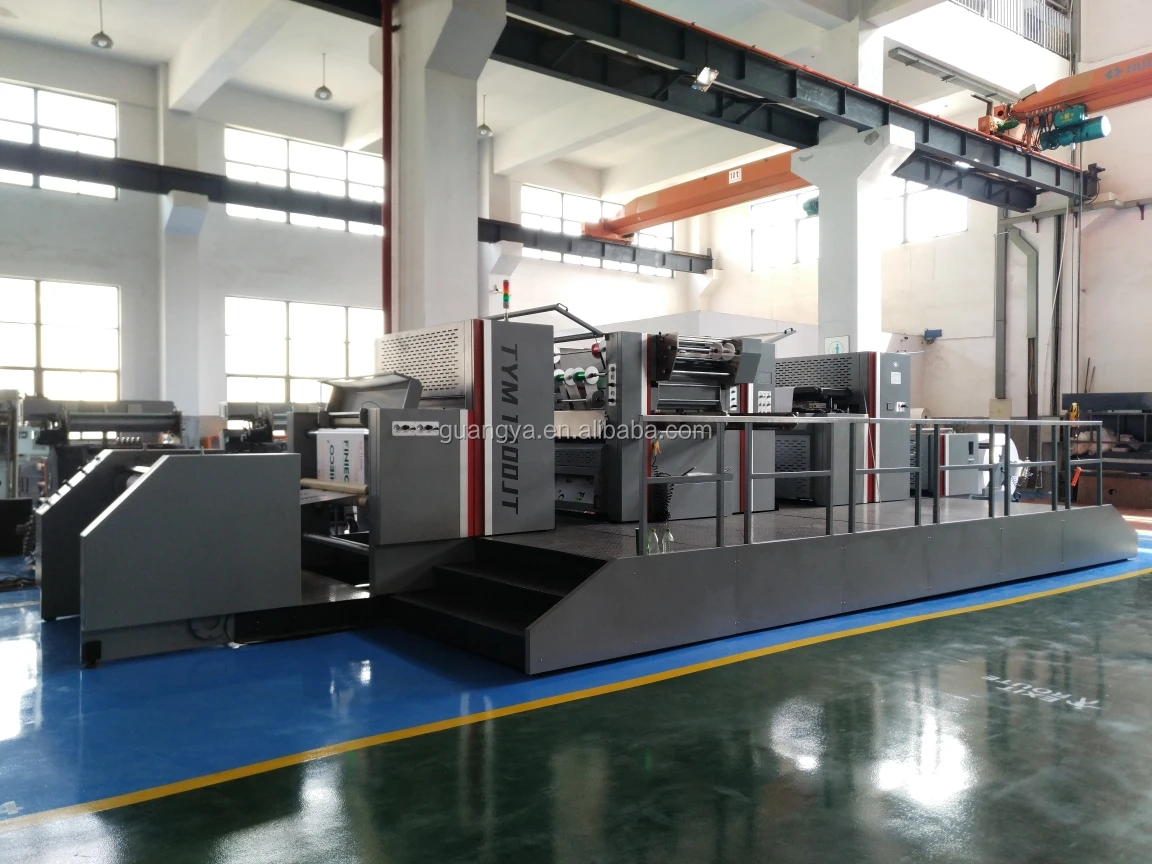

Mac under production
Foil stamp sample
Samples of hot foil stamping & embossing,
Related Products
Certifications
Our Services
The Unique Human Care And Profession Passionate Sales Service System
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.
Company Information
Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).
At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.
Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in China.
Guangya hope to be your deal business partner to develop the prosperous future together.
FAQ
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machine for over 22 years.
2. Where is your company located? How can I visit there?
Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
The nearest transportation center is Wenzhou airport or Ruian train station.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply: Our team will reply you soon.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
