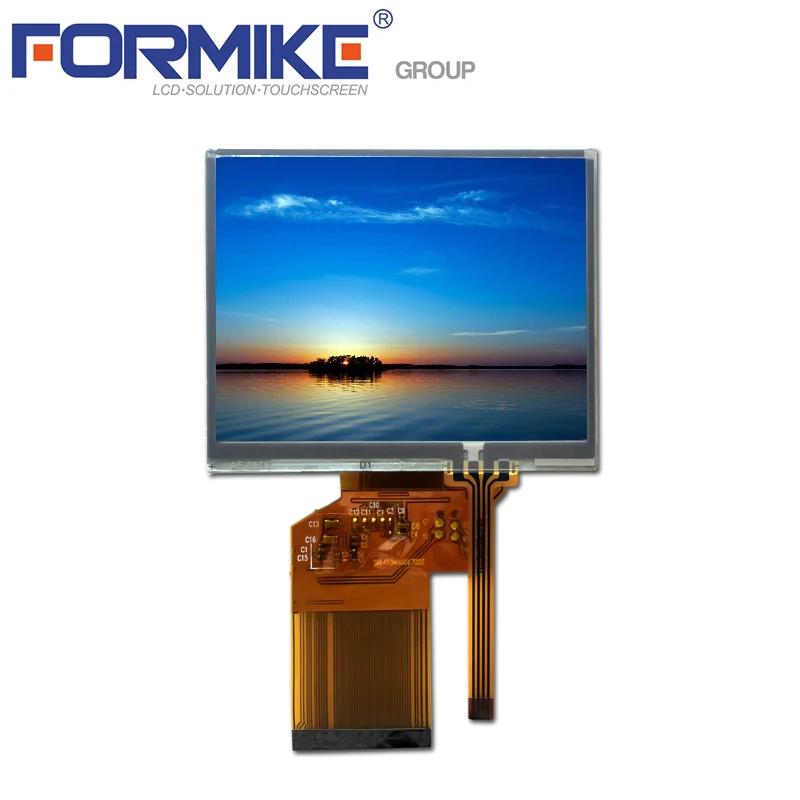

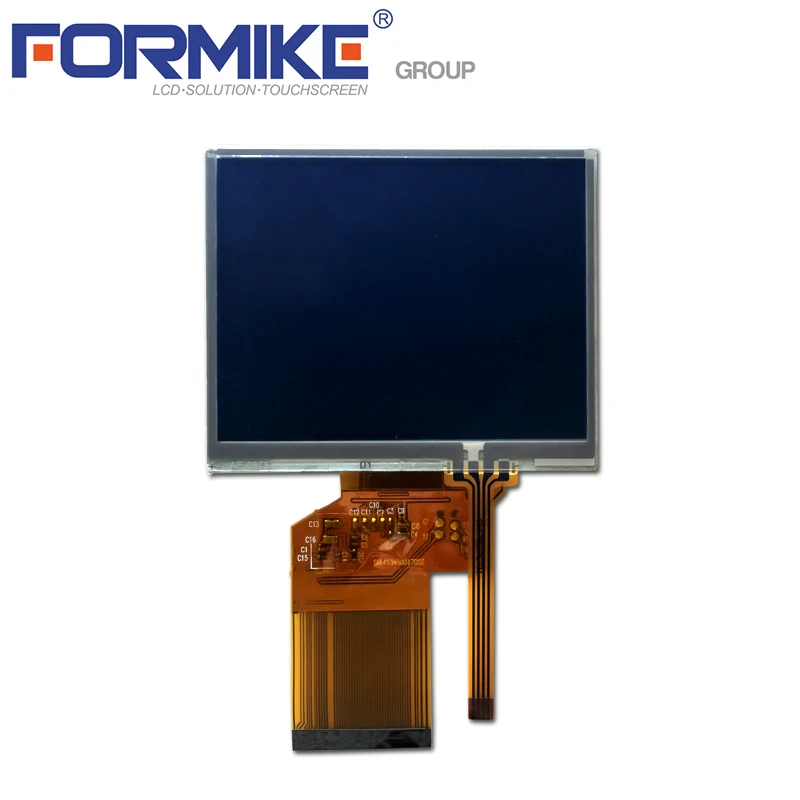

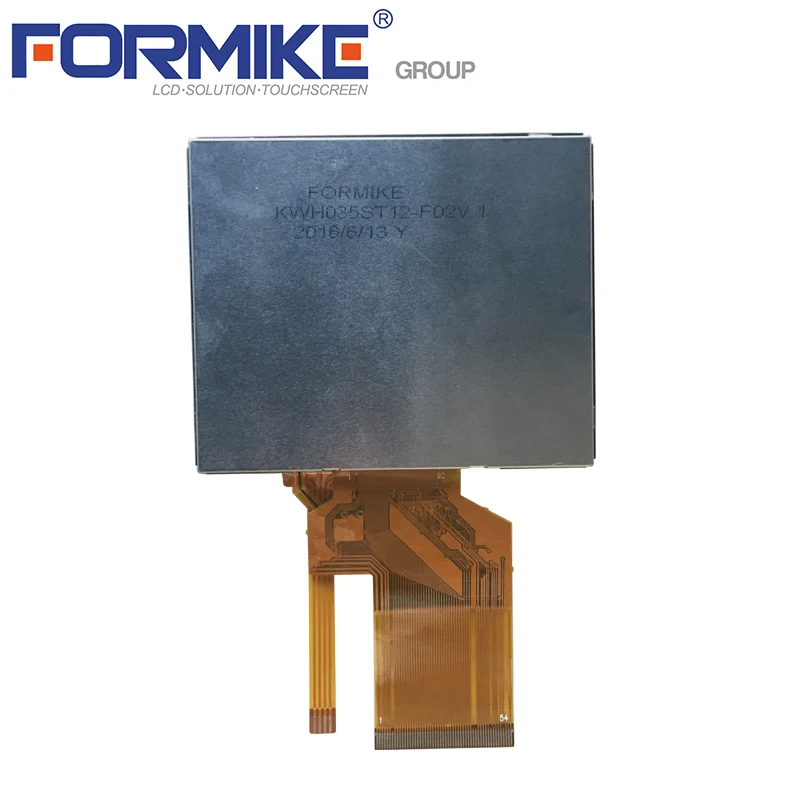

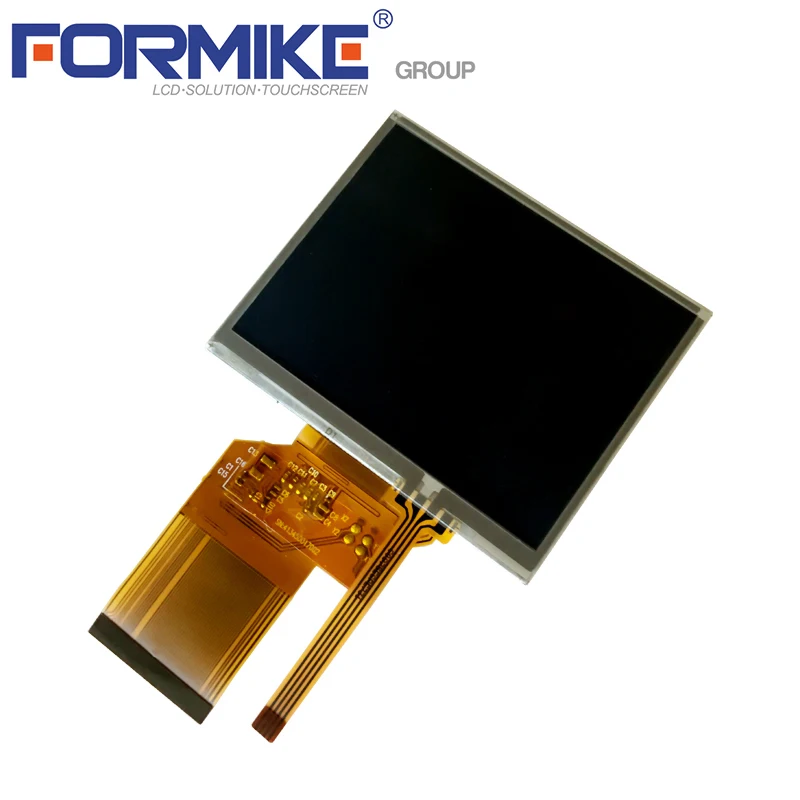

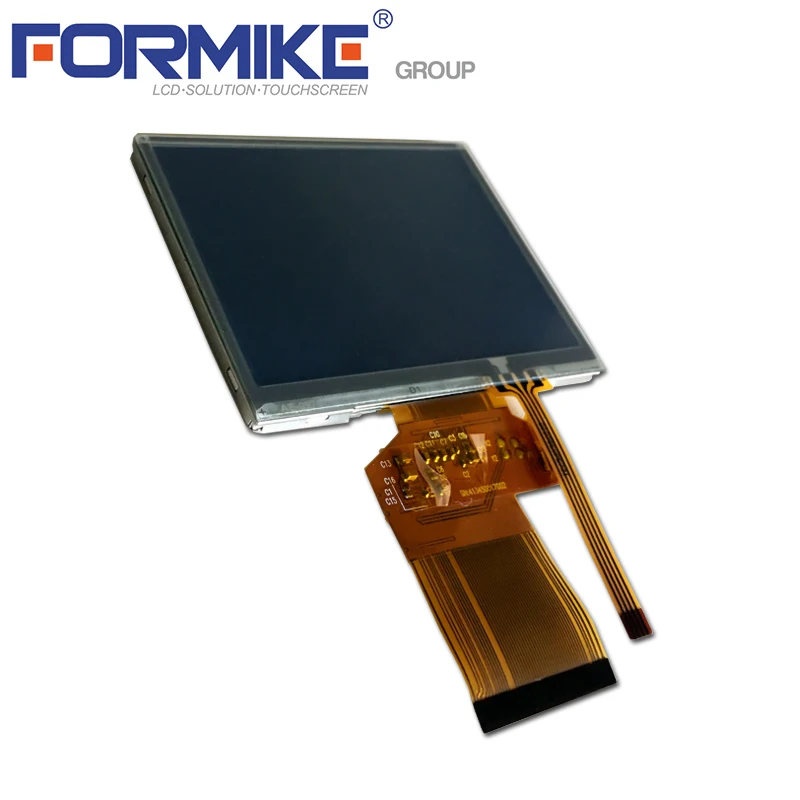

Touch 3.5 inch 320x240 TFT LCD module with RGB 24 bits interface 4 LEDs backlight KWH035ST12 F02
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (1732021564):
Product Overview
Description
- We are LCD manuacturer in Shenzhen over 20 years.
- Various 3.5 inch TFT display available.
- Custom solution can be offered based on your special requirement.
Product Description
| 1-Features | ||
| 1-1 | LCD Type | Touch 3.5 inch 320*240 TFT LCD module with RGB 24 bits interface 4 LEDs backlight |
| 1-2 | Dot Arrangement | 320x(R.G.B)x240 |
| 1-3 | Module Size | 76.9x63.9x4.3mm |
| 1-4 | Active Area | 70.08x52.56mm |
| 1-5 | Interface | RGB,24 bits parallel interface |
| 1-6 | Driver IC | HX8238D or equivalent |
| 1-7 | Backlight | 4 White LED In Parallel |
| 1-8 | FPC Type | Soldering Type |
| 1-9 | Viewing Angle | 12 O'Clock |
| 1-10 | Touch Panel | With 4-wire resistive touch panel |
Our Services
| 1-Support |
| 1) Provide TN/HTN/STN/FSTN/DFSTN/VA LCD panel in various modes |
| 2) Character & Graphic LCD modules manufacture (COB, COG, TAB ) |
| 3) Color STN & TFT LCD module manufacture |
| 4) Capacitive touch screen manufacture |
| 5) Complete technical support from before to after sales service |
| 2-Services |
| 1-We will handle your inquiry within 24 hours. |
| 2- If there is product quality issue caused by us within half a year, we shall arise to returning or refunding. |
| 3-We will exhaust our ability to service you at any time |
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
For datasheet and price details, please kindly contact us via below inquiry window
