1,Providing super-large space for operation,more suitable for medium and large-sizetents,vehicle hoods,inflatable boat,hoods,etc.
2,Contronlled by programmable PLC with high clear display,process can be modified
according to users’ requirements.
3,Auto controllable temperature with high stability slightly varies between±2°C, Warning device for temperature upper limit is installed to protect heating wire.
4,It has the functions of synchrodrive of the upper and lower wheel chain, auto
compensation, and auto reverse.
5,Double pedal control is designed according to human mechanics, simple and
comfortable, suitable for long-time operation.
6,It is possible to work 24 hours continuously with high efficiency.
7,Blowing-in wind can be filtrated without oil or water by unique heater tube.
8,Auto reverse function to save more,to avoid blank welding on the beginning.
9,The functions of auto tape clipping, sending and finishing reduce the wastage
of raw material.
==Product Application==
Economical Production of Weather-proof Products Such As Rain-Wear,Ski-wear,wet/dry suits, tents,car covers.etc.Seam Sealing Applicable To A large variety of fabrics
such as pu,pe,pvc,neoprene,ac,etc,can be used for long,straight and curved seams of all kinds
on sheeting and coated materials with A thickness of 0.2mm and more.
==Technical parameter==

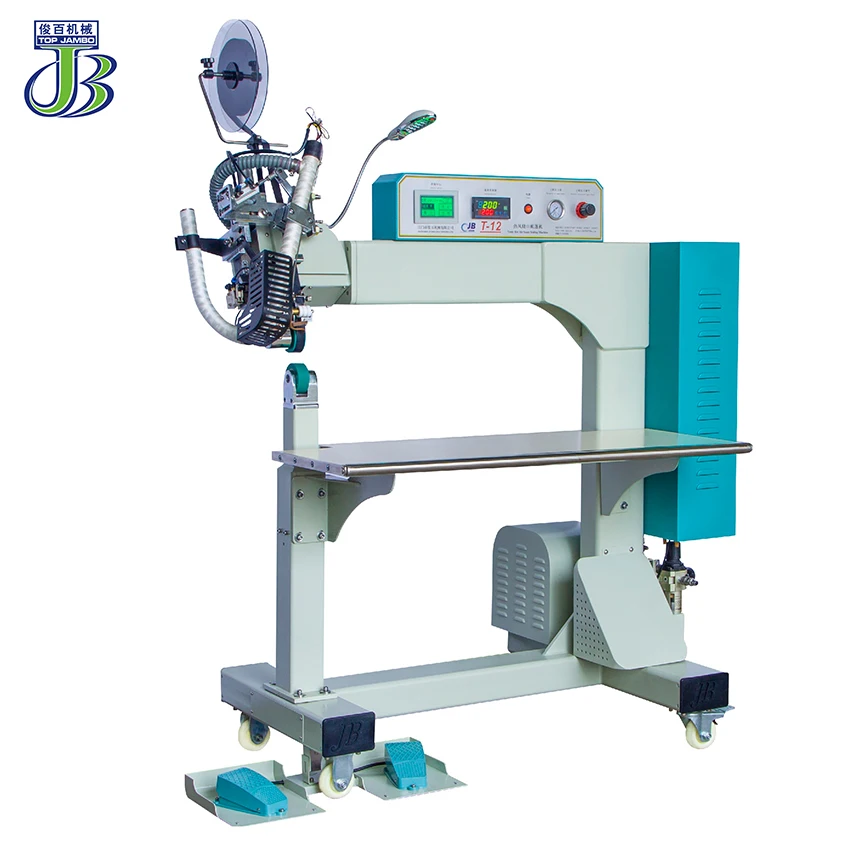

Model:
T-12
Power supply:
AC~220V 50Hz
Rating efficiency:
3000W
Heat control:
Room temperature~700’C adjustable without bands
Speed:
2~24m/min infinitey variable.
Air supply:
0.35~0.5 Mpa
Pinch roller width:
Standard:25-30mm mill finish,steel grain,straight grain to be chosen
according to demandiped roller
Width of tape:
Standard:14mm/27mm,others can be choosen according to demand
Exterior size:
1300mm(L)×700mm(W)×1600mm(H)
Net weight:
165KG
Prevention against jumping
over sewing work :
There are adjustable devices to prevent the gun from jumping over
the seamed sections when the gun is moving inward with the idle
wheel starting, or when the gun moving outward with the idle wheel
stopping

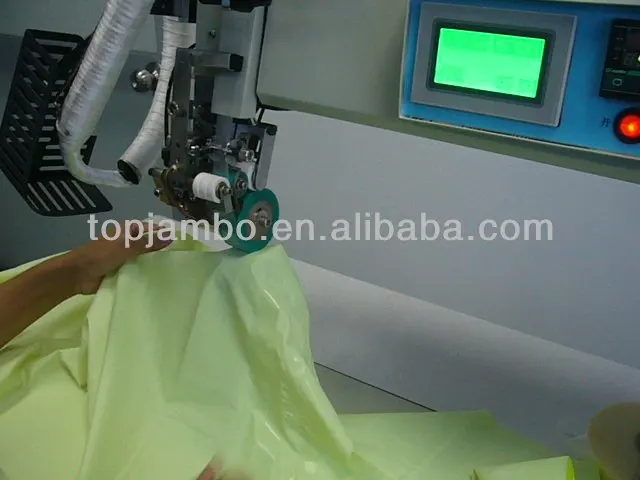

Our Machine

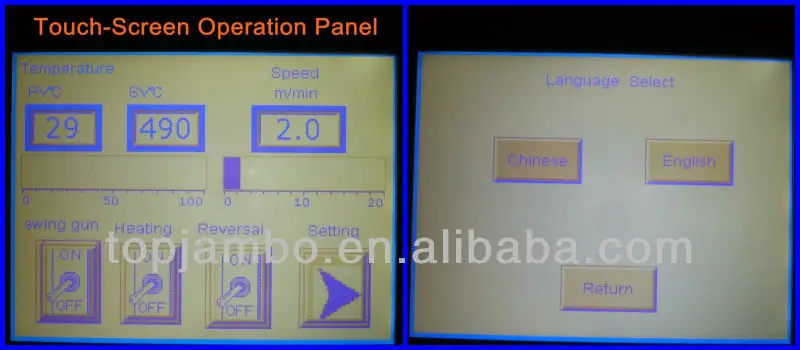

Operation Panel with both Languages (Chinese & English) for Options

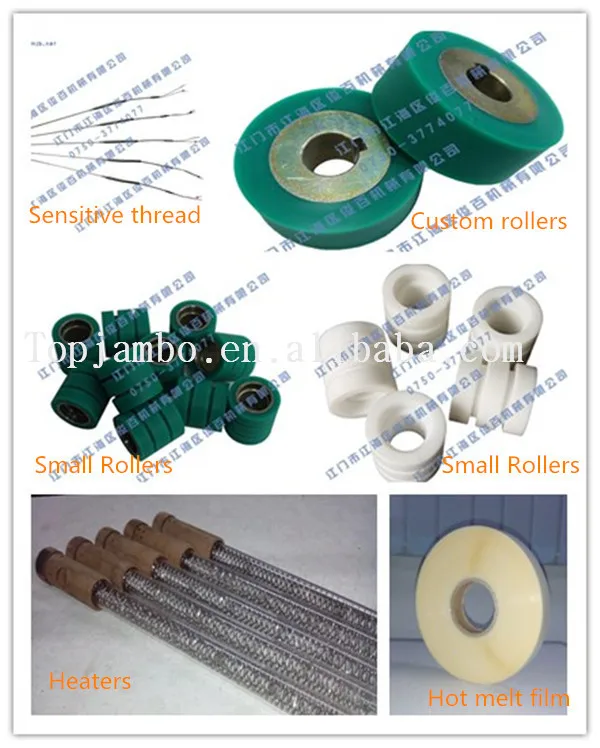

Accessories
Our Services
Warranty Period
First half year warranty will be provided for all electrical element of new sold machines one year
warranty for all mechanical parts (under warranty free replacement parts are available),Our machines are modular
design that can repair by swapping module (free spare parts will be provided for not-consumable parts, e.g. roller, or not caused by improper use, when under warranty period).
Maintenance
All machines must be placed indoor, and cannot be under high temperature working environment.
Air-conditioned set up would be favored.
Initial Machine Startup Installation
All machines are in good testing before delivery,once you got the machine,only connect the air
compressor and choose language in English. Then you can set up speed and temp. according to your requirement.( Details refer to the instruction)
Machine Repairing
We can offering the online videos technology support service for machine repairing .
Technology Support
For any technical problem, we will discuss with customers to investigate their problem and finding
solution.
We can quote lowest prices separately for spare parts and freight
