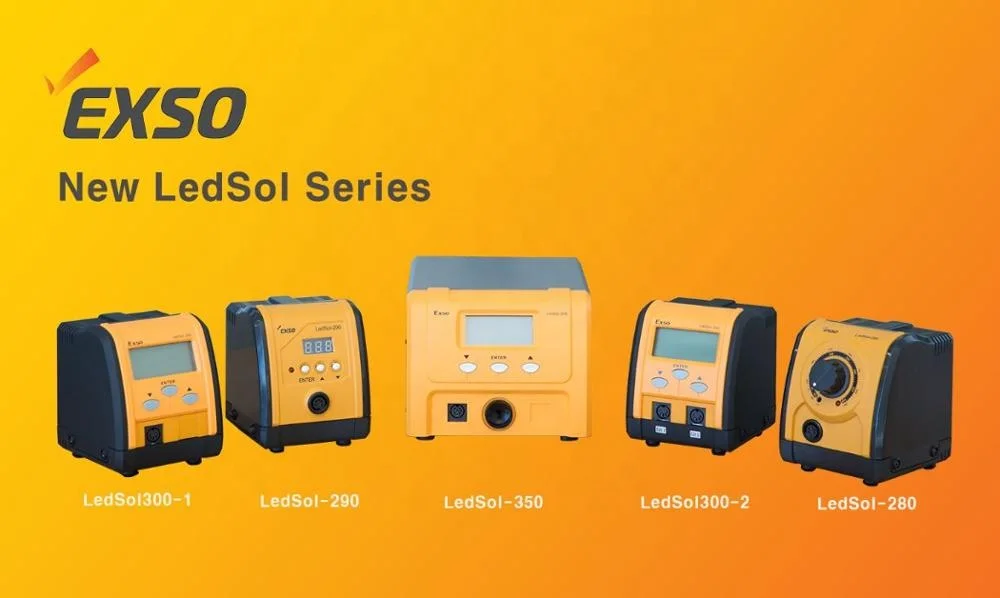

EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300 1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea
EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300-1 One channel. Made In Korea

EXSO Electric Soldering Station. High Temp. Adjustable Temperature. Welding tool. LedSol 300 1 One channel. Made In Korea

Share on (173261089):


Price:$142.86 - $190.48

Quantity:

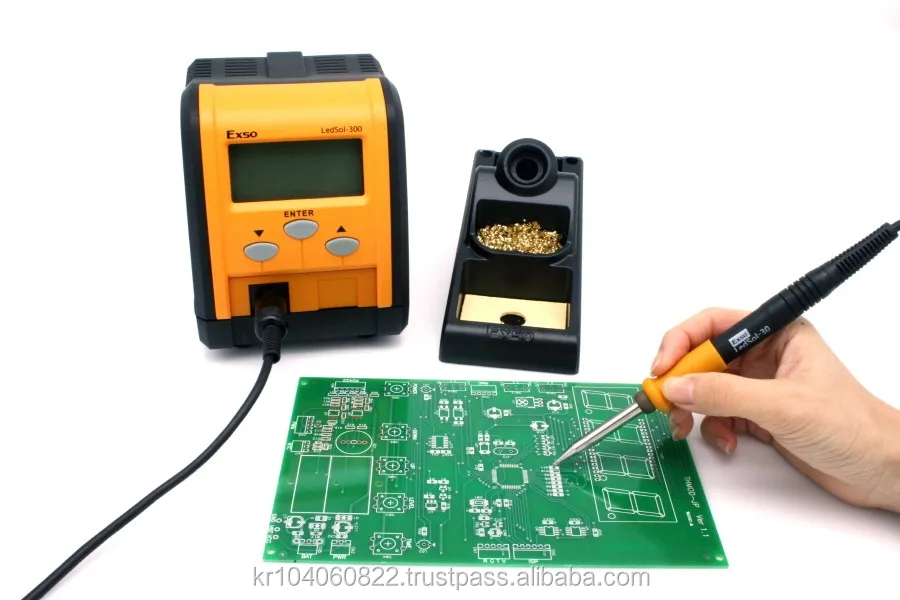

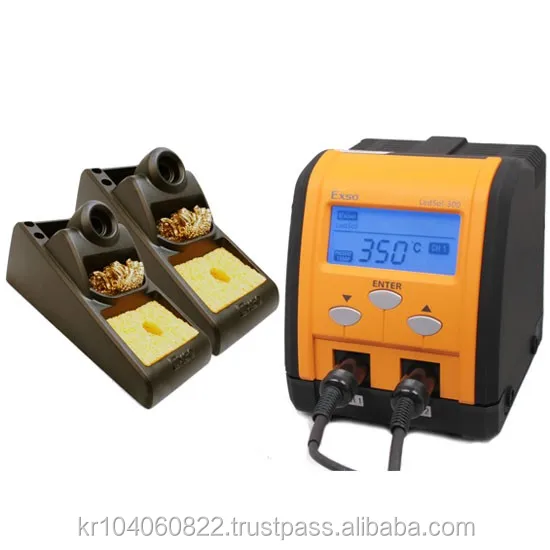

Product Overview

Description


Product Description

Main Features

The heater & the sensor are intergrated in the tip (patent # 0037616)
Excellent thermal recovery performance by using PID control
LCD with backlight is employed for better visuals
Soldering iron of quick-type is employed for convenient tip change
Setting temperature is prottected by your password
Digital temperature calibration
Working time is displayed(only for 1ch)
℃ and ℉ interchangeable
Auto sleep mode/Auto power-off

Specification
\t
Model
\t
Ledsol300-1
\t
Ledsol300-2
\t
Input Voltage
\t
AC 200W, 60Hz(or 50Hz)
\t
Heater Output
\t
24V AC, 75W
\t
24V AC 75W*2
\t
Power Consumption
\t
80W
\t
160W
\t
Temperature Control
\t
100-500℃(212-932℉)
\t
Weight
\t
2.33kg
\t
2.77kg
\t
Dimensions
\t
1085(W)*132(H)*126.5(D)mm
Detailed Images

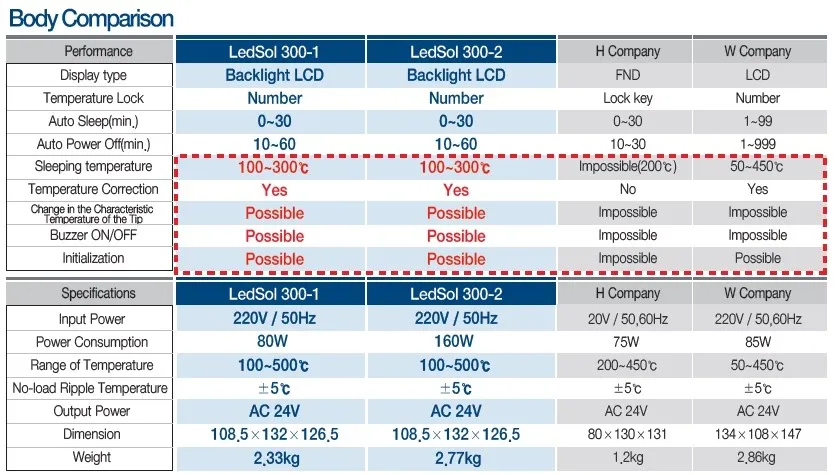

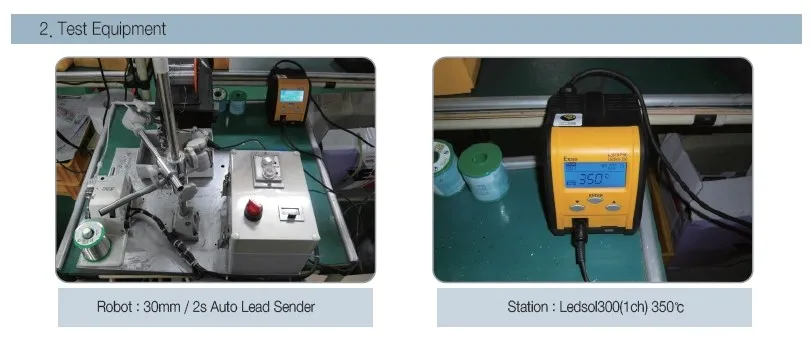

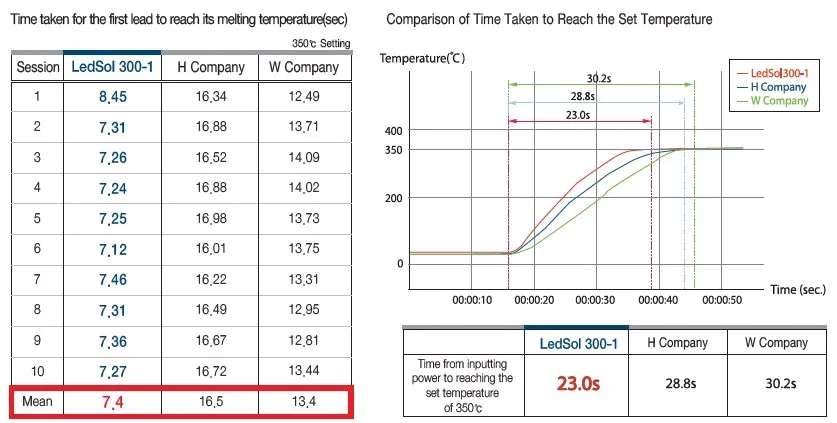

Characteristics of Other Companies' Products

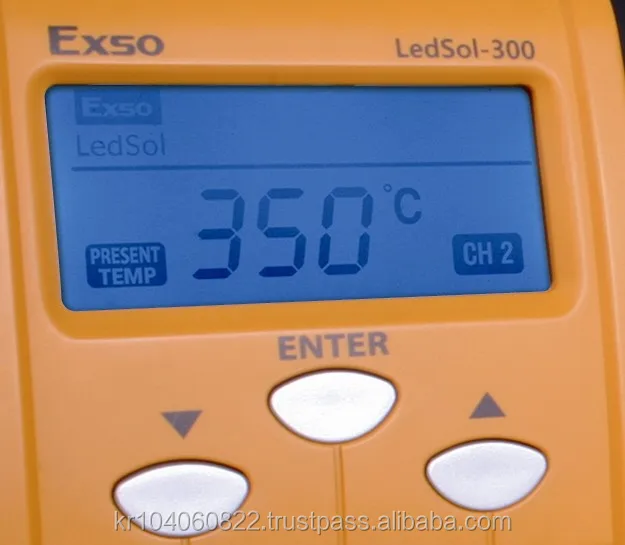

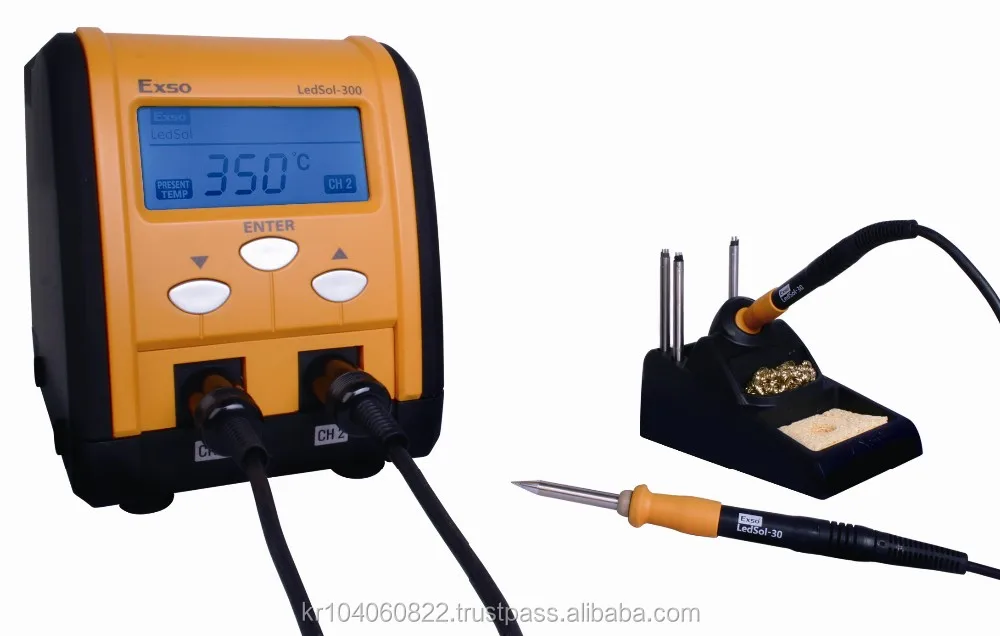

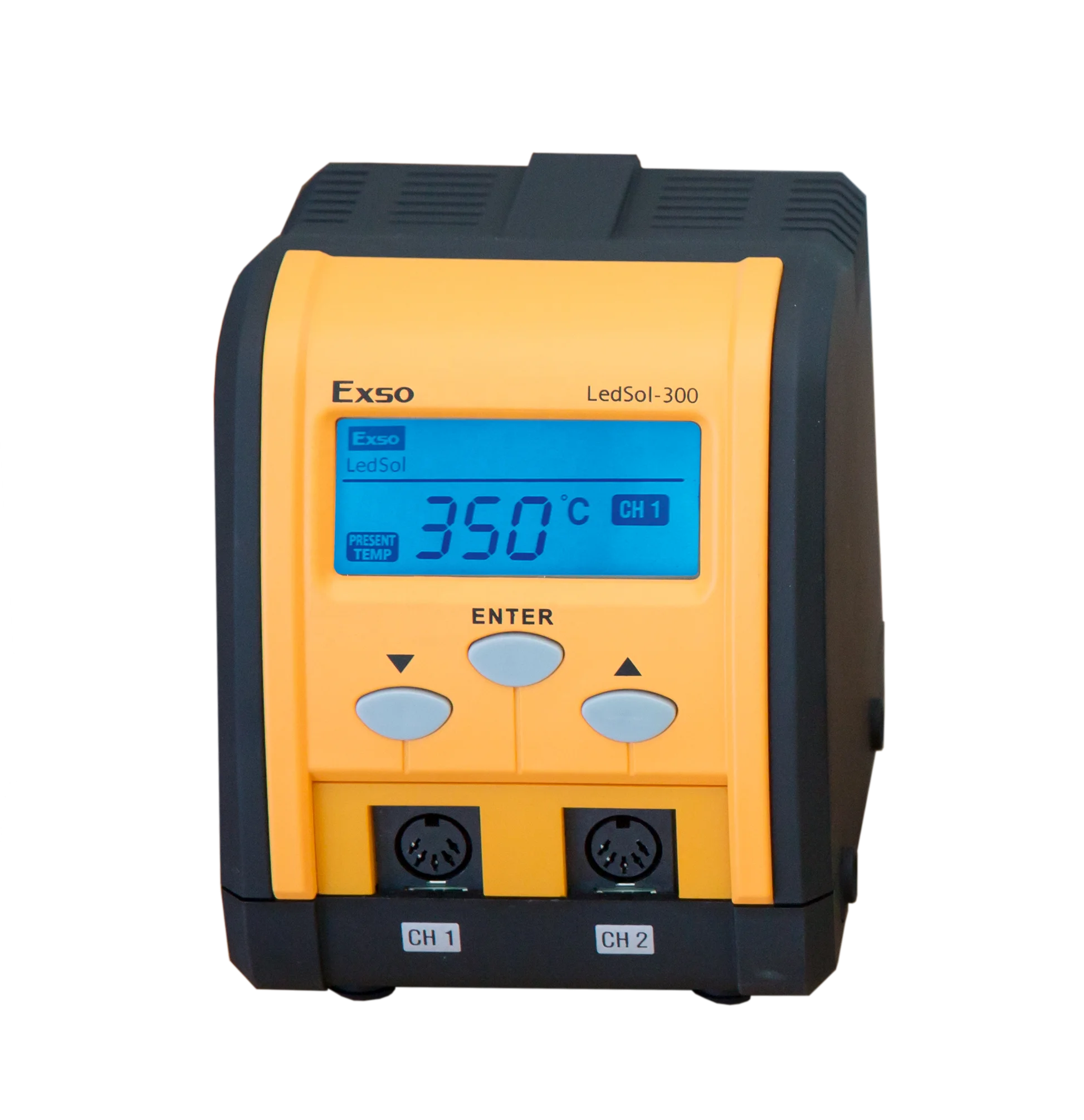

LCD Disply

-LCD with backlight is employed for better visuals
-Excellent thermal recovery performance by using PID control
-Setting temperature is prottected by your password
-Digital temperature calibration
-Adjustable temperature
-Working time is displayed(only for 1ch)

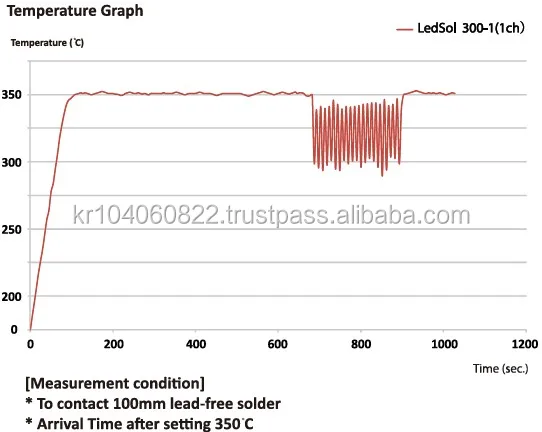

   Temperature Graph

             [Measurement condition]
-To contact 100mm lead-free solder
-Arrival Time after setting 350℃

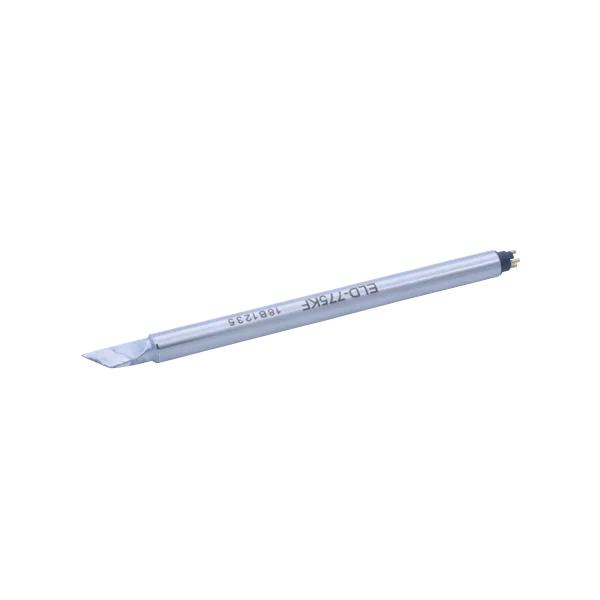

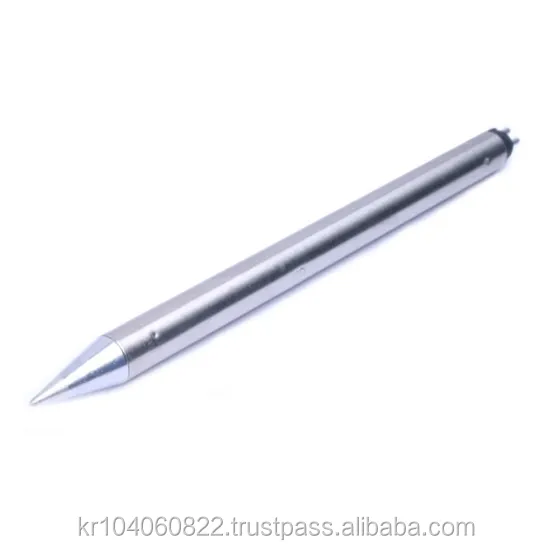

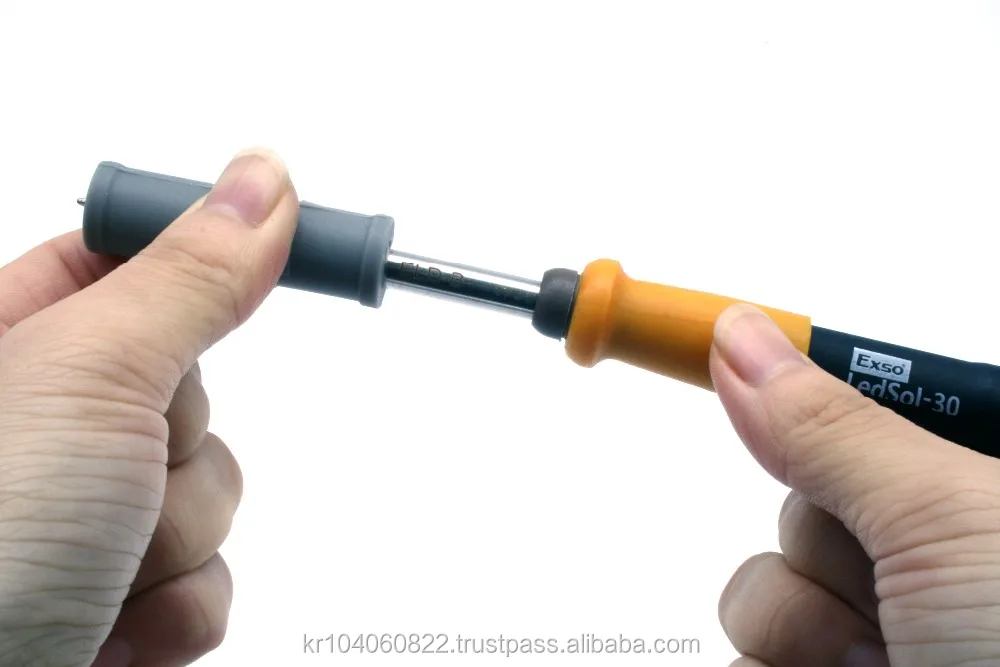

TIP(ELD)

-Soldering iron of quick-type is employed for convenient tip change
-It is easy to remove tip
-The heater & the sensor are intergrated in the tip (patent # 0037616)

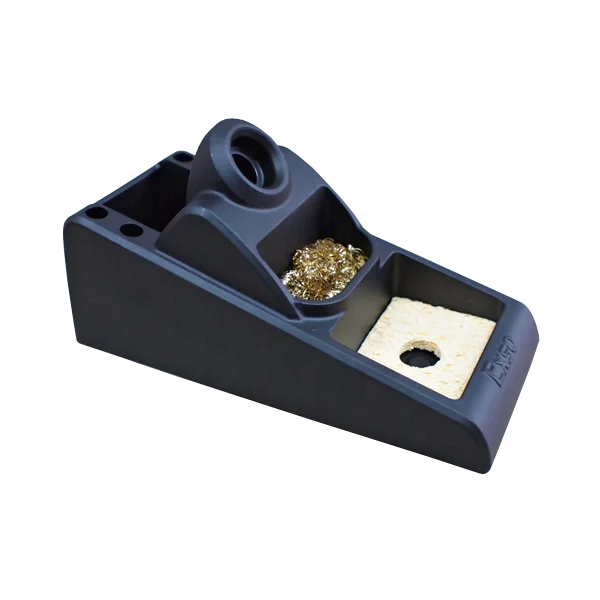

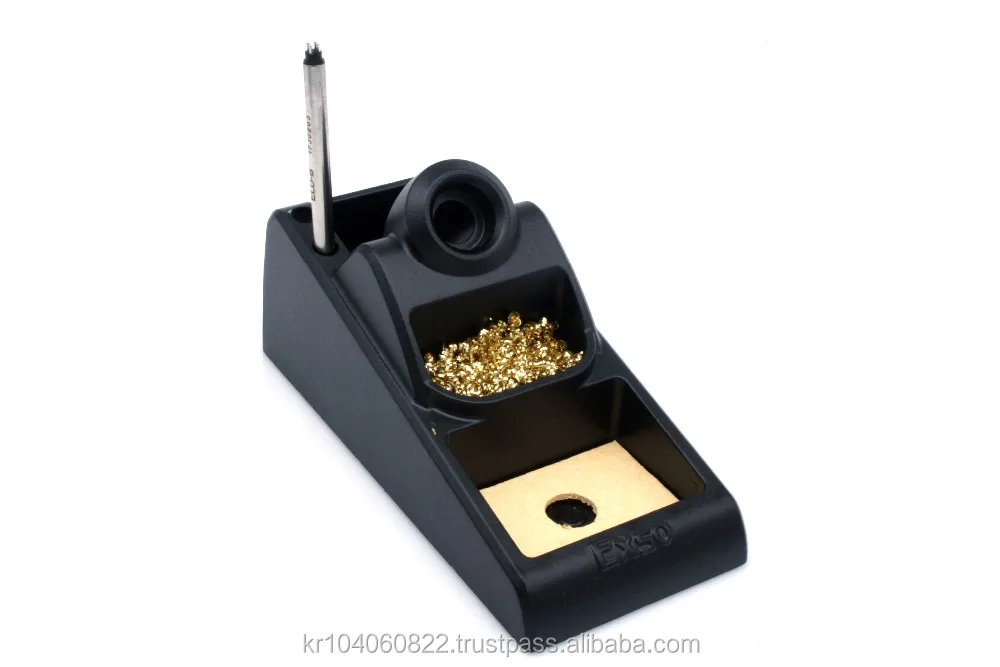

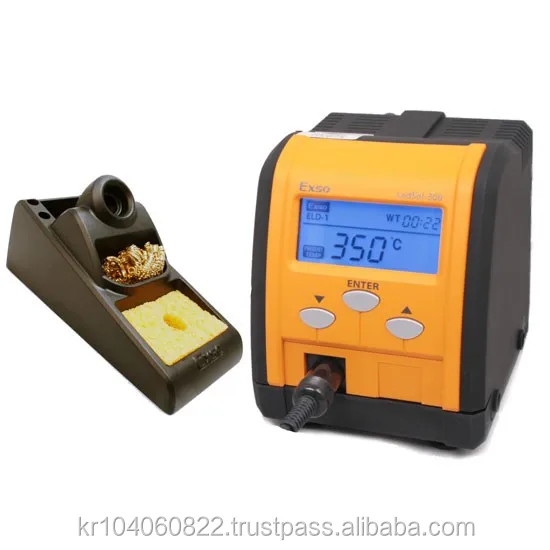

STAND(LEDSOL-50)

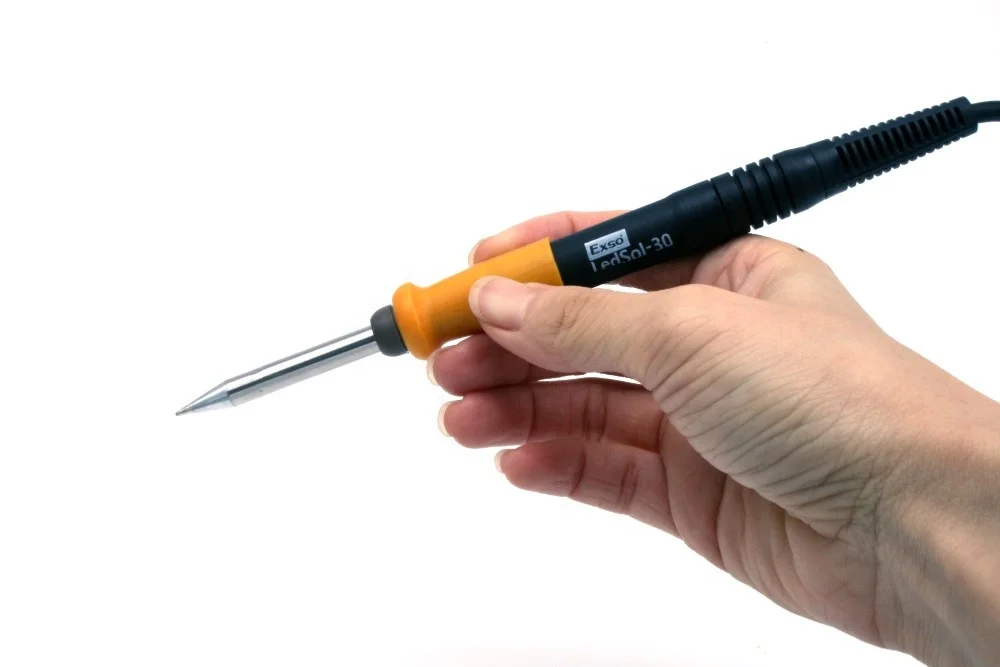

HANDLE (LEDSOL-30)

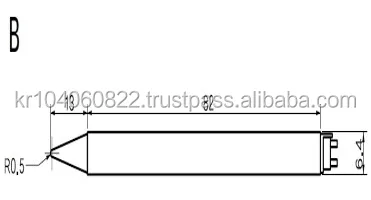

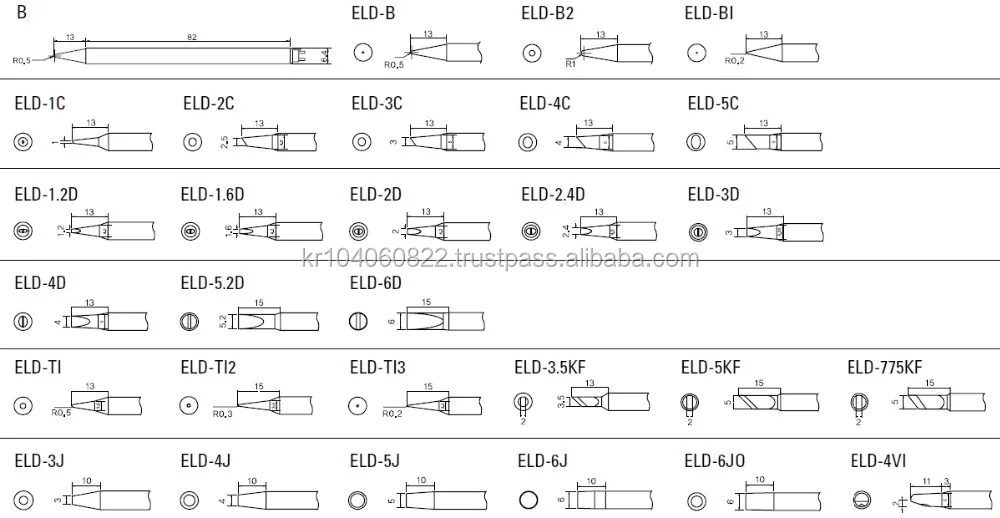

Replaceable Tips


ELD TIPS

Tip name is ELD, The heater & the sensor are intergrated in the tip (patent # 0037616).ELD Tips cannot be used with other product, it should only be used with our product's LEDSOL300-1/LEDSOL300-2/LEDSOL-100/LEDSOL-200, Also we are able to make to order as customer needs.


Certifications
Packing
\t
LEDSOL300-1
\t
Size
\t
29 (L) * 26.5 (W) * 22 (D)
\t
Weight
\t
5.14Kg
\t

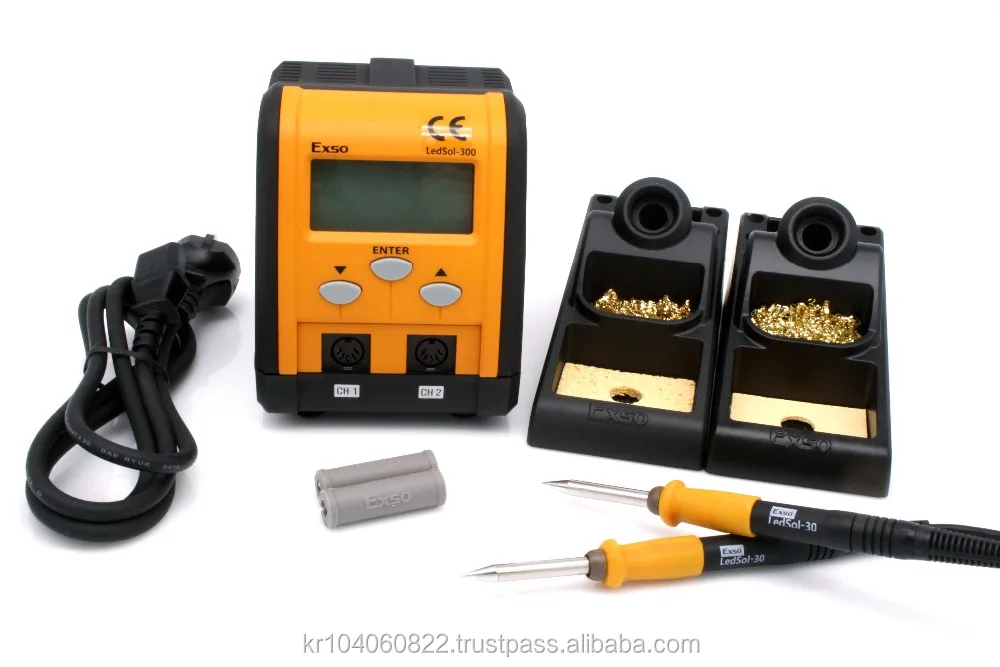

Packaging Details
\t
Station/stand(Ledsol-50)/Soldering Iron(Ledsol-30)/Heat resistant ring
\t
LEDSOL300-2
\t
Size
\t
29 (L) * 26.5 (W) * 22 (D)
\t
Weight
\t
5.14Kg
\t



Packaging Details
\t
Station/stand(Ledsol-50)*2/Soldering Iron(Ledsol-30)*2/Heat resistant ring*2

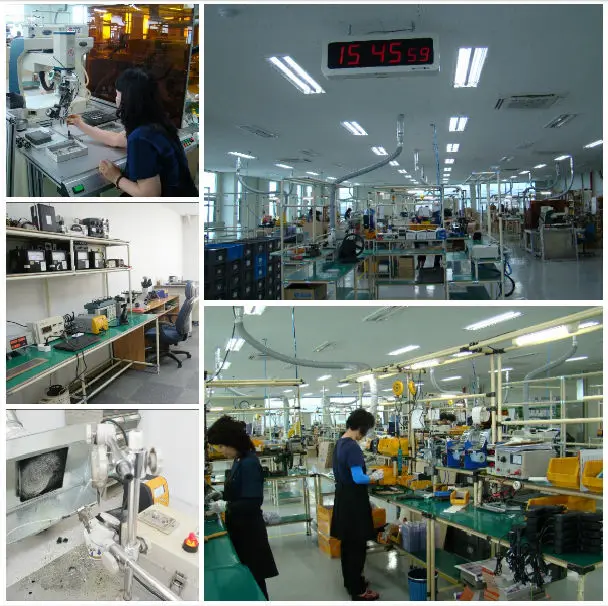

Company Information
Contact us

There is no MOQ,it depends on the model.
We can offer at low price depending on the quantity.
