Best Price Airport Cargo Luggage Security X ray machine TEC 5030

Product Overview

Description





Basic Data:

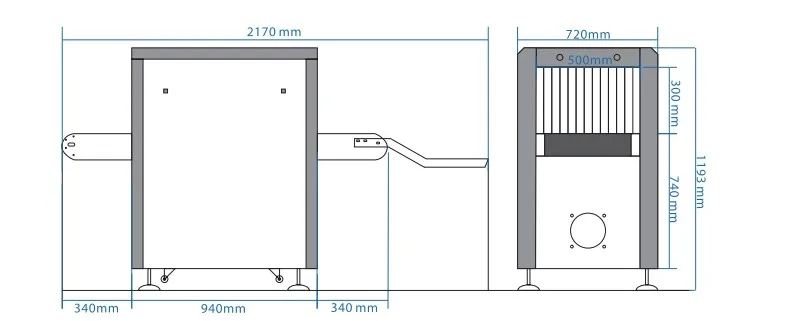

Tunnel size        Model 5030: 500 (W) × 300 (H) mm

Conveyor speed:                     0.20m/s

Conveyor rated load:       Model 5030: 20kg

Resolution:                       diameter 0.1mm metal line

Steel penetration:             30mm armor plate

Film safety                       For ISO 1600

Leakage radiation:                  <0.3µGy/h

X-ray Generator:

Ray orientation:               Vertically upward

Tube current:                    0.4 ~1.0mA (Adjustable)

Tube voltage:                    70--160kV (Adjustable)

Angle:                              80°

Cooling/working periods:       Sealed oil bath with forced air/100%

Image Performance System:

X-ray sensor:                    L type photo-diode array detector; 12bit

Display:                            High-resolution 17” color LCD display

Color quality:                   24-Bit real colors based on materials

Edge enhancement:          Object contour edge is more distinct

Super image enhancement:     Image detail is more distinct







Magnifier:                        Partial magnifying function

Brightening/dimming:      Increase/Decrease brightness of image

Image recurrence:            Display the previous twenty images and process any one of them

Image restoration:            Restore image to initial status

Image storage:                  Real-time store any image and process it in operation status

Image Processing System:

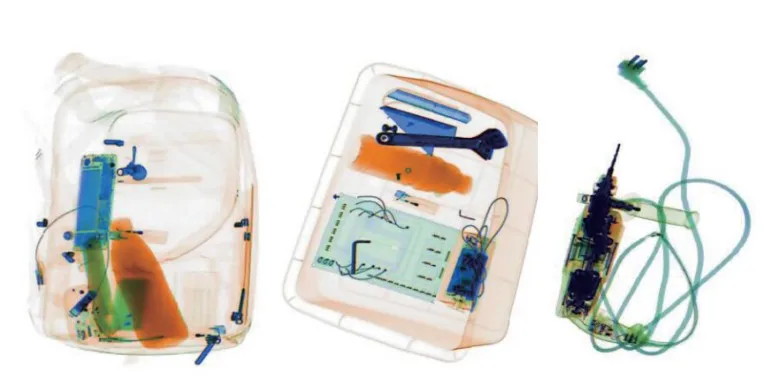

Pseudo color:                   Organic material is displayed as orange, inorganic material is displayed as blue, and mixture is displayed as green (Double energy)

Sound-light alarm:           Give sound and visible signal when conforming to the conditions

Operating Environment:

Operating temperature/humidity: 0°C ~ 45°C/20% ~ 95% (Non-condensing)

Storage temperature/humidity: -20°C ~ 60°C/20% ~ 95% (Non-condensing)

Operating voltage:                  220V AC (±10%)   50±3Hz

Power consumption:               1.0KW (Max)

Noise level:                             <65dB



Special features:

Sound-light alarm:             Give sound and visible signal when conforming to the conditions

Network interface:             Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray:                   Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye:                    Capable of expediently observing the magnifying area

Self-diagnosis function:     Give message automatically if malfunction for prompt maintenance
