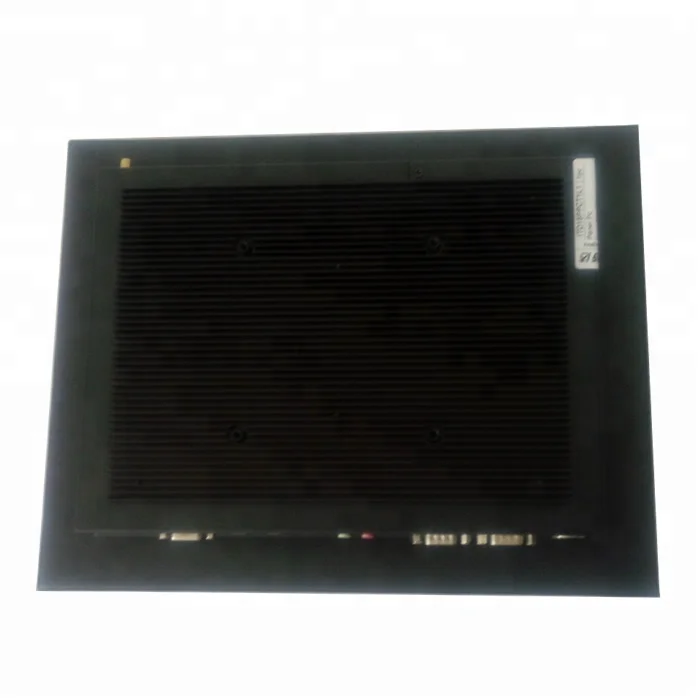

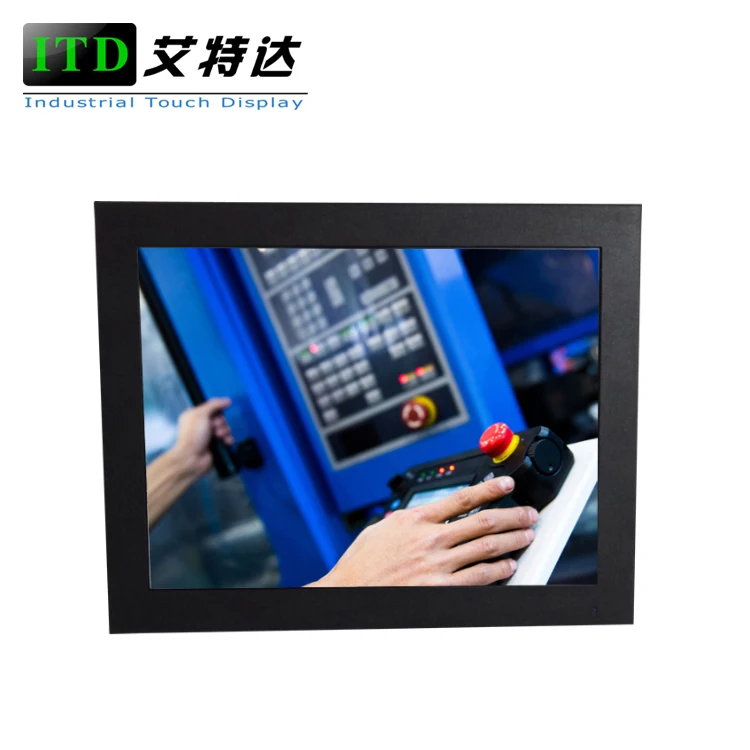

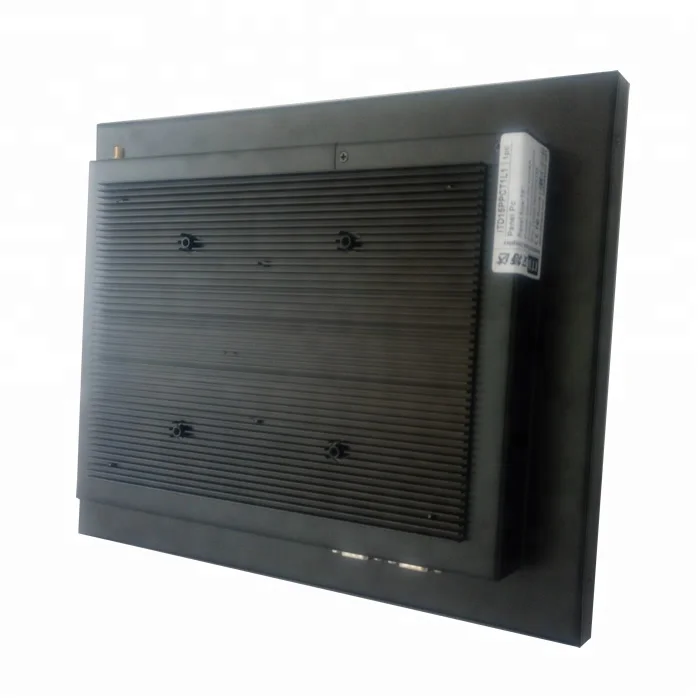

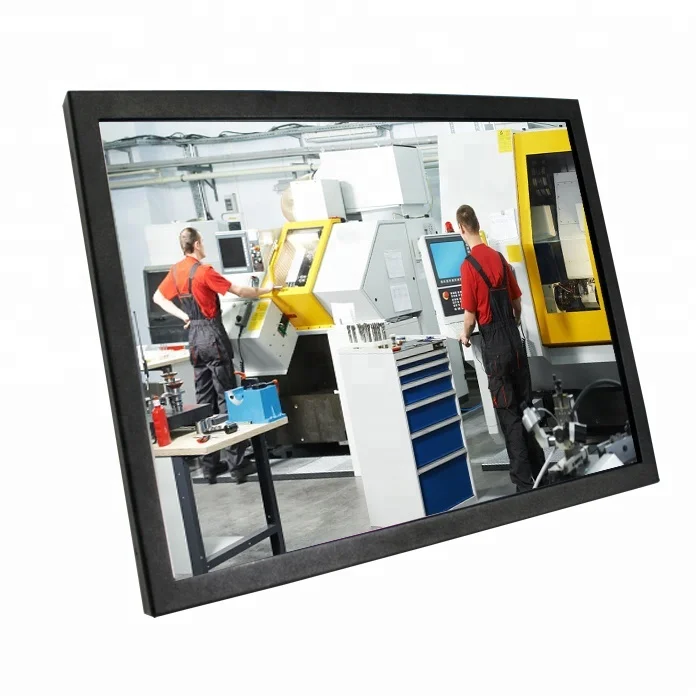

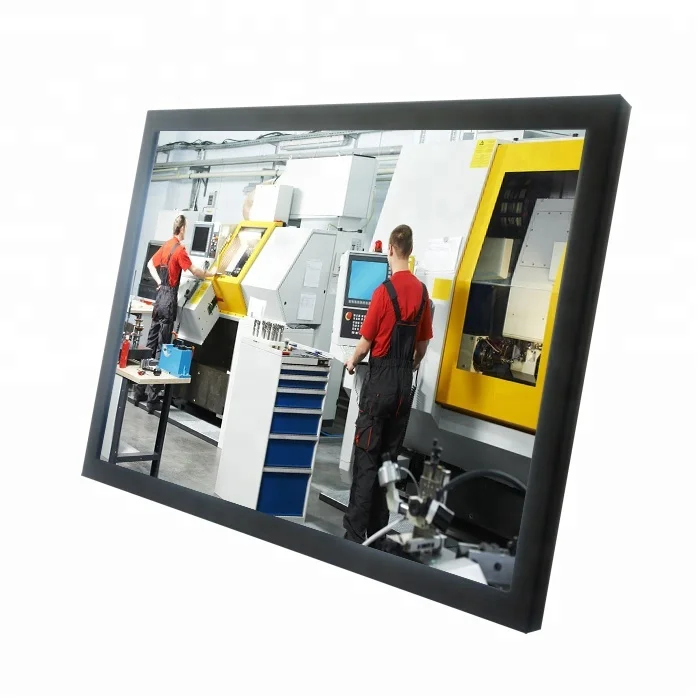

15' industrial embedded touch screen computer PC with Linux GPIO for automation

Product Overview

Description



ITD Low cost panel PC series with rugged steel chassis, provides OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Atom or Celeron™ Quad Core Processor J1900 2.0 GHz or Intel Core i3/i5/i7, in industrial-grade LCD flat panels with optional touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions.



Specification

System
CPU	Intel Atom D525 1.8GHz on Board Processor
Chipset	Intel D525+ICH8M
Memory	DDR3 SO-DIMM 667/800MT/s up to 4GB (optional)
Graphic	Intel GMA3150 Graphics Engine
HDD	320GB SATA HDD (optional)
Network(LAN)	10/100/1000 Mbps Ethernet
Audio	Realtek ALC662
SSD	Optional
Expansion Slot	1 x Mini PCI ( internal )

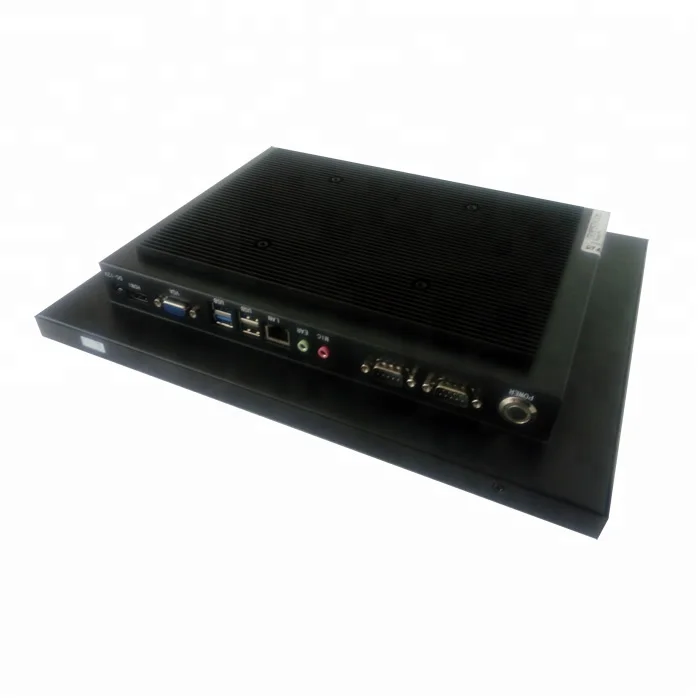

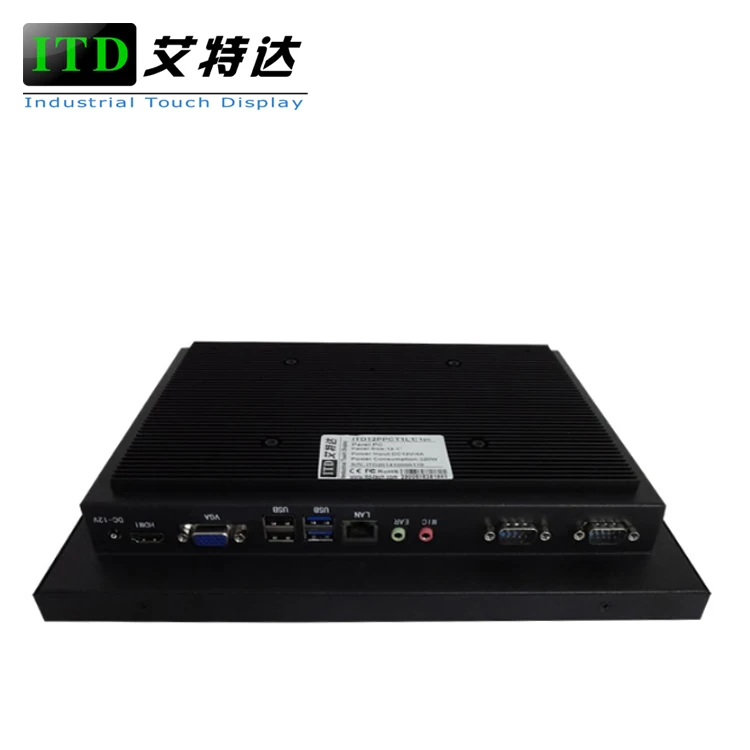

I/O Ports	1 x PS2 for KB/ Mouse
	1 x 10/100 for 100/1000 LAN port
	1 x VGA
	1 x Lin-in / Lin-out / Mic-in
	8 x USB ports (4x external, 4 x internal)
	6 x RS-232 (1x external, 5 x internal) for 1 x?ParallelPort (SPP/EPP/ECP)

OS Support
Microsoft	Windows XP, CE, Windows Vista, Windows 7

Power Supply
Input Voltage	100~240VAC,50/60Hz

LCD Display
Display Type/Size	15"TFT LCD
Screen Resolution	1024*768
Brightness	400cd/m2
Pixel Pitch	0.240mm
Viewing Angle	80/80/60/80
BackLight Lifetime	50000hrs

Touch Screen(optional)
Type	Analog Resistive 5 wires
Resolution	4096*4096
Light Transmission	>90%
Controller	USB/RS232 interface

Mechanical
Construction	IP65 / NEMA compliant
Front Panel Protection	Steel Chassis

Certification
Compliance	CE,FCC,RoHS

Ordering Information
ITD15PPCT2LA1	15"Inudstrial panel PC with IR touch
ITD15PPCT5LA1	15"Industrial panel PC with PCAP touch







PACKAGING&SHIPPING

Firm, safe, standard cartons with foams

Wooden Shelf or Case for big sizes and big quanity











AFTER-SALES SERVICE

1-3 years’ warranty with DOA, RMA and Paid Service



Warranty



DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.



RMA Service (Return Merchandise Authorization):
To run RMA within 2 years (TFT panels come with 1 year) after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
