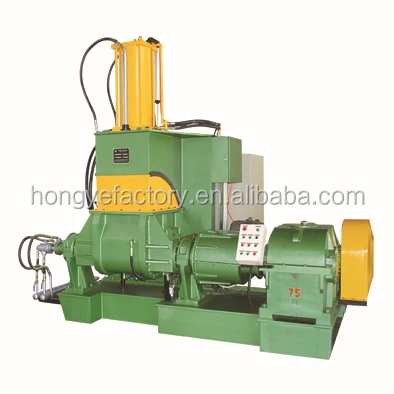

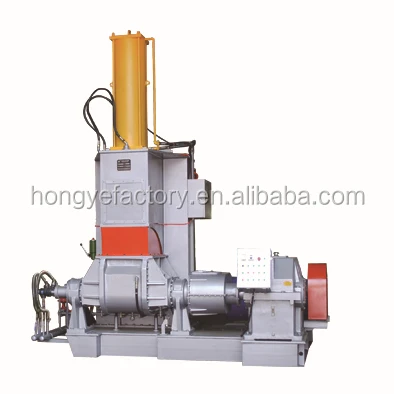

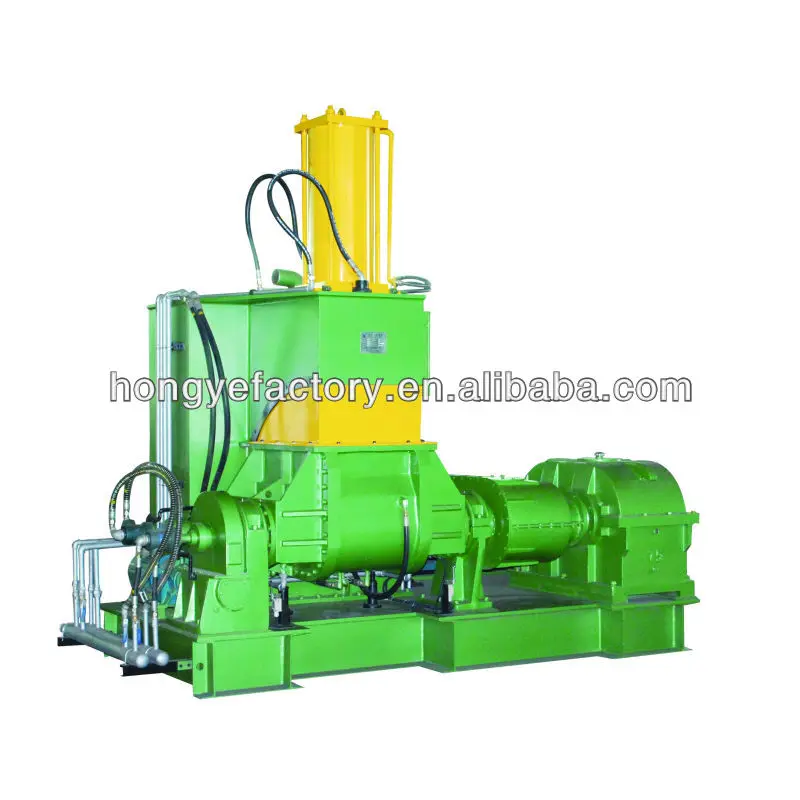

Dispersion Kneader Mixer

Product Overview

Description

model	mixing capacity	motor	feed way	unload way	weight	dimension
X(S)N-150l	150L	200kw	back or front	mechanical or hydraulic reverse	21000kg	4400*3500*4200
X(S)N-110L	110L	160kw	back or front	mechanical or hydraulic reverse	14000kg	4200*3200*3500
X(S)N-95L	95L	132kw	back or front	mechanical or hydraulic reverse	13000kg	4000*2724*3400
X(S)N-75L	75L	110kw	back or front	mechanical or hydraulic reverse mechanical	11500kg	3673*2700*3400
X(S)N-55L	55L	75kw	back or front	mechanical or hydraulic reverse	8000kg	3650*2700*3200
X(S)N-35L	35L	55kw	back or front	mechanical or hydraulic reverse	6500kg	3100*2700*3200
X(S)N-20L	20L	37kw	front	mechanical reverse	2000kg	2850*1950*2550



Dispersion Kneader Mixer 's Applications:
(A) Rubber Compounds & End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber, Rubber Tires, Packing, Gaskets, Hose, Belts, Shoe Sole, Sponge, Electric Wire Covering, Casters, Golf Balls, Oil Seals, Weather Strips, Waterproof Sheet, EVA, Tread Compound, Battery Containers etc.

(B) Plastic Compounds & End Products
HDPE, LDPE, PP, PVC, ABS, PS, EVA, Thermo set Plastic Compounds & Profiles, Wire Covering, BMC etc.

Features:
(1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

(2)No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.

(3)Easy Cleaning & Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made without trouble.

(4)Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.

(5)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

Construction:
Mixing Chamber & Rotors: The mixing chamber is fabricated by alloy steel with W-shaped. The chamber is fitted with two rotary blades. The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating. The rotors are also made of special steel. The rotors are hard chromed, after the tips of the rotary blades are welded with stelite. These blades are coupled with rotary joints thus enabling to take steam or water.
