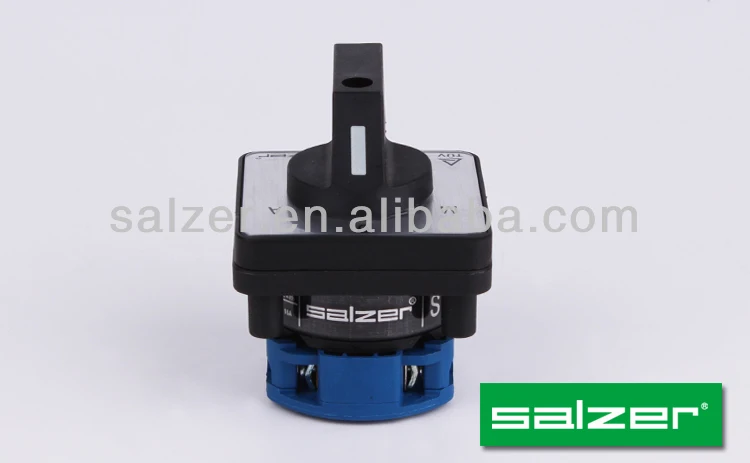

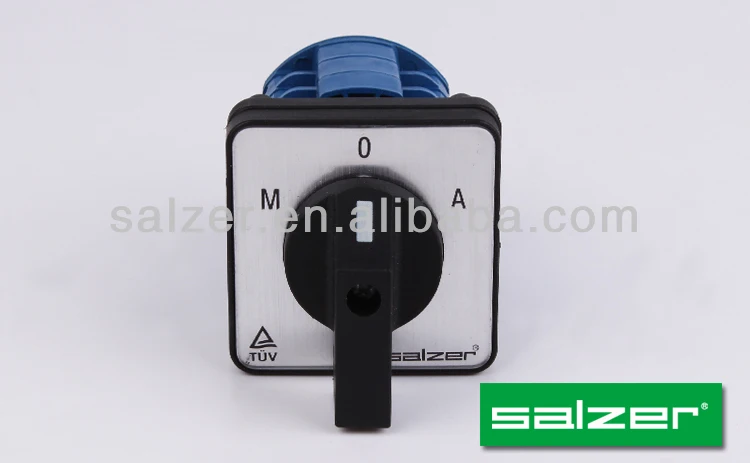

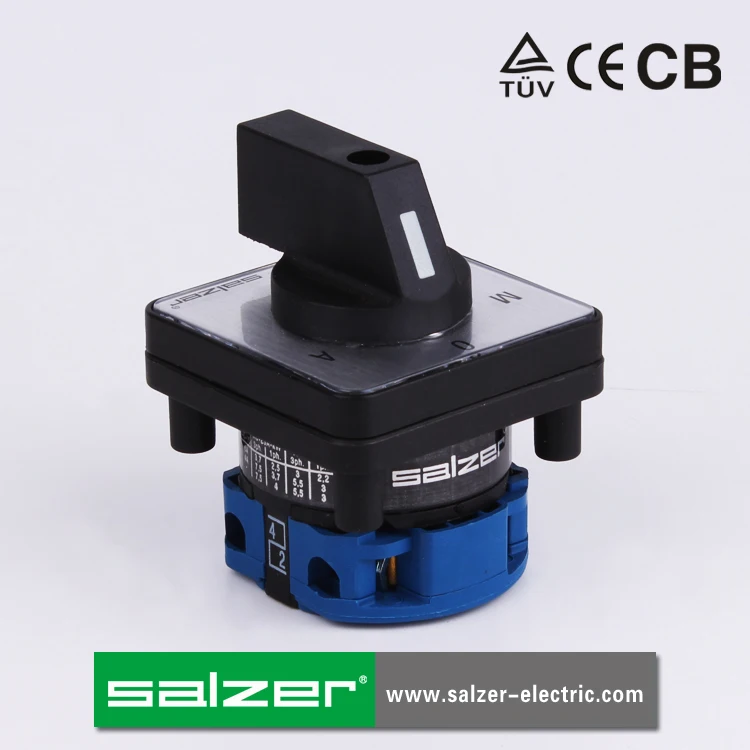

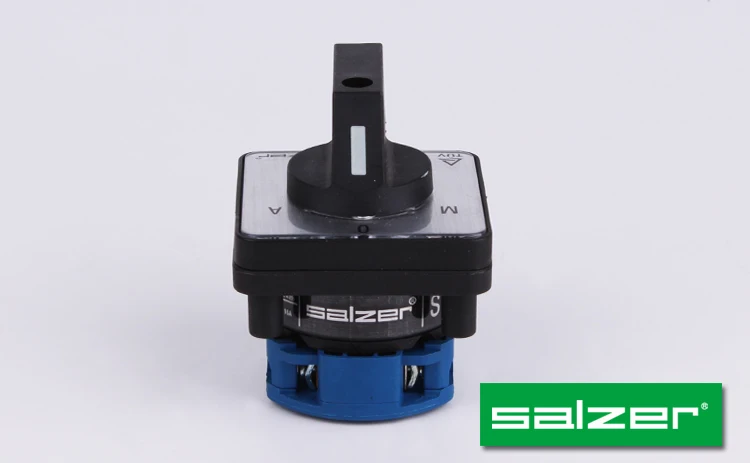

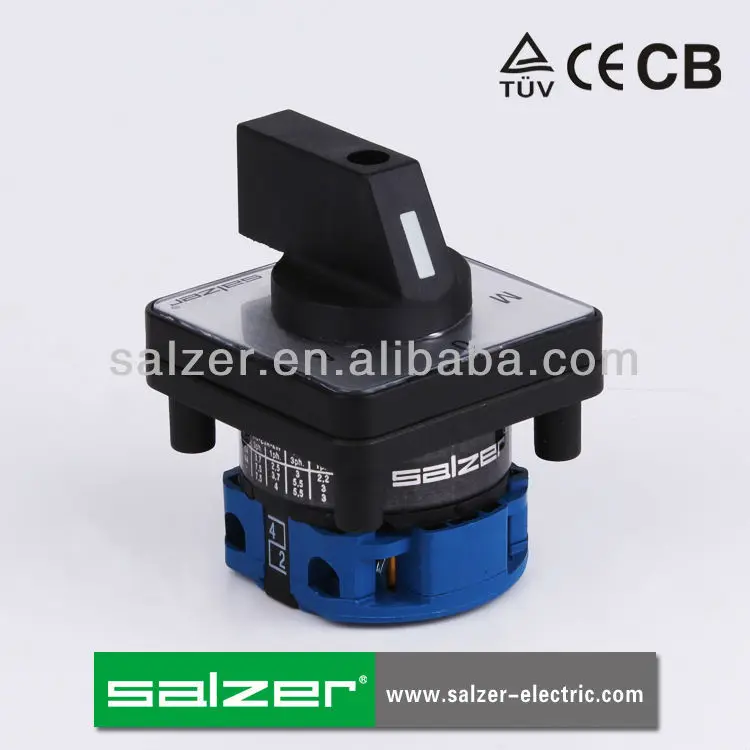

SALZER SA16 16Amp M-O-A 1pole 61025 Manual Change over Switches rotary cam switch selector (TUV,CE and CB Approved )
SA Cam Switch
SA series cam switches offer a solution for cam switch applications. Different contact designs, contact materials and terminals allow for their use as control switches, instrumentation switches and motor control switches, as well as in electronic circuitry and in aggressive environments according to IEC 60947-3.
General Information
| Type | SA16, SA25, SA32, SA63, SA125, SA160 |
| Max.Current | 16A, 25A, 32A, 63A, 125A, 160A |
| Max. Voltage | 690VAC |
| Pole | 1Pole, 2Pole, 3Pole, 4Pole |
| Plate Size | M1 (48X48mm), M2 (64x64mm), M3 (88x88mm) |
| Faceplate | A-0-M |
| Degree of Rotation | 30°, 45°, 60°, 90° |
| Ingress Protection | IP20 with finger protection |
Technical parameters
| Description | SA10 | SA16 | SA25 | SA32 | SA63 | SA125 | SA160 | SA315 | |||||||||||||
| Rated insulation voltage Ui | V | 440 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | ||||||||||||
| Rated thermal current lth | A | 10 | 16 | 25 | 32 | 63 | 125 | 160 | 315 | ||||||||||||
| Rated working voltage Ue | V | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Rared working current le | |||||||||||||||||||||
AC-21A AC-22A | A | 10 | 10 | 16 | 16 | 25 | 25 | 32 | 32 | 63 | 63 | 100 | 100 | 150 | 150 | 315 | 315 | ||||
AC-23A | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
| AC-2 | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
AC-3 | A | 5.5 | 5.5 | 11 | 11 | 15 | 15 | 22 | 22 | 36 | 36 | 75 | 75 | 95 | 95 | 110 | 110 | ||||
| AC-4 | A | 1.75 | 1.75 | 3.5 | 3.5 | 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 | 30 | 55 | 55 | 95 | 95 | ||||
| AC-15 | A | 2.5 | 1.5 | 5 | 4 | 8 | 5 | 14 | 6 | ||||||||||||
DC-13 | A | 0.25 | 1.5 | 25 | 11 | ||||||||||||||||
Rated control power | |||||||||||||||||||||
AC-23A | kW | 1.8 | 3 | 3.7/2.5 | 7.5/3.7 | 5.5/3 | 11/5.5 | 7.5/4 | 15/7.5 | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 | 75/37 | 132/55 | ||||
AC-2 | kW | 2.5 | 3.7 | 4 | 7.5 | 5.5 | 11 | 7.5 | 15 | 18.5 | 30 | 30 | 45 | 37 | 35 | 55 | 95 | ||||
AC-3 | kW | 1.5 | 2.2 | 3/2.2 | 5.5/3 | 4/3 | 7.5/3.7 | 5.5/4 | 11/5.5 | 11/6 | 18.5/11 | 15/7.5 | 30/13 | 22/11 | 37/18.5 | 37/22 | 55/30 | ||||
AC-4 | kW | 0.37 | 0.55 | 0.55/0.75 | 1.5/1.5 | 1.5 | 3/2.2 | 2.7/1.5 | 5.5/3 | 5.5/2.4 | 7.5/4 | 6/3 | 12/5.5 | 10/4 | 15/7.5 | 15/7.5 | 25/11 | ||||
The cam switch is mainly applicable to circuit of 690VAC and below, 50/60Hz. The switch has 6 current ratings: 16A, 25A, 32A, 63A, 125A and 160A. There is finger protection for current of 16A, 25A and 32A.
Switches 16A to 32A have 2 to 12 positions and 1 to 12 stages with many different panels and handles. Switches 63A to 160A have 2 to 12 positions and 1 to 8 stages.
The degree of rotation: 30°, 45°, 60°, 90°
Function: Ammeter, Voltmeter, OFF-ON, 0-1, 1-0-2, A-O-M, FOR-OFF-REV, O-Y-Δ, Δ-Y-O-Y-Δ, 0-1-Star, Multi-step switches and so on
