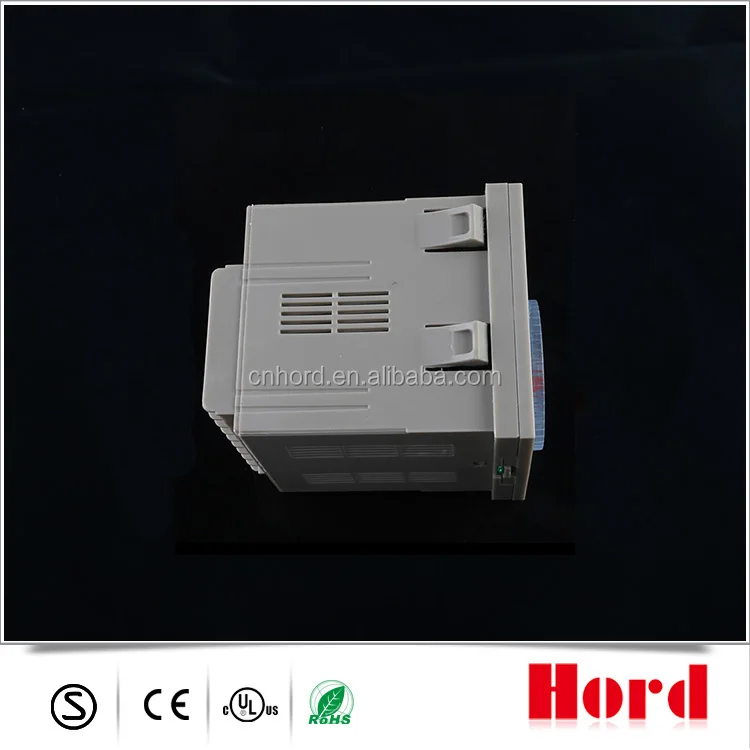

Dial setting number in dicating thermoregulator temperature controller SG 642
- Category: >>>
- Supplier: Yueqing Hord Imp.&exp. Co. Ltd.
Share on (1733718869):
Product Overview
Description
Dial setting number in dicating thermoregulator temperature controller SG-642 Specifications as follow:
SG series temperature controller
SG-642
small volume, light weight, beautiful outline, good reliability
| Applicable Scope |
| Our SG series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. |
| Main Technical Data |
Dimension(mm) | 48mm×48mm 48mm×96mm 72mm×72mm 96mm×96mm | |
Tmp. Range | DIGIT SETTING:0-99.9°C, 0-199°C, 0-299°C, 0-399°C, 0-999°C | |
Set precision | (K,J),PT100Ω | |
Set precision | Less than ±1% full scale or range display | Less than 0.5% full scale or range display |
Indicate precision | Less than±2°C | |
Control Action | ON/OFF only, proportion type (PD) | |
Output Mode | Relay connection point 5A 250VAC, voltage of non ecting point 12VDC for SSR use | |
Rated Voltage | AC:110V/220V/380V±10%,50/60Hz | |
Proportion Cycle | Relay:15secs, Non connection point :2secs | |
power Consumption | 3W | |
Accessory Function | sense for temperature sensing line breaking | |
Ambient Temperature | -10°C~+55°C | |
Signification of Meter Model
