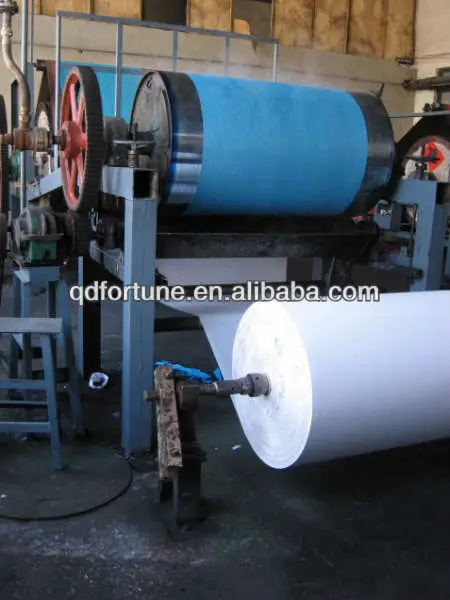

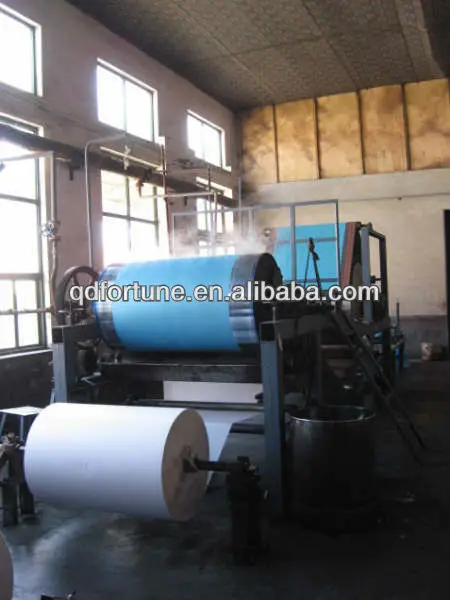

DYEING CREPE PAPER MACHINE(16gsm 30gsm.30gsm 90gsm))

CREPE PAPER MACHINE

1. output paper weight: 13-40gsm,40gsm-70gsm

4. net paper width: 1700mm;

5. width of cylinder mould: 1450mm;

6. capacity: 3-10 tons per day;

7. paper width: 1200mm-1300mm

8. design type: box type/ back-stirring type;

9. design standard: CNS export equipment;

10.drive way:alterating current, frenquency conversion, speed control, section drive.

Main structure:

1. cylinder part: φ1250mm×1450mm stainless steel wire mould(1set),sealing type pressure cylinder vat(1 set),φ380mm×1450mm couch roll(1 set),rubber HSD38°±2

2. Dryer part: φ2000mm×1450mm Dryer ( 1 set ), φ350mm×1450mm carrier roller( 1 set ), air-powered pressure device,rubber HSD 90°±2, there is double-layer air hood on the dryer.

3. Winding part: φ400mm×1450mmDryer(1pc),φ380mm×1450mm fly rubber roll( 1pc ).rubber HSD75°±2.

4. Rewinding, dividing and cutting: matching 1575 rewinding,embossing, perforator,cutter.

5. Drive and control part: adopting AC frequency conversion speed, drive step by step, digital closed loop control system.

1

PAPER DRYER CYLINDER

DIAMETER:

1.5M

1PCS

2

PAPER DRYER CYLINDER

DIAMETER:

0.8M

1PCS

3

ELECTRICAL MACHINE

POWER:

3KW

ELECTRIC VOLTAGE:

380V

1PCS

4

ELECTRICAL MACHINE

POWER:

4KW

ELECTRIC VOLTAGE:

380V

1PCS
