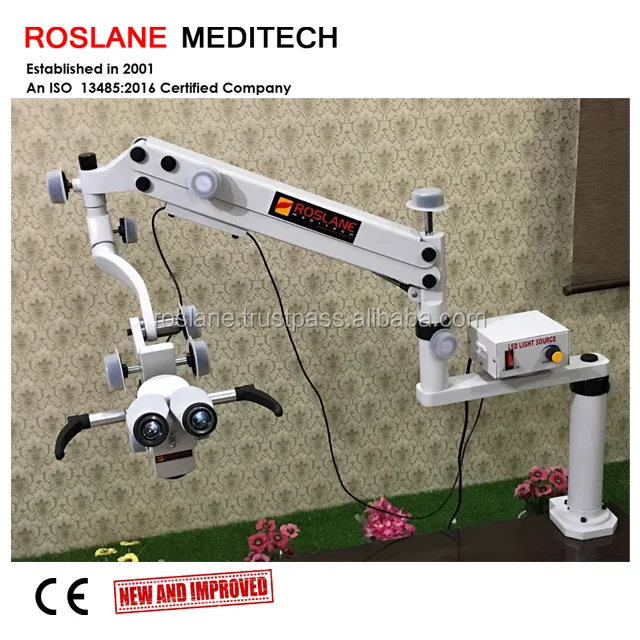

Cost effective Neurosurgery Neuro Surgery Microscope

Product Overview

Description

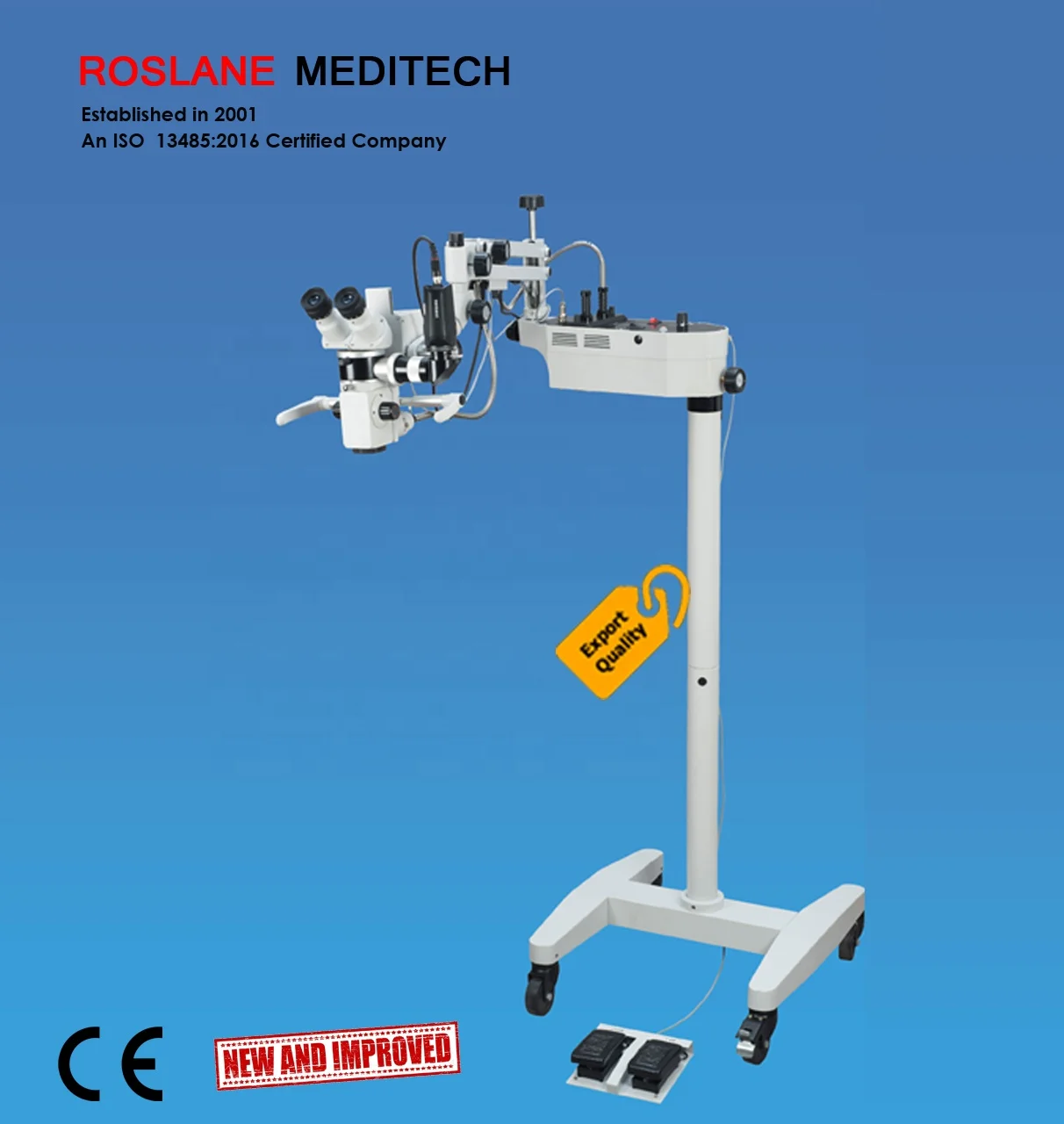

Here, we are submitting the Neuro Surgery Microscope with Motorized Foot Focusing  as per the specifications given below:



Neuro Surgery Microscopes

5 step magnification.



TECHNICAL SPECIFICATIONS

MICROSCOPE SECTION
45 degree inclined binocular tubes

12.5x W.F. eye pieces

5 Step Zoom Magnification (5x, 7.5x, 12.5x, 20x & 30x)

Objective   : F= 300/400mm

Working Distance  :  300/400mm

Interpupillary Distance

Adjustment:  55mm to 75mm

Motorized Foot Focusing System.

ILLUMINATION SECTION
Type                                 :  By Optical Light Guide System
Light Source                     :  24V/250W Halogen Lamp
Illumination Control           :  Continuous Adjustment
Field of Illumination           :  70mm
Filter                                  :  Cobalt Blue, Red-Free,  Heat Absorbing Filter

STAND SECTION
Type                                :  Floor Stand
Vertical Range of          :  400mm
Counter Balanced Arm

GENERAL INFORMATION
Base Size                      :  600mm x 550mm
Weight                            :  50kg Approx.
Height                             :  1550mm
Electrical Power             :  AC 220V/110V



OPTIONAL ACCESSORIES:-
1. Beam Splitter with Camera Mount
2. Digital Camera
