outdoor driveway snow melting underfloor heating mat of ce:

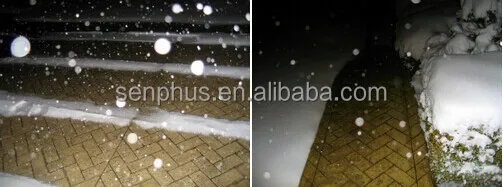

Our this mat could keep your yard, path, your garage driveway, etc. from snowing, frosting trouble.





 snow melting heating cableoutdoor snow melting mat2014

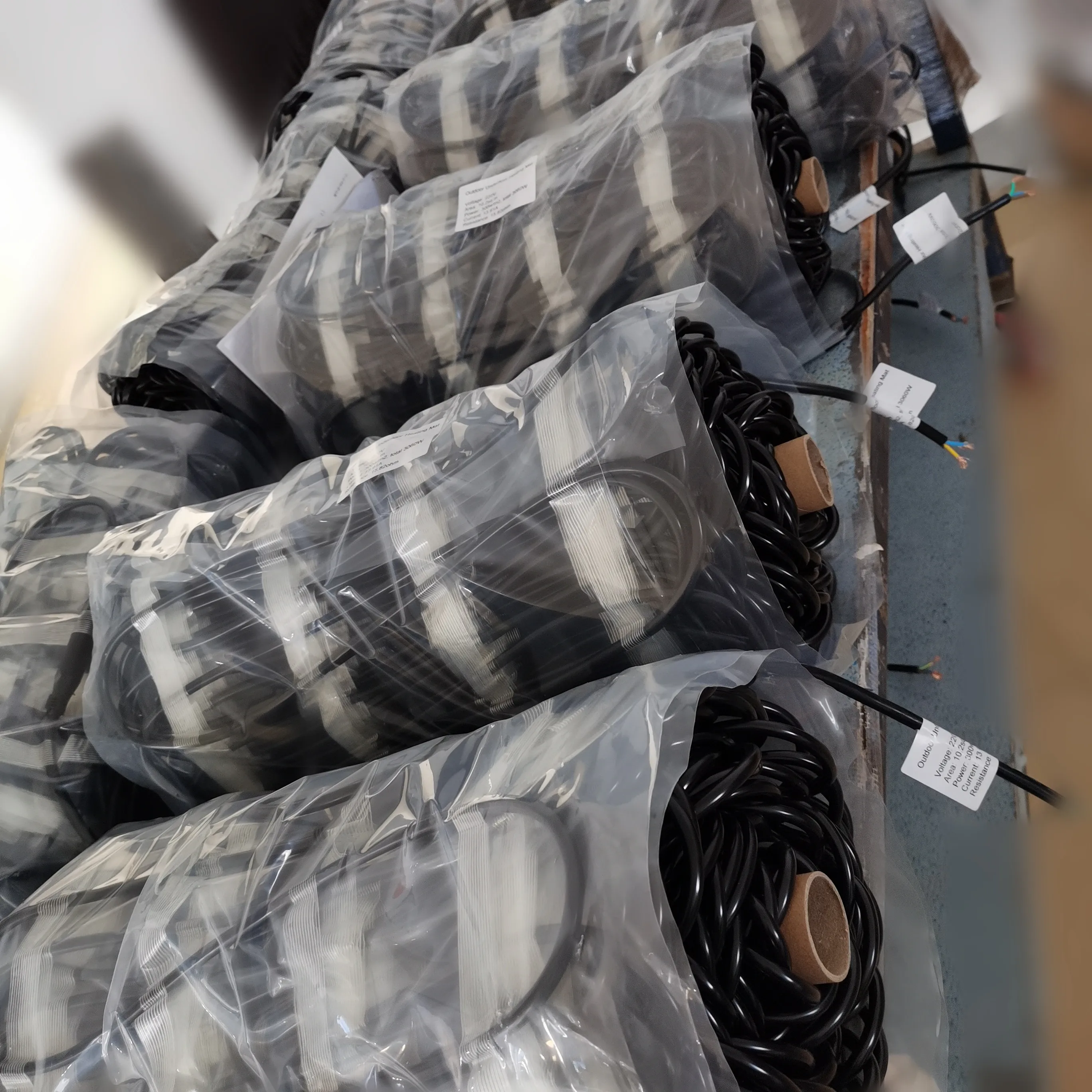

snow melting heating mat.jpg





 Electric underfloor heating mats feature:

















































 heating Cable Construction:



Twin conductor



  Rated Voltage:



230V, 120V, 110V, 220V, 240V



  Output:



100W/m2,140w/m2, 160W/m2, 170w/m2 or 200W/m2 ±10%



  Cable spacing:



90mm  or 110mm or the space you wish



  Cable Diameter:



2.9mm-4.2mm



  Conductor Insulation:



FEP, temperature resistance is 200oC



  Outer Insulation:



PVC or FEP



  Max. Ambient Temp.:



85°F(30°C)



  Min. Installation Temp.:



40°F(5°C)



  Cold lead



2-wire plus ground braid; 2m or 2.5m or 3m length

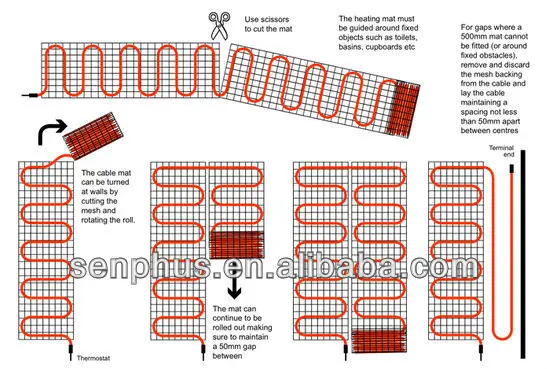

How to install electric underfloor heating mats? You could refer to the following chart.


If you need detailed installing instruction, please send me emial: alloycable at senphus.com













Senphus electric underfloor heating mat has a lot of advantages:



  • Low Cost: with no expensive hydronic heating equipment to buy, install and regularly maintain, SENPHUS radiant heating system offers the most cost-effective way to bring the warmth of radiant heated floors into your home. For instant project cost estimates, click here.

  • Easy Installation: intuitively simple, most installations can be performed in just a few hours or less, depending on the skill level of the installer and size of the heated area.

  • Quality Design: SENPHUS products are UL listed for USA to ensure safe operation and made with top-grade materials to provide long-lasting and uninterrupted performance.


 Except the standard electric underfloor heating mats, you could customize the floor heating mat as you owm  need. You could decide the fiberglass mat color , the cable color, the heating mat models, the tapes, etc.





snow melting underfloor heating mat specification:

















































































































































































voltage
(V)
specificationMat Area
(m2)
total power
(W)
total resistance
@20oC+10/-5%

total length of


heating wire (m)


cold wire length (m)

Diameter of


heating wire
(mm)


color of heating cable
220SHHM-200-0.5M2(P)220V0.5100484.0 5.553C 0.5mm2 L=2M black3.8±0.1mm

orange, red, green, blue,


purple, rose, etc.


220SHHM-200-1.0M2(P)220V1200242.0 11.13C 0.5mm2 L=2M black3.8±0.1mm
220SHHM-200-1.5M2(P)220V1.5300161.3 16.653C 0.5mm2 L=2M black3.8±0.1mm
220SHHM-200-2.0M2(P)220V2400121.0 22.23C 0.5mm2 L=2M black3.8±0.1mm
220SHHM-200-2.5M2(P)220V2.550096.8 27.753C 0.5mm2 L=2M black3.8±0.1mm
220SHHM-200-3.0M2(P)220V360080.7 33.33C 0.75mm2 L=2M black3.8±0.1mm
220SHHM-200-3.5M2(P)220V3.570069.1 38.853C 0.75mm2 L=2M black3.8±0.1mm
220SHHM-200-4.0M2(P)220V480060.5 44.43C 0.75mm2 L=2M black3.8±0.1mm
220SHHM-200-4.5M2(P)220V4.590053.8 49.953C 0.75mm2 L=2M black3.9±0.1mm
220SHHM-200-5.0M2(P)220V5100048.4 55.53C 0.75mm2 L=2M black3.9±0.1mm
220SHHM-200-6.0M2(P)220V6120040.3 66.63C 0.75mm2 L=2M black3.9±0.1mm
220SHHM-200-7.0M2(P)220V7140034.6 77.73C 1.0mm2 L=2M black3.9±0.1mm
220SHHM-200-8.0M2(P)220V8160030.3 88.83C 1.0mm2 L=2M black3.9±0.1mm
220SHHM-200-9.0M2(P)220V9180026.9 99.93C 1.0mm2 L=2M black4.0±0.1mm
220SHHM-200-10M2(P)2230V10200024.2 1113C1.0mm2 L=2M black4.0±0.1mm
220SHHM-200-12.0M2(P)220V12240020.2 133.23C 1.5mm2 L=2M black4.0±0.1mm










electric underfloor heating mats of ce Packaging & Shipping

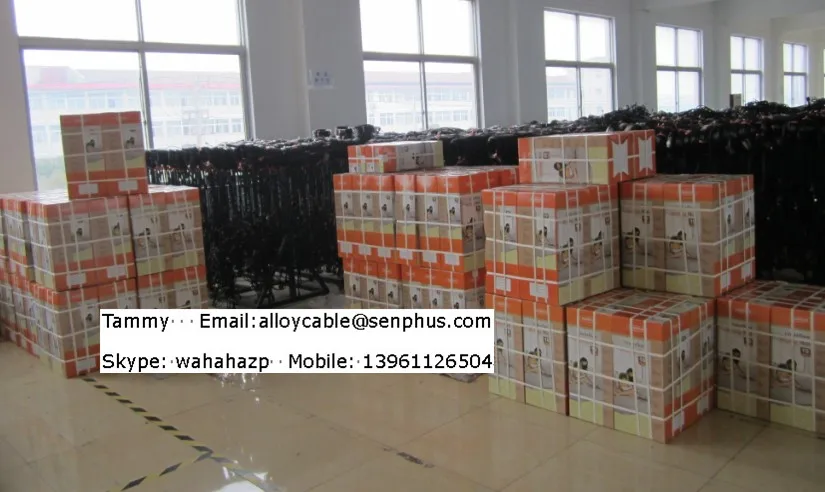

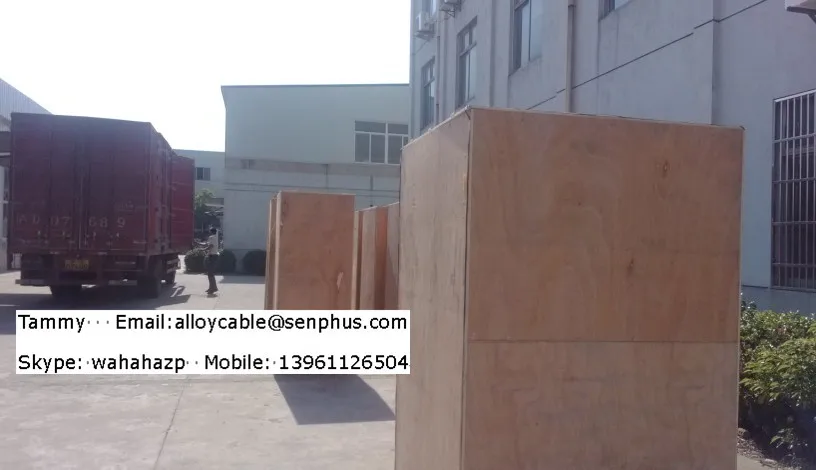

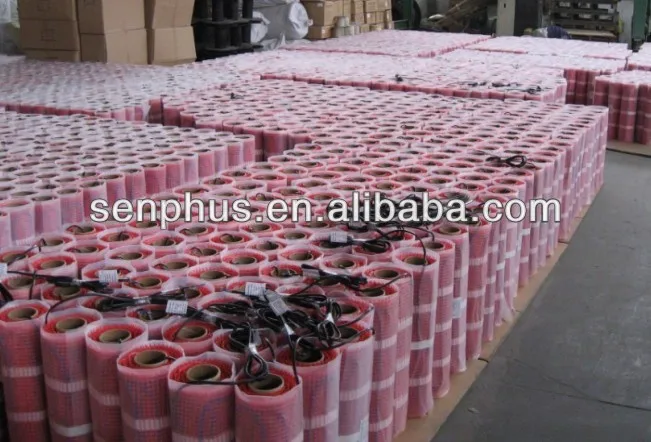

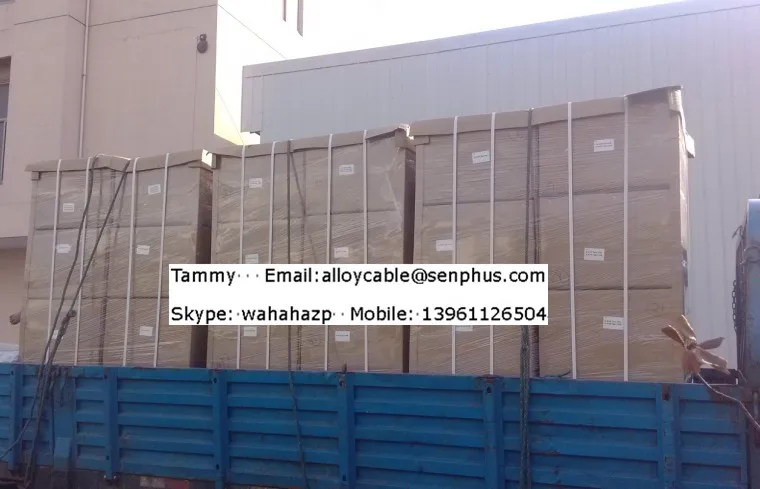

 The electric underfloor heating mats could be packed in color carton, or white carton or big 7 layers corrugated cardboard carton, and then the cartons on the pallet. Or the heating mats will be in the big wooden box.


No matter cartons or wooden boxes, all the mats will be covered by a good plastic film before putting into cartons or boxes.





 863694889_017.jpgQQ20140304125635.jpgQQ20130905090249.jpgwooden box package for mat.jpg

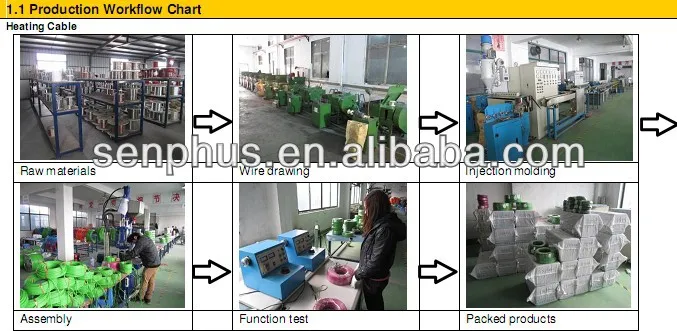

electric underfloor Heating mat workroom


 QQ20130813135126QQ20140329151216





 QQ20130914135745








Our Services for electric underfloor heating mat of ce





1) Any inquires will be replied within 24 hours.





2) Samples production and delivery service can be provided. As for any information about the sample or any specific requirements for the sample, please contact us via telephone, mail or online trade manager.





3) OEM/ODM is available.


Printing logo on customized products;


Customized design and material;


Customized packing for your products.





4) Before-sale and after-sale service


All products have been strictly quality test in our factory before packing.


If the products you receive have any quality problems, we promise to return the goods timely.








Company Information





  We are the only floor heating company in China, who has his own alloy factory. We specialize in heating products: floor heating cables/mats, heating wires. We produce heating mats more than 6 years and always keep on export to global. Base on the high quality and best price, we own a nice reputation all over the world.
