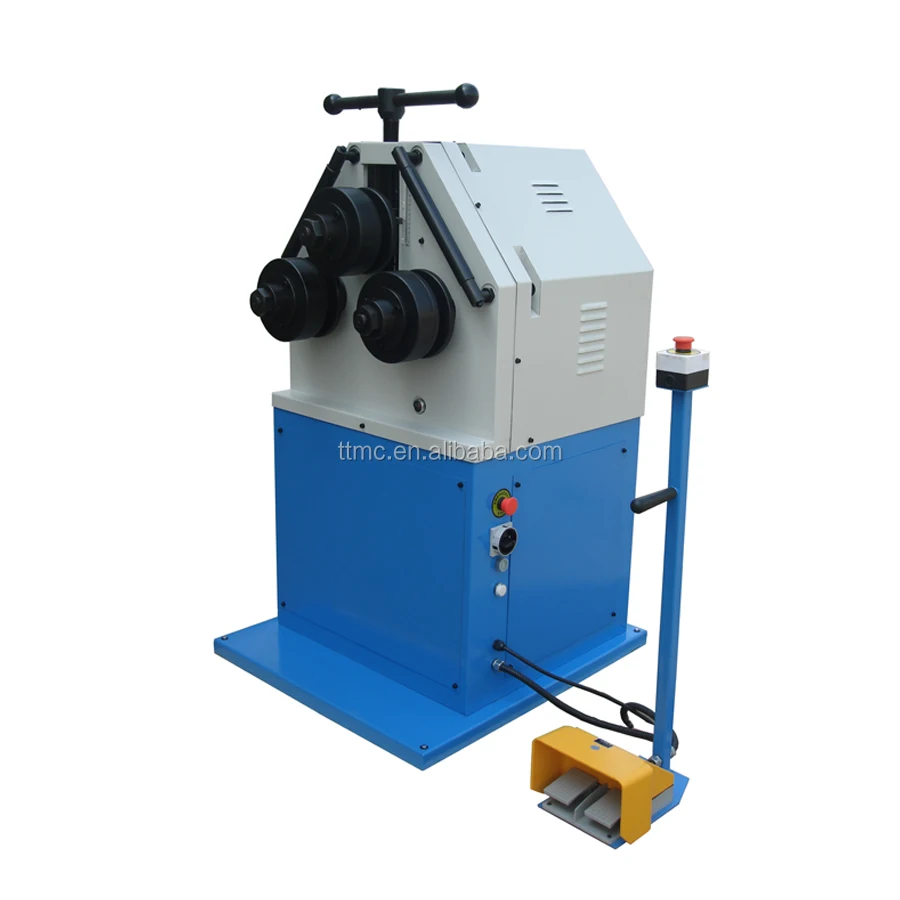

HRBM65 TTMC Hydraulic round bar bending machine ce standard C frame steel round bender
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1734543136):
Product Overview
Description
Rolls are made from high quality steel
65mm hardened and ground drive shafts with quality roller bearings & supports
Two rollers are powered for better drive & grip
Machine can be set up in horizontal or vertical working position
Moving foot pedal control with emergency stop
Adjustable lateral side guide rollers to help guide material
Rollers are geared driven via motor & gearbox
Standard rolls and guide rolls are included
SKU | 391020 |
Model | HRBM65 |
Dia. of roller | 65mm |
Spindle Speed | 9.3r/min |
Packing size | 122x110x188 cm |
N.W./G.W. | 720/890 kg |

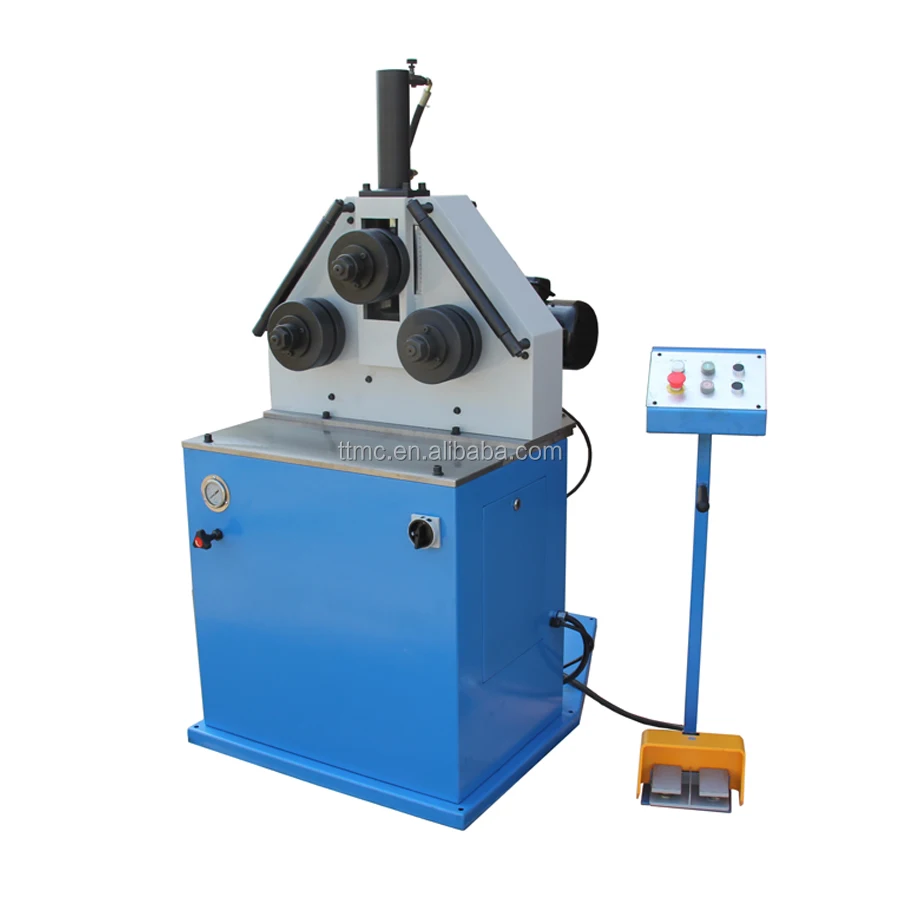

Tube and Pipe Rolling HRBM50HV

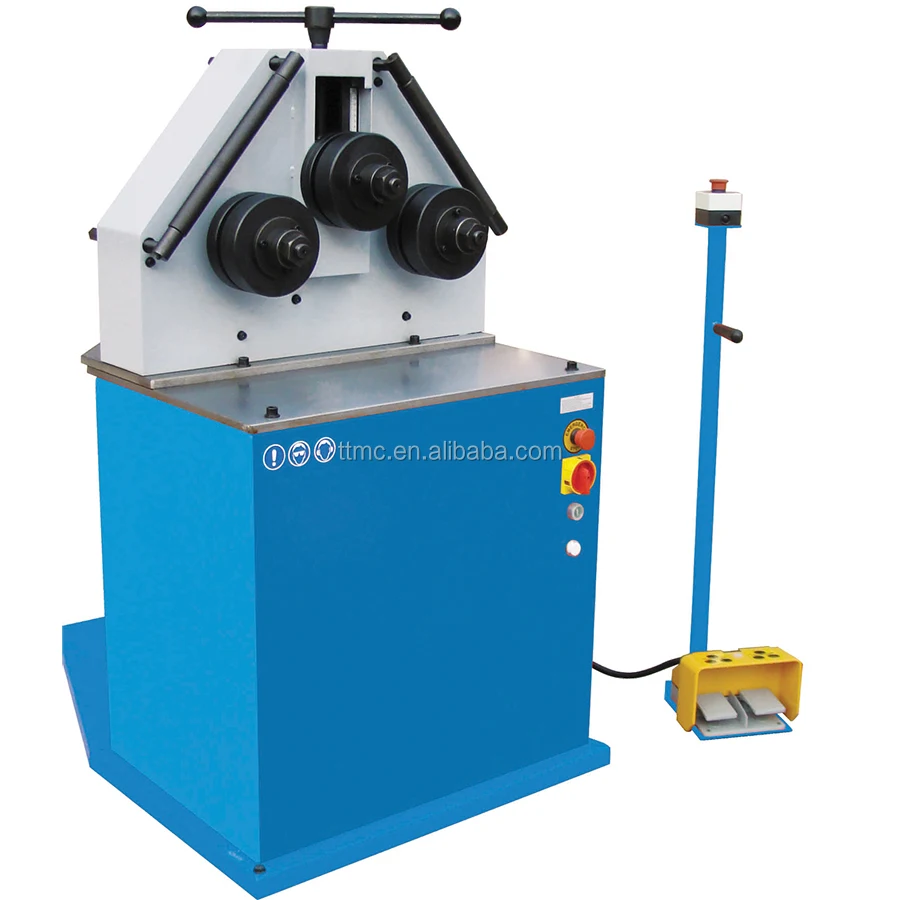

TTMC Round Bending Machine RBM50/RBM50HV
Section and pipe rolling machine HRBM40HV
TTMC Manual Pipe Rolling Machine RBM40HV
Size Information
TTMC Round Bending Machine
SKU | 391004 | 391011 | 391023 | 391020 | ||||
Model | RBM50 | RBM50HV | HRBM50HV | RBM65 | ||||
Dia. of rollers | 50mm | 40mm | ||||||
Power | 2.2 kW 3HP | 1.5kW/2HP | ||||||
Spindle speed | 9r/min | 9.3r/min | ||||||
Packing size | 100x82x155 | 100x82x153 | 122x82x180 | 122x110x188cm | ||||
N.W./G.W. | 450/520 | 460/537 | 515/650 | 720/890 kg | ||||
Capacity | Size | Min Dia. | Size | |||||
Solid Rectangular | 60x10 40x10 | 500 650 | 80x25 40x10 | 600 500 | ||||
Rectangular tube | 70x50x3 50x40x3 | 1200 800 | 80x40x3 50x30x2 | 800 500 | ||||
Solid Square | 35x35 20x20 | 600 780 | 50x50 20x20 | 600 400 | ||||
Squre Tube | 60x60x3 40x40x3 | 600 500 | 70x70x3 30x30x3 | 900 500 | ||||
T-steel | 60x7 50x5 | 750 700 | 80x40x7 40x40x5 | 400 360 | ||||
C channel | 80x45x6 65x40x5 | 650 550 | 100x50x6 50x40x5 | 600 500 | ||||
Angle Iron | 60x5 50x5 | 700 700 | 70x6 40x5 | 600 500 | ||||
Flat Bar | 100x15 60x10 | 920 1150 | 120x25 50x10 | 600 400 | ||||
Soild Round Bar | ø35 ø30 | 600 650 | ø50 ø20 | 600 400 | ||||
