zte mini pcie 4G module FDD LTE,TDD LTE module ZM8620

Product Overview

Description

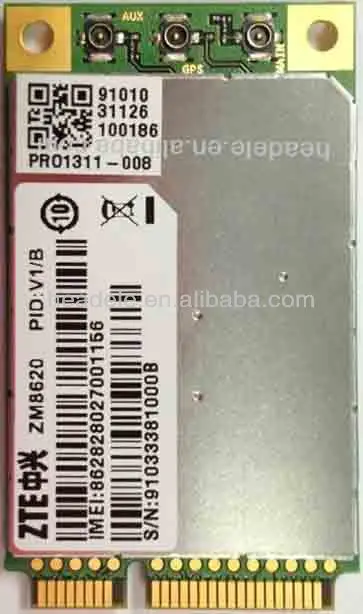

ZTE MINI PCI Express card 4G FDD LTE and TDD LTE  module ZM8620

           ZM8620 is high-quality designed LTE module which especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

           M8620 supports 100Mbps downlink data rate, includes enhanced features like FOTA, eCALL,USSD and ZTE enhanced AT commands.

           All ZTE modules comply with the RoHS directive and Regional certification.

Size.  51*30*4.9mm

Form Factor. Mini-PCIe express card

Frequency Bands.

1.   European and Asian frequency bands.

        FDD LTE B1/B2/B3/B5/B7/B8/B20, TDD LTE B40

              DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8

              EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz

 2.   Latin American frequency band .

      FDD LTE. band 1.2.4.5.7.8.12,  TDD LTE. band38

          DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8

          EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz

Data Transfer Rate.

LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps

LTE FDD: Downlink:50 Mbps, Uplink: 25 Mbps

DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps

Interface.

Antenna connector

PCIe interface

USB 2.0 High speed

PCM Voice

SIM Card

Reset

Power Supply.

3.0 V to 3.6 V (3.3 V recommended)

Voice. PCM Voice

Temp Range. -30°C to 70°C

GPS/Glonass. GPS Standalone,A-GPS

Special Features.

FOTA*(developing)

eCALL*(developing)

USSD

Operating System. Linux, Android, Windows series
