HWA4100
C-Band Booster EDFA amplifier
Product description

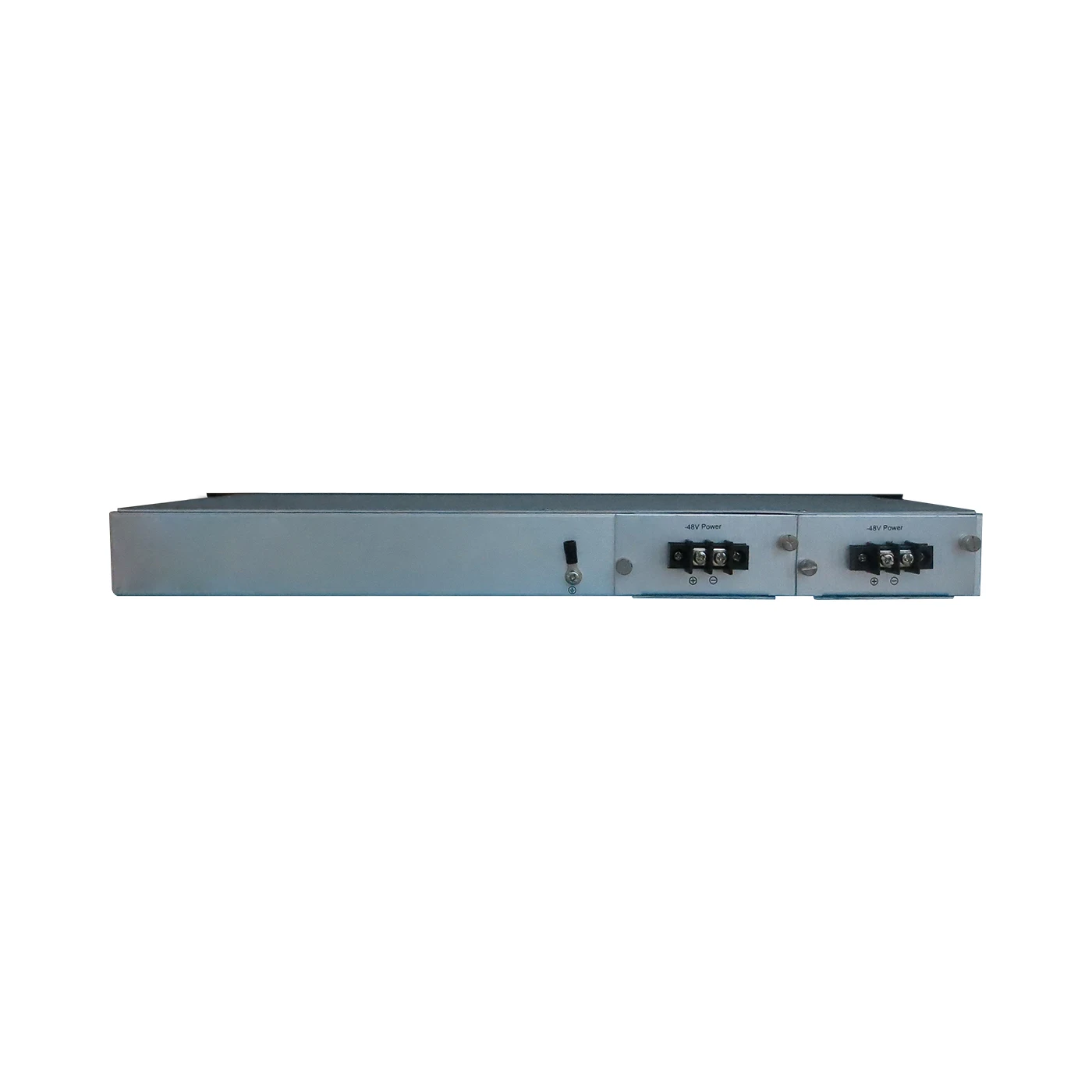

Huatai HWA4100 series is a gain flattened booster C-Band Booster EDFA amplifier which is specifically designed for C-Band 44 channels DWDM optic transmission system. It adopts the most excellent optical performance, the most advanced electronic control technology and the most complete software functionalities; it is featured with wide working wavelength range, low noise and excellent gain flattened. HWA4100 is mainly installed in the output end of optical transmitter, used for improving the output power of the optical transmitter, and extending the signal transmission distance.
Product feature
- Wide operating wavelength (1528~1565nm)
- Telecommunication-grade security and reliability and network management.
- 1+1 powers supply back , up hot-plug function available
- Dual power supplies, redundant & hot swappable.
- Low noise, high-output, high reliability
- HA4100/SCH single channel optical amplifier
- HA4100/FXX gain flatness optical amplifier
- Three gain flatness performance option: ≤±0.25dB, ≤±0.5dB, ≤±1.0dB
- APC, AGC, ACC controlled selection
- Powerful RS232 supervisory instruction
- Optional multi-exterior structure
- Three exterior option: 1U (19” stander), 3D (12.4”, 3U, Desk-type) and modulator
- 1U and 3D exterior, offering status appearance and diagnosing fault with LCD, standard RS232 communication interface, SNMP network management function
- Application of 3D models to adapt to laboratory
- Excellent P/P ratio
Product application
- C-Band single channel booster amplification
- C-Band DWDM booster amplification
- WDM fiber CATV system booster amplification
- FTTP, FTTH
- Laboratory application
Technical index
Performace | Index | Supplement | ||||
Min | Typ | Max | ||||
Optical feature | Working wavelength range (λ) | (nm) | 1529.16 | 1563.86 | ITU 88CH | |
| No. of working channel | (CH) | 1 | 44 | |||
| Input optical power range (Pi) | (dBm) | -10 | +6 | |||
| Max. output optical power(Po) | (dBm) | 13 | 23 | |||
| Gain flathness | (dB) | 0.7 | 1.0 | Peak-to-peak | ||
| Noise flathness | (dB) | 5.0 | Max ouput , Max. gain | |||
| Ploarization dependence loss (PDL) | (dB) | 0.3 | ||||
| Ploarization dependence Gain (PDG) | (dB) | 0.3 | ||||
| Ploarization mode dependence (PMD) | (ps) | 0.3 | ||||
| Pump leakage power | (dBm) | -30 | ||||
| Input/Output optic isolatioin | (dB) | 30 | ||||
| Echo loss | (dB) | 45 | UPC | |||
55 | APC | |||||
| Wavelength range of optic management channel | (nm) | 1500 | 1510 | 1520 | ||
Geneeral feature | SNMP network management | RJ45 | ||||
| Communication interface | RS232 | |||||
| Power supply | (V) | 90 | 265 | 220VAC | ||
30 | 72 | -48VDC | ||||
| Power consumption | (W) | 30 | ||||
| Working temp. | (°C) | -5 | +70 | |||
| Storage temp. | (°C) | -40 | +85 | |||
| Working relative humidity | (%) | 5 | +95 | |||
| Size (W)×(D)×(H) | (mm) | 483×205×44 | ||||
