ZSFZ Fire alarm valve, fire fighting equipment wet alarm valve
- Category: Fire Alarms >>>
- Supplier: Jinyuan,Technology,Development,Co.,Ltd.
Share on:
Product Overview
Description

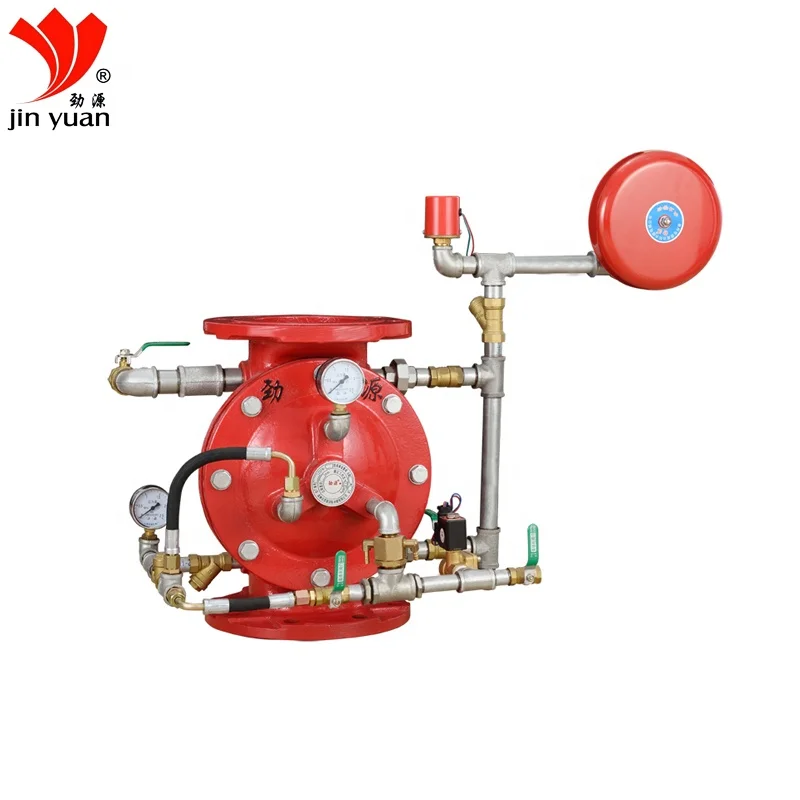

ZSFZ Fire alarm valve, fire fighting equipment wet alarm valve
Product Description

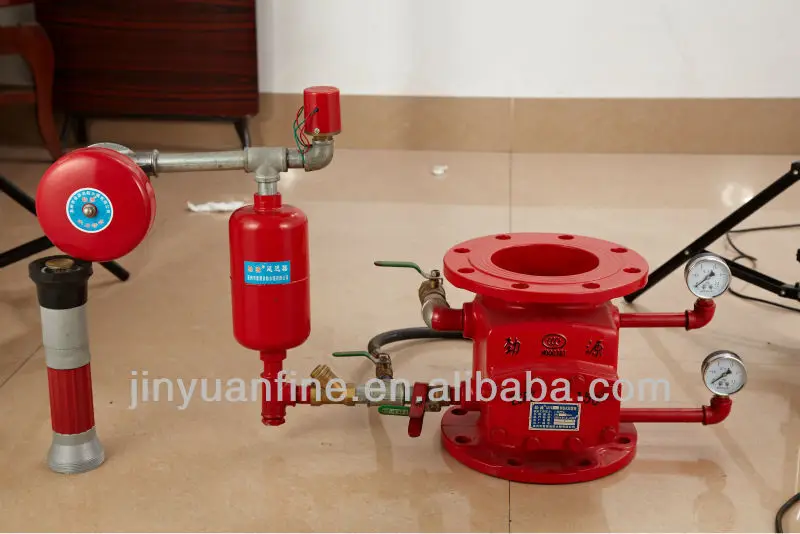

ZSFZ system is a commom regular extinguishing system.It is ccomposed of wet alarm valve,retarder,water motor alarm and other parts(such as,pressure switch,water flow detector,sprinkler head,etc)This system is long-termly under standby working conditions and pipe network insider is filled with pressure.When protected area happens fire disaster,enveronmental temperature increasing,temperature sensitive parts on sprinkler head,i.e,glass ball,acting ,seal set falling off,it will automatically start system.And then it will directly spray water to fire disaster happening area and also emit alarm signal to alarm,to put out fire and control fire conditions.
Main techincal parameter
| Technical Parameter | ||||||
| Model | Nominal diameter | Nominal pressure | Height(mm) | corresponding parameter on connection(mm) | Flange external diameter(mm) | |
Flange plate srew centre distance | bolt hole | |||||
| ZSFZ100 | DN100 | 1.6Mpa | 244 | Φ180 | 8XΦ18 | Φ220 |
| ZSFZ125 | DN125 | 244 | Φ180 | 8XΦ18 | Φ250 | |
| ZSFZ150 | DN150 | 273 | Φ240 | 8XΦ22 | Φ285 | |
| ZSFZ200 | DN200 | 294 | Φ295 | 12XΦ22 | Φ340 | |
Company Information
Jinyuan Fire Fighting Plumbing Co.,Ltd is located in Quanzhou city,Fujian Province ,China. We are a professional manufacturer and exporter of Fire Alarm Valve, own two well-equipped factories for comprehensive production and project exclusive respectively, which are passed by Quality Management System ISO9001
Our Main Products
| Model | Fire sprinkler |
| Material | Brass, chrome plating |
| Type | Upright/Pendent,Side Wall,ESFR Sprinkler |
| Temperature | 57°/68°/79°/93°/141° |
| Norminal diameter(mm) | DN15/DN20 |
| Connecting thread | R1/2 or R3/4 |
| Glass bulb color | Red/Orange/Yellow/Green/Blue(The higher the temperature, the darker the color) |
| Temperature rating | 68°C |
| Flow Rate | 115±6 or 80±4 |
| Bulb | 5mm or 3mm |
| Response | Commen/Quick response |
| Model: | Fire Hose |
| Working Pressure: | 8Bar/10Bar/13Bar/17Bar/20Bar |
| Use For: | Garden/FIre-fighting |
| Sides: | DN25/DN40/DN50/DN65/DN80/DN100/DN150/DN200 |
| Inch: | 1"/1.5"/2"/2.5"/3"/3.5"/4"/4.5" |
| Meter/Roll: | 10m/15m/20m/25m/30m |
| Model: | Easy Contact Fire Hose Coupling/Nozzle |
| Material: | Aluminum/Kirsite |
| Types: | Easy Contact |
| Sides: | DN25/DN40/DN50/DN65/DN80 |
| Connection Fire hose mode: | Wire fastener/Fastener |
FAQ
Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you.
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: 20 Sets
Q:What is your delivery time?Can we short it in 7 days or less?
A:3-30 days for mass production(depend quantity).
Q: What is your payment terms?
A: T/T,L/C,Western Union paypal
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q:How about your quality?
A: All of our products have obtained the CCCF and ISO certificates
,Try a small order, you will have your judgements!
