3d Engraving Sculpture Machine BCS1325 Cnc Marble Granite Stone Good Price Multi purpose 1325 3 Axis 5t/h Production Capacity

Product Overview

Description

Good price multi-purpose 1325 3 axis  marble cnc marble granite stone 3d engraving sculpture  machine BCS1325

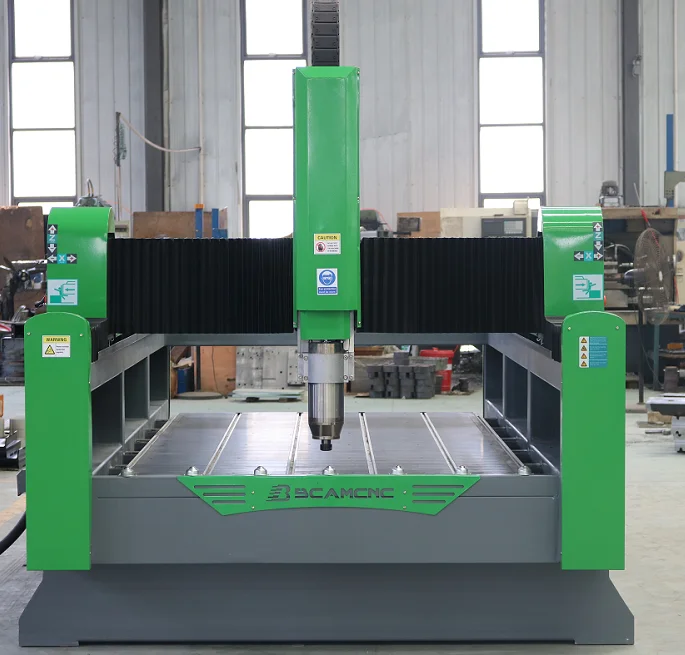

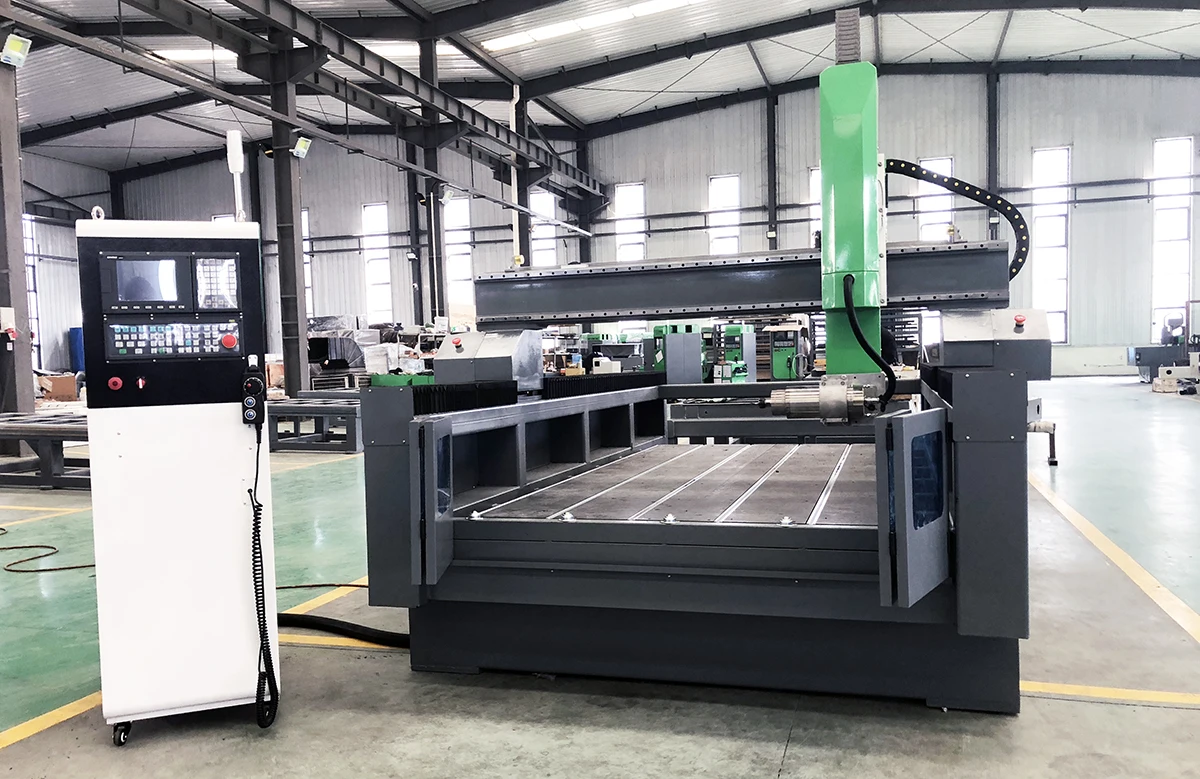

Picture of machine





Packaging & Delivery

Packaging Detail: water-proof paper on machine and standard plywood box

Delivery Detail: 15 days after received your payment





Description

CNC stone engraving machine1325:

1. 5.5KW water cooling spindle

2. Weihong NK105 DSP system

3. Taiwan Hiwin 25 linear guide rail

4.Leadshine M860 stepper motor

5.Fuling inverter

6.stainless steel water tank





Application

Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.





Features

1.The frames is welded by thick-walled rectangular steel and tempered at high temperature

2.No deformation,high rigidity,with over 3 tons of load-bearing frame

3.Taiwan imported rails and sliders,HIWIN,high precision,low noise,durable.

4.Transmission parts are imported rack with high precision and speed.

5.The machine cable and Electrical adopts international famous brand,which makes the machine works in steady and high efficient condition.

6.Unique domestic water circulation system,energy saving and environment protection.

7.Newest design of triaxial enclosed totally,dustproof,waterproof.





Technical Specification

Model	BCS1325
X,Y,Z working area	1300×2500×350mm
Table size	1300×2500mm
Table  structure	vacuum table
X,Y,Z Transmission	X Y axis gear transmission, Z axis Taiwan TBI screw transmission
Guide rail	Taiwan Hiwin 25 linear guid rail
Spindle motor	5.5kw water cooling spindle
Spindle motor power rate	5.5kw
inverter	Fuling inverter
Spindle rotating speed	0-24000rpm/min
Drive motor	Leadshine M860 stepper motor
Max. Speed	35m/min
Working speed	35m/min
Holding down mode	clamp
voltage	380V/50/60hz
Operating system	Weihong NK105 DSP system
Command	G Code
Software	Ucancam software, Artcam software, Option
Interface	USB

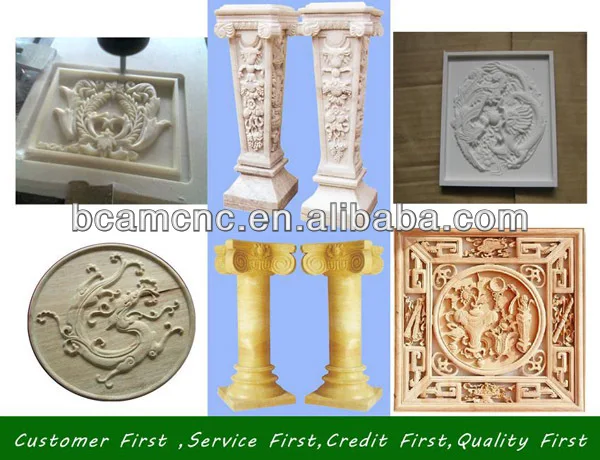

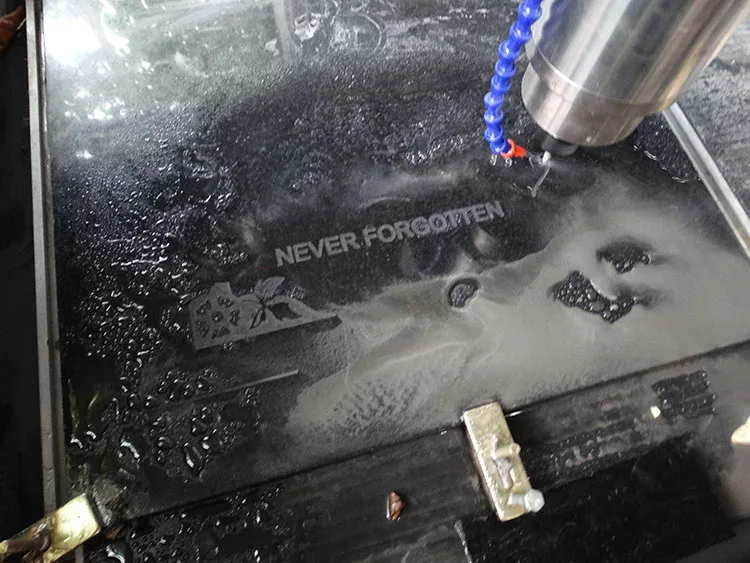

Samples









Why choose bcamcnc ?

1.BCAMCNC product is widely used in almost all the materials which you can think of.

2. BCAMCNC company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.

3.CAMCNC machine with high precision and high reputation is the most reliable goods you can choose.

4.CAMCNC company has all kinds machines in store, the delivery time is much shorter than other companies.

5.BCAMCNC Company has international tech service office and provides 24 hours online service and tech support for customers.

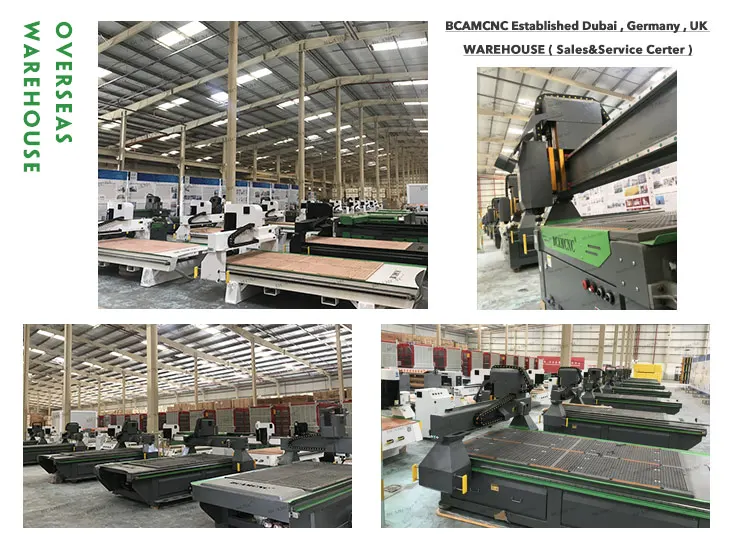

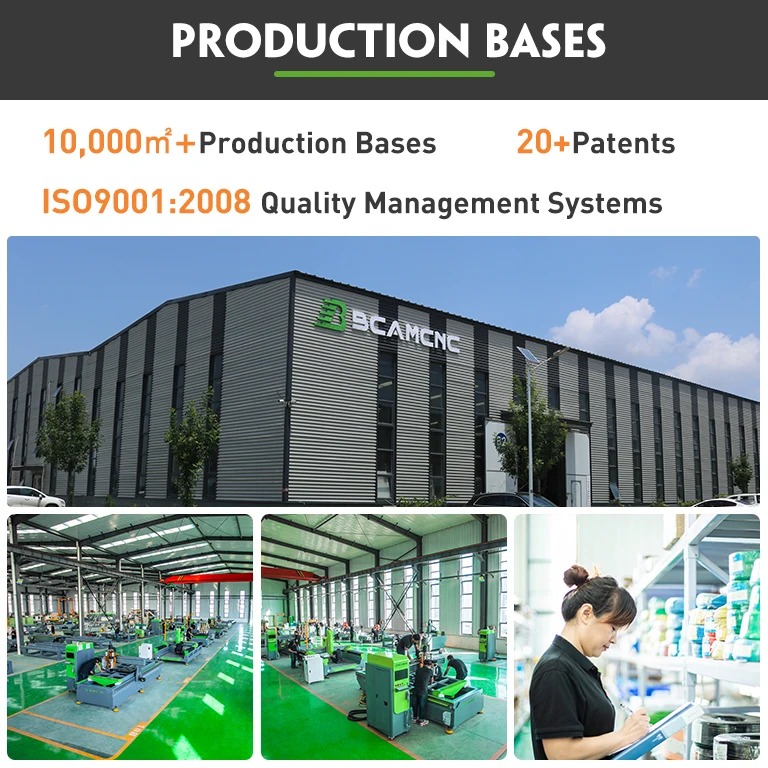

Picture of factory
