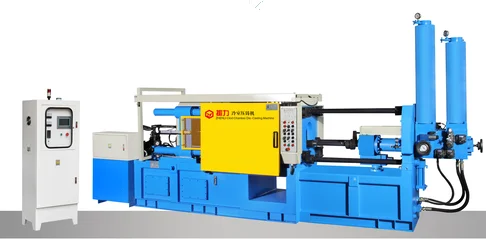

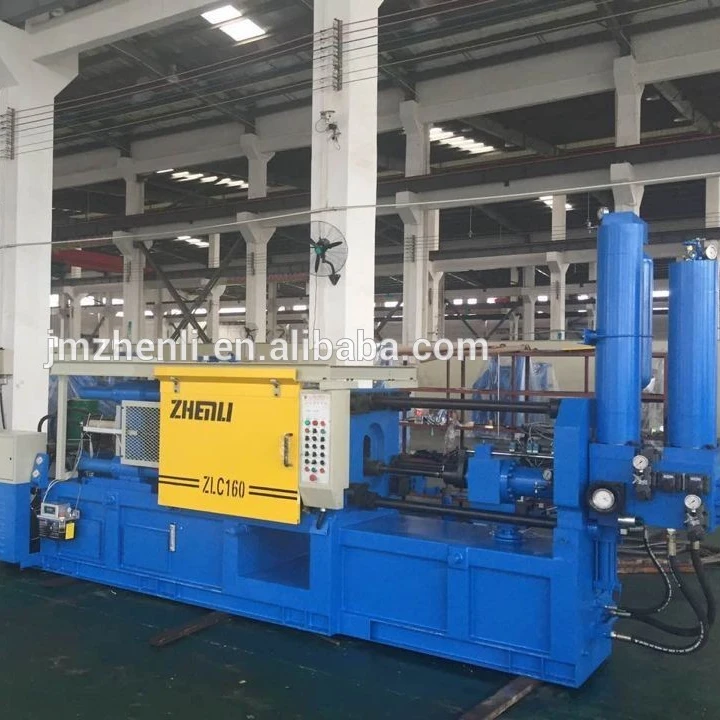

160T die casting machine for making aluminum alloy metal product
- Category: >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (1739974536):
Product Overview
Description
Product Description
cold chamber die casting machine,cast aluminum die casting machine,die casting machine-ZLC-160T.
Advantage
1.Aluminum casting .
2.Aluminum die casting machine .
3.High quality ,adopts precise artificial intelligent computer control .

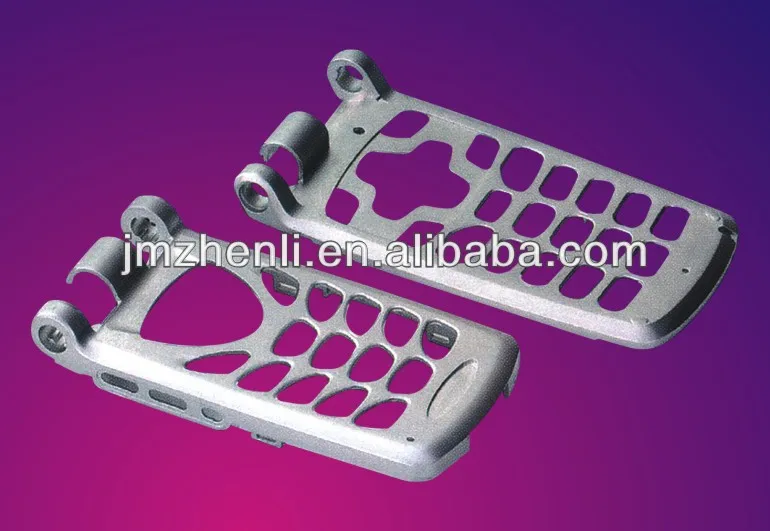

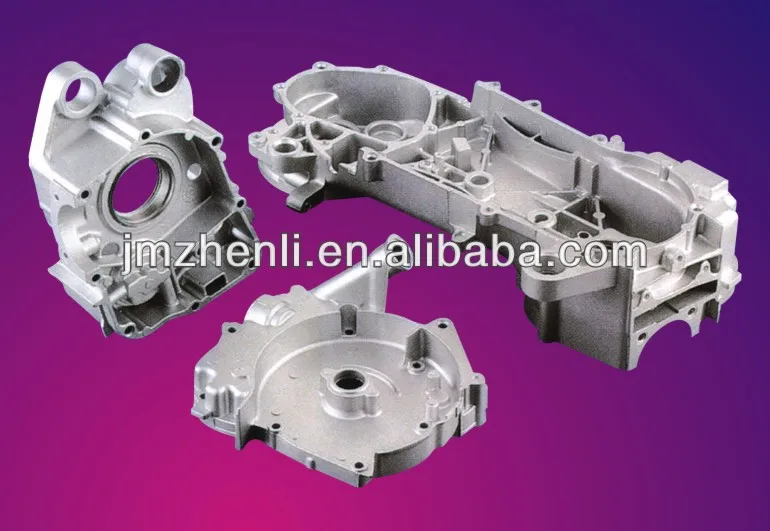

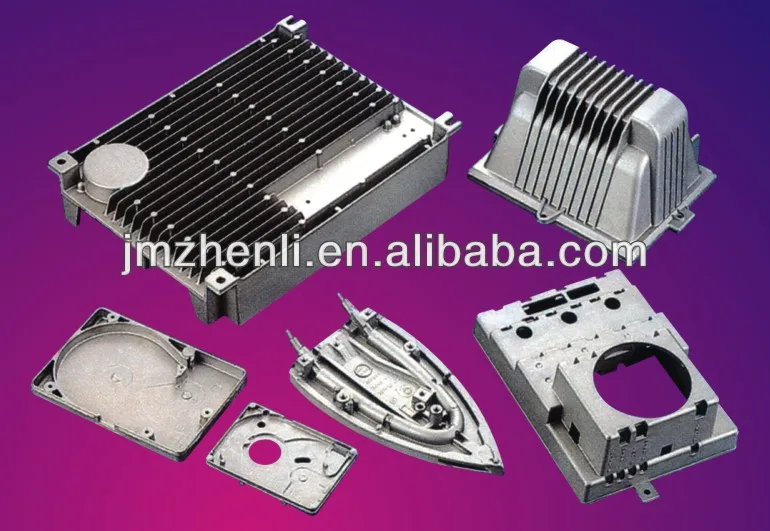

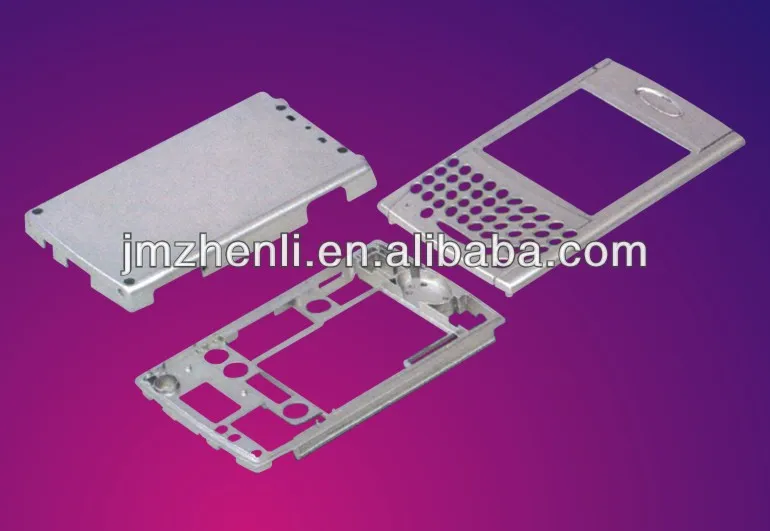

PDA casting General casting General casting Mobile phone cover
The die casting machine structure adopts 3-pull rod or C- shaped bracket plus hydraulic elevator device and satisfies requirements for moulds .
| Items | Unit | Data | |
Die Clamping System | Clamping Force | kN | 1600 |
| Die Campling Stroke | mm | 380 | |
| Ejection Force | kN | 110 | |
| Ejection Stroke | mm | 85 | |
| Die Heigh (Min-Max) | mm | 200-550 | |
| Platen Size (H ×V) | mm | 670 ×720 | |
| Distance between Tie Bars | mm | 460 ×460 | |
Injection System | Injection Position | mm | 0, -70, -140 |
| Injection Stroke | mm | 340 | |
| Casting Force (Intensification) | kN | 250 | |
| Plunger Diameter | mm | 50, 60, 70 | |
| Injection Weight (AI) | kg | 1.3, 1.8, 2.1 | |
| Casting Pressure (Intensification) | MPa | 127, 88, 75 | |
| Casting Area | cm² | 125, 180, 212 | |
| Max Casting Area (40MPa) | cm² | 400 | |
| Diameter of Plunger Sleeve Flange | mm | 110 | |
| Hight of Plunger Sleeve Flange | mm | 10 | |
| Plunger Penetration | mm | 120 | |
| Others | Driving Motor | kW | 15 |
| Hydrualic Working Pressure | MPa | 14 | |
| Oil Tank Capacity | L | 480 | |
| Machine Dimension (L ×W ×H) | mm | 5500× 1400×2650 | |
| Machine Lifting Weight for Reference | T | 7 |

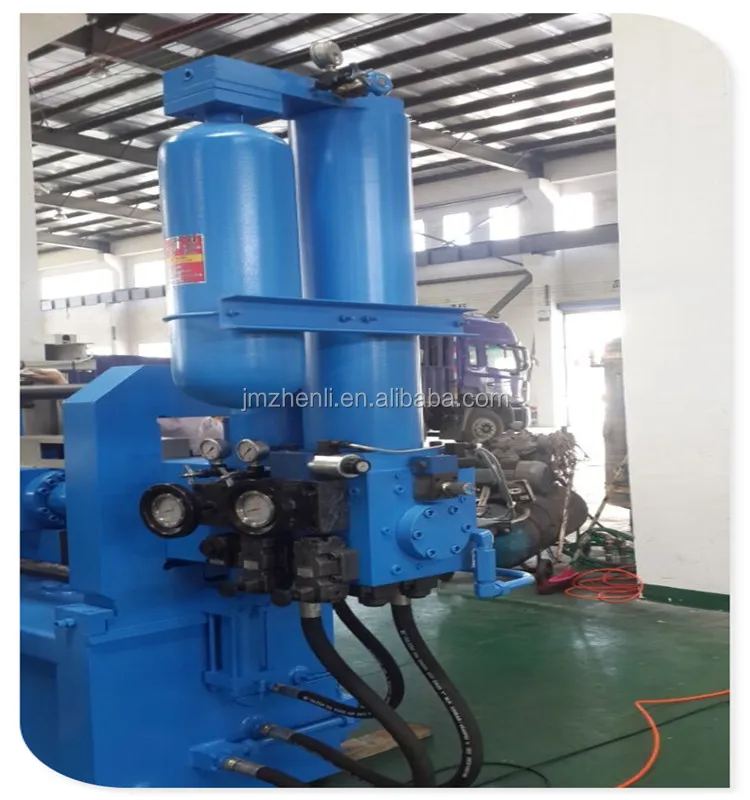

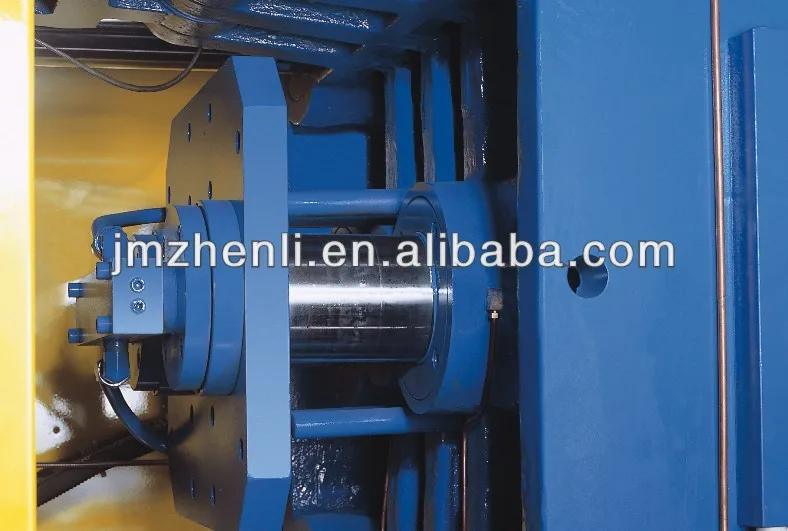

The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.

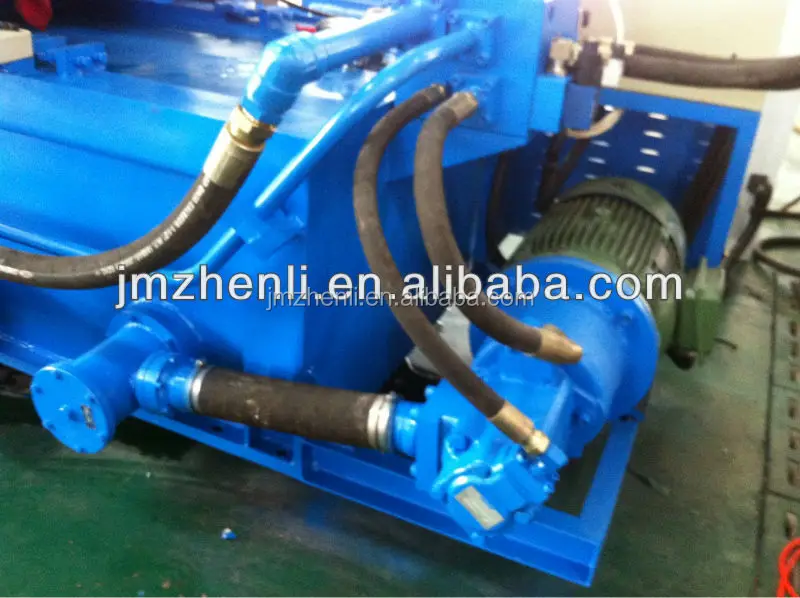

Adopts high and low pressure twin pump with high performance and low noise,saves energy consumption and improves production efficiency .

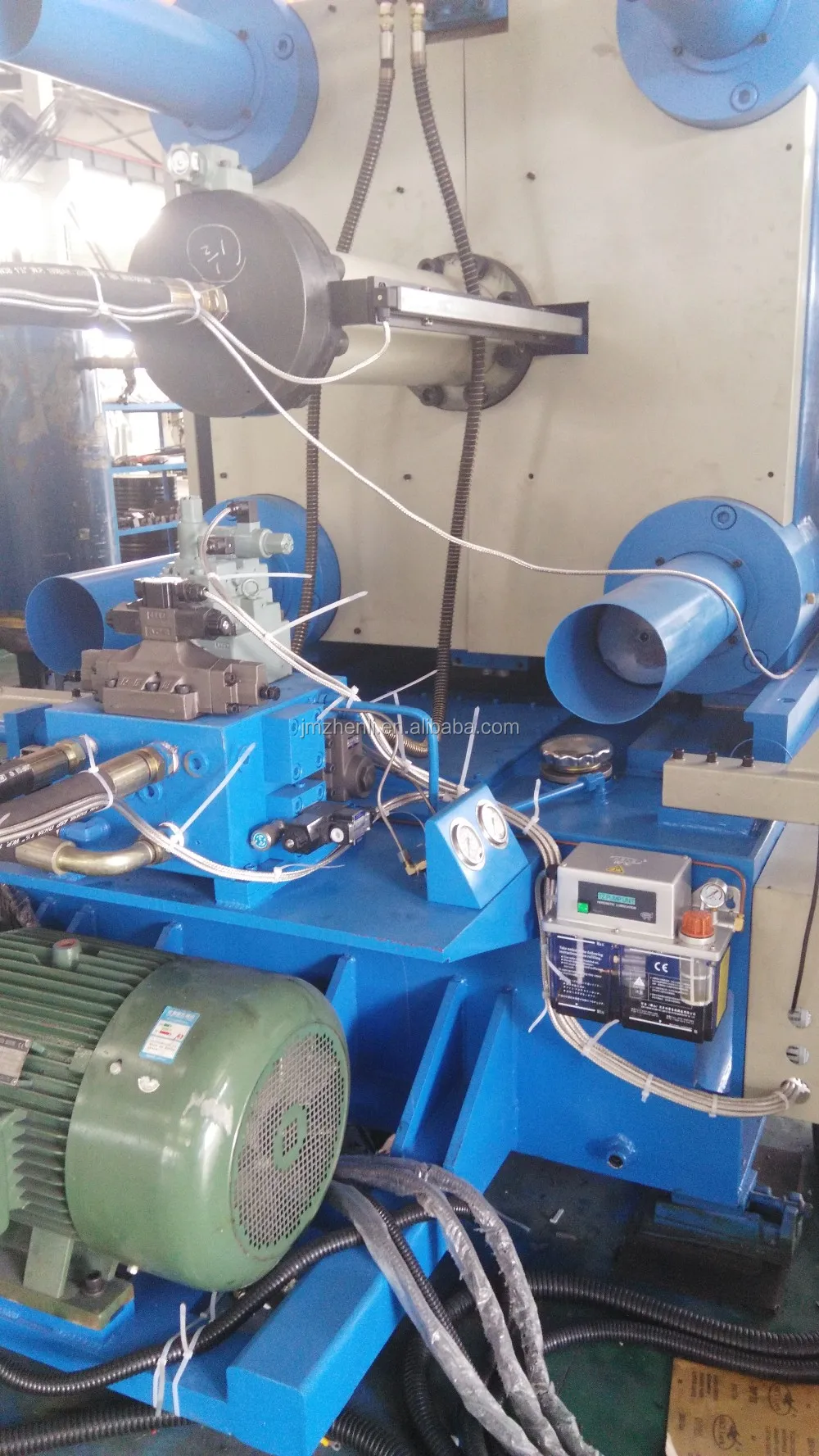

Adopts automatic concentrated lubrication system ,directly sets lubrication for times of machine operation and improves service life of the machine and decrease repair .

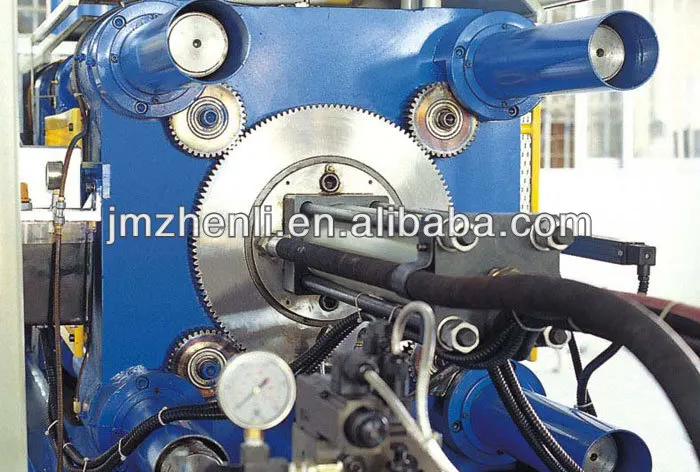

The planetary wheel system adopts oil motor to drive the gear mould adjusting machine structure which is easy to operate ;owns intelligent automatic mould adjusting program ,precisely calculates the mould locations ,which is convenient for mould replacing and improves efficiency .
The hydraulic ejector is convenient for control with adjustable ejecting speed .
The hydraulic main system adopts double proportional control ,which is convenient for adjusting the pressure and speed of every movement in the operation .The outlay precise suction filter ensures the hydraulic system of cleanness and decreases weariness of the hydraulic components .
Appliances control:
1.Adopts precise artificial intelligent computer control,can control and supervise the data
and status of every movement,which is convenient for operation and maintenace .
2.The large screen LCD monitor can realize conversion between Chinese and English.
3.Its powerful memory can store 100 sets of moulding data ,such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc
4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .
5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.
Packaging & Shipping
Our Services
when the machine arrival your destination port,we will appoint one technician go to your factory, commissioning the machine for you. until the machine normally produce your product,generally, 3days is ok. by the way, our technician can training your worker for free.
