BS 1018RH TTMC Band Saw Machine with M42 Saw Blade, Belt Driven Horizontal Band Saw
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1740543571):
Product Overview
Description
Product Overview

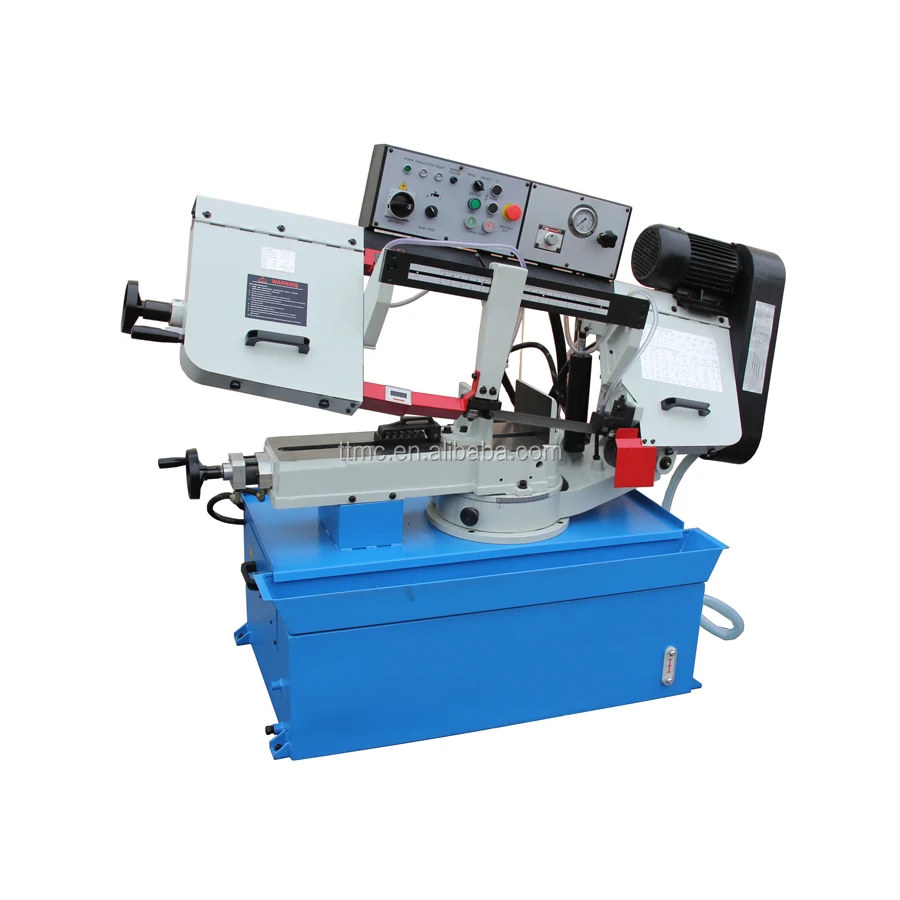

TTMC Belt Driven Band Saw BS-1018RH
Heavy duty metal cutting band saw, swivel saw frame miter up to 45 degrees, hydraulic clamp
FEATURES AT A GLANCE
2 hp motor runs on 3 phase power
10” round maximum capacity at 90°.
Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.
Swivel frame miters up to 45°.
4 cutting speeds ) allow you to fine-tune the saw for better cut quality.
Hydraulic descent pressure controlled by a panel located on top of the bow.
Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.
Comes standard with a flood coolant system to wash away metal chips, help blades last longer, and reduce expenses.
10” round maximum capacity at 90°.
Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.
Swivel frame miters up to 45°.
4 cutting speeds ) allow you to fine-tune the saw for better cut quality.
Hydraulic descent pressure controlled by a panel located on top of the bow.
Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.
Comes standard with a flood coolant system to wash away metal chips, help blades last longer, and reduce expenses.
PRODUCT SPECIFICATIONS
Item No. | 388117 |
Model | BS-1018RH |
Cut circular @90° | 254 mm 10" |
Cut rectangular @90° | 160x406 mm 6.3"x16" |
Cut circular @45° | 170mm 6.7" |
Cut rectangular @45° | 160x190 mm 6.3"x7.5" |
Blade speed @50HZ | 29,50,73,95 MPM |
Blade speed @60 HZ | 35,60,88,115 MPM |
Blade size | 27x0.9x3215 mm |
Motor power | 1.5 kW |
Drive | V-belt |
Packing size | 189x78x143cm |
N.W./G.W. | 420/533 kg |
