best price 16ton 20ton 25ton 30ton 35ton diesel forklift 20 ton new forklift price with high quality

Product Overview

Description

Best price 16ton 20ton 25ton 30ton 35ton diesel forklift 20 ton new forklift price with high quality





Product Advantages:

1. Reasonable structure layout; simple maintenance,high power Steyr engine

2. Streamlined design, fluency, harmony and elegance in shape

3. The short turning radius and load sensing hydraulic power steering system

4. The design with the man-machine engineering principle reduces operator fatigue and stress

5. No harmful gas released  and is nice for the environment protection and energy saving

6. Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service



Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5-25tons
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- High power and efficiency brand-name engine
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs
- Optional A/C and heating for operator comfort in any working environment



Product Parameter:

Standard Specification of 14-25T Diesel Forklift
Model	FD140	FD160	FD180	FD200	FD250
Power Type	Diesel
Load capacity / KG	14000	16000	18000	20000	25000
Load center / MM	1250
Max lifting height /MM	4000		3000
Operator type	Driver/Seat
Tire type	Pnenumatic
Turning raduis / MM	5300	5300	5600	5600	6000
Overall Dimension(L*W*H)/MM	8180*2530*3880		8870*3025*3515	8770*3025*3515	8850*3025*3100
Tilt range/Mast forward/backward /DEGREE	6/12	6/12	3/10	3/10	3/10
Lifting Speed MM/S	300	300	250	200	200
Max travelling Speed KM/H	30	30	25	25	25
Max Gradeability   %	30	30	25	25	25
Truck weight   / KG	23000	25000	26000	30000	35000
Tire Number / front/rear	12.00-24-18PR		14.00-24-18PR	14.00-24-24PR	14.00-24-32PR
Wheelbase   / MM	3800		4200
Engine Model	WD615.67G3-29		WD615.67G3
Engine Rated Output   / KW	147/2200		162/2200
Max Rated torque / N.M	779			843
Transmission   Gear No./Front/Rear	4/3
Transmission   Type	Electric Shift
Note: Two stages free lift mast is configurated to the FD250

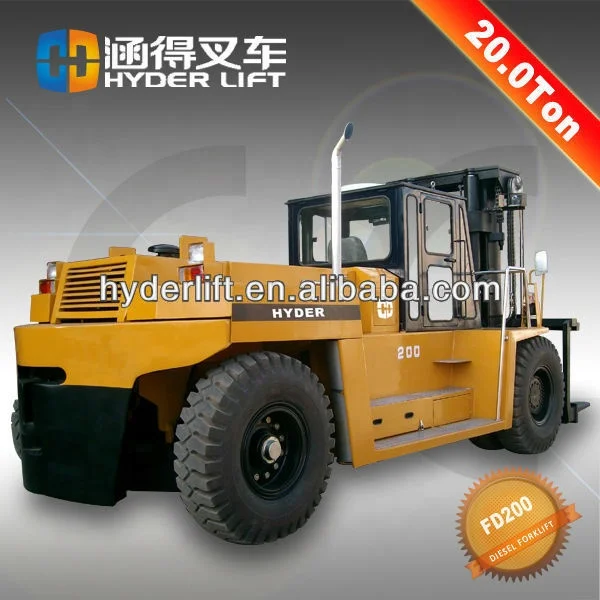

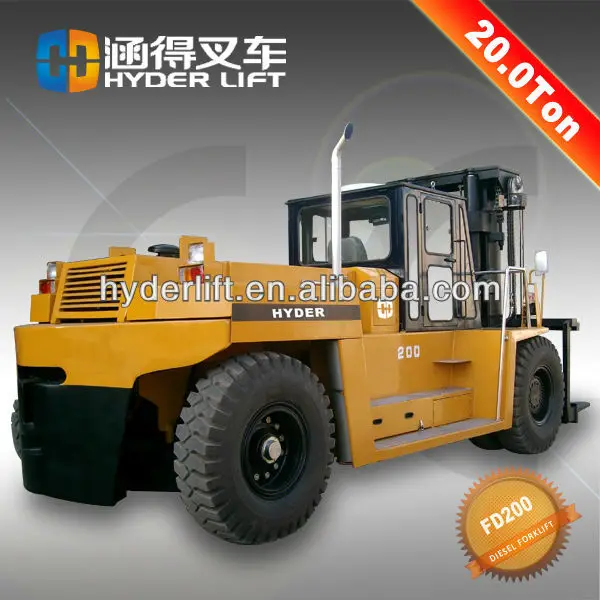

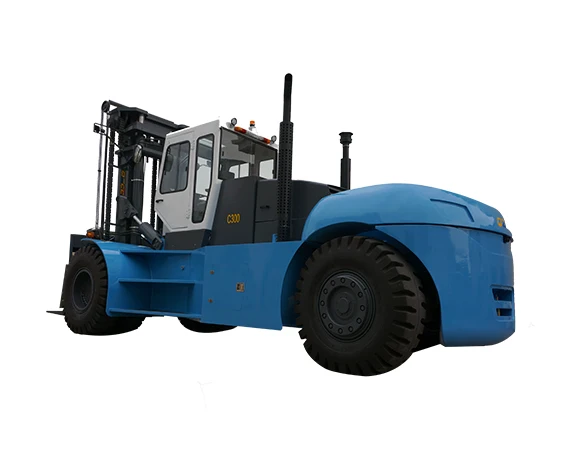

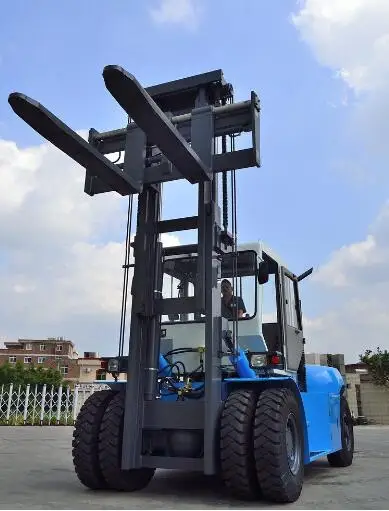

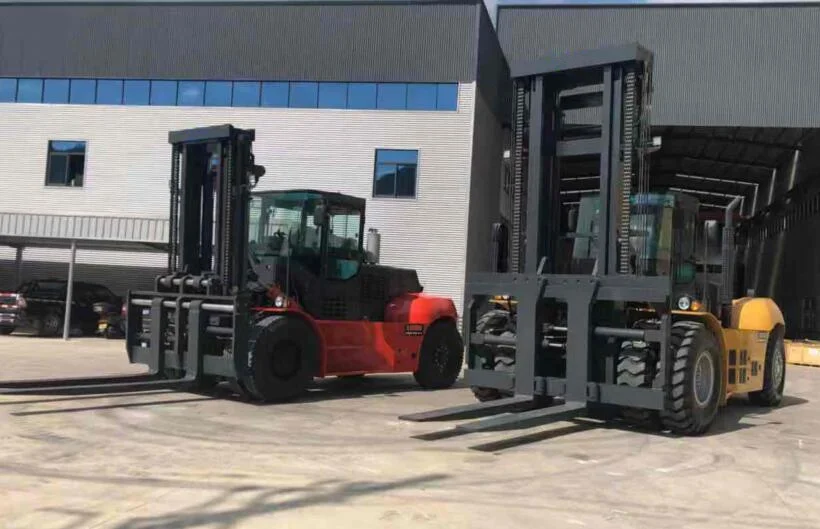

 Product Picture:

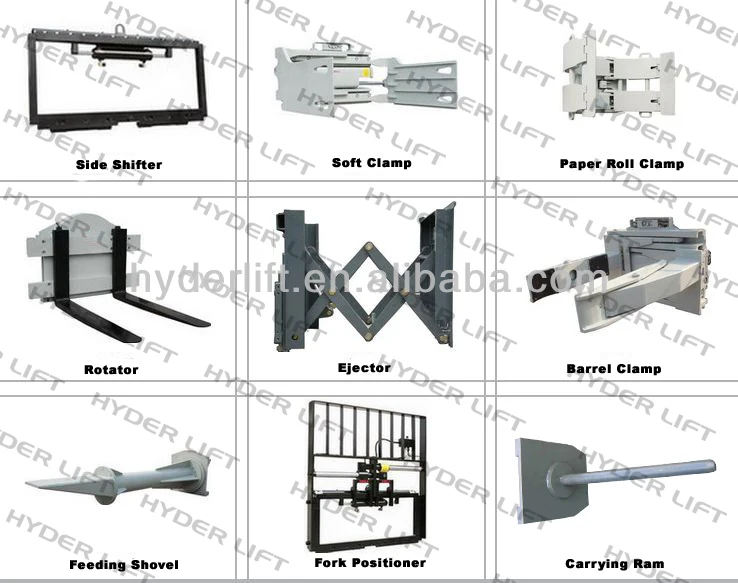

 Attachment:

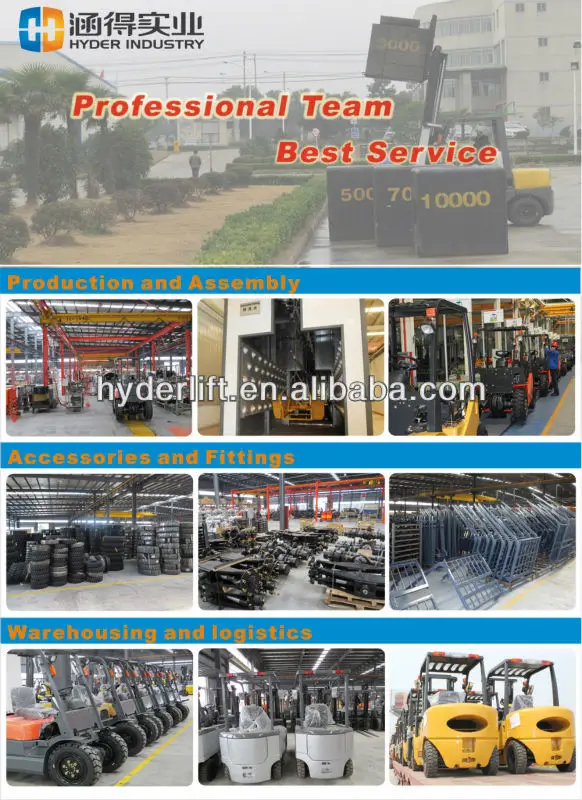

Our Factory:





Options:

As a professional manufacturer of forklift, we also can offer you customized service,

the following items are optional:

Tires: Pneumatic and Solid tire

Mast: 2 stage mast,2-stage full free mast,3-stage full free mast

Transmission: Mechanical and Hydraulic transmission for options

Types:1.5ton-20ton diesel forklift,2ton-4ton gasoline/LPG forklift and 1ton-4ton electric forklift are available

Attachment: Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp,barrel clamp and so on



For the details of customized configurations and options, please contact with us.

HYDER professional service will be impressed on you





Hyder, Your Delivery Effective Resource!
