Features
1.High efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2.Large dust capacity,because the filter media adopts the ultrathin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3.Aluminum frame can anticorrosion for long time.
4.Sealant around the media prevent the air filter is without any air leaking.
5.Hepa filter with metal screens,prevent the media is without any damage.
6.Light weight for easy to install.

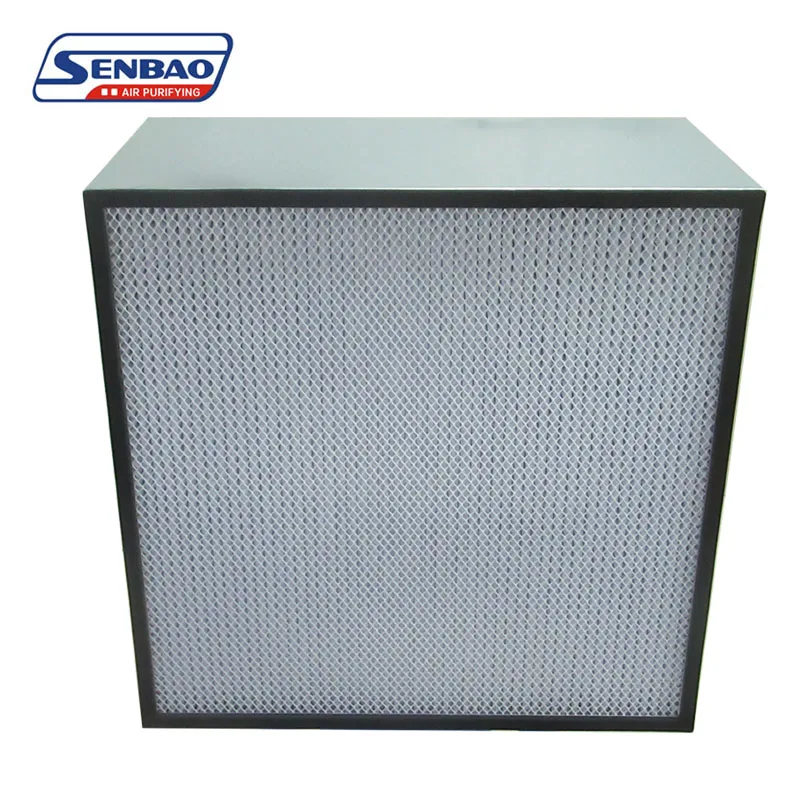

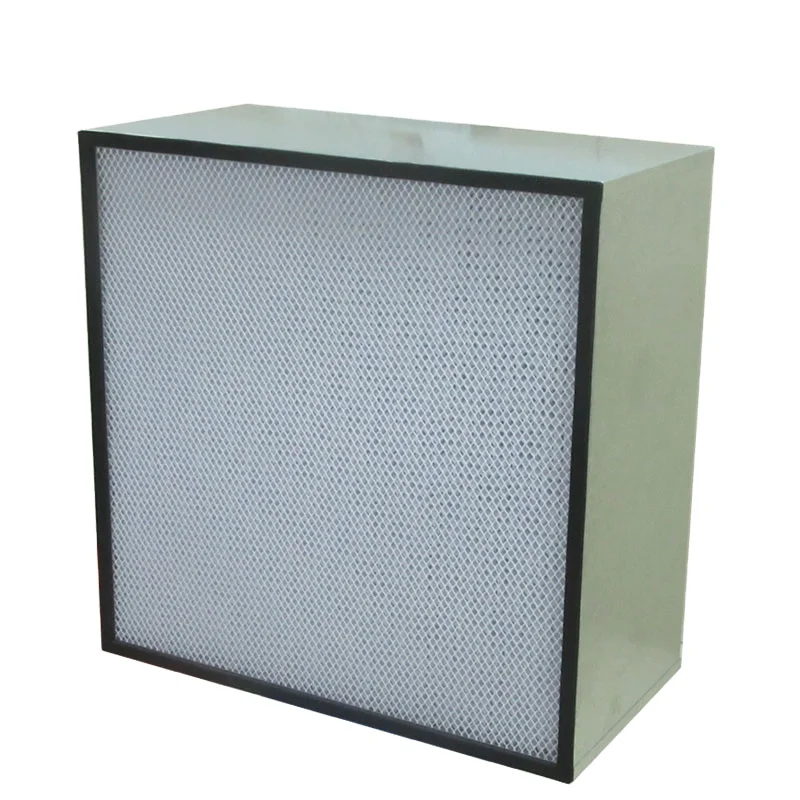

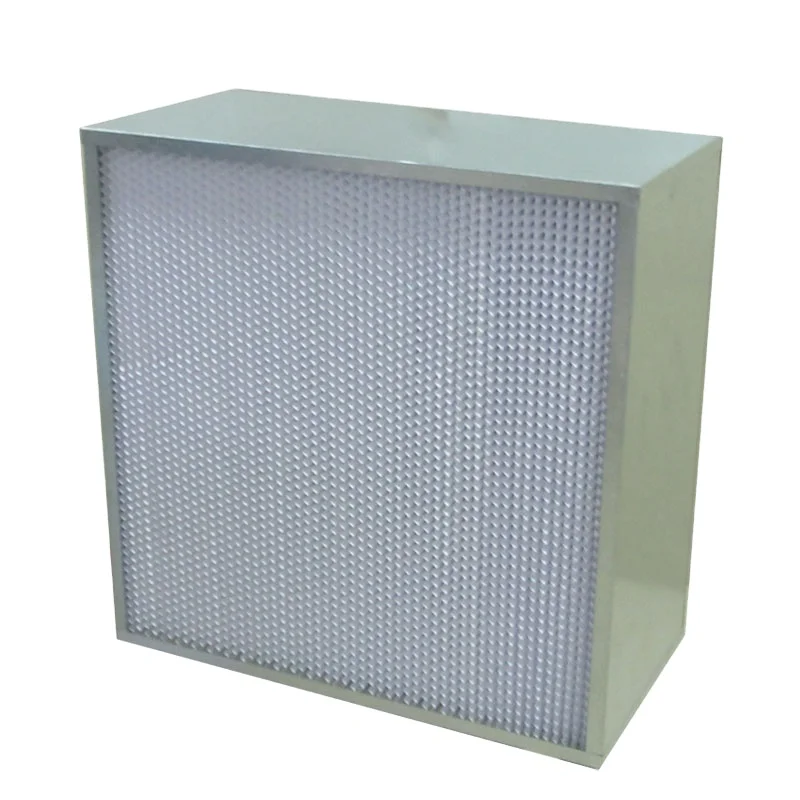

Product Images


Material and Performance
Frame Material | Aluminum |
Filter medium | Glass fiber paper,pp fiber |
Sealant | Polyurethane |
Separator | Paper/Aluminum foil |
Partition | Hot melt adhesive |
Max. humidity | 80%RH |
Max. temperature | 80°C |
Specification &Technical Parameter
Model | Nominal Size WxHxD (inch) | Actual Size WxHxD(m) | Rated Airflow(m³/h) | Initial Resistance (pa) | Efficiency (Colorimetric Method) |
GA | 12 x12 x 8-7/8 | 305x305x220 | 800 | ≤220 | ≥99.95% (H13/H14) |
GA | 24 x 24 x 5-7/8 | 610x610x150 | 1000 | ||
GA | 36 x 24 x 5-7/8 | 915x610x150 | 1500 | ||
GA | 48 x 24 x 5-7/8 | 1220x610x150 | 2000 | ||
Special size can be customized | |||||


Senbao Purifying introduces advanced manufacturing equipments, imported high-quality filter materials. Together with strict manufacturing process control system and rich application experience of years, they make our products favored by both domestic and foreign customers.

We are leading air filter manufacturer in China! We are one of the first mover for air filters business in China! Just enjoy our First-class quality and VIP service when you choose us!! We committed to do the world's most influential suppliers for air filter!
