Mechanical Seals 35mm/50mm/75mm Emu Pump Shaft Seal to Suit WILO EMU Pumps

Share on (1741554460):


Price:

Quantity:


Product Overview

Description



 Mechanical Seals 35mm/50mm/75mm Emu Pump Shaft Seal to Suit WILO EMU Pumps






Operational Conditions:



  1. Replacement seals to fit Wilo EMU pumps and Tsurumi pumps, Shaft size: 30mm, 35mm, 40mm, 50mm, 60mm, 75mm

  2. Pressure: Medium Pressure Mechanical Seals

  3. Speed: General Speed Mechanical Seal

  4. Temperature: General Temperature/Cryogenic/Deep Freeze

  5. Performance: Wear

  6. Standard: Specifically Customized

  7. Model NO.: Multiple Fully Customized Seals for WILO

  8. Balance: Unbalanced


Materials:



  • Stationary Ring: Ceramic, Silicon Carbide, TC

  • Rotary Ring: Carbon, Silicon Carbide

  • Secondary Seal: NBR, EPDM, PTFE

  • Spring and Metal Parts: Steel

  • 3. Seat Type:

  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids





Performance Capabilities


























































Temperature-40℃ to 200℃, dependent on the elastomer
PressureUp to 8 bar
SpeedUp to 18 m/s
End play/axial float allowance±0.1mm

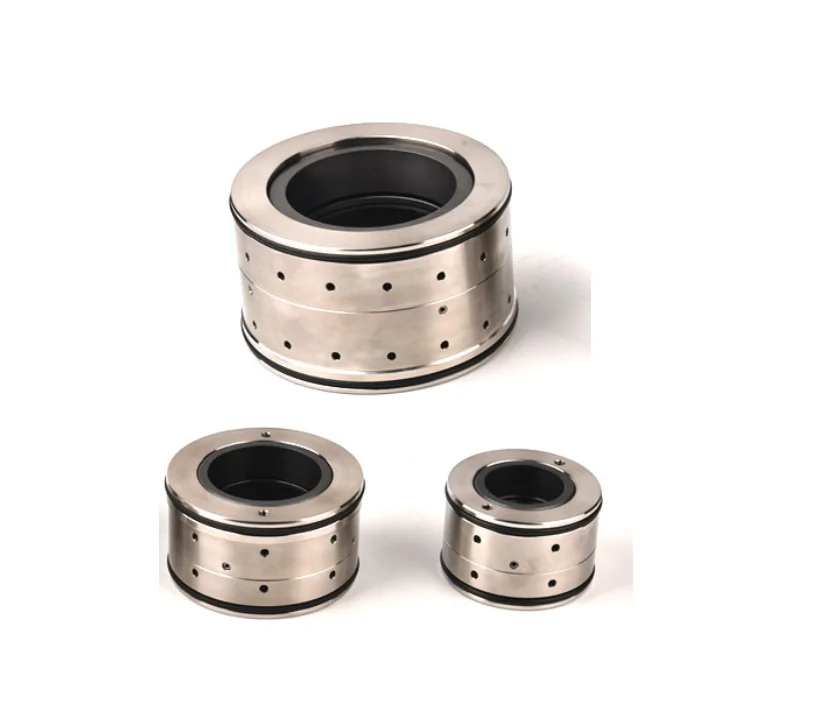

Size35mm,50mm,75mm
BrandJR
FaceCarbon, SiC, TC
SeatCarbon, SiC, TC
ElastomerNBR, EPDM, VI etc.
SpringSS304, SS316
Metal partsSS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.




  • Multiple Fully Customized Nonstandard Mechanical Seals for WILO (replacing original products of WILO)


    Structural Features: single end, unbalanced, independent direction of rotation. These 4 components were fully customized for WILO pumps.


    Industrial Standards: Specifically Customized


    Scopes of Application: used within WILO pumps.

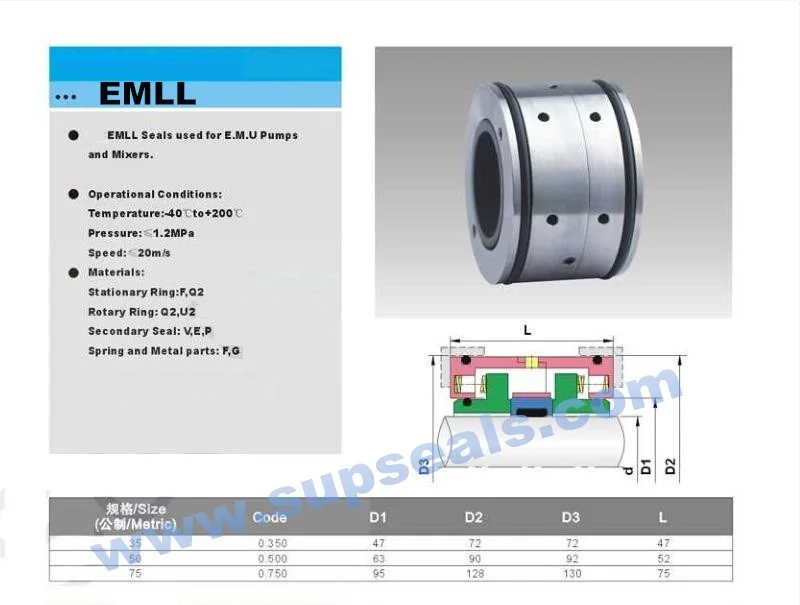

mechanical seal emll.jpg


EMU mechanical Seal  (1).jpgEMU mechanical Seal  (1).pngEMU mechanical Seal  (2).jpgEMU mechanical Seal  (2).pngEMU mechanical Seal  (3).jpg

we are  engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

These are available with various material finishes such as carbon, TC ceramic, silicon carbide.

you can check my website://supseals.en.made-in-china.com/



At the meantime, we could manufacture seals according to your sample or
 drawing, and design as your request.


With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal,
cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.

Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good
 insulation property, anti-toxic, good air-permeable, etc.





All ranges of mechanical seals for Flyg-t Pumps, Grund-fos Pumps, Pumps, AP-V Pumps, G-rindes Pumps, Fristam, A-BS, All-eeiler, E-MU, GEA Tun-chenhagen, God-win, Hid-rostal, Hil-ge, Johns-on, Lo-wara, Wauk-esha, Vog-elsang Pumps etc



Welcome to quote for more details.





-












we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to
 Ningbo or Shanghai airport directly. All our clients, from home or abroad,
are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to q
uality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal
or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps,
Compound & homogeneous pumps, Homogeneous & emulsification pumps
and so on. Please kindly visit our website: www.supseals.com
