Hot Sales network Cat5/Cat5e/Cat6/Cat7/ UTP/FTP/STP/SFTP cable for Network system

Product Overview

Description

Hot Sales network cat 8 cable 24AWG Cat5/Cat5e/Cat6/Cat7/ UTP/FTP/STP/SFTP for Network system has the advantage of high mechanical trength,good ambient stress resistance,good electrical propertie and anti-chemical corrosion.  These cables are used by horizontal subsystem in the LAN premises distribution system, being used for the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor interlayer, to make the cable support the application of voice, data, text, image, video, etc.



1.  Max. transmission frequency:  Cat3: 16MHz;  Cat5/Cat5e: 100MHz; Cat6: 250MHz

2. Conductor: Solid bare copper; Cat3/Cat5: 0.5mm; Cat5e: 0.52mm; Cat6: 0.60mm

3. Insulation:   HDPE (High Density Polyethylene)

4. Sheath:  PVC

5. Standard applied:  ISO/IEC11801, TIA/EIA 568B



6. Remark: The cable can be of flame retardance, fire resistance and other property

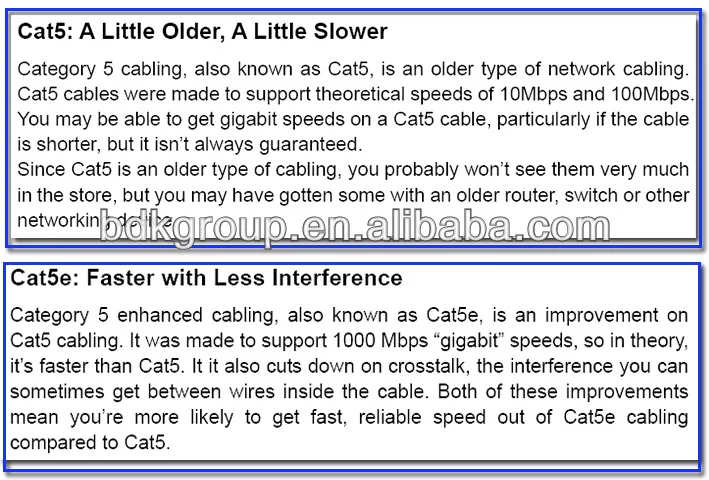

Difference between Cat5 and Cat5e

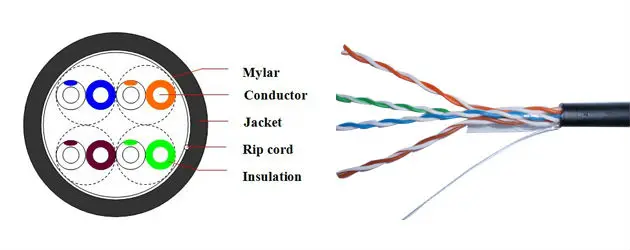

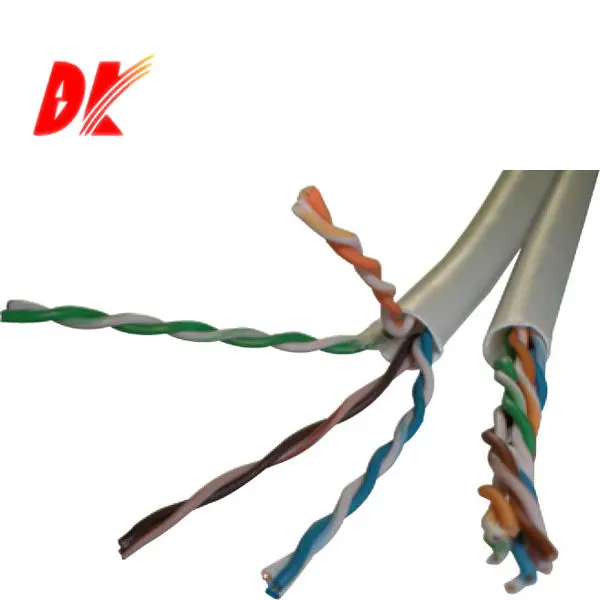

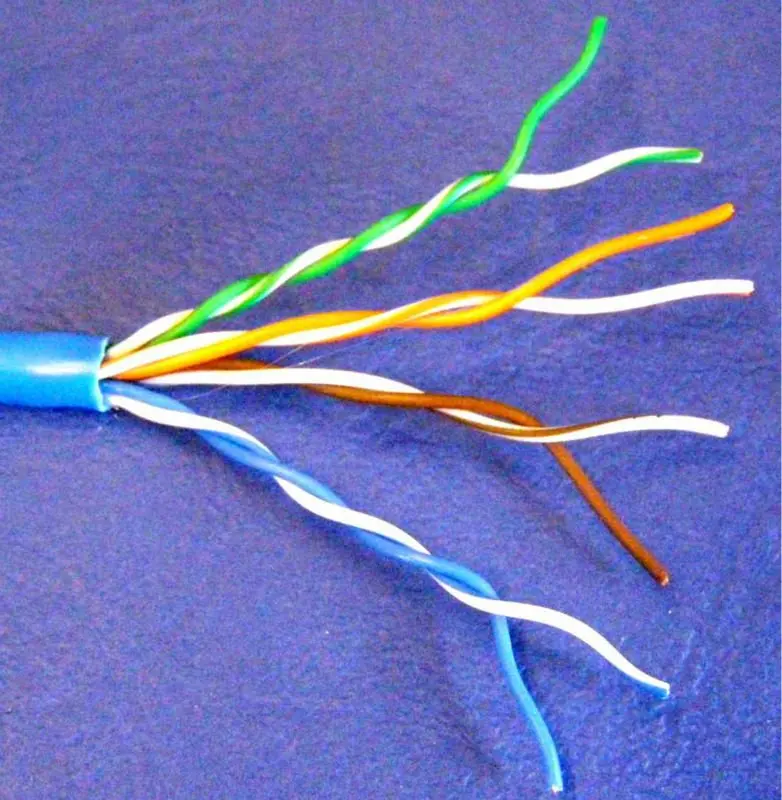

Photo Display









Specific Parameter





Main manufacturing procedure:

Copper wire drawing and annealing --> Copper wire stranding --> Outer sheath extruding and labeling --> Spooling

Main Quality Inspection Equipment:

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial discharge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.

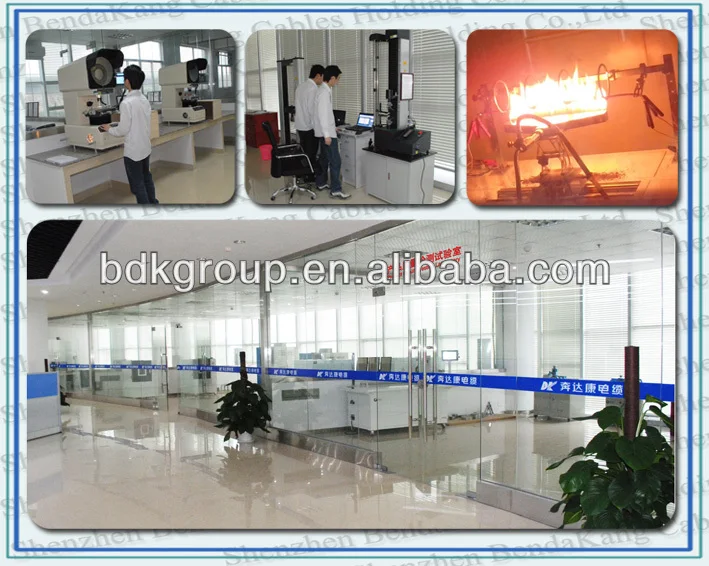

Quality Control

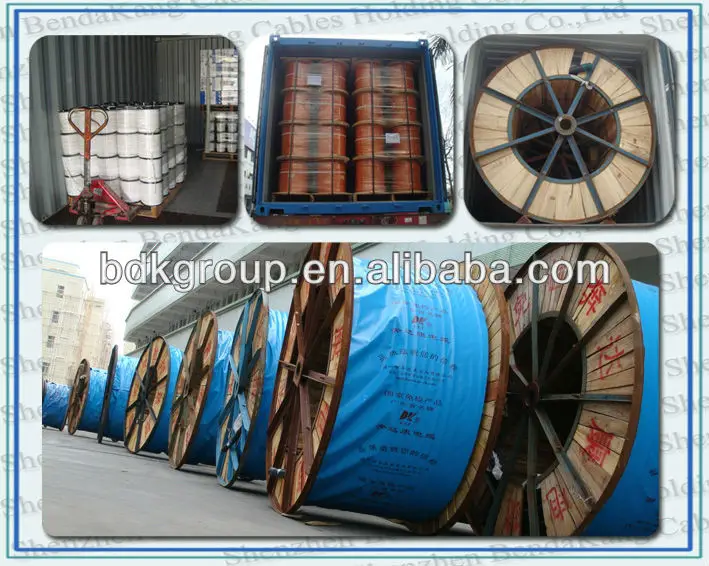

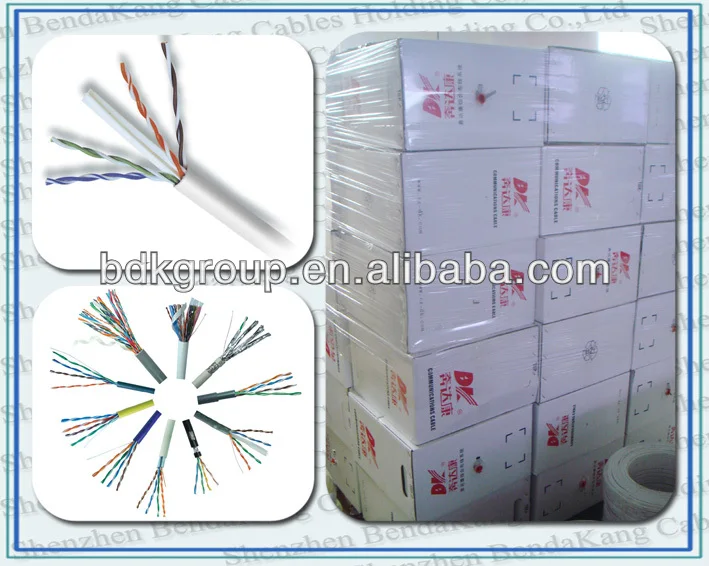

Shipment Photos









Customers Activity

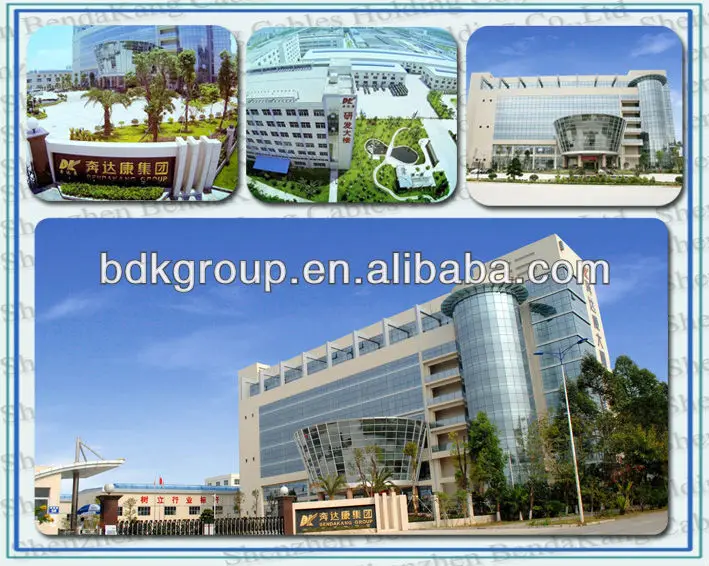

Company Overview









Certificates







If you would like to get more information, please directly to contact us immediately.
